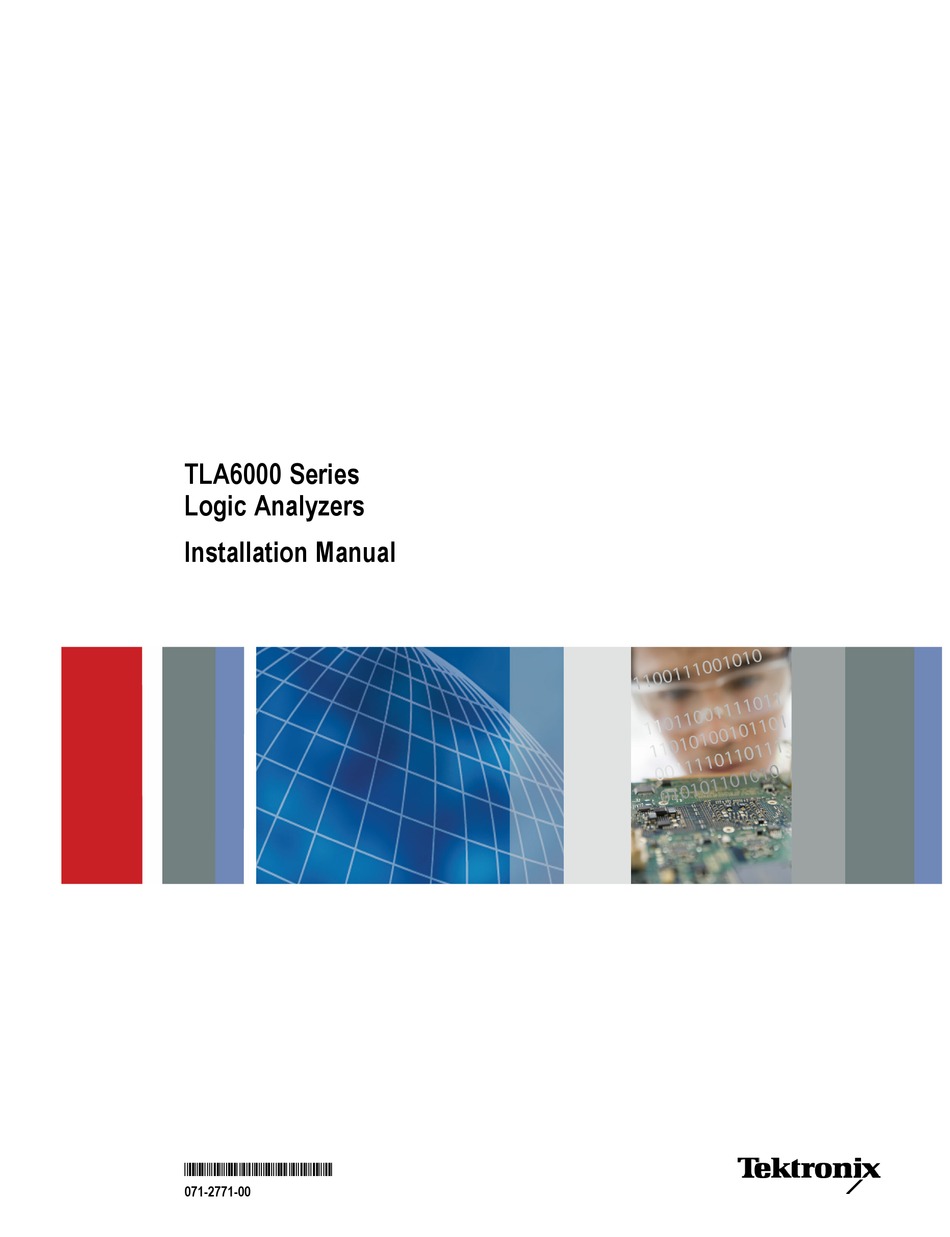

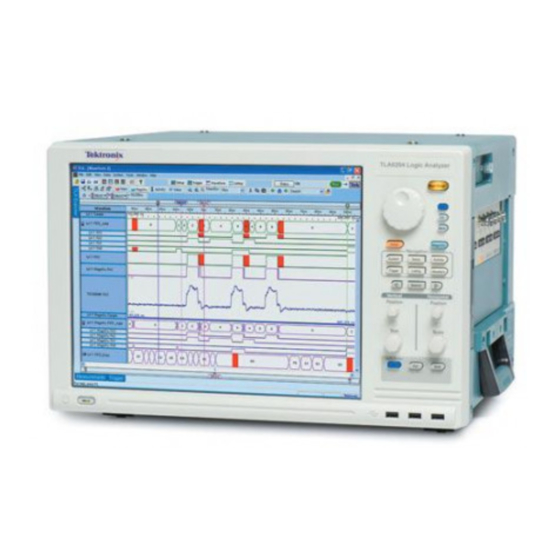

- Page 1 TLA6000 Series Logic Analyzers Installation Manual *P071277100* 071-2771-00...
- Page 3 TLA6000 Series Logic Analyzers Installation Manual www.tektronix.com 071-2771-00...
- Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
- Page 5 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
- Page 6 In order to obtain service under this warranty, Customer must notify Tektronix of the defect before the expiration of the warranty period. If Tektronix is unable to provide a replacement that is free from defects in materials and workmanship within a reasonable time thereafter, Customer may terminate the license for this software product and return this software product and any associated materials for credit or refund.
-
Page 7: Table Of Contents
Reinstalling the TLA Application Software ............... Installing the TLA Application Software on a PC ............Calibrate the Touchscreen ................... Install Other Software ..................Upgrading or Restoring Firmware ................Appendix A: User Service Procedures ................Service Offerings ..................... TLA6000 Series Logic Analyzers Installation Manual... - Page 8 Software Problems ..................Hardware Problems ..................Network Connection Problems ................. Check for Common Problems ................Repacking for Shipment ..................Appendix B: Accessories and Options ................Accessories ....................Options......................Appendix C: Network Installation Site Survey..............Index TLA6000 Series Logic Analyzers Installation Manual...
- Page 9 List of Figures Figure i: TLA6000 series logic analyzer............... Figure 1: Location of the ground connection on the logic analyzer .......... Figure 2: Accessories connections ................Figure 3: Connecting probes to the logic analyzer.............. Figure 4: On/Standby switch location................Figure 5: Accessing the replaceable hard disk drive ............
-
Page 10: General Safety Summary
Avoid exposed circuitry. Do not touch exposed connections and components when power is present. Use proper fuse. Use only the fuse type and rating specified for this product. TLA6000 Series Logic Analyzers Installation Manual... - Page 11 DANGER indicates an injury hazard immediately accessible as you read the marking. WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. The following symbol(s) may appear on the product: TLA6000 Series Logic Analyzers Installation Manual...
-
Page 12: Service Safety Summary
Use Care When Servicing With Power On. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. TLA6000 Series Logic Analyzers Installation Manual... -
Page 13: Compliance Information
For compliance with the EMC standards listed here, high quality shielded interface cables should be used. Performance Criterion C applied at the 70%/25 cycle Voltage-Dip and the 0%/250 cycle Voltage-Interruption test levels (IEC 61000-4-11). TLA6000 Series Logic Analyzers Installation Manual... -
Page 14: Safety Compliance
Pollution Degree 2. Normally only dry, nonconductive pollution occurs. Occasionally a temporary conductivity that is caused by condensation must be expected. This location is a typical office/home environment. Temporary condensation occurs only when the product is out of service. viii TLA6000 Series Logic Analyzers Installation Manual... -
Page 15: Environmental Considerations
This symbol indicates that this product complies with the applicable European Union requirements according to Directives 2002/96/EC and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the Support/Service section of the Tektronix Web site (www.tektronix.com). TLA6000 Series Logic Analyzers Installation Manual... - Page 16 See www.dtsc.ca.gov/hazardouswaste/perchlorate for additional information. Restriction of Hazardous This product is classified as Monitoring and Control equipment, and is outside the scope of the 2002/95/EC RoHS Directive. Substances TLA6000 Series Logic Analyzers Installation Manual...
-
Page 17: Preface
Preface This manual contains information needed to install your Tektronix logic analyzer and related accessories. To prevent personal injury or damage, consider the following requirements before starting service: The procedures in this manual should be performed only by qualified service personnel. -
Page 18: Documentation
The following table lists related documentation available for your logic analyzer. The documentation is available on the TLA Documentation CD and on the Tektronix Web site (www.tektronix.com/manuals). For documentation not specified in the table, contact your local Tektronix representative. Related Documentation... - Page 19 Verification Procedures performance verification procedures TPI.NET Documentation Detailed information for controlling the logic analyzer using .NET Field upgrade kits Upgrade information for your logic analyzer Optional Service Manuals Self-service documentation for modules and mainframes TLA6000 Series Logic Analyzers Installation Manual xiii...
- Page 20 Preface TLA6000 Series Logic Analyzers Installation Manual...
-
Page 21: Basic Installation
Basic Installation This chapter describes the steps needed to install your Tektronix logic analyzer and related accessories. Check the Shipping List Verify that you have received all of the parts of your logic analyzer using the shipping list and the accessories list. (See page 27, Accessories.) Also check... -
Page 22: Chassis Ground Connections
To reduce the risk of ground-loop noise, ground all of the instruments in the system to the logic analyzer using the ground connections shown. Figure 1: Location of the ground connection on the logic analyzer TLA6000 Series Logic Analyzers Installation Manual... -
Page 23: Connecting Accessories
Basic Installation Connecting Accessories After installing the logic analyzer in the desired location, connect the accessories such as an external monitor, keyboard, and printer. (See Figure 2.) Figure 2: Accessories connections TLA6000 Series Logic Analyzers Installation Manual... -
Page 24: Additional Accessory Connection Information
First slightly tighten screws, then snug each screw to 4 in-lbs (maximum). Under tightening the probe screws can result in intermittence. Over tightening can result in stripped screws. TLA6000 Series Logic Analyzers Installation Manual... -
Page 25: First Time Operation
2. If you have an external monitor, connect the power cord and turn on the monitor. 3. Press the On/Standby switch to turn on the logic analyzer. (See Figure 4.) 4. Wait for the logic analyzer to complete the power-on self tests. TLA6000 Series Logic Analyzers Installation Manual... -
Page 26: Turning Off The Logic Analyzer
This procedure creates a set of restore discs for the Microsoft Windows operating system. After restoring the operating system, use the TLA Application disc to reinstall the TLA application software. (See page 15, Reinstalling the TLA Application Software.) TLA6000 Series Logic Analyzers Installation Manual... -
Page 27: Performing The Incoming Inspection
You can also verify more detailed functionality by running the self-calibration and extended diagnostics. NOTE. Allow the logic analyzer to warm up for 30 minutes before running the self-calibration. TLA6000 Series Logic Analyzers Installation Manual... -
Page 28: Checking The Logic Analyzer Probes (Optional)
To check the mainframe diagnostics not covered by the TLA Application software, run the TLA Mainframe Diagnostics located under the Windows Start menu using the following path: Start > All Programs > Tektronix Logic Analyzer > TLA Mainframe Diagnostics. Exit the TLA Application before running the external diagnostics. -
Page 29: Connecting Probes To The Target System
The logic analyzer connects to the target system through the probes. The logic analyzer probes allow you to connect to the target system in several different ways. For probe-specific connection details, refer to the appropriate probe instruction manual or browse through the Tektronix Web site. TLA6000 Series Logic Analyzers Installation Manual... - Page 30 Basic Installation TLA6000 Series Logic Analyzers Installation Manual...
-
Page 31: Product Overview
External Signal In and External Signal Out, used to receive or send a signal from/to an external source TekLink, used to coordinate trigger signals, input/output signals, and time references between mainframes Accessory connections, such as USB, LAN, and audio/video outputs TLA6000 Series Logic Analyzers Installation Manual... -
Page 32: Figure 7: External Connectors
Product Overview Figure 7: External connectors TLA6000 Series Logic Analyzers Installation Manual... -
Page 33: Restoring And Reinstalling Software
Refer to this section if you need to reinstall your software. These instructions refer only to reinstalling the TLA application software and operating system. To upgrade to a newer TLA application software version, contact your local Tektronix representative. This section also provides information on installing related logic analyzer software on a PC for remote operation or for offline applications. -
Page 34: Change The Bios Settings
3. Use the on-screen instructions to change the BIOS settings; set the CD/DVD as the first boot device. 4. Save the settings by pressing function key F10 and confirm that you want to save the new settings. TLA6000 Series Logic Analyzers Installation Manual... -
Page 35: Reinstalling The Tla Application Software
Install the TLA application software on a PC for the following purposes: Run the TLA application software in the Offline mode. Control a logic analyzer with the same TLA Application Software over a network. TLA6000 Series Logic Analyzers Installation Manual... - Page 36 If you have an older version of the software on the hard disk, the installation program will detect it and ask to remove it. Follow the on-screen instructions to remove the software, answering "Yes" to any prompts. Restart the instrument when prompted and run the Setup.exe program again. TLA6000 Series Logic Analyzers Installation Manual...
-
Page 37: Calibrate The Touchscreen
Use a stylus for the best accuracy. You can also customize some of the functions of your touchscreen in the Touch Screen Properties window. Right-click the selection text to view a description of the function. TLA6000 Series Logic Analyzers Installation Manual... -
Page 38: Install Other Software
Use the following procedure to upgrade the firmware: 1. Exit the logic analyzer application. 2. Click Start > All Programs > Tektronix Logic Analyzer > TLA Firmware Loader. 3. If the Connection dialog box appears, select the instrument that you want to upgrade (typically the Local instrument) and click Connect. - Page 39 Restoring and Reinstalling Software 11. Exit the logic analyzer application. 12. Click Start > All Programs > Tektronix Logic Analyzer > TLA Firmware Loader. 13. If the Connection dialog box appears, select the instrument that you want to upgrade (typically the Local instrument) and click Connect.
- Page 40 Restoring and Reinstalling Software TLA6000 Series Logic Analyzers Installation Manual...
-
Page 41: Appendix A: User Service Procedures
This appendix describes high-level service information and procedures for the Tektronix logic analyzers. Service Offerings Tektronix provides service to cover repair under warranty and other services that are designed to meet your specific service needs. Whether providing warranty repair service or any of the other services listed below, Tektronix service technicians are well equipped to service the logic analyzers. -
Page 42: Preventive Maintenance
(calibrated). This service must be performed by a qualified service technician using the procedures outlined in the appropriate service manual for the Tektronix Logic Analyzer product. Preventive maintenance mainly consists of periodic cleaning. Periodic cleaning reduces instrument breakdown and increases reliability. Clean the instrument as needed, based on the operating environment. -
Page 43: In Case Of Problems
In Case of Problems Review the following sections if you encounter any problems with your instrument. For additional help, contact your local Tektronix Service Representative. Diagnostics The logic analyzer runs power-on diagnostics every time you start the TLA application if the box is checked in the Configuration dialog box. -
Page 44: Hardware Problems
Complete the following steps to start the TLA server: 1. On the logic analyzer, click Start > Programs > Tektronix Logic Analyzer > TLA Server. An icon with a red circle appears in the toolbar. -
Page 45: Repacking For Shipment
Repacking for Shipment If the logic analyzer is to be shipped to a Tektronix service center for repair, attach a tag to the mainframe or module showing the owner’s name and address, the serial number, and a description of the problem(s) encountered and/or service required. - Page 46 Appendix A: User Service Procedures TLA6000 Series Logic Analyzers Installation Manual...
-
Page 47: Appendix B: Accessories And Options
Increase to 32 Mb record length @235 MHz state speed Increase to 128 Mb record length @235 MHz state speed Add general purpose P6810 logic analyzer probes Add Mictor probes Add DMAX P6960 logic analyzer probes Increase speed to 450 MHz state clock TLA6000 Series Logic Analyzers Installation Manual... -
Page 48: Table 7: Power Cords
United Kingdom, IEC320 C13 161-0104-07 Australia, IEC320 C13 161-0104-14 240 V North American, IEC320 C13 161-0104-08 161-0167-00 Switzerland, IEC320 C13 Japan, IEC320 C13 161-A005-00 China, IEC320 C13 161-0306-00 India/South Africa, IEC320 C13 161-0324-00 No power cord TLA6000 Series Logic Analyzers Installation Manual... -
Page 49: Appendix C: Network Installation Site Survey
Network installation information (Provided by IT department) Item Description Value User Name Default password Domain name DNS suffix IP address (Fixed or DHCP) Security requirements Computer naming convention DNS address Proxy Server address RJ45 outlet location/activation Other notes: TLA6000 Series Logic Analyzers Installation Manual... - Page 50 Appendix C: Network Installation Site Survey TLA6000 Series Logic Analyzers Installation Manual...
-
Page 51: Index
Extended diagnostics, 23 creating, 6 External connectors, 11 Restoring the operating Network problems, 24 system, 13 NI-GPIB-USB software, 16 Firmware upgrading, 18 Safety Summary, iv Front panel controls, 11 On/Standby switch, 5 Operating system restoring, 13 TLA6000 Series Logic Analyzers Installation Manual... - Page 52 Standard accessories, 27 User files Support packages backups, 8 installing, 18 User service general maintenance, 21 preventive maintenance, 22 Third-party software, 16 Threshold indicators, 8 TLA application software Warranty repair service, 21 installing, 15 TLA6000 Series Logic Analyzers Installation Manual...
