ETS-Lindgren 6502 Manual

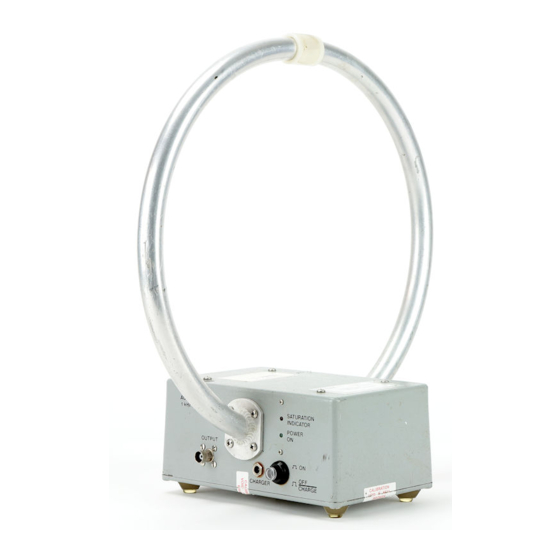

Active loop antenna
Hide thumbs Also See for 6502:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Model 6502

Active Loop Antenna
MANUAL
© EMC TEST SYSTEMS, L.P. – SEPTEMBER 2002
REV E– PN 399058

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6502 and is the answer not in the manual?

Questions and answers

Related Manuals for ETS-Lindgren 6502

Summary of Contents for ETS-Lindgren 6502

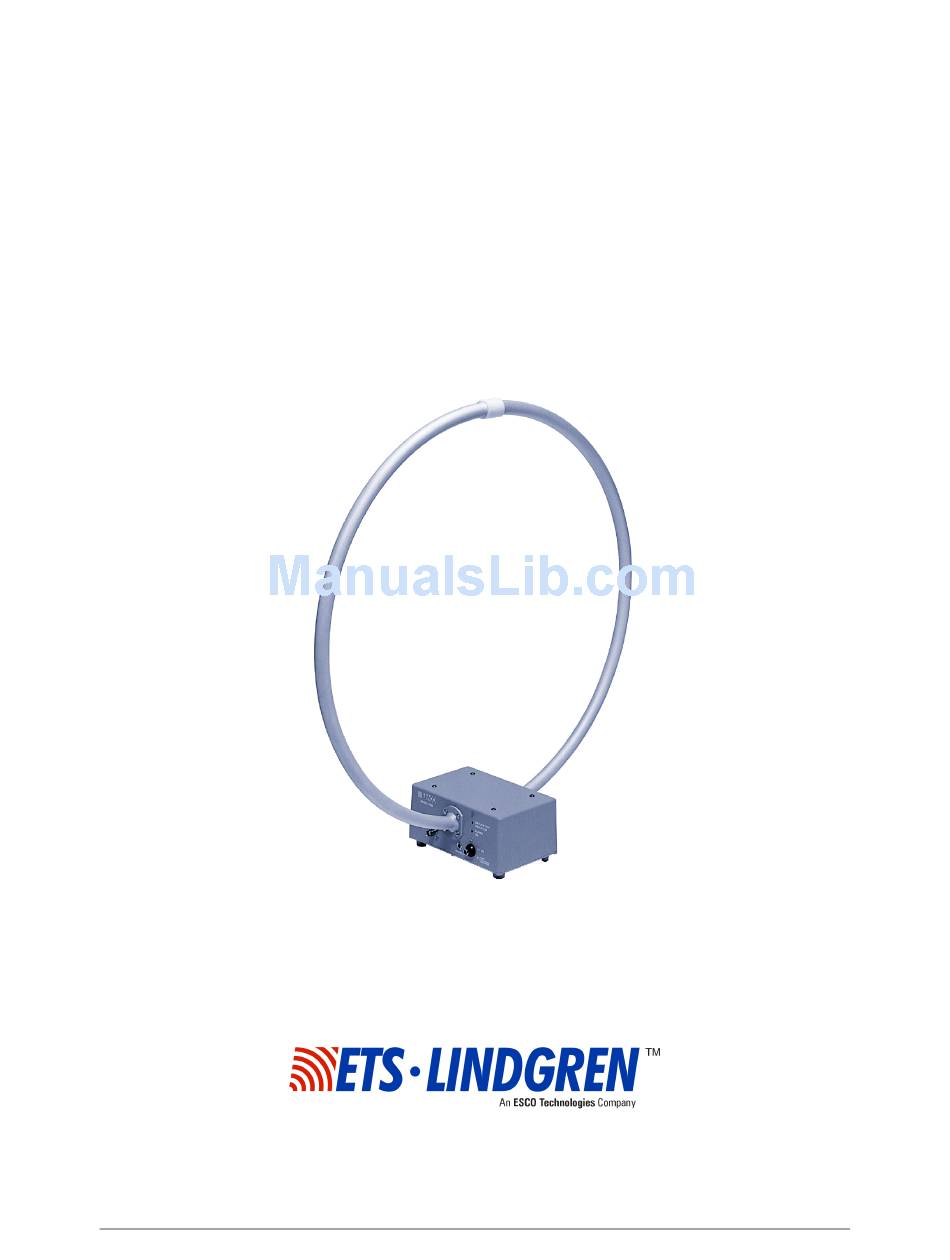

  • Page 1: Model 6502

    Model 6502 Active Loop Antenna MANUAL © EMC TEST SYSTEMS, L.P. – SEPTEMBER 2002 REV E– PN 399058...
  • Page 2 MODEL 6502 ACTIVE LOOP ANTENNA EMC Test Systems, L.P. reserves the right to make changes to any products herein to improve functioning, design, or for any other reason. Nothing contained herein shall constitute EMC Test Systems, L.P. assuming any liability whatsoever arising out of the application or use of any product or circuit described herein.

  • Page 3: Table Of Contents

    MODEL 6502 ACTIVE LOOP ANTENNA Table of Contents INTRODUCTION..........................1 STANDARD CONFIGURATION ......................2 OPTIONS ............................... 2 MOUNTING............................3 OPERATION ............................3 ........................3 ATURATION NDICATOR ..........................3 OWER NDICATOR ........................3 SE OF ALIBRATION TYPICAL DATA............................ 4 CALIBRATION............................. 5 BATTERY CHARGER..........................
  • Page 4 MODEL 6502 ACTIVE LOOP ANTENNA © EMC TEST SYSTEMS, L.P. – SEPTEMBER 2002 REV E – PN 399058...

  • Page 5: Introduction

    Antenna with a frequency range of 10 kHz to 30 MHz. This antenna is specifically designed to perform commercial emissions standards testing. The Model 6502 can be used for any magnetic testing, particularly MIL-STD 461B. A radio frequency preamplifier is built into the base of this loop antenna and provides a 50 ohm output which is used by a receiver.

  • Page 6: Standard Configuration

    MODEL 6502 ACTIVE LOOP ANTENNA STANDARD CONFIGURATION • Antenna assembly • Mounting bracket designed to accept an ETS-Lindgren or other tripod mount with standard ¼ in x 20 threads • Battery Charger • Individually calibrated per IEEE STD 291. Actual individual calibration factors and signed Certificate of Calibration Conformance are included.

  • Page 7: Mounting

    MODEL 6502 ACTIVE LOOP ANTENNA Mounting MOUNTING The Model 6502 is fitted with a mounting bracket threaded to accept a tripod mount with standard 1/4 “ x 20 threads. To mount the loop antenna, thread a ¼” x 20 mounting knob or fixture into the base of the mounting bracket.

  • Page 8: Typical Data

    Typical Data MODEL 6502 ACTIVE LOOP ANTENNA TYPICAL DATA © EMC TEST SYSTEMS, L.P. – SEPTEMBER 2002 REV E – PN 399058...

  • Page 9: Calibration

    BATTERY CHARGER The Model 6502 is powered by two (2) – six (6) VDC sealed lead- acid batteries. A battery charger is supplied with the unit. The battery charging port on the front of the unit allows for easy recharging of the unit.
  • Page 10 Battery Charger MODEL 6502 ACTIVE LOOP ANTENNA automatically by the charger. The front panel indicator marched “Fast Charge” lights when the battery charger is in the fast charge mode. When the “Power On” light is illuminated and the “Fast Charge” light is extinguished, the batter charger is in the trickle charge mode.
  • Page 11 MODEL 6502 ACTIVE LOOP ANTENNA Battery Charger There are two LED’s on the body of the separate battery charger. The “Power On” LED illuminates when the charger is plugged into an AC outlet. (115/230 VAC user selectable). The “Fast Charge”...

  • Page 12: Specifications

    Specifications MODEL 6502 ACTIVE LOOP ANTENNA SPECIFICATIONS ELECTRICAL Frequency Range 10 kHz - 30 MHz Dynamic Range 85 dB @ 10 kHz 125 dB @ 1 MHz Sensitivity (Typical) -1 dB (uA/m) @ 10 kHz -42 dB (uA/m) @ 1 MHz...

  • Page 13: Maintenance

    Maintenance MAINTENANCE To ensure reliable and repeatable long-term performance, annual recalibration of your antennas by ETS-Lindgren’s experienced technicians is recommended. Our staff can recalibrate almost any type or brand of antenna. Please call to receive a service order number prior to sending an antenna to us for calibration.

  • Page 14: Warranty

    Warranty MODEL 6502 ACTIVE LOOP ANTENNA WARRANTY EMC Test Systems, L.P., hereinafter referred to as the Seller, warrants that standard EMCO products are free from defect in materials and workmanship for a period of two (2) years from date of shipment. Standard EMCO Products include the following:...

  • Page 15: European Community Declaration Of Conformity

    MODEL 6502 ACTIVE LOOP ANTENNA European Community Declaration of Conformity EUROPEAN COMMUNITY DECLARATION OF CONFORMITY The EC Declaration of Conformity is the method by which EMC Test Systems, L.P. declares that the equipment listed on this document complies with the EMC and Low-voltage Directives.
