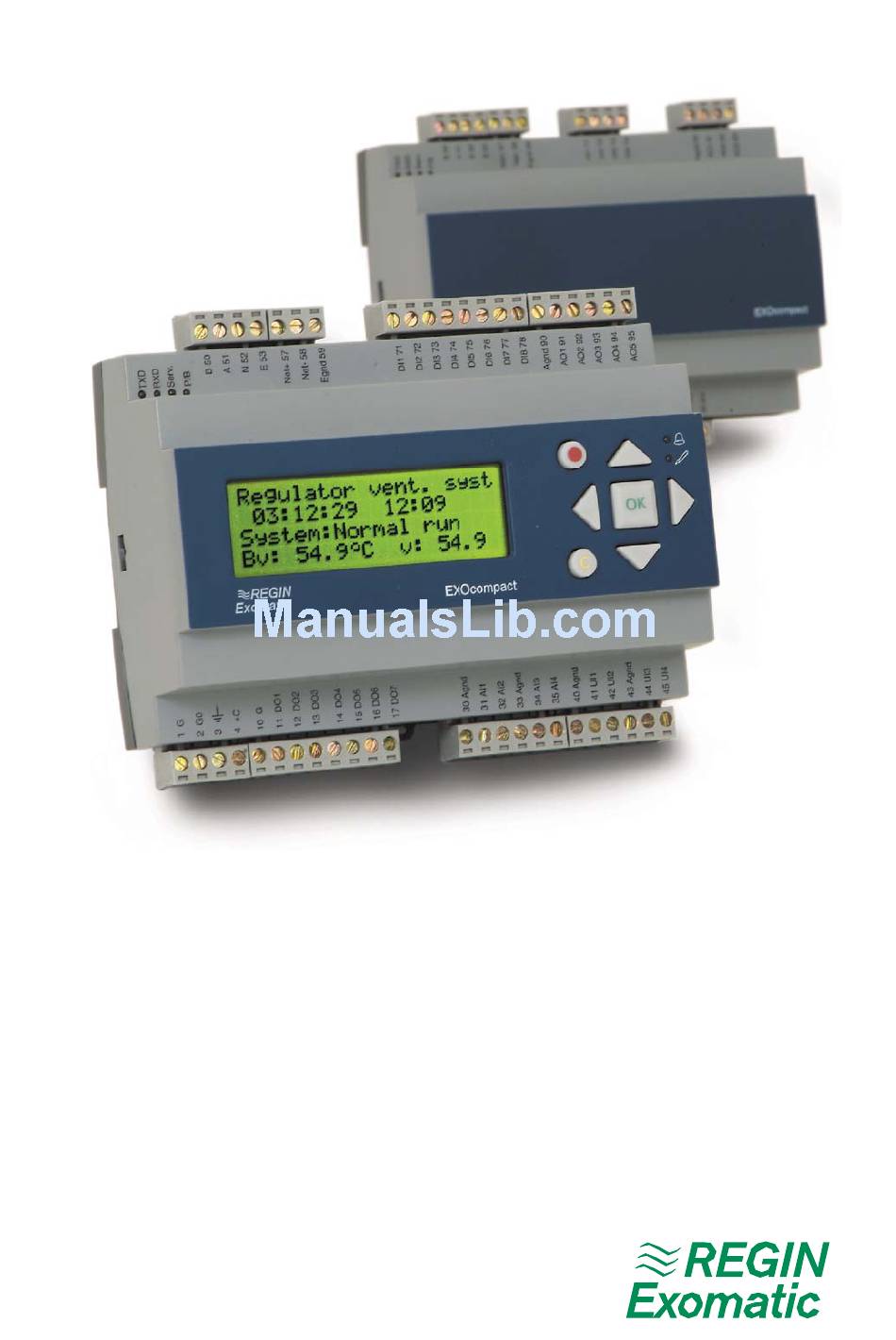

- Page 1 T E C H N I C A L D O C U M E N T A T I O N – E X O c o m p a c t EXOcompact Manual O N E S T E P F U R T H E R . . .
- Page 2 DISCLAIMER The information in this manual has been carefully checked and is believed to be correct. AB Regin however, makes no warranties as regards the contents of this manual and users are requested to report errors, discrepancies or ambiguities to Regin, so that corrections may be made in future editions.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Description Key Features Range of Models AC power supplied models AC or DC power supplied models LON Port Modem Port External Display Environmental Specifications Enclosure Specifications Electrical Specifications Indications AC powered models AC/DC powered models Chapter 2 Connections Chapter 3 Installation General Connections... - Page 4 Chapter 7 External Display, E-DSP Functions Indications Specifications Connections Mounting Chapter 8 Appendix The EMC and LVD Directive Declaration of Conformity...
-
Page 5: Chapter 1 Description
Chapter 1 Description EXOcompact is a range of freely programmable controllers, fully compatible with other products in the EXO system. They can easily be integrated with EXOflex and EXO4 in large automation systems. The range consists of eight different models with different I/O configuration, with or without internal display, and with different communication ports. -
Page 6: Range Of Models
Range of Models The following overview is a list of the units that are described in the following chapters. Other units may exist. Please contact your nearest supplier or Regin for information on the current product range. AC power supplied models... -
Page 7: Ac Or Dc Power Supplied Models
AC or DC power supplied models EXOcompact model: C152D C282D UI, (AI or DI selectable) DO, type mosfet, AC or DC output Sum I/O Yes/Yes Yes/Yes Port 1 (RS485)/ galvanically insulated: Port 2 (RS485)/ galvanically insulated: Yes/No Yes/No Internal Display & keypad 24VDC output (+C) Other features: Support for external display, ED9200,... -
Page 8: Modem Port
The LON technology and configuration of the LON port on EXOcompact is described in the document LON in EXO Systems. Modem Port Externally you can connect Westermo’s TD32B with RS485 connection to Port #1, EXOline. This requires EXO 2005 or later. External Display ED9200 has an alphanumeric display with four lines, each with 20 characters. -
Page 9: Electrical Specifications
Battery Backup Type .......................Lithium, CR2032 Communication ports Port 1 Type ..........................RS485 built-in protocol......................EXOline other protocols....................contact Regin Control signals, RS485......................E Speed ..................configurable, 1200-28800 bps standard ........................9600 bps Galvanic isolation, common mode voltage ............. max. 150 V Description... - Page 10 Port 2 Type..........................RS485 built-in protocol ......................EXOline other protocols ....................contact Regin Control signals, RS485 ......................E Speed ....................configurable, 300-28800 bps standard ........................9600 bps Galvanic isolation if two RS485 ports ...................no Galvanic isolation, common mode voltage ( -T model only) ........max. 150 V LON Port CPU .......................
-
Page 11: Indications
Max load..........................0.1 A Digital Outputs, DO type Triac (see Range of models) Output..........................24V AC Max continuous load ......................0.5 A Max transient load, 50ms ....................1.0 A Update cycle........................50 ms Digital Outputs, DO type Mosfet (see Range of models) Output.........................24V AC or DC Max continuous load ...................... -
Page 12: Ac/Dc Powered Models
Status Indication Designation Color Description Green Port 1, Transmitting Green Port 1, Receiving Serv (-L models) Yellow Service LED LON, commissioning P/B (Power/Battery) Green/Red Power on / Battery error LAN (-T models) Yellow /Green Green: Link to other network equipment Flashing green: Network traffic Flashing yellow: For identifying Controllers with built-in... -
Page 13: Chapter 2 Connections
Chapter 2 Connections General connection diagrams are shown below. For specific models with I/O, including LON, TCP/IP and External Display port, please see the pricelist. Connections for EXOcompact C80. Connections for EXOcompact C150. Connections for EXOcompact C280. Connections... - Page 14 Connections for EXOcompact C152D. Connections for EXOcompact C152DT. Connections for EXOcompact C282D. Connections for EXOcompact C282DT. Connections...
-
Page 15: Chapter 3 Installation
Chapter 3 Installation General Connections AC models with triac DO outputs The general connections of the EXOcompact are illustrated in the figure below: General Connections (EXOcompact C280) Installation... -
Page 16: Exocompact Dual Port - Low Level Exoline
A maximum of 32 controllers is allowed. The communication cable must be well separated from power cables and other possible interfering (EMI) cables. A repeater with isolated power supply (e.g. Repeat485 from Regin) is recommended to prolong the communication distance and number of controllers. I/O Description... - Page 17 Power supply for DC powered models The 24V DC supply, typically a stabilised power supply, is connected to the contacts - (2) and + (1). The - (2) terminal should normally be connected to earth. The EMI earth ( must be connected to the earth rail or similar to protect against disturbances. Each process connection has active transient protection, which is led to the EMI earth ( AI Process Connections The connection of two passive sensors like PT1000 and an active 2-wire transmitter are...
- Page 18 Standard 24 V DC DI Potential free contacts and two wire pressure switches, proximity switches and similar are powered from the +C (4) terminal which supplies +24V DC. This type of input is used for reading off floating (potential free) contacts and are active high.
-
Page 19: Chapter 4 Maintenance And Service
Chapter 4 Maintenance and Service Changing the Battery When the battery indicator is lit, the battery for backup of program memory and the real-time clock has become too weak. The battery is replaced as described below. A backup capacitor saves the memory and keeps the clock running for at least 10 minutes after the power supply is removed. -
Page 20: Resetting The Application Memory
Resetting the Application Memory This procedure may only be carried out by qualified resellers and requires advanced knowledge. The application will be permanently lost after this procedure. To reset the processor’s program memory (application program), use the reset button accessed trough the small hole on the right side of the unit. A tip is to use a paper-clip to access the reset button. -
Page 21: Removing The Cover
Removing the Cover This procedure requires knowledge of proper ESD protection; i.e. an earthed wristband must be used! Tools needed: 2 mm screwdriver. Begin with hooking off the controller from the DIN rail by pressing the DIN lock mechanism down, see picture below. Press the lock down. - Page 22 Bend out and lift off the cover. Maintenance and Service...
-
Page 23: Chapter 5 External Display, Ed9200
Chapter 5 External Display, ED9200 Functions ED9200, external display, is a separate unit for display and configuration that can be connected either to an EXOcompact or to an EXOflex via two different electrical interfaces. The dialog window that is an LCD-Display with background lighting has 4*20 characters. -
Page 24: Indications
Indications The indication LEDs have the following functions: Designation Function Color Power supply. Green Communication. Green There is one or more unacknowledged alarm(s). Flashing There is one or more remaining, acknowledged alarm(s). Fixed red You are in a dialog box where it is possible to switch to Flashing change mode. -
Page 25: Connections
Connections Connection of cable EK12 or EK14 to EXOcompact/Corrigo E is made according to the below picture. At the bottom of EXOcompact, there is an RJ12 modular jack for fast connection. The connection of cable EK12 or EK14 to ED9200 is illustrated in the figure below. The right part of the connection instruction shows how to connect Corrigo E/ EXOcompact. -
Page 26: Door Mounting
Door Mounting Mounting in cabinet door is made by using the supplied drill template, screws and cable inlet. Drill template for door mounting (not to scale). External Display, ED9200... -
Page 27: Chapter 6 External Display, Ed9100
Chapter 6 External Display, ED9100 Functions ED9100, external display, is a separate unit for display and configuration that can be connected either to an EXOcompact or a Corrigo E. The dialog window, which is an LCD-Display with background lighting, has 4*20 characters. -
Page 28: Specifications
Specifications Power supply via communication cable......internal from EXOcompact Display................4*20 alphanumeric characters, LCD character height ......................4.75 mm background lighting..............yes, save mode/active mode Sealing class..............IP41 in basic design, IP65 as option Connection cable..........2 different types with RJ12 fast connector ED9100-3 (corresponds to EK12) ..................3 m ED9100-10 (corresponds to EK14) ..................10 m Maximum cable length is 10 m. -
Page 29: Chapter 7 External Display, E-Dsp
Chapter 7 External Display, E-DSP Functions E-DSP is a separate unit for display and configuration that is designed to be connected to EXOcompact or Corrigo E. The dialog window, which is an LCD-Display with background lighting, has 4*20 characters. The character set is European/Cyrillic. The keypad contains buttons for navigation and configuration with click feeling. -
Page 30: Indications
Indications The indication LEDs have the following functions: Designation Function Color There is one or more unacknowledged alarm(s). Flashing There is one or more remaining, acknowledged alarm(s). Fixed red You are in a dialog box where it is possible to switch to Flashing change mode. -
Page 31: Chapter 8 Appendix
Chapter 8 Appendix The EMC and LVD Directive As of January 1st 1996, all electric/electronic products must be CE marked on delivery from the manufacturer and they must comply with certain requirements specified in the EMC and LVD Directives. The Directives are issued by the EU commission. The EMC (ElectroMagnetic Compatibility) directive describes the ability of a product to operate satisfactorily within its environment without disturbances. - Page 32 Appendix...
- Page 33 Digital inputs 11 I/O description 18 Digital outputs Indications Mosfet 11 ED9100 28 Triac 11 ED9200 25 Disclaimer 2 E-DSP 31 Display Inputs Connections 26 Analog 10 Door mounting 27 Digital 11 Internal 11 Universal 11 Installation 16 Regin Exomatic Resellers...
- Page 34 Internal display 11 Power supply 10 AC powered 18 DC powered 18 LED indication 12 LON port 7 LON-port 10 Range of models 6 LVD 32 Removing the Cover 22 Reset the processor’s memory 21 Resetting memory 21 Maintenance and Service 20 Memory 10 Memory reset 21 Service 20...
- Page 35 Regin Exomatic Resellers...
- Page 36 For information on Regin Resellers, please visit the Regin Website: www.regin.se Appendix...
