4.2.1

Viewing Resource Settings with Device Manager

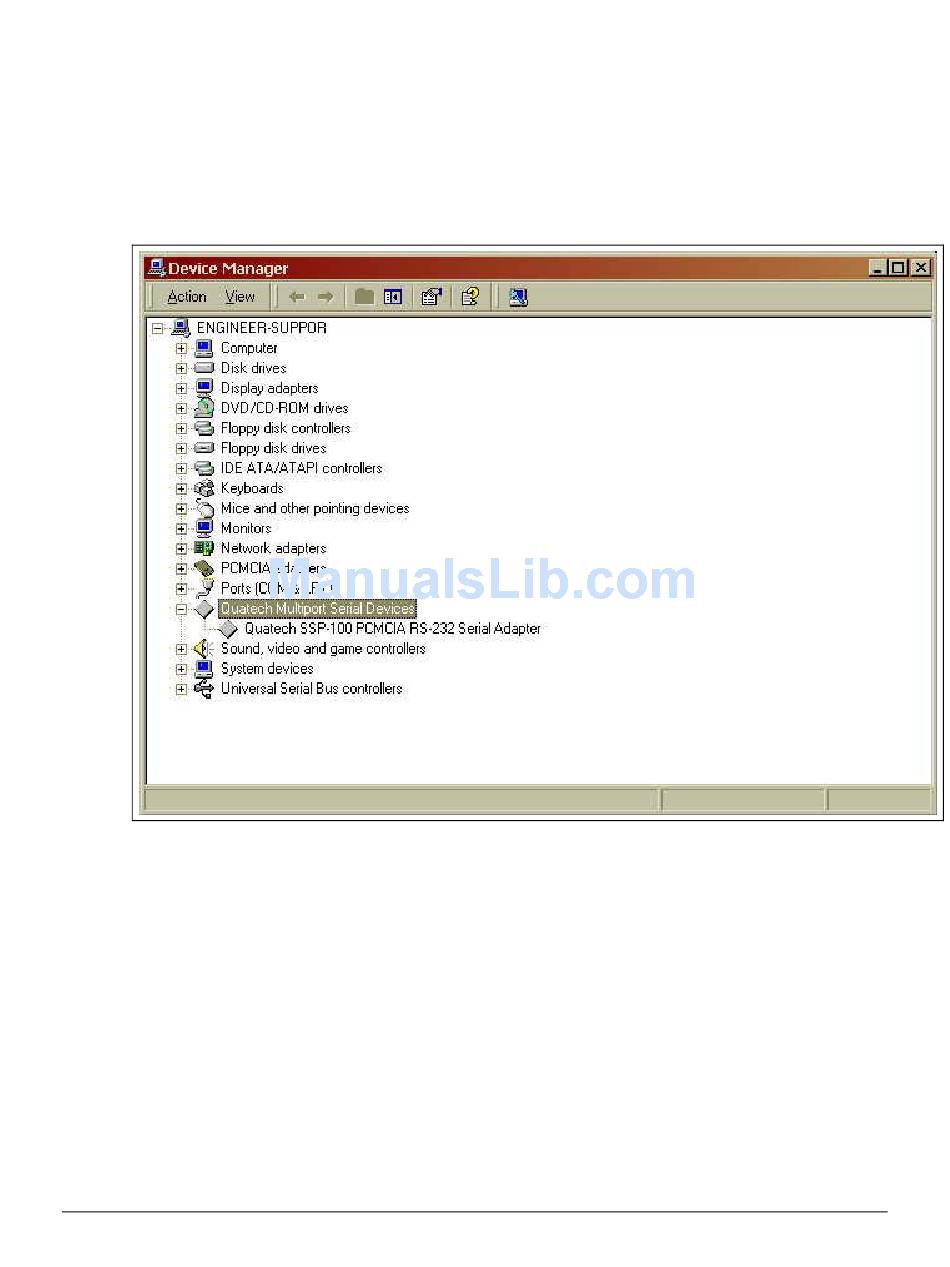

1. Start the Windows 2000 Device Manager.

2. Double click on the hardware class Quatech SSP-100 PCMCIA RS-232 Serial

Adapter to list hardware devices in the class.

3. The SSP-100 "parent device" belongs to this hardware class. The device name for the

SSP-100 is Quatech SSP-100 PCMCIA RS-232 Serial Adapter.

4. Open the Properties dialog for the SSP-100 device, select Resources tab to view the

Input/Output Range and Interrupt Request resource allocations. Examine and

remember the Input/Output Range, then close the properties window.

5. Double click the hardware class Ports (Com and LPT). The Quatech PCMCIA

Serial Port listed in this class is the "child device" of the SSP-100 "parent device."

Windows 2000

4-5
