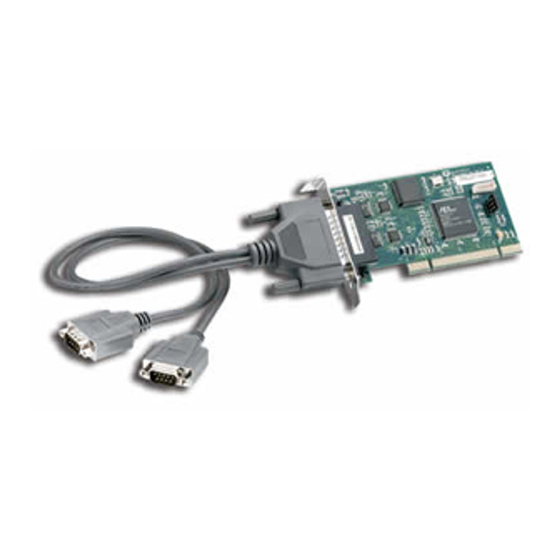

- Page 1 Two Channel Low Profile RS-232 Asynchronous Communications Adapter QUATECH, INC. 5675 Hudson Industrial Parkway Hudson, Ohio 44236 DSCLP/SSCLP-100 for PCI bus User's Manual TEL: FAX: http://www.quatech.com DSCLP/SSCLP-100 User's Manual (330) 655-9000 (330) 655-9010...
- Page 2 Quatech, Inc. warrants the DSCLP-100 or SSCLP-100 to be free of defects for five (5) years from the date of purchase. Quatech, Inc. will repair or replace any board that fails to perform under normal operating conditions and in accordance with the procedures outlined in this document during the warranty period.
- Page 3 In no event will Quatech, Inc. be liable for damages of any kind, incidental or consequential, in regard to or arising out of the performance or form of the materials presented in this document or any software programs that might accompany this document.
-
Page 4: Declaration Of Conformity
Application of Council Directive: Standards to which Conformity is Declared: Type of Equipment: Equipment Class: Product Name: Model Number : Quatech Inc. 5675 Huson Industrial Parkway Akron, Ohio 44236 (USA) 89/336/EEC * EN50081-1 (EN55022, EN60555-2, EN60555-3) * EN50082-1 (IEC 801-2, IEC 801-3, &... -
Page 5: Table Of Contents
1 General Information 2 Hardware Configuration 2.1 Factory Default Configuration 2.2 Enable Scratchpad Register (SPAD, J2) 2.3 Force High-Speed UART Clock (X2 or X4, J4-J5) 3 Hardware Installation 4 Address Map and Special Registers 4.1 Base Address and Interrupt Level (IRQ) 4.2 Enabling the Special Registers 4.3 Interrupt Status Register 4.4 Options Register... -
Page 6: General Information
The DSCLP-100 is supported under several popular operating systems and environments. Contact the sales department for details on current software offerings. Most device drivers are available for download from the Quatech world wide web site at http://www.quatech.com. DSCLP/SSCLP-100 User's Manual... -
Page 7: Hardware Configuration
2 Hardware Configuration The DSCLP-100 is automatically configured at boot time by the computer's BIOS or operating system. There are no required switches or jumpers to set for installation. This chapter lists a number of optional jumper settings that control various hardware features. -
Page 8: Force High-Speed Uart Clock (X2 Or X4, J4-J5)
2.3 Force High-Speed UART Clock (X2 or X4, J4-J5) These jumpers force an increase of the UART input clock frequency by a factor of two or four. This feature can allow legacy software to use baud rates above 115,200 bits per second. It is also useful if the serial port device driver does not directly support setting the higher baud rates through the Options Register (see section 4.4). -
Page 9: Hardware Installation
3 Hardware Installation 1. Turn off the power of the computer system in which the DSCLP-100 is to be installed. 2. Remove the system cover according to the instructions provided by the computer manufacturer. 3. Make any desired optional jumper setting changes. 4. -
Page 10: Address Map And Special Registers
Interrupts are level-sensitive on the PCI bus. The base address and IRQ are automatically detected by the device drivers Quatech supplies for various operating systems. For cases where no device driver is available, such as for operation under DOS, Quatech supplies the "QTPCI"... -
Page 11: Enabling The Special Registers
4.2 Enabling the Special Registers The DSCLP-100 contains two unique registers, an Interrupt Status Register and an Options Register. These registers are enabled when the SPAD jumper (J2) is removed (factory default). They replace the UART Scratchpad Register on accesses to register address 7. The Interrupt Status Register and Options Register are accessed through the scratchpad location of any UART. -
Page 12: Options Register
4.4 Options Register The Options Register allows software to identify the DSCLP-100 as a Quatech Enhanced Serial Adapter. It also allows software to set the UART clock rate multiplier. Figure 9 shows the structure of the Options Register. The powerup default of the Options Register is all bits zero. -
Page 13: Clock Rate Multiplier
4.4.2 Clock Rate Multiplier A standard RS-232 serial port operates at a clock speed of 1.8432 MHz. In order to achieve higher data rates, Quatech Enhanced Serial Adapters can operate at two times, four times or even eight times this standard clock speed. -
Page 14: Windows Configurations
5 Windows Configurations 5.1 Windows Millennium After inserting the DSCLP-100 for the first time the "Add New Hardware Wizard" will begin. Select "Search for the best driver for your device.". Check the "Removable media" and "Specify location" box. Click the "Next" button. Window will locate the proper INF file and copy the file from the CD. -
Page 15: Windows 2000
After inserting a DSCLP-100 for the first time, the "Add New Hardware Wizard will appear at start up. Click the "OK" button. The following dialog box will be displayed. Insert the Quatech COM CD (shipped with the device). Click the "OK" button. -
Page 16: Windows 98
Select "Search for the best driver for your device". Click the "Next" button. On the next dialog, select the "CD-ROM DRIVE" check box. Insert the Quatech COM CD (shipped with the device) into the CD-ROM drive. Click the "Next" button. DSCLP/SSCLP-100 User's Manual... -
Page 17: Windows 95
The following dialog box will display the appropriate INF file on the disk in the drive. Click the "Next" button. Window will copy the INF file from the disk and display a final dialog indication that the process is complete. Click the "Finish" button. 5.4 Windows 95 Windows 95 maintains a registry of all known hardware installed in your computer. -
Page 18: Using The "New Hardware Found" Wizard
3. An "Install From Disk" dialog box should pop up. Insert the disk with the Quatech INF files on it, select the correct drive letter, and click the "OK" button. Windows 95 automatically browses the root directory for an INF file that defines configurations for Multi-function Adapters. - Page 19 You may be able to skip this step if you are certain that your system has the latest version of these files installed. If you do not have your Windows 95 install disks immediately available, click "OK" anyway. A dialog box appears with an option to Skip the files.
-
Page 20: Viewing Resources With Device Manager
5.6 Viewing Resources with Device Manager This discussion applies equally to Windows 95/98/ME and 2000/XP. The following instructions provide step-by-step instructions on viewing resources used by the DSCLP-100 in Windows using the "Device Manager" utility. Select Start|Help from within Windows for additional information on this utility. 1. - Page 21 COM5 (or higher) even if lower logical numbers are available. 7. Select any of the Quatech Serial Ports listed under the group Port (COM and LPT) and click the "Properties" button. This action opens a properties dialog for the specific COM port on the DSCLP-100.
- Page 22 Figure 13 --- Windows Device Manager 9. Use the Logical COM Port names to access the serial ports on your DSCLP-100 through your software applications. Note: The Logical COM Port name is assigned to your ports by Windows . This name is required by a Windows application when accessing a particular port.
-
Page 23: Changing Resource Settings With Device Manager
2. Double click on the hardware class Multi-Port Serial Adapters to list hardware devices in the class. 3. The DSCLP-100 “parent device” belongs to this hardware class. The full device name for the DSCLP-100 is Quatech DSCLP-100: Dual-Port RS-232 Serial Adapter. DSCLP/SSCLP-100 User's Manual... - Page 24 Resources tab to view the Input/Output Range and Interrupt Request resource allocations. Do not change these settings without specific instructions from a Quatech Technical Support Specialist. To exit without saving changes, click the “cancel” button. 5. Open the Properties dialog for the DSCLP-100 device, then click the Advanced tab to view the clock rate settings.
- Page 25 Clock Mode Max bps Auto 921,600 115,200 230,400 Data Rate Multiplier Description Auto clock mode enables applications to request any baud rate up to 921,600. The hardware drivers will select the correct clock multiplier based on the baud rate requested The X1 clock mode mimics a standard COM port.
- Page 26 921,600 6. Double click the hardware class Ports (Com and LPT). Each Quatech PCI Serial Port listed in this class is a “child device” of the DSCLP-100 “parent device.” 7. Open the Properties dialog for a COM port, then click the Port Properties tab to view the settings for that port.
- Page 27 8. Click the "Port Settings" tab and then click the "Advanced" button. The DSCLP-100 driver will display a custom Advanced Port Settings control, which allows the ports UART compatibility mode and FIFO threshold levels to be configured. The threshold values of full-scale for the transmit buffer and ¾-scale for the receive buffer are optimal for most applications.
- Page 28 DSCLP/SSCLP-100 User's Manual...
-
Page 29: Other Operating Systems
DSCLP-100. The board can be used under DOS and other operating systems as well in many circumstances. The software described below can be downloaded from the Quatech web site if it did not come with the board. 6.1 Windows NT The Windows NT device driver is installed by running the SETUP program. -
Page 30: Qtpci.exe
FF80 hex and IRQ 11. The hardware revision of the DSCLP-100 is also displayed. Pressing the "N" key will show similar information for all non-Quatech PCI devices in the system, including those devices integrated on the motherboard. The QTPCI program is capable only of displaying the PCI configuration. It cannot be used to make changes. - Page 31 Vendor and Device IDs, PCI Class Code, size of memory and I/O regions, etc. Pressing the "N" key will show similar information for all non-Quatech PCI devices in the system, including those devices integrated on the motherboard. In this example, the "Base addr 0"...
-
Page 32: External Connections
7 External Connections RS-232-C devices are classified by their function as either Data Terminal Equipment (DTE) or Data Communication Equipment (DCE). Generally, data terminal equipment is defined as the communication source and data communication equipment is defined as the device that provides a communication channel between two DTE-type devices. - Page 33 The DSCLP-100 is a DTE device which connects to peripheral equipment through a single male D-25 connector, or using the adapter cable, two male D-9 connectors. The standard serial port connections are listed in Figure 18. RS-232 Signal Figure 18 --- DSCLP-100 connector pinouts Port 1 Port 2 D-25...
-
Page 34: Pci Resource Map
Listed below are the PCI resources used by the DSCLP-100. Such information may be of use to customers writing their own device drivers or other custom software. A detailed description of the DSCLP-100's UARTs is available on the Quatech web site. (all numbers in hex) PCI Vendor ID:... -
Page 35: Specifications
9 Specifications Bus interface: Dimensions: Serial ports Controller: Interface: Transceivers: Power requirements Temperature: Humidity: PCI, 32-bit bus, Universal Voltage Signaling IBM-compatible computers approx. 5.0" x 3.7" 16550 with 16-byte FIFOs DSCLP: One male D-25 connector (Two male D-9 connectors using adapter cable.) SSCLP: one male D-9 connector. - Page 36 Data Rate (kbaud) 921.6 460.8 230.4 115.2 Note 1: The signal transition time ratio is defined as the percentage of the unit interval or bit time (the inverse of the data rate) that is occupied by the signal transitioning from -3V to +3V. The EIA/TIA-232-E standard defines a maximum signal transition time ratio of 4%;...
-
Page 37: Dsclp/Ssclp-100 User's Manual
10 Troubleshooting Listed here are some common problems and frequent causes of those problems. If the information here does not provide a solution, contact Quatech technical support. Any unauthorized repairs or modifications will void the DSCLP-100's warranty. Computer will not boot up. - Page 38 DSCLP/SSCLP-100 User's Manual Revision 1.05 November 2006 P/N: 940-0179-105 DSCLP/SSCLP-100 User's Manual...
