SEW-Eurodrive Movipro MPCI-DCMA-82-MMCX Addendum To The Operating Instructions

SEW-Eurodrive Movipro MPCI-DCMA-82-MMCX Addendum To The Operating Instructions

Drive and application controller, rec5 radio modem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

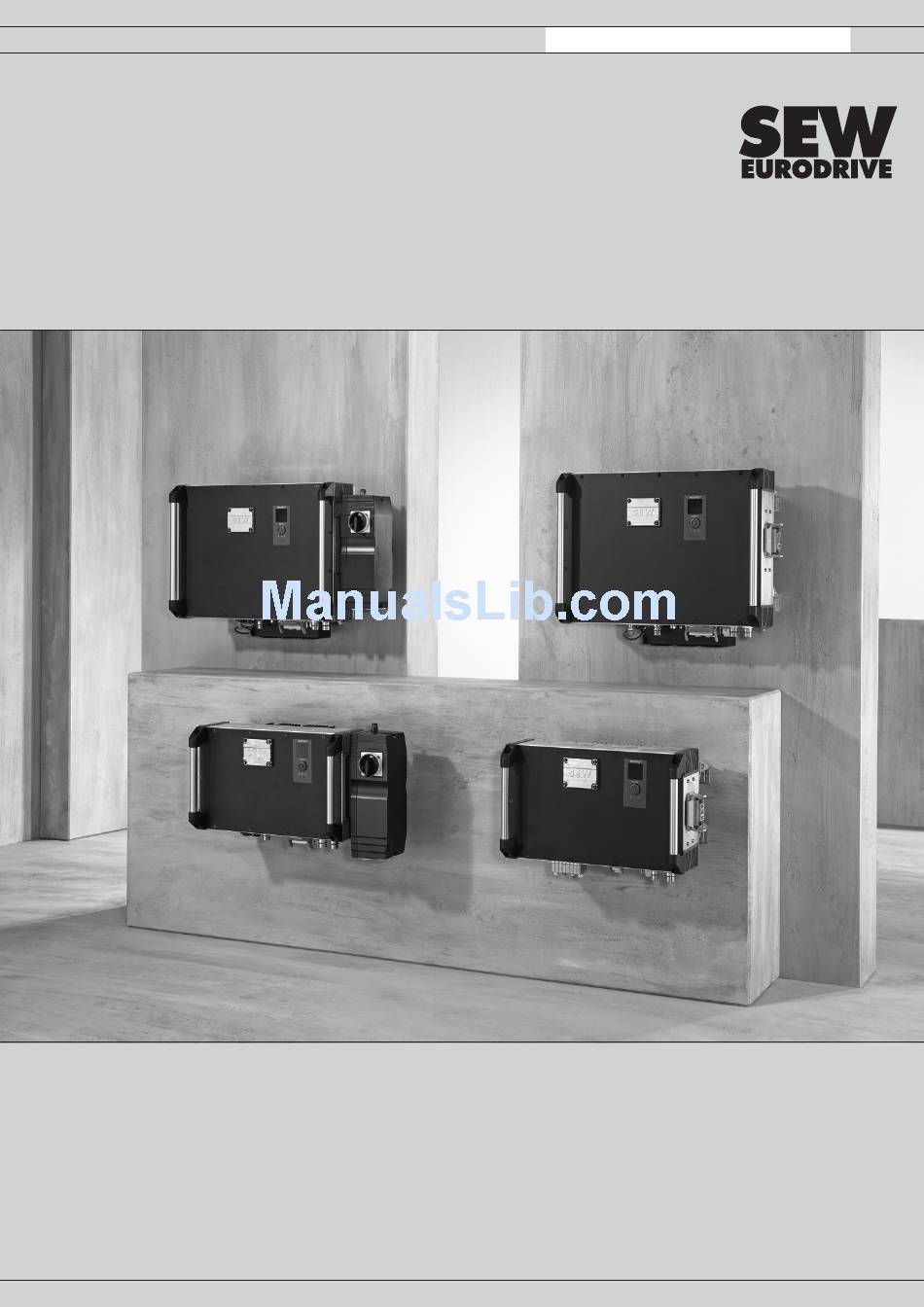

Drive Technology \ Drive Automation \ System Integration \ Services
Addendum to the Operating
Instructions
®
MOVIPRO
REC5 Radio Modem
Edition 12/2017
Drive and Application Controller
*23582855_1217*
23582855/EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Movipro MPCI-DCMA-82-MMCX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEW-Eurodrive Movipro MPCI-DCMA-82-MMCX

Summary of Contents for SEW-Eurodrive Movipro MPCI-DCMA-82-MMCX

  • Page 1 *23582855_1217* Drive Technology \ Drive Automation \ System Integration \ Services Addendum to the Operating Instructions ® MOVIPRO Drive and Application Controller REC5 Radio Modem Edition 12/2017 23582855/EN...
  • Page 2 SEW-EURODRIVE—Driving the world...

  • Page 3: Table Of Contents

    Contents Contents General information........................  4 Other applicable documentation .................. 4 Further information...................... 4 Properties ..........................  5 Functional description ..................... 5 Coding.......................... 5 Antenna connection operating modes ................ 6 Antenna connections .......................   7 Antennas ...........................   8 Technical data...........................   9 General information ...................... 9 Power rating and channels ................... 10 Factory settings...................... 11 Certifications...........................

  • Page 4: General Information

    General information Other applicable documentation General information Other applicable documentation ® The functions of the device depend on the characteristics of the MOVIPRO drive and application controller with which the device is operated. ® If the MOVIPRO drive and application controller has the function W4  =  WLAN/ TCP + UDP, you can use the device.

  • Page 5: Properties

    Properties Functional description Properties Functional description ® The MOVIPRO device has a "Radio Ethernet Client 5 GHz" (REC5) radio modem for connection to a wireless infrastructure network. It can be used for the frequency blocks 2.4 GHz (IEEE 802.11b/g) and 5 GHz (IEEE 802.11a). The radio connection is designed for communication with the higher-level controller.

  • Page 6: Antenna Connection Operating Modes

    Properties Antenna connection operating modes – Open system authentication – Shared key authentication • Wi-Fi Protected Access (WPA, WPA2) Authentication is with PSK (pre-shared key). The recommended encryption method is WPA2-AES-PSK. Encryption methods that use a radius server are not supported due to their long latency periods during logon and handover.

  • Page 7: Antenna Connections

    Antenna connections Antenna connections NOTICE Damage to the radio modem due to missing antennas or terminating resistors. Damage to the radio modem. • Connect a 50 Ω terminating resistor to those antenna ports that are not in use. Two antennas are connected to a wireless card. The connections are designated as X4211 (WLAN antenna (main)) and X4261 (WLAN antenna (aux)).

  • Page 8: Antennas

    Antennas Antennas You can connect different antennas to the radio modem. In some regions, only spe- cific antenna types are permitted. The following table lists all antennas available from SEW‑EURODRIVE that can be used with the radio modem: Antenna for use with Part number Near field coupler 2.4 GHz Radiating cable...

  • Page 9: Technical Data

    Technical data General information Technical data General information The device has the following technical data: General Firmware part number 18239684 Max. permitted input power -25 dBm Max. shown input power -35 dBm Impedance 50 Ω Connections R-TNC socket Modulation types IEEE 802.11b/g IEEE 802.11a Data rate Modulation Mode Data rate...

  • Page 10: Power Rating And Channels

    Technical data Power rating and channels Power rating and channels The device is supplied with the following output power and channels for various re- gions: Region 802.11 standard Typ. output Available chan- DFS TPC power nels China IEEE 802.11b/g 15 dBm 1 – 13 –...

  • Page 11: Factory Settings

    Technical data Factory settings Factory settings The device is supplied with the following factory settings: Setting Value IP address 192.168.1.100 Subnet mask 255.255.255.0 Gateway address 192.168.1.2 Device name SEW wlanBridge Network specification 802.11b/g Radio channels 802.11b/g: 1 – 11, 1 – 13 The available channels depend on the region in which the radio modem is operated (regulatory do- main).

  • Page 12: Certifications

    Certifications Europe Certifications INFORMATION The device may not be operated outside the preset regulatory domain. ® The preset regulatory domain is indicated with a sticker on the MOVIPRO device. Europe The following label is attached to the device: REGULATORY DOMAIN EUROPE 18014404131809803 The device is authorized for the following countries:...
  • Page 13 Europe 6.1.1 Declaration of conformity EU Declaration of Conformity Translation of the original text 901290411/EN SEW-EURODRIVE GmbH & Co. KG Ernst-Blickle-Straße 42, D-76646 Bruchsal declares under sole responsibility that the following products Communication system REC5 IP5K basis programmable (18240461) ®...

  • Page 14: Brazil

    Guarulhos - SP CEP: 07251-250 Produto: Transceptor de Radiação Restrita CNPJ: 50.981.018/0001-90 Product: Categoria: II Fabricante: Sew-Eurodrive GmbH & Co., KG. Serviço/Aplicação: Radiocomunicação de Radiação Restrita Manufacturer: Ernst-Blickle-Strasse 42, Service/Application: Postfach 30 23, D-76642 - Germanyl Observações: O produto, objeto deste Certificado, deverá obter a Homologação da Anatel para fins de comercialização e uso e está sujeito à comprovação periódica de Remarks: que mantém as suas características originalmente certificadas, nos termos da regulamentação.
  • Page 15 Certifications Brazil Características Técnicas Básicas: Basic Technical Characteristics: Módulo transceptor, de uso interno, utilizando tecnologias de Espalhamento Espectral por Sequência Direta - DSSS (Padrão 802.11b) e OFDM (Padrões 802.11a, 802.11g e 802.11g (Turbo Mode)). Tecnologias / Faixa de Potência Máxima Designação Técnica de SAR (W/kg)
  • Page 16 Certifications Brazil Laboratório (s): IBEC - Instituto Brasileiro de Ensaios de Conformidade Ltda. (www.ibec.com.br). Laboratory: Relatório (s): - IBEC 113201, de 24/11/2011. Test Report: Unidades Fabris: Não há outras unidades fabris. Manufacturing Location (s): a) Nº de Série: C194828A0022C01. Observações: b) Versão de Software: N/A.

  • Page 17: China

    Certifications China China ® The following label is attached to the MOVIPRO device: REGULATORY DOMAIN CHINA 5622331659 9007205000579851 Addendum to the Operating Instructions – REC5 Radio Modem...
  • Page 18 Certifications China 9007205000581771 Addendum to the Operating Instructions – REC5 Radio Modem...

  • Page 19: Usa/Canada

    The end-user product will be professionally installed in such a manner that only the authorized antennas are used. Caution: Changes or modifications not expressively approved by SEW-Eurodrive void the user`s authority to operate the equipment. SEW-EURODRIVE GmbH & Co KG...
  • Page 20 Certifications USA/Canada Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This device has been designed to operate with an antenna having a maximum gain of 6.0dBi.
  • Page 21 Certifications USA/Canada 5743732107 Addendum to the Operating Instructions – REC5 Radio Modem...
  • Page 22 Certifications USA/Canada 9007204998475019 Addendum to the Operating Instructions – REC5 Radio Modem...
  • Page 23 Certifications USA/Canada 5743730187 Addendum to the Operating Instructions – REC5 Radio Modem...

  • Page 24: India

    Certifications India India ® The following label is attached to the MOVIPRO REGULATORY DOMAIN INDIA 13102615051 13103961995 Addendum to the Operating Instructions – REC5 Radio Modem...
  • Page 25 Certifications India 13103964043 Addendum to the Operating Instructions – REC5 Radio Modem...

  • Page 26: Mexico

    Certifications Mexico Mexico ® The following label is attached to the MOVIPRO REGULATORY DOMAIN MEXICO 13102618251 13103966091 Addendum to the Operating Instructions – REC5 Radio Modem...

  • Page 27: Thailand

    Certifications Thailand Thailand ® The following label is attached to the MOVIPRO device: REGULATORY DOMAIN THAILAND 16391310219 16389904523 Addendum to the Operating Instructions – REC5 Radio Modem...

  • Page 28: South Africa

    Certifications South Africa South Africa ® The following label is attached to the MOVIPRO device: REGULATORY DOMAIN South Africa TA-2017/1895 9007220913552651 22316619787 Addendum to the Operating Instructions – REC5 Radio Modem...

  • Page 29: Morocco
