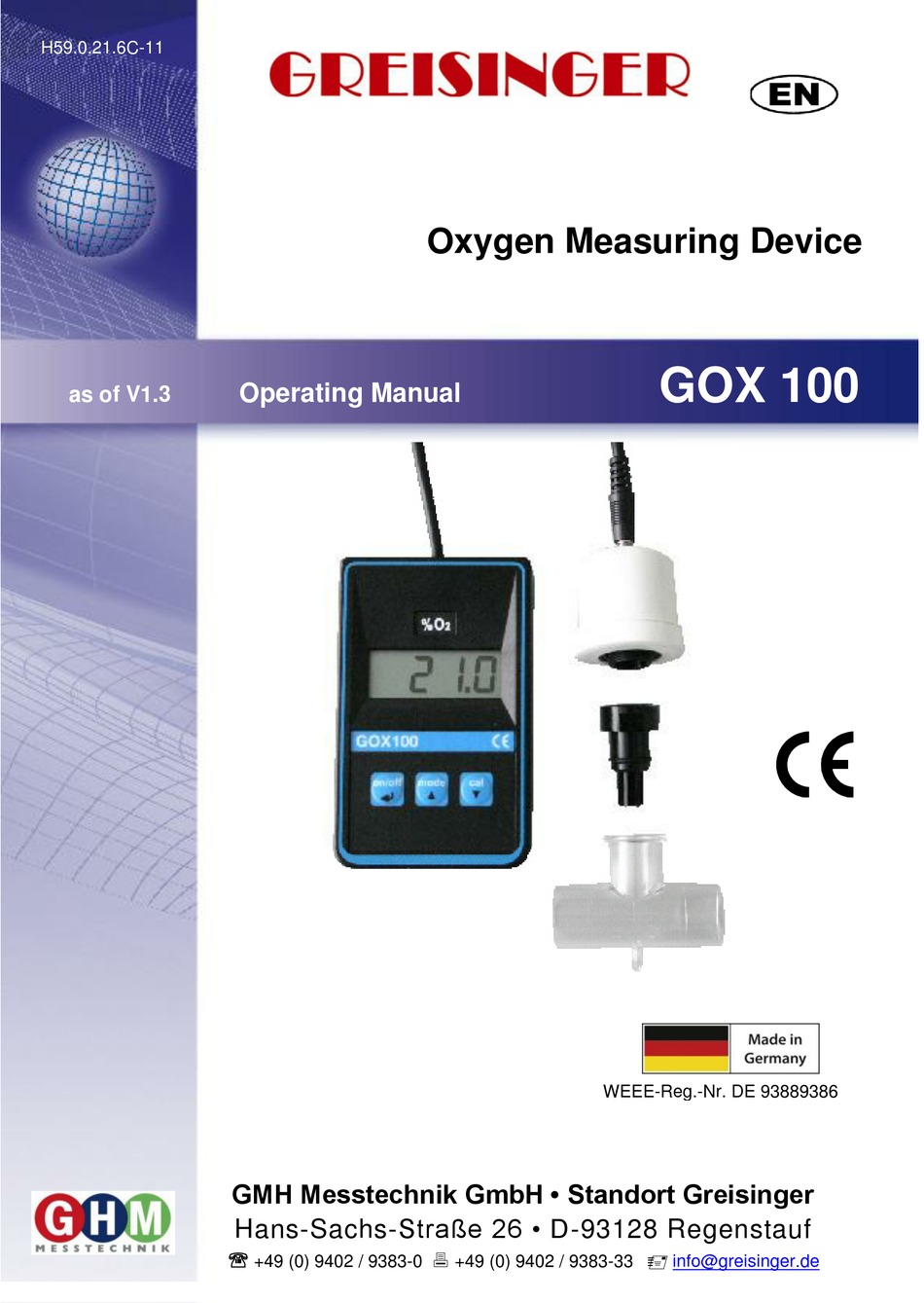

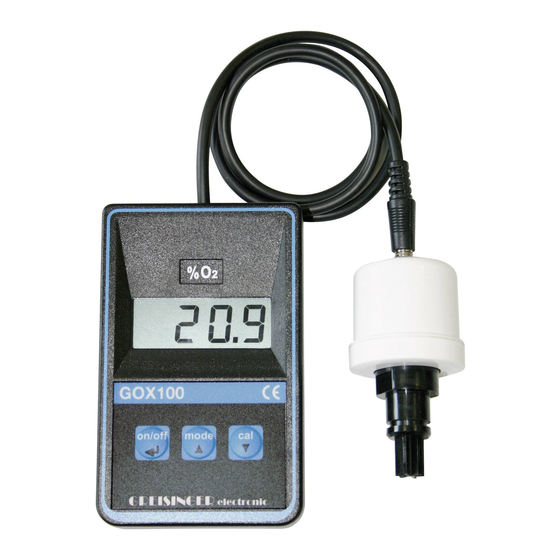

- Page 1 H59.0.21.6C-11 Oxygen Measuring Device GOX 100 Operating Manual as of V1.3 WEEE-Reg.-Nr. DE 93889386 GMH Messtechnik GmbH • Standort Greisinger Hans-Sachs-Straße 26 • D-93128 Regenstauf +49 (0) 9402 / 9383-0 +49 (0) 9402 / 9383-33 info@greisinger.de...
-
Page 2: Table Of Contents
H59.0.21.6C-11 page 2 of 8 Contents Intended use ..................... 2 General note ..................... 2 Disposal notes ....................2 Safety instructions .................... 3 Operating and maintenance advice ..............4 Operation ......................4 Oxygen measuring ................... 5 Calibration ......................5 Sensor rating ....................6 Replace sensor element................... -
Page 3: Safety Instructions
H59.0.21.6C-11 page 3 of 8 Safety instructions This device has been designed and tested in accordance to the safety regulations for electronic devices. However, its trouble-free operation and reliability cannot be guaranteed unless standard safety measures and special safety advises given in this manual will be adhered to when using it. -
Page 4: Operating And Maintenance Advice
H59.0.21.6C-11 page 4 of 8 Operating and maintenance advice The battery has to be taken out, when the device is stored above 50°C. Handle the device and the sensor with care and only use it according its specification. The connectors have to be saved from humidity and dirt. Unplug the sensor not by pulling the cable, but the plug. -
Page 5: Oxygen Measuring
H59.0.21.6C-11 page 5 of 8 Oxygen measuring The oxygen measurement depends on air pressure. The current pressure can be entered during configuration. If you measure at atmosphere and the calibration took place at the same conditions, the pressure value has not to be adjusted necessarily, because the same pressure is used for calibration and measuring. -
Page 6: Sensor Rating
H59.0.21.6C-11 page 6 of 8 Sensor rating The rating of the sensor state is calculated and saved after each successful calibration. Watch sensor rating: Press shortly the key, the display shows for a short time i.e. = 100%. The rating is displayed in 10 percent steps: 100% = optimal sensor status. Lower values are indicating that the sensor life time will soon be reached. -
Page 7: Configuration Of The Device
H59.0.21.6C-11 page 7 of 8 13 Configuration of the device 1. Switch the device off. Press the key during the switch-on of the device, until is displayed (about 3s). Switch-off delay (factory setting: 20): The switch-off delay is shown in minutes. If no key is pressed, the instrument automatically switches-off after the entered period of time. -
Page 8: Specification
H59.0.21.6C-11 page 8 of 8 14 Specification Measuring range: 0.0 ... 100.0 %O2 (oxygen concentration) Accuracy: calibrated device at nominal temp.: ± 0.1 %O2 ± 1 digit Sensor linearity: < 2 vol.-% +/- 0.1%; < 25 vol.-% +/- 0.5%; < 100 Vol.-% +/- 1.0% Sensor connection 0.7m connection cable (fixed to device) with jack connector Sensor: electrochemical partial oxygen pressure sensor, integrated...
