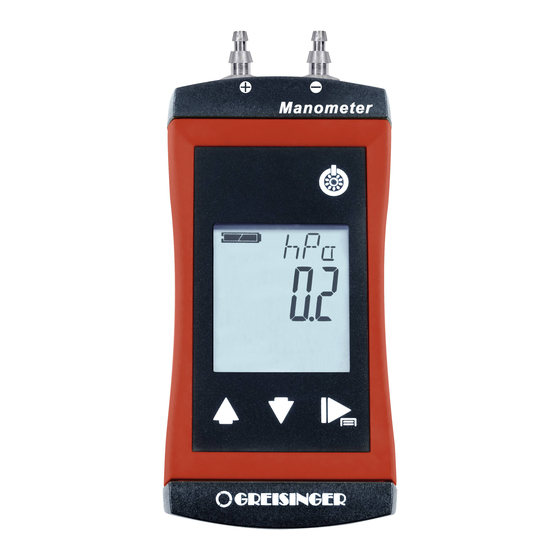

GREISINGER G 1111 Operating Manual

Vacuum meter, barometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating manual
G 1111
EN
Vacuum meter | barometer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G 1111 and is the answer not in the manual?

Questions and answers

Related Manuals for GREISINGER G 1111

Summary of Contents for GREISINGER G 1111

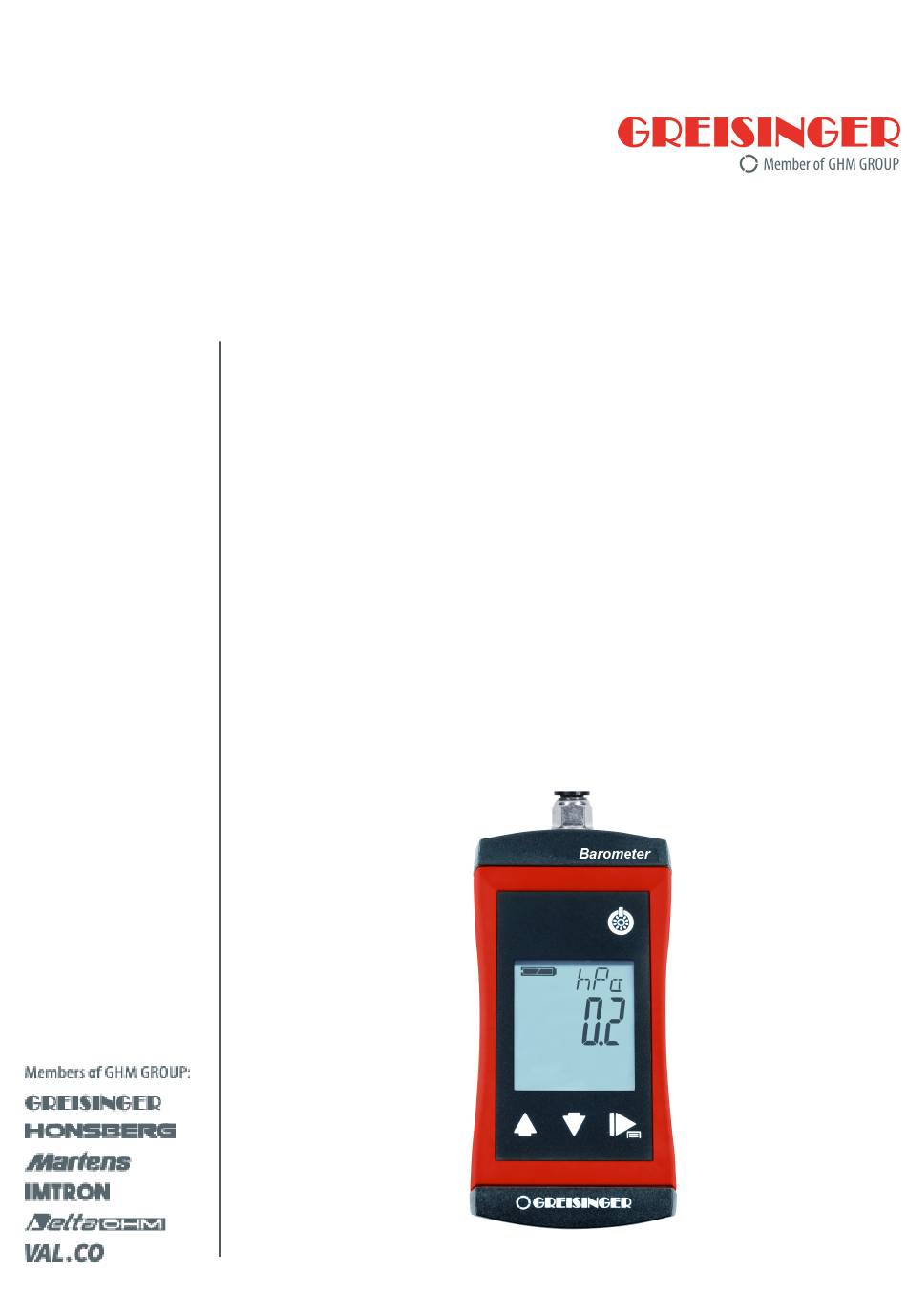

  • Page 1 Operating manual G 1111 Vacuum meter | barometer...

  • Page 2: Table Of Contents

    Qualified personnel.......................... 7 Description ............................ 8 Scope of delivery .......................... 8 Functional description...........................  8 The product at a glance ........................ 9 The G 1111............................ 9 Display elements .......................... 9 Operating elements .......................... 9 Connections............................ 10 Operation............................ 11 Commissioning ...........................  11 5.1.1...
  • Page 3 Table of contents Battery .............................. 19 7.2.1 Battery indicator.......................... 19 7.2.2 Changing battery .......................... 19 Calibration and adjustment service.....................  20 7.3.1 Certificates............................ 20 Error and system messages...................... 21 Disposal.............................  22 Technical data...........................  23 Spare parts and accessories ...................... 24 Ordering code ...........................  25 Service ...............................

  • Page 4: About This Documentation

    1 | About this documentation G 1111 1 About this documentation 1.1 Foreword Read this document carefully and familiarise yourself with the operation of the product before you use it. Keep this document ready to hand and in the immediate vicinity of the product so that it is available to the personnel/user for reference at all times in case of doubt.

  • Page 5: Further Information

    G 1111 About this documentation | 1 Prerequisite All mandatory prerequisites are then listed for each step. Instruction Tasks to be carried out by the personnel / user are represented as numbered instruc- tions. Adhere to the sequence of the specified instructions.

  • Page 6: Safety

    2 | Safety G 1111 2 Safety 2.1 Explanation of safety symbols DANGER This symbol warns of imminent danger which can result in death, severe bodily injury, or severe property damage in case of non-observance. CAUTION This symbol warns of potential dangers or harmful situations which can cause damage to the device or to the environment in case of non-observance.

  • Page 7: Qualified Personnel

    G 1111 Safety | 2 The G 1111 measures the absolute pressure in the air or in non-corrosive/non-ionising gases. A direct measurement of the environmental pressure can take place or the measurement pressure is taken with a suitable hose connected to the port. Relative measurements can also be conducted with the integrated special function NVLL.

  • Page 8: Description

    3 | Description G 1111 3 Description 3.1 Scope of delivery Please check to ensure the completeness of the product after opening the package. You should find the following components: – Quick reference guide – Handheld measuring device, ready for operation, including batteries –...

  • Page 9: The Product At A Glance

    G 1111 The product at a glance | 4 4 The product at a glance 4.1 The G 1111 Top view LCD Display Front view Connection variants 4.2 Display elements Display Battery indicator Evaluation of the battery status Unit display...

  • Page 10: Connections

    4 | The product at a glance G 1111 Function key Press briefly Freeze measurement (Hold) Return to measurement display Call up next parameter Long press, 2s Start menu configuration, (ONF appears in the dis- play Close menu, changes are saved...

  • Page 11: Operation

    G 1111 Operation | 5 5 Operation 5.1 Commissioning 5.1.1 Explanation Description The product is switched on with the On/Off button. It may be necessary to configure the product after switching on. See Configuration [} p. 11]. Prerequisite – Sufficiently full batteries are inserted in the product.

  • Page 12: Configuring Parameters Of The Configuration Menu

    5 | Operation G 1111 Representation Call up menu Next parameter Change value Save changes Discard changes Press: Single step Product is Hold: Fast switched off change Outcome of an action The Configuration menu is closed after the last parameter.

  • Page 13: Open The Adjustment Menu

    G 1111 Operation | 5 Nautical norm correction SEA.L Inactive, display measured air pressure directly Active, display air pressure compensated to sea level ALT, Height above nautical norm in m for correction -500 .. +9000 Shut-off time POFF No automatic shut-off...

  • Page 14: Parameters Of The Adjustment Menu

    5 | Operation G 1111 Representation Call up menu Hold Release Release Outcome of an action The adjustment menu is closed after the last parameter. 5.2.5 Parameters of the adjustment menu Description Zero point – For an optimal zero point calibration, a vacuum pump and a precise reference device are needed.
  • Page 15 G 1111 Operation | 5 NOTE If the product is switched off without saving the configuration, the last saved values are reproduced on the next start-up of the product. B-H88.0.11.DB2-0.1 15 / 28...

  • Page 16: Bases For Measurement

    6 | Bases for measurement G 1111 6 Bases for measurement 6.1 General information about absolute pressure measurement The device measures absolute pressure. However, this should not be confused with the "sea level air pressure" indicated by weather stations. The altitude-based air pres- sure decrease is calculated for these pressure specifications.

  • Page 17: Pressure Connections

    G 1111 Bases for measurement | 6 6.3 Pressure connections NOTE Suitable hoses must be used for vacuum measurements, silicon is suitable as a hose material due to the low rigidity. 6.4 UT operation Universal hose connection for 6 x 1 mm (4 mm inside) and 8 x 1 mm (6 mm inside) hoses.

  • Page 18: Mcm Operation

    6 | Bases for measurement G 1111 The secure screw connection is only suitable for plastic hoses with 6 mm outer dia- meter (Ø 4 mm inside). The hose end must be clean and undamaged for connection. The union nut must be loosened before connection. Then the hose is pushed onto the hose nipple up to the mechanical stop.

  • Page 19: Operation And Maintenance

    G 1111 Operation and maintenance | 7 7 Operation and maintenance 7.1 Operating and maintenance notices NOTE Pressure connections must be protected from soiling. 7.2 Battery 7.2.1 Battery indicator If the empty frame in the battery display blinks, the batteries are depleted and must be replaced.

  • Page 20: Calibration And Adjustment Service

    7 | Operation and maintenance G 1111 7.3 Calibration and adjustment service 7.3.1 Certificates The certificates are categorised as ISO calibration certificates and DAkkS calibration certificates. The purpose of the calibration is to verify the precision of the measuring device by comparing it with a traceable reference.

  • Page 21: Error And System Messages

    G 1111 Error and system messages | 8 8 Error and system messages Display Meaning Possible causes Remedy No display, Battery depleted Battery depleted Replace battery unclear char- System error Error in the product Send in for repair acters or no...

  • Page 22: Disposal

    9 | Disposal G 1111 9 Disposal Separation by material and recycling of device components and packaging must take place at the time of disposal. The valid regional statutory regulations and directives applicable at the time must be observed. NOTE The device must not be disposed of with household waste.

  • Page 23: Technical Data

    G 1111 Technical data | 10 10 Technical data Measuring range 0.0 .. 1700.0 hPa (mbar) abs. 0.00 .. 25.00 PSI abs. 0.0 .. 1300 mmHg (Torr) abs. Accuracy < ± 2 hPa typical (at T: 5 .. 30 °C) ±...

  • Page 24: Spare Parts And Accessories

    11 | Spare parts and accessories G 1111 11 Spare parts and accessories A selection of spare parts and accessories for this product is listed below. Article Number Name Description 601060 GKK 1100 Case with nap foam, 340 x 275 x 83 mm...

  • Page 25: Ordering Code

    G 1111 Ordering code | 12 12 Ordering code G 1111 G11xx 1. Set option Device only Measuring device, incl. 6 x 1 mm 1 m hose, GKK 1002 case 2. Pressure connection 1/8 inch port, incl. connections for 6x1 mm (4 mm inside) and 8x1 mm (6 mm inside) hoses.

  • Page 26: Service

    13 Service 13.1 Manufacturer If you have any questions, please do not hesitate to contact us: Contact GHM Messtechnik GmbH GHM GROUP - Greisinger Hans-Sachs-Str. 26 93128 Regenstauf | GERMANY Email: info@greisinger.de | www.greisinger.de WEEE reg. no. DE 93889386 13.2 Repairs processing Defective products are repaired professionally and quickly in our service centre.

  • Page 27: Sales Subsidiaries

    Phone +33 4 72 37 45 30 Phone +91 22 40236235 info@ghm.dk | www.ghm.dk a.jouanilou@ghm-group.fr info@ghmgroup.in | www.ghmgroup.in Italy for Greisinger & Delta OHM Italy for Honsberg, Martens, Val.co Netherlands GHM GROUP – Delta OHM GHM GROUP – Val.co GHM Meettechniek BV...
