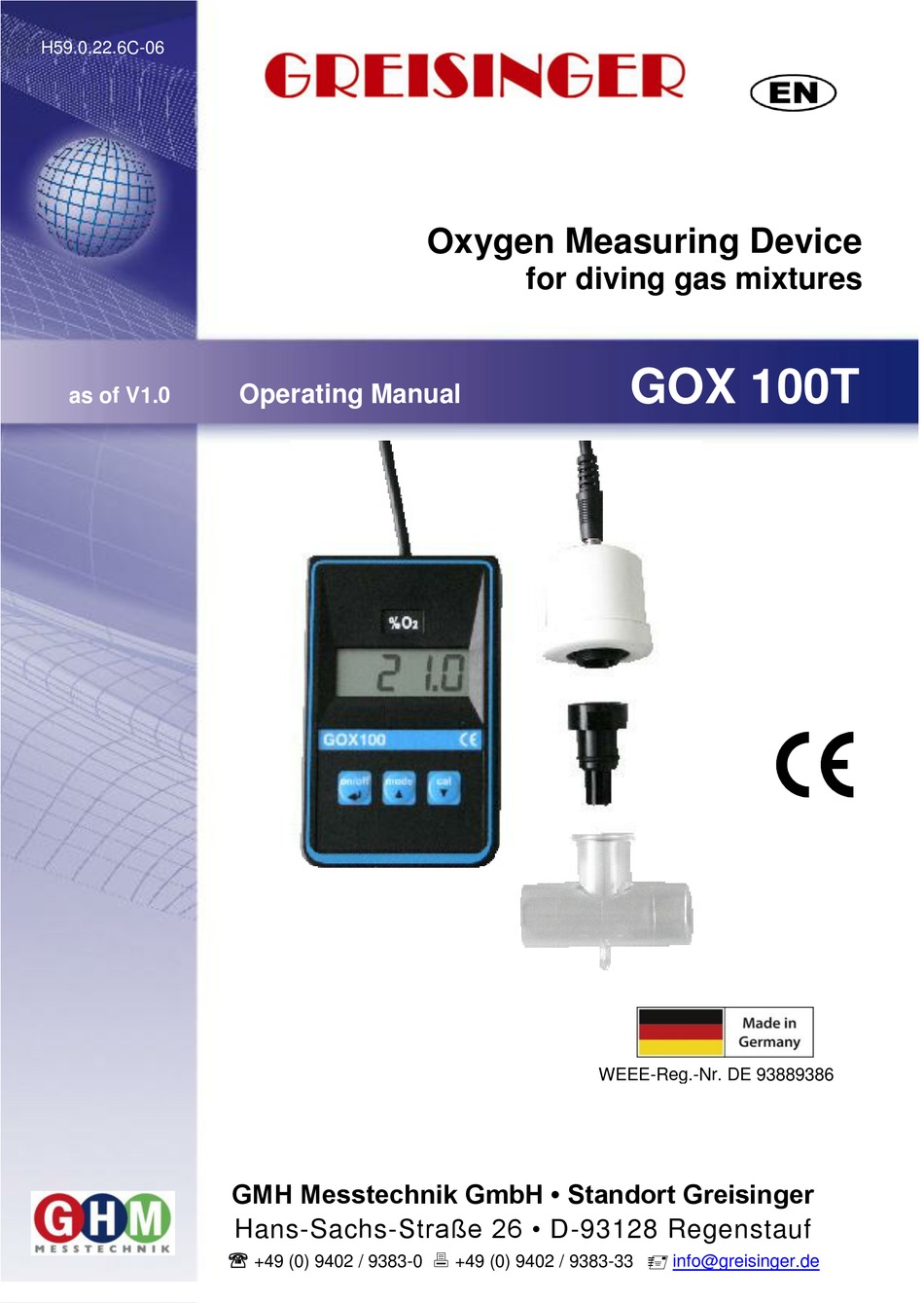

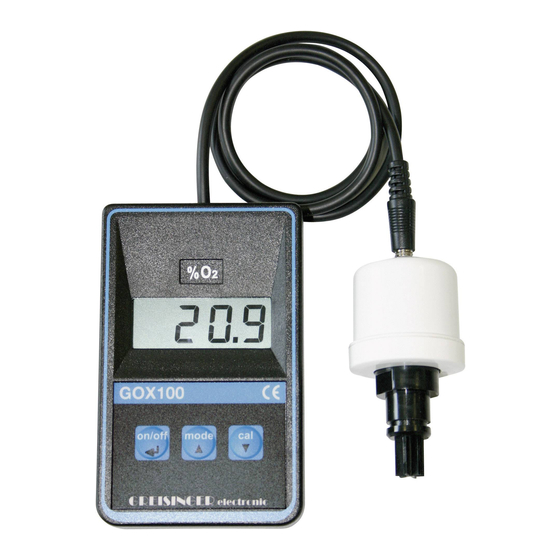

- Page 1 Oxygen Measuring Device for diving gas mixtures GOX 100T Operating Manual as of V1.0 WEEE-Reg.-Nr. DE 93889386 GMH Messtechnik GmbH • Standort Greisinger Hans-Sachs-Straße 26 • D-93128 Regenstauf +49 (0) 9402 / 9383-0 +49 (0) 9402 / 9383-33...
-
Page 2: Table Of Contents
H59.0.22.6C-06 page 2 of 8 Contents Intended use ..................... 2 General note ..................... 2 Disposal notes ....................2 Safety instructions .................... 3 Operating and maintenance advice ..............4 Operation ......................4 Display when switching-on the device ............. 4 Oxygen measuring ................... 5 Calibration ...................... -
Page 3: Safety Instructions
H59.0.22.6C-06 page 3 of 8 Safety instructions This device has been designed and tested in accordance to the safety regulations for electronic devices. However, its trouble-free operation and reliability cannot be guaranteed unless standard safety measures and special safety advises given in this manual will be adhered to when using it. -
Page 4: Operating And Maintenance Advice
H59.0.22.6C-06 page 4 of 8 Operating and maintenance advice The battery has to be taken out, when the device is stored above 50°C. Handle the device and the sensor with care and only use it according its specification. The connectors have to be saved from humidity and dirt. Unplug the sensor not by pulling the cable, but the plug. -
Page 5: Oxygen Measuring
H59.0.22.6C-06 page 5 of 8 Oxygen measuring Switch on instument, calibrate (refer to chapter 9 Calibration) -> the current oxygen concentration [%] will be displayed hold sensor to valve like shown (good contact necessary, otherwise there could be measured to low values) Open valve a little, until You can hear gas flow. -
Page 6: Calibration
H59.0.22.6C-06 page 6 of 8 Calibration In order to compensate for ageing of the sensor and air pressure fluctuations due to weather changes, the sensor has to be calibrated at regular intervals. The sensor will be calibrated to the atmospheric oxygen concentration of 20.95%. We recommend to calibrate directly before starting the measuring process. -
Page 7: Configuration Of The Device
H59.0.22.6C-06 page 7 of 8 12 Configuration of the device Follow this instructions to configure the functions of the device: Switch the device off. Press mode-button and keep it pressed, while turning the instrument on. Release the mode button after the segment test ( The first parameter is displayed . -
Page 8: Replace Sensor Element
H59.0.22.6C-06 page 8 of 8 13 Replace sensor element Unplug the sensor, unscrew the white protection housing and take out sensor element. Remove rubber disks and put it on the new sensor. Put the new sensor element into the housing, screw it down and plug it. Then start the calibration. 14 Specification Measuring range: 0.0 ...
