- Page 1 Operating manual G 1610 Dissolved oxygen measuring device Permanently connected oxygen sensor Waterproof ...
-
Page 2: Table Of Contents
Qualified personnel.......................... 8 Description ............................ 9 Scope of delivery .......................... 9 Job description............................ 9 The product at a glance ........................ 10 The G 1610............................ 10 Display elements .......................... 10 Operating elements .......................... 10 Bases for measurement ........................ 12 Oxygen sensor............................ 12 5.1.1... - Page 3 Table of contents 7.2.1 Explanation ............................ 20 7.2.2 Opening the configuration menu...................... 20 7.2.3 Configuring parameters of the configuration menu................ 21 7.2.4 Adjustment of the measuring input ..................... 22 7.2.5 Configuring parameters of the adjustment menu................ 23 Error and system messages...................... 25 Disposal.............................
-
Page 4: About This Documentation
1 | About this documentation Dissolved oxygen measuring device 1 About this documentation 1.1 Foreword Read this document carefully and familiarise yourself with the operation of the product before you use it. Keep this document ready to hand and in the immediate vicinity of the product so that it is available to the personnel/user for reference at all times in case of doubt. -
Page 5: Further Information
Dissolved oxygen measuring device About this documentation | 1 Prerequisite All mandatory prerequisites are then listed for each step. Instruction Tasks to be carried out by the personnel / user are represented as numbered instruc- tions. Adhere to the sequence of the specified instructions. Representation Shows an illustrative instruction or a configuration of the product. -
Page 6: Safety
2 | Safety Dissolved oxygen measuring device 2 Safety 2.1 Explanation of safety symbols DANGER This symbol warns of imminent danger which can result in death, severe bodily injury, or severe property damage in case of non-observance. DANGER This symbol indicates danger for living tissue as well as a variety of materials, which can be damaged or destroyed when coming into contact with this chemical. -
Page 7: Safety Instructions
Dissolved oxygen measuring device Safety | 2 DANGER Incorrect area of application! In order to prevent erratic behaviour of the product, personal injury or property dam- age, the product must be used exclusively as described in the chapter Description [} p. 9] in the operating manual. –... -
Page 8: Intended Use
2 | Safety Dissolved oxygen measuring device 2.4 Intended use The product is designed for analysis of the oxygen concentration and/or oxygen satur- ation in freshwater and salt water. It is used, for example, for the monitoring of wells, sewer lines and aquaria. A minimum flow to the sensor of approx. 30 cm/sec is neces- sary for a correct measurement. -
Page 9: Description
Dissolved oxygen measuring device Description | 3 3 Description 3.1 Scope of delivery Please check to ensure the completeness of the product after opening the package. You should find the following components: – Quick reference guide – Handheld measuring device, ready for operation, including batteries –... -

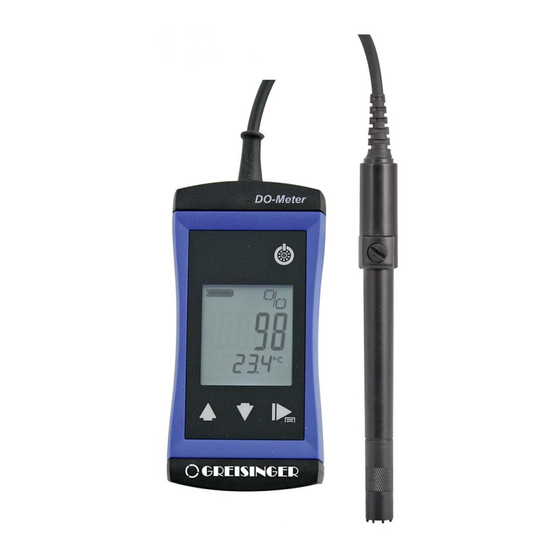

Page 10: The Product At A Glance
4 | The product at a glance Dissolved oxygen measuring device 4 The product at a glance 4.1 The G 1610 G1610 GWO 5610 4.2 Display elements Display Battery indicator Evaluation of the battery status Unit display Display of units, if applicable, with unstable symbol... - Page 11 Dissolved oxygen measuring device The product at a glance | 4 Function key Press briefly Freeze measurement Return to measurement display Call up next parameter Long press, 2s Start menu configuration, (ONF appears in the dis- play Long press, 4s Start automatic calibration, (AL appears in the dis- play B-H86.0.21.DB2-1.0...
-
Page 12: Bases For Measurement
5 | Bases for measurement Dissolved oxygen measuring device 5 Bases for measurement 5.1 Oxygen sensor 5.1.1 Explanation The oxygen sensor is an active sensor. It consists of a platinum cathode, a lead anode and potassium hydroxide (KOH) as an electrolyte. If oxygen is present, it is reduced on the platinum cathode and the sensor delivers a signal. -
Page 13: Design
Dissolved oxygen measuring device Bases for measurement | 5 5.1.2 Design Refill opening Shaft Membrane head Platinum electrode Storage bottle Platinum electrode If oxygen is present, it is reduced on the platinum electrode and the sensor delivers a signal. Soiling on the platinum electrode or between the membrane and electrode can influence the measurement. -
Page 14: Operating Position
5 | Bases for measurement Dissolved oxygen measuring device – Mechanical stress of the sensor membrane – Storage in dry air – Continuous use in elevated carbon dioxide concentrations 5.1.4 Operating position The oxygen sensor should be arranged vertically upwards with the connecting cable. A slight angle of inclination does not impair the measurement. -
Page 15: Environmental Pressure, Water Depth And Air Pressure
Dissolved oxygen measuring device Bases for measurement | 5 ter; the value is 0. A salinity of approx. 35 PSU is normal for sea water. The salinity correction is adjusted to aqueous media having a chemical composition corresponding to sea water. The International Oceanographic Tables (IOT) are used as a basis for the correction. - Page 16 5 | Bases for measurement Dissolved oxygen measuring device 3. Fill the pipette with the KOH electrolyte and initially fill the membrane head to ¾ full. Rinse off the excess electrolyte. 4. Slowly fill the sensor via the fill opening. In the process, tilt the sensor from side to side and tap the shaft to force out air bubbles.
-
Page 17: Maintenance
Dissolved oxygen measuring device Maintenance | 6 6 Maintenance 6.1 Operating and maintenance notices NOTE If the product is stored at a temperature above 50 °C, or is not used for an extended period of time, the batteries must be removed. Leaks from the batteries are avoided as a result. -
Page 18: Calibration And Adjustment
6 | Maintenance Dissolved oxygen measuring device NOTE Read the following handling instructions before replacing batteries and follow them step by step. If disregarded, the product could be damaged or the protection from moisture could be diminished. Description Proceed as follows to replace the batteries. Prerequisites –... -
Page 19: Battery Indicator
Dissolved oxygen measuring device Maintenance | 6 If the calibration is not completed successfully an error message is displayed. (AL ERR. appears in the display See Error and system messages [} p. 25]. Confirm the error message pressing the Function key. The product restarts and the value of the last suc- cessful calibration is restored. -
Page 20: Operation
7 | Operation Dissolved oxygen measuring device 7 Operation 7.1 Commissioning 7.1.1 Explanation Prerequisite – Sufficiently full batteries are inserted in the product. Instruction – Press On/Off button. Outcome of an action Information about the configuration of the product appears in the display. Automatic shut- Automatic shut-off activated. -
Page 21: Configuring Parameters Of The Configuration Menu
Dissolved oxygen measuring device Operation | 7 5. The changes are saved after running through the entire Configuration menu. STOR appears in the display. The Configuration menu can be exited from any arbitrary parameter by pressing and holding the Function key for 2 seconds. The changes made up that point are saved. -
Page 22: Adjustment Of The Measuring Input
7 | Operation Dissolved oxygen measuring device Shut-off time POFF No automatic shut-off Automatic shut-off after a selected time in minutes, 15 30 60 120 240 during which no buttons have been pressed Backlighting L,TE Backlighting deactivated Automatic shut-off of the backlighting after a selec- 15 30 60 120 240 ted time in seconds, during which no buttons have been pressed... -
Page 23: Configuring Parameters Of The Adjustment Menu
Dissolved oxygen measuring device Operation | 7 4. When you have selected the desired parameter, change the parameter to the de- sired value with the Up button and the Down button. 5. In order to save the new parameter value, press and hold the Function key for longer than 1 second. - Page 24 7 | Operation Dissolved oxygen measuring device – Display in ice water setpoint T.OF = 0.0 °C – Display in water bath 36.6 °C – Display in water bath setpoint T.SL = 37.0 °C – T.OF = display zero point correction – setpoint zero point –...
-
Page 25: Error And System Messages
Dissolved oxygen measuring device Error and system messages | 8 8 Error and system messages Display Meaning Possible causes Remedy No display, Battery depleted Battery depleted Replace battery unclear char- System error Error in the product Send in for repair acters or no Product is defective Product is defective... -
Page 26: Disposal
9 | Disposal Dissolved oxygen measuring device 9 Disposal Separation by material and recycling of device components and packaging must take place at the time of disposal. The valid legal regulations and directives applicable at the time must be observed. NOTE Fill in the return form available from the information base online at www.ghm-group.de and sent it in with the product. -
Page 27: Technical Data
Dissolved oxygen measuring device Technical data | 10 10 Technical data Measuring range concentration saturation Temperature 0.0 .. 20.0 mg/l 0 .. 200 % 0 .. 50 °C 0.0 .. 20.0 ppm 32 .. 122 °F Accuracy (at nominal temper- ±1.5 % of measured ±1.5 % of measured ±... -
Page 28: Spare Parts And Accessories
Spare electrolyte 100 ml A complete list of all accessories and spare parts is available in our product catalogue or on our home page. We can also provide further information by phone. Contact Internet: www.greisinger.de Tel: +49 94029383-52 28 / 30 B-H86.0.21.DB2-1.0... -
Page 29: Service
12 Service 12.1 Manufacturer If you have any questions, please do not hesitate to contact us: Contact GHM Messtechnik GmbH GHM GROUP - Greisinger Hans-Sachs-Str. 26 93128 Regenstauf | GERMANY Phone: +49 94029383-52 info@greisinger.de | www.greisinger.de WEEE reg. no. DE 93889386 12.2 Repairs... -
Page 30: Sales Subsidiaries
Phone +33 4 72 37 45 30 Phone +91 22 40236235 info@ghm.dk | www.ghm.dk a.jouanilou@ghm-group.fr info@ghmgroup.in | www.ghmgroup.in Italy for Greisinger & Delta OHM Italy for Honsberg, Martens, Val.co Netherlands GHM GROUP – Delta OHM GHM GROUP – Val.co GHM Meettechniek BV...
