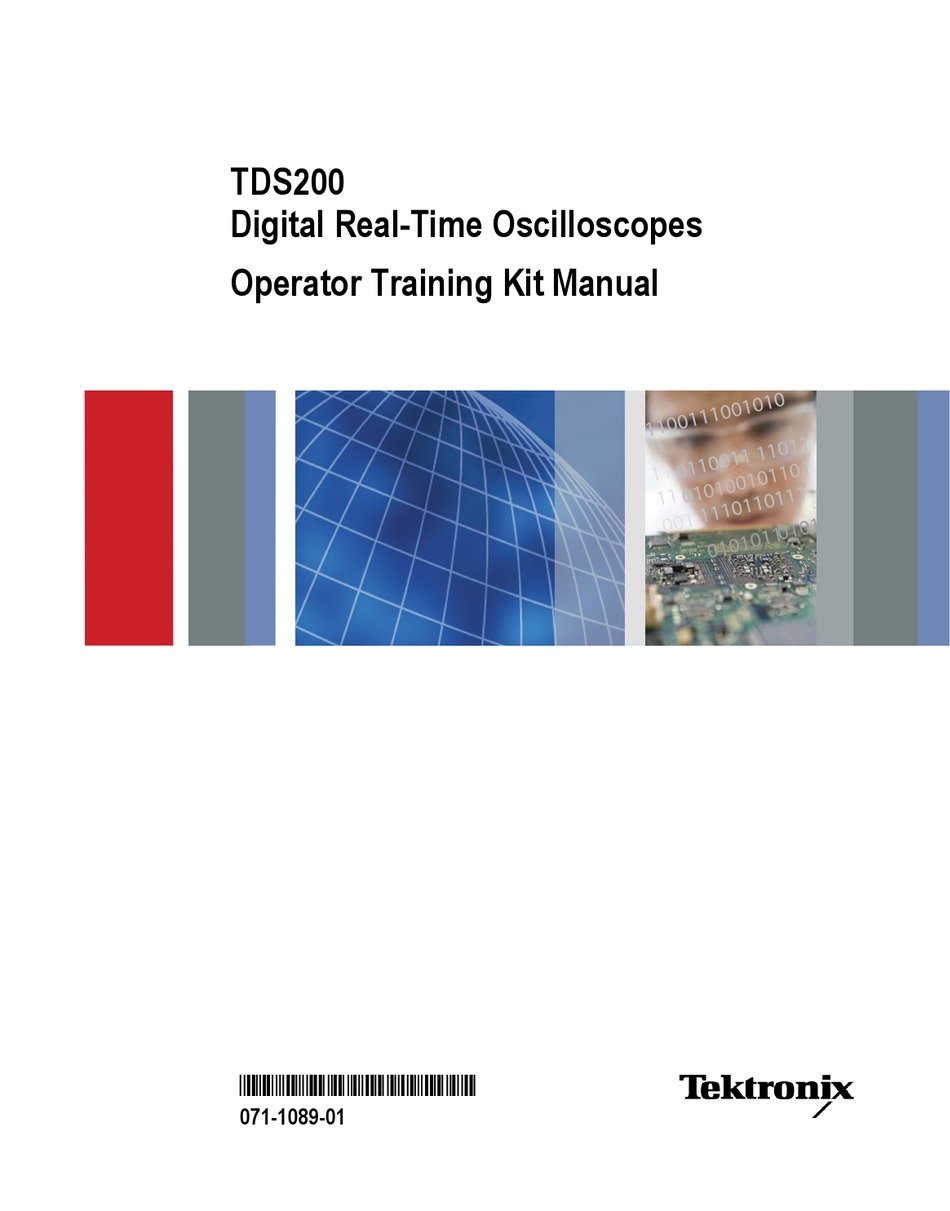

Page 1 TDS200 Digital Real-Time Oscilloscopes Operator Training Kit Manual *P071108901* 071-1089-01...
Page 3 TDS200 Operator Training Kit Manual 071-1089-01 www.tektronix.com...
Page 4 This product training document file is protected by Copyright © Tektronix, Inc. All rights reserved. End users of this Tektronix product training document file are permitted to print any portion of this file or copy the electronic file for personal use. Print or electronic reproduction of this product training document file for resale is strictly prohibited.
Page 5 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
Page 7: General Safety Summary
General Safety Summary Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. To avoid potential hazards, use this product only as specified. While using this product, you may need to access other parts of the system.
Page 8: Safety Terms And Symbols
General Safety Summary Safety Terms and Symbols Terms in This Manual. These terms may appear in this manual: WARNING. Warning statements identify conditions or practices that could result in injury or loss of life. CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property.
Page 9 This phone number is toll free in North America. After office hours, please leave a voice mail message. Outside North America, contact a Tektronix sales office or distributor; see the Tektronix web site for a list of offices. TDS200 Operator Training Kit Manual...
Page 10 Contacting Tektronix TDS200 Operator Training Kit Manual...
Page 11: Table Of Contents
HORIZONTAL Controls ..........2-34 TRIGGER Controls ............2-39 Menu Function Controls ..........2-46 Summary .................2-64 Using VERTICAL Controls ............3-1 VERTICAL Control Knobs............ 3-2 Setting Up VERTICAL Controls........3-3 Switching the Input Coupling ........... 3-5 TDS200 Series Oscilloscope – Operator Training Kit...
Page 12 Assigning Trigger Holdoff With an AM Signal ....5-8 TRIGGER Control MENU Buttons ........5-13 Using an External Trigger..........5-13 Selecting a Trigger Type ..........5-17 Selecting the Signal Coupling for a Trigger....5-20 Summary .................5-23 TDS200 Series Oscilloscope – Operator Training Kit...
Page 13 Saving and Recalling a Setup ........6-39 Saving and Recalling a Waveform ........ 6-43 UTILITY Menu Function Controls ........6-46 Displaying the System Status........6-46 Summary .................6-49 Appendix A: Training 1 Signal Board: Signal Definitions……...A-1 Appendix B: Glossary……………………………………………..B-1 TDS200 Series Oscilloscope – Operator Training Kit...
Page 14 TDS200 Series Oscilloscope – Operator Training Kit...
Page 15: Introduction To Oscilloscopes And Probes
Introduction to Oscilloscopes and Probes The environment around us contains various energy sources, such as electronic appliances that generate signals. Oscilloscopes allow you to observe these signals to analyze the performance of these energy sources. This module introduces oscilloscopes and the methods to measure electrical signals by using oscilloscopes and associated probes.
Page 16: Getting To Know Oscilloscopes
A waveform is a graphical representation of a wave. An oscilloscope receives an electrical signal and converts it into a waveform. The waveform represents the change in voltage with time on an oscilloscope display screen. TDS200 Series Oscilloscope – Operator Training Kit...
Page 17 For example, a television technician can use an oscilloscope to measure signals from the television circuit board. A medical researcher can use an oscilloscope to measure brain waves. TDS200 Series Oscilloscope – Operator Training Kit...
Page 18 This graphical grid is called a graticule. The vertical or Y-axis of the graticule typically represents voltage. The horizontal or X-axis typically represents time Figure 1.1 shows how an oscilloscope displays voltage and time. Figure 1.1: Oscilloscope display TDS200 Series Oscilloscope – Operator Training Kit...
Page 19: Types Of Oscilloscopes
Similarly, oscilloscopes are categorized into analog and digital. Figure 1.2 shows the difference between analog and digital oscilloscopes. Figure 1.2: Analog and digital oscilloscopes TDS200 Series Oscilloscope – Operator Training Kit...
Page 20 (CRT). As a result, when an electron beam hits the phosphor inside the CRT, the beam creates a glowing dot. When you apply voltage to the deflection plates, the glowing dot moves. TDS200 Series Oscilloscope – Operator Training Kit...
Page 21 You use triggering to stabilize a repeating signal. Proper triggering ensures that the sweep begins at the same point of a repeating signal, to show a stable waveform. Figure 1.4 shows triggered and untriggered waveforms. Figure 1.4: Untriggered and triggered display TDS200 Series Oscilloscope – Operator Training Kit...
Page 22 A digital oscilloscope acquires a waveform as a series of signal samples. It stores these signal samples in its memory and then reassembles the waveform for viewing on the screen. TDS200 Series Oscilloscope – Operator Training Kit...
Page 23 These waveform points make one waveform record. The number of waveform points used to make a waveform record is called the record length. A waveform is then displayed on the screen. TDS200 Series Oscilloscope – Operator Training Kit...
Page 24 Every time a waveform triggers, the cells that map to the display path of the waveform are updated with intensity information. Intensity information increases in cells where the waveform passes. 1-10 TDS200 Series Oscilloscope – Operator Training Kit...
Page 25 Figure 1.6 shows how a DPO works. Figure 1.6: Block diagram of DPO Similar to a DSO, a DPO also uses a microprocessor for display management, measurement automation, and analysis of the displayed waveforms. TDS200 Series Oscilloscope – Operator Training Kit 1-11...
Page 26: Oscilloscope Terminology
Waveforms are classified into the following groups: • Sine waves Square and rectangular waves • Step and pulse waves • • Sawtooth and triangle waves • Complex waves 1-12 TDS200 Series Oscilloscope – Operator Training Kit...
Page 27 It is a standard wave for testing amplifiers, televisions, radios, and computer circuits. A rectangular wave represents high and low time periods of a square wave that are unequal. TDS200 Series Oscilloscope – Operator Training Kit 1-13...
Page 28 For example, a pulse is generated if you turn a power switch on and then off again. A pulse can represent the following information: • One bit traveling through a computer circuit • A defect or a glitch in a circuit 1-14 TDS200 Series Oscilloscope – Operator Training Kit...
Page 29 (faster or slower) than the falling rate of change. A triangle wave has a rising rate of change equal to the falling rate of change. Figure 1.10 shows examples of sawtooth and triangle waves. Figure 1.10: Sawtooth and triangle waves TDS200 Series Oscilloscope – Operator Training Kit 1-15...
Page 30 Complex waves can represent signal information embedded in the form of amplitude, phase, and/or frequency variations. Figure 1.11 shows a complex wave. Figure 1.11: Complex wave 1-16 TDS200 Series Oscilloscope – Operator Training Kit...
Page 31: Waveform Measurements
Hertz (Hz). Period represents the time in which a signal completes one cycle. Figure 1.12 shows the frequency and period of a sine wave. Figure 1.12: Frequency and period of a sine wave TDS200 Series Oscilloscope – Operator Training Kit 1-17...
Page 32 Figure 1.13: Phase in a sine wave Phase shift refers to the degrees of difference between two similar synchronous signals. Figure 1.14 shows a phase shift between two sine waves. Figure 1.14: Phase shift between two sine waves 1-18 TDS200 Series Oscilloscope – Operator Training Kit...
Page 33 Sweep Speed Sweep speed is the speed at which a waveform can sweep across the screen of an analog oscilloscope. The sweep speed of an oscilloscope is stated in time per division (sec/div). TDS200 Series Oscilloscope – Operator Training Kit 1-19...
Page 34: Getting To Know Probes
A probe also has a cable to transmit signals from the circuit to an oscilloscope. An appropriate probe has a negligible effect on the signal transmitted to the oscilloscope and the behavior of the circuit being tested. 1-20 TDS200 Series Oscilloscope – Operator Training Kit...
Page 35: Types Of Voltage Probes
Figure 1.15 shows a passive probe and standard accessories. Figure 1.15: A passive voltage probe with accessories TDS200 Series Oscilloscope – Operator Training Kit 1-21...
Page 36 For example, a 1X passive voltage probe will present a much higher capacitive load than a 10X passive voltage probe to the circuit being tested. 1-22 TDS200 Series Oscilloscope – Operator Training Kit...
Page 37 ±0.6 V to ±10 V. In addition, these probes can typically withstand a maximum voltage of ±40 V, without being damaged. Therefore, active voltage probes are used for low signal level applications, including fast logic device families, such as ECL and GaAs. TDS200 Series Oscilloscope – Operator Training Kit 1-23...
Page 38: How Probes Affect Measurements
This change in the signal is because the probe impedance is in parallel with the circuit impedance. To minimize this loading effect, you can try the following remedies: Use a higher impedance probe. • 1-24 TDS200 Series Oscilloscope – Operator Training Kit...
Page 39 An increase in signal frequency or transition speed decreases the reactive impedance of a capacitive element. Consequently, capacitive loading increases the rise and fall times on fast transition waveforms and decreases the amplitude of high frequency details in waveforms. TDS200 Series Oscilloscope – Operator Training Kit 1-25...
Page 40 This should ensure an error of no more than 3% in the measured rise or fall time. 1-26 TDS200 Series Oscilloscope – Operator Training Kit...
Page 41: Summary
• A DPO uses electronic Digital Phosphor to display a waveform. • Waveforms are classified as: Sine waves Square and rectangular waves Step and pulse waves Sawtooth and triangle waves Complex waves TDS200 Series Oscilloscope – Operator Training Kit 1-27...
Page 42 There are two types of voltage probes, active • voltage probes and passive voltage probes. Probes affect the signal generated by a circuit by • impedance loading. 1-28 TDS200 Series Oscilloscope – Operator Training Kit...
Page 43 Identify the primary controls of a TDS200 • oscilloscope. This module includes the following sections: • Setting Up TDS200 Oscilloscopes and Probes • Primary Controls Note: TDS200 refers to all models in the TDS200 series. TDS200 Series Oscilloscope – Operator Training Kit...
Page 44: Getting Started With Tds200 Oscilloscopes
TDS210, TDS220, and TDS224. All the models are digital real-time oscilloscopes and share various features and characteristics. You can use the TDS200 series of oscilloscopes to perform various tasks, such as designing, debugging, verifying, and servicing circuits and manufacturing and quality control.
Page 45 Getting Started with TDS200 Oscilloscopes Figure 2.1 shows a TDS220 oscilloscope. Figure 2.1: The TDS220 digital storage oscilloscope TDS 200 Series Oscilloscope – Operator Training Kit...
Page 46 Getting Started with TDS200 Oscilloscopes Figure 2.2 shows a TDS224 oscilloscope. Figure 2.2: The TDS224 digital storage oscilloscope TDS 200 Series Oscilloscope – Operator Training Kit...
Page 47 Getting Started with TDS200 Oscilloscopes Features of TDS200 Oscilloscopes TDS200 oscilloscopes are versatile and flexible DSOs and provide the following features: High bandwidth TDS200 oscilloscopes provide a wide bandwidth that ranges from 60 MHz to 100 MHz. In addition, all the models have a bandwidth limit selection of 20 MHz.
Page 48 Getting Started with TDS200 Oscilloscopes Versatility TDS200 oscilloscopes allow the use of various optional extension modules, such as communication and Fast Fourier Transform (FFT) modules, GPIB and LAN adapters, and waveform capture software for varied applications. Differences Between the TDS200 Models The various models of TDS200 oscilloscopes differ from each other primarily in bandwidth and the number of available channels.
Page 49: Setting Up A Tds200 Oscilloscope
Getting Started with TDS200 Oscilloscopes • The TDS210 and TDS220 oscilloscopes have two channels each for incoming signals while the TDS224 oscilloscope has four channels for incoming signals. The 2-channel TDS210 and TDS220 oscilloscopes • each have an external trigger input, while the 4- channel TDS224 does not.
Page 50 Getting Started with TDS200 Oscilloscopes The following safety precautions are to be adhered to while operating the TDS200 oscilloscope: Observe and understand all ratings and terminal • markings on the oscilloscope before you start using Use the power cord designed for the oscilloscope. •...
Page 51 Getting Started with TDS200 Oscilloscopes • Ensure that the operational environment of the oscilloscope is properly ventilated and is not humid. • Do not connect any oscilloscope input to any AC, DC, or spike voltage over the input rating. • Do not connect any probe input to any AC, DC, or spike voltage over the probe rating.
Page 52 Getting Started with TDS200 Oscilloscopes 3. On the top of the front panel, push the SAVE/RECALL menu button. 4. Push the appropriate side-screen menu button to select Setups. 5. Push the appropriate side-screen menu button to select Recall Factory. 6. In the VERTICAL section, push the CH 1 MENU button.
Page 53 Getting Started with TDS200 Oscilloscopes 10. On the top of the front panel, push the AUTOSET button. You will observe a square wave of about 5 volts peak-to-peak at a frequency of 1 kHz, as shown in Figure 2.3. Figure 2.3: Square wave of 5 volts peak-to-peak at 1 kHz TDS 200 Series Oscilloscope –...
Page 54 Getting Started with TDS200 Oscilloscopes 11. In the VERTICAL section, push the CH 1 MENU button. 12. In the VERTICAL section, push the CH 2 MENU button and repeat steps 7 through 9 for Channel 2. Repeat the previous procedure for Channel 3 and Channel 4 if you are using the TDS224 oscilloscope.
Page 55 Getting Started with TDS200 Oscilloscopes Introduction to the Training 1 Signal Board You will use the Training 1 signal board for most procedures in this Operator Training Kit. Figure 2.4 shows the Training 1 signal board. Figure 2.4: The Training 1 signal board TDS 200 Series Oscilloscope –...
Page 56 9-volts, 1A, to power the Training 1 signal board. A 9-volt battery is supplied with your Training 1 signal board. However, for long-term use you can also order the appropriate wall transformer with the recommended output for your country from Tektronix. Part Numbers Wall Transformer Accessories...
Page 57 Getting Started with TDS200 Oscilloscopes Note: When using a wall transformer for power, you should remove the 9-volt battery from the Training 1 signal board. You should also disconnect the wall transformer from the Training 1 signal board when the signal board is not in use.
Page 58 Getting Started with TDS200 Oscilloscopes Pins 1 to 6 of the Training 1 signal board provide digital signals, while pins 9 to 16 provide analog signals. All pins labeled GND provide the common signal reference. For a description of the signal from each pin of the Training 1 signal board, see Appendix A, Training 1 Signal Board: Signal Definitions, starting on page A-1.
Page 59: Probe Compensation
Getting Started with TDS200 Oscilloscopes Probe Compensation When you attach a passive voltage attenuation probe to an oscilloscope, the capacitances of both the probe cable and the oscilloscope’s input combine. This combined capacitance must match the capacitance of the input attenuation circuit of the probe. You must balance these capacitive effects between the probe and oscilloscope.
Page 60 Getting Started with TDS200 Oscilloscopes Note: You must compensate a passive voltage attenuation probe every time you change a probe/channel connection on your oscilloscope. This ensures that the probe accurately transfers the signal from a signal source to the oscilloscope. The following procedure enables you to balance the capacitive and resistive effects of a probe and an oscilloscope by compensating the probe.
Page 61 Getting Started with TDS200 Oscilloscopes 3. Push the appropriate side-screen menu button to select Recall Factory. 4. In the VERTICAL section, push the CH2 MENU button. 5. On the top of the front panel, push the AUTOSET button. 6. In the VERTICAL section, use the VOLTS/DIV and POSITION knobs for CH 1 and CH 2 to set CH1 2.00V in the top half of the display, and CH2 2.00V in the bottom half of the display.
Page 62 Getting Started with TDS200 Oscilloscopes You can now observe square waveforms displayed on the oscilloscope. These are similar to the waveforms shown in Figure 2.5. Figure 2.5: CH1 and CH2 probe compensation signal 2-20 TDS 200 Series Oscilloscope – Operator Training Kit...
Page 63 Getting Started with TDS200 Oscilloscopes However, the waveforms could also have distorted corners. Such waveforms could be similar to the waveforms shown in Figure 2.6 or Figure 2.7. Figure 2.6: Probe undercompensated Figure 2.7: Probe overcompensated TDS 200 Series Oscilloscope – Operator Training Kit 2-21...
Page 64 Getting Started with TDS200 Oscilloscopes An undercompensated or overcompensated probe can cause errors in measurements. To compensate the probe correctly, you must use the probe adjustment tool provided with the probe. The probe adjustment tool resembles a small screwdriver. You insert the probe adjustment tool in a small slot just behind the probe connector head in the probe body.
Page 65: Primary Controls
Getting Started with TDS200 Oscilloscopes Primary Controls The TDS200 oscilloscopes provide different controls to modify different components of the displayed waveform. This section describes the following primary controls on the front panel. • VERTICAL Controls • HORIZONTAL Controls • TRIGGER Controls •...
Page 66 Getting Started with TDS200 Oscilloscopes The three subsections of the VERTICAL controls are located on the front panel as shown in Figure 2.8. Figure 2.8: TDS200 VERTICAL controls The TDS200 oscilloscopes have a set of VERTICAL controls for each channel. 2-24 TDS 200 Series Oscilloscope –...
Page 67 Getting Started with TDS200 Oscilloscopes VERTICAL Control Knobs The VERTICAL controls for each channel consist of two knobs, the VOLTS/DIV knob and the POSITION knob. VOLTS/DIV knob You use the VOLTS/DIV knob to set and change the vertical voltage scale for the displayed waveform. For example, if the channel 1 volts/div setting is CH1 5.00V on the displayed readout, then each vertical division for channel 1 on the graticule represents 5 Volts, and the...
Page 68: Vertical Control Menu Buttons
Getting Started with TDS200 Oscilloscopes Figure 2.9 shows the VERTICAL control knobs. Figure 2.9: VERTICAL control knobs VERTICAL Control Menu Buttons A TDS200 oscilloscope includes menu-based functions to select various commands for the VERTICAL control of each channel. You use the side-screen menu-based VERTICAL controls for a channel to select various functions, such as the input coupling type, bandwidth limit of the channel, and probe attenuation.
Page 69 Getting Started with TDS200 Oscilloscopes To activate the VERTICAL menu-based functions for Channel 1, perform the following step: • In the VERTICAL section on the front panel, push the CH1 MENU button. The menu for Channel 1 is activated on the display. You can control each menu option by pushing the side-screen button next to the option.
Page 70 Getting Started with TDS200 Oscilloscopes Menu Description Option Coupling You use this menu option to select the coupling type for a channel. You can select AC, DC, or Ground . Bandwidth You use this menu option to set the Limit bandwidth limit of a channel at either 100 MHz for the TDS220 and TDS224 oscilloscopes (or 60 MHz for a TDS210...
Page 71 Getting Started with TDS200 Oscilloscopes Probe You use this menu option to match a probe attenuation of 1X, 10X, 100X, or 1000X. Warning: For safety, this menu must be set correctly when working with high voltages. For example, if you have a x100 probe and this menu is set to x1, the oscilloscope will show a 2 volt signal on screen (a circuit safe to touch) when...
Page 72: Math Menu Controls
Getting Started with TDS200 Oscilloscopes MATH MENU Controls You use the MATH MENU controls to perform math operations on displayed waveforms. You can choose to add or subtract two waveforms on all TDS200 models. The FFT function is available only as an option. If the TDS2MM extension module is installed, you can perform FFT operations on a displayed waveform.
Page 73 Getting Started with TDS200 Oscilloscopes Figure 2.11 shows the menu-based options for MATH controls. You control each menu option by pushing the side-screen button next to the option. Figure 2.11: Examples of MATH MENU functions TDS 200 Series Oscilloscope – Operator Training Kit 2-31...
Page 74 Getting Started with TDS200 Oscilloscopes Menu Description Options Operation You use this menu option to select the type of operation you want to perform, such as subtraction, addition, or FFT. Each operation activates a separate menu. The Operation menu option is not available with the TDS2MM extension module.
Page 75 Getting Started with TDS200 Oscilloscopes CH1-CH2 This menu option is activated when you select the subtraction (-) operation to subtract one waveform from another. You can perform both CH1-CH2 and CH2-CH1 operations. In a TDS224 oscilloscope, you can also perform CH3-CH4 and CH4-CH3 operations.
Page 76: Horizontal Controls
Getting Started with TDS200 Oscilloscopes HORIZONTAL Controls You use the HORIZONTAL controls to regulate the horizontal acquisition and display of a waveform. The HORIZONTAL controls are associated with the acquisition of an input signal by the oscilloscope. You can divide the HORIZONTAL controls into the following two subsections: HORIZONTAL control knobs •...
Page 77 Getting Started with TDS200 Oscilloscopes HORIZONTAL Control Knobs The HORIZONTAL control section consists of two knobs, the SEC/DIV knob and the POSITION knob. SEC/DIV knob You use the SEC/DIV knob to control a waveform’s horizontal time scale. The horizontal center of the display is the time reference for expanding and compressing waveforms.
Page 78 Getting Started with TDS200 Oscilloscopes Figure 2.13 shows the HORIZONTAL control knobs. Figure 2.13: HORIZONTAL Control Knobs HORIZONTAL Control Menu Buttons A TDS200 oscilloscope includes menu-based functions to select various commands for the HORIZONTAL controls. 2-36 TDS 200 Series Oscilloscope – Operator Training Kit...
Page 79 Getting Started with TDS200 Oscilloscopes To activate the HORIZONTAL menu-based functions, perform the following step: • In the HORIZONTAL section on the front panel, push the HORIZONTAL MENU button. The HORIZONTAL menu is activated on the display. You can control each menu option by pushing the side-screen button next to the option.
Page 80 Getting Started with TDS200 Oscilloscopes Menu Description Option Main You use this menu option to display the main horizontal time base setting for the displayed waveform. Window You use this menu option to adjust the Zone window zone with the horizontal POSITION and SEC/DIV knobs.
Page 81: Trigger Controls
Getting Started with TDS200 Oscilloscopes TRIGGER Controls You use the TRIGGER controls to reference the acquisition of signals. You also use the TRIGGER controls to set the trigger threshold conditions for a signal and assign a holdoff time to the trigger. Figure 2.15 shows the TRIGGER controls.
Page 82 Getting Started with TDS200 Oscilloscopes The TRIGGER controls on the front panel consists of the following: TRIGGER LEVEL/HOLDOFF knob You use the TRIGGER LEVEL/HOLDOFF knob to control the trigger level or the holdoff time for a trigger. However, you must first select the appropriate option in the HORIZONTAL menu to specify whether the knob controls the trigger level or the holdoff time.
Page 83 Getting Started with TDS200 Oscilloscopes You must keep the TRIGGER VIEW button pushed down to see the trigger waveform. The waveform disappears from the display when you release the button. TRIGGER MENU button You use the TRIGGER MENU button to activate the TRIGGER menu on the oscilloscope display.
Page 84 Getting Started with TDS200 Oscilloscopes Figure 2.16 shows the menu-based options for TRIGGER controls. You can control each menu option by pushing the side-screen button next to the option. Figure 2.16: Menu-based options for TRIGGER controls You use the TRIGGER menu to select either Edge or Video triggering for a waveform.
Page 85 Getting Started with TDS200 Oscilloscopes You use Edge triggering to trigger on the edge of the triggering signal at the signal threshold. You can select various menu options for Edge triggering. Menu Description Option Slope You select this menu option to specify a trigger on either the rising or falling edge of a signal.
Page 86 Getting Started with TDS200 Oscilloscopes The Auto trigger mode forces acquisitions to occur in the absence of a triggering signal. It also forces an untriggered, scanning waveform at time base settings slower than 50.0 ms. The Single trigger mode is used to capture a single acquisition of a signal.
Page 87 Getting Started with TDS200 Oscilloscopes Coupling You use this menu option to select the components of the trigger signal that are applied to the trigger circuitry. You can set the trigger coupling as AC, DC, Noise Reject, HF Reject, and LF Reject.
Page 88: Menu Function Controls
Getting Started with TDS200 Oscilloscopes Source You use this menu option to select an input source for a trigger signal. Video triggering uses the same input sources as Edge triggering. Sync You use this menu option to specify whether triggering will happen on Fields or Lines of a video signal.
Page 89 Getting Started with TDS200 Oscilloscopes The menu function controls consist of six menu-based menu function buttons. When you push a menu function button, the associated menu selection options are activated on the oscilloscope screen. Figure 2.17 shows the front panel menu function controls. Figure 2.17: Menu function controls TDS 200 Series Oscilloscope –...
Page 90 Getting Started with TDS200 Oscilloscopes ACQUIRE Menu Function Controls You use the ACQUIRE menu function controls to regulate the signal acquisition and processing system. You can use the ACQUIRE menu function controls to select different types of acquisition modes for a signal. To activate the ACQUIRE menu, push the ACQUIRE (ACQ on a TDS224) menu button.
Page 91 Getting Started with TDS200 Oscilloscopes Menu Description Option Sample You use this menu option to acquire 2500 sample points and display them at the sec/div setting. The Sample mode is the default mode for signal acquisition. Peak You use this menu option to select the detect Peak Detect mode for signal acquisition.
Page 92 Getting Started with TDS200 Oscilloscopes For procedures using the ACQUIRE menu function controls, see ACQUIRE Menu Function Controls starting on page 6-2. DISPLAY Menu Function Controls You use the DISPLAY menu controls to select the display characteristics for waveforms. You use the DISPLAY menu to specify the display type, persistence, display format, and display contrast.
Page 93 Getting Started with TDS200 Oscilloscopes Menu Description Option Type You use this menu option to specify whether the waveform will be displayed in dots or vectors. Persist You use this menu option to specify the duration for which each sample point is displayed.
Page 94 Getting Started with TDS200 Oscilloscopes Contrast You use this menu option to increase Increase the display contrast. Contrast You use this menu option to decrease Decrease the display contrast. For procedures using the DISPLAY menu function controls, see DISPLAY Menu Function Controls starting on page 6-15 CURSOR Menu Function Controls You use the CURSOR menu function controls to make...
Page 95 Getting Started with TDS200 Oscilloscopes Figure 2.20 shows the menu-based options for the CURSOR menu function controls. You control each menu option by pushing the side-screen button next to the option. Figure 2.20: CURSOR menu TDS 200 Series Oscilloscope – Operator Training Kit 2-53...
Page 96 Getting Started with TDS200 Oscilloscopes Menu Description Option Type You use this menu option to specify cursor measurements of Voltage (signal amplitude) or Time. Source You use this menu option to choose different cursor signal sources, such as CH1, CH2, MATH, Ref A, or Ref B, for a displayed waveform on TDS210 and TDS220 oscilloscopes.
Page 97 Getting Started with TDS200 Oscilloscopes Cursor 1 These menu options display the voltage or time locations of Cursor 1 Cursor 2 and Cursor 2. You reference time to the trigger position and voltage to ground. Note: Cursor selections are not available for DISPLAY Format XY.
Page 98 Getting Started with TDS200 Oscilloscopes MEASURE Menu Function Controls The MEASURE menu function controls allow you to take pre-defined automated measurements of waveforms. To activate the MEASURE menu, push the MEASURE menu button. Figure 2.21 shows the menu-based options for the MEASURE menu function controls for Type.
Page 99 Getting Started with TDS200 Oscilloscopes Menu Description Option Source You use this menu option to specify the source of a waveform as CH1 or CH2 for TDS210 and TDS220 oscilloscopes. CH3 and CH4 are also available on a TDS224 oscilloscope. You can display up to four measurements at a time.
Page 100 Getting Started with TDS200 Oscilloscopes SAVE/RECALL Menu Function Controls You use the SAVE/RECALL (SAVE/RCL on the TDS224 oscilloscope) menu function controls to save and recall up to five oscilloscope setups or two waveforms (four waveforms on the TDS224 oscilloscope). You can also use the SAVE/RECALL menu function controls to recall the default factory settings.
Page 101 Getting Started with TDS200 Oscilloscopes You can use the SAVE/RECALL menu to select either Setups or Waveforms. Both Setups and Waveforms have a unique menu display. In other words, each option activates a menu of its own. If you select Setups, you can select various menu options to save and recall instrument setups.
Page 102 Getting Started with TDS200 Oscilloscopes If you select Waveforms, you can select various menu options to save and recall waveforms. Menu Description Option Source You use this menu option to select the signal source as CH1, CH2, or MATH in TDS210 and TDS220 oscilloscopes. You can also select CH3 and CH4 as the signal source in a TDS224 oscilloscope.
Page 103 Getting Started with TDS200 Oscilloscopes Ref (x) You use this menu option to turn the selected Ref waveform display on or off. For procedures using the SAVE/RECALL menu function controls, see SAVE/RECALL Menu Function Controls starting on page 6-39. UTILITY Menu Function Controls You use the UTILITY menu function controls to access the various oscilloscope setup utility functions.
Page 104 Getting Started with TDS200 Oscilloscopes Figure 2.23 shows the menu-based options for the UTILITY menu function controls. You can control each menu option by pushing the side-screen menu button next to the option. Figure 2.23: UTILITY menu Menu Description Option System You use this menu option to check the Status...
Page 105 Getting Started with TDS200 Oscilloscopes Options You use this menu option to set up the printing and communication utilities. However, you must have the TDS2MM or TDS2CM extension module installed to use the Hard Copy, RS232, and GPIB setup utilities. Do Self You use this menu option to enable a TDS200 oscilloscope to perform self-...
Page 106: Summary
Getting Started with TDS200 Oscilloscopes Summary In this module, you learned about the following: • Basic features of TDS200 series oscilloscopes. • Differences between the various models of the oscilloscopes. • Set up procedure for the oscilloscope. • Probe compensation procedure.
Page 107: Using Vertical Controls
Using VERTICAL Controls You have learned about the various front panel controls. This module focuses on the VERTICAL and MATH MENU controls on the front panel. You will use various procedures to modify the displayed waveform by using the VERTICAL and MATH MENU controls. This module includes the following sections: VERTICAL Control Knobs •...
Page 108: Vertical Control Knobs
POSITION knob You use the POSITION knob to vertically position a waveform on the display. Figure 3.1 shows the VERTICAL control section of TDS200 series of oscilloscopes. Figure 3.1: TDS200 VERTICAL control section TDS 200 Series Oscilloscope – Operator Training Kit...
Page 109: Setting Up Vertical Controls
Using VERTICAL Controls Setting Up VERTICAL Controls Before you use the VERTICAL controls, you must ensure that the oscilloscope is set up for the VERTICAL controls. The following procedure sets up a TDS200 oscilloscope for VERTICAL controls. To set up a TDS200 oscilloscope for the VERTICAL controls, follow these steps: 1.
Page 110 Using VERTICAL Controls 6. In the VERTICAL section, push the CH 2 MENU button. 7. On the top of the front panel, push the AUTOSET button. 8. In the VERTICAL section, turn the VOLTS/DIV and POSITION knobs for CH 1 and CH 2 to set CH1 2.00V in the top half of the display, and CH2 2.00V in the bottom half of the display.
Page 111: Switching The Input Coupling
Using VERTICAL Controls After you set up your oscilloscope for VERTICAL controls, you can perform various procedures, such as switching the input coupling of a signal, modifying the vertical scale, and changing the vertical position of a waveform. Switching the Input Coupling Coupling is the method you use to connect an electrical signal from one device to another.
Page 112 Using VERTICAL Controls You can change the type of input coupling to view the various components of a signal. For example, you can use vertical AC coupling to view a repeating signal that is above 10 Hz and has a large DC offset. AC coupling allows you to view such signals without any special offset controls.
Page 113 Using VERTICAL Controls However, the ground reference arrow and the trigger level reference arrow at the left and right of the display, respectively, do not shift from their initial positions. 4. In the VERTICAL section, turn the Channel 1 VOLTS/DIV knob clockwise to set the CH 1 vertical scale readout at the bottom left corner of the oscilloscope display to be 50.0mV.
Page 114 Using VERTICAL Controls This happens because AC coupling is a high pass filter that blocks a component of the signal. 8. Turn the Channel 1 POSITION knob counter- clockwise to set the vertical position at -100.00 divs (-5.00V). Re-calibrate the probe for a square waveform.
Page 115 Using VERTICAL Controls VERTICAL Control MENU Buttons You use the various side-screen menu buttons of VERTICAL controls to select special functions, such as the input coupling for the signal, the bandwidth limit of the oscilloscope, and the probe attenuation factor. The next procedure demonstrates the steps to use the side- screen menu buttons of VERTICAL controls to modify the vertical scale of a waveform.
Page 116 Using VERTICAL Controls 2. Push the appropriate side-screen menu button to select Probe 10X for Channel 1. 3. Push the appropriate side-screen menu button to select BW Limit ON 20MHz. Limiting the bandwidth of the oscilloscope reduces high-frequency noise in the waveform. 4.
Page 117: Adding Two Waveforms
Using VERTICAL Controls MATH MENU Controls You use the MATH MENU controls to perform math operations, such as addition and subtraction of waveforms. For example, you can measure the difference in voltage between two points in a circuit by subtracting one waveform from another. In addition, you can use the MATH MENU controls to perform Fast Fourier Transform (FFT) operations on a waveform.
Page 118 Using VERTICAL Controls To add waveforms from two channels, follow these steps: 1. On the top of the front panel, push the SAVE/RECALL menu button. 2. Push the appropriate side-screen menu button to select Setups. 3. Push the appropriate side-screen menu button to select Recall Factory.
Page 119 Using VERTICAL Controls You will see waveforms similar to those shown in Figure 3.4. The displayed waveform adjacent to the M icon at the left of the display is the sum of the waveforms of CH1 and CH2. The M icon indicates the MATH waveform.
Page 120: Subtracting Two Waveforms
Using VERTICAL Controls Subtracting Two Waveforms You can use the oscilloscope to subtract two waveforms to isolate and view the differential of the two signals, while rejecting common mode signals. For example, consider a situation where you need to evaluate a switching power supply FET with respect to switching time and load regulation effects.
Page 121 Using VERTICAL Controls 3. On the Training 1 signal board, push the POWER button until only the Analog PWR light is on. 4. On the top of the front panel, push the SAVE/RECALL menu button. 5. Push the appropriate side-screen menu button to select Setups.
Page 122 Using VERTICAL Controls 9. In the HORIZONTAL section, turn the SEC/DIV knob counterclockwise to set the time base displayed at the bottom of the oscilloscope display as M 250 ms. Note that the CH1 and CH2 waveforms are displayed as sine shaped waveforms scanning the screen, overlaying each other.
Page 123 Using VERTICAL Controls 13. Push the appropriate side-screen menu button to select CH1+CH2. You will see waveforms similar to those shown in Figure 3.5. Figure 3.5: Vertical display of CH1-CH2 Note that a slow ‘heart beat’ signal is differentially buried in the large common mode sine wave signal that is on both Channel 1 and Channel 2.
Page 124: Performing Fft Operations
Using VERTICAL Controls Note: Depending on the model of TDS200 oscilloscope that you use, you may see only the MATH waveform. If you see the channel waveforms, you can remove them from the display by pushing the CH 1 MENU and the CH 2 MENU buttons once or twice.
Page 125 Using VERTICAL Controls To perform an FFT operation using the MATH MENU button of the VERTICAL controls, follow these steps: 1. Connect the CH1 probe tip to the PROBE COMP pin and the CH1 ground lead to the ground reference pin directly below the PROBE COMP pin on the front panel.
Page 126 Using VERTICAL Controls 7. Push the appropriate side-screen menu button to select FFT CH1. 8. In the HORIZONTAL section, turn the SEC/DIV knob counter-clockwise to set the frequency scale at 5.00 kHz. 9. Turn the HORIZONTAL POSITION knob clockwise to position the beginning of the frequency domain display four divisions from the left of the display.
Page 127 Using VERTICAL Controls You can observe both the odd and even harmonics of the 1 kHz frequency, as shown in Figure 3.6. Figure 3.6: FFT display of the calibrator signal TDS 200 Series Oscilloscope – Operator Training Kit 3-21...
Page 128: Summary
Using VERTICAL Controls Summary In this module, you learned to perform the following tasks: • Use the VERTICAL VOLTS/DIV knob controls to modify the calibration of the vertical scale of the display. • Use the VERTICAL POSITION knob controls to position a waveform on the vertical scale of the display.
Page 129: Using Horizontal Controls
Using HORIZONTAL Controls In the previous module, you learned to use the VERTICAL controls on the front panel. This module focuses on the HORIZONTAL controls on the front panel. In this module, you will learn various procedures to modify a displayed waveform by using HORIZONTAL controls.
Page 130: Horizontal Control Knobs
Using HORIZONTAL Controls HORIZONTAL Control Knobs The HORIZONTAL control section consists of two knobs, the SEC/DIV knob and the POSITION knob. SEC/DIV knob You use the SEC/DIV knob to modify the horizontal time scale of a displayed waveform. You can also use the SEC/DIV knob to increase or decrease the horizontal resolution of a displayed waveform.
Page 131 Using HORIZONTAL Controls Figure 4.1 shows the HORIZONTAL control sections on the front panel. Figure 4.1: HORIZONTAL control sections TDS 200 Series Oscilloscope – Operator Training Kit...
Page 132: Setting Up Horizontal Controls
Using HORIZONTAL Controls Setting Up HORIZONTAL Controls Before you use the HORIZONTAL controls, you need to set the oscilloscope to its default setting. Note: It is assumed that the Channel 1 probe is connected to the PROBE COMP signal on the front panel. To set up a TDS200 oscilloscope for the HORIZONTAL controls, follow these steps: 1.
Page 133 Using HORIZONTAL Controls You will see a waveform similar to that shown in Figure 4.2. Figure 4.2: TDS200 HORIZONTAL setup After you set up the oscilloscope for HORIZONTAL controls, you can perform various procedures, such as setting the delay time for a waveform. TDS 200 Series Oscilloscope –...
Page 134: Setting The Delay Time For A Waveform
Using HORIZONTAL Controls Setting the Delay Time for a Waveform You can change the delay time for a displayed waveform by changing the trigger position for the waveform. Setting a delay time for a waveform allows you to see an expanded view of the waveform at different time positions from the trigger position.
Page 135 Using HORIZONTAL Controls 2. Turn the HORIZONTAL POSITION knob counter- clockwise to set the position readout on the top of the display to M Pos: 20.00ms. This positions the waveform trigger point 20 milliseconds (ms) to the left of the center of the graticule.
Page 136 Using HORIZONTAL Controls In this procedure, you used the SEC/DIV knob to modify the time base setting of a waveform. You also used the HORIZONTAL POSITION knob to change the position of the trigger point from the center of the graticule. The actions performed using the two knobs resulted in an expanded view of the waveform, centered around a delay of 20 milliseconds from the trigger point.
Page 137: Horizontal Control Menu Buttons
Using HORIZONTAL Controls HORIZONTAL Control MENU Buttons In this section, you will learn to use both the knobs and the menu options for HORIZONTAL controls to modify a displayed waveform. Expanding the Waveform Display In the previous procedure, you expanded the scale of the horizontal time of a displayed waveform at a delay time on the waveform.
Page 138 Using HORIZONTAL Controls 3. Turn the HORIZONTAL POSITION knob clockwise to move the vertical dotted line cursors to center around the last positive edge of the displayed waveform. 4. Turn the SEC/DIV knob clockwise to set the displayed window setting at the bottom of the display to W 10.0us.
Page 139 Using HORIZONTAL Controls 5. Push the appropriate side-screen menu button to select Window. 6. In the HORIZONTAL section, turn the POSITION knob to position the rising edge of the displayed waveform at the center of the graticule. 7. Turn the SEC/DIV knob clockwise to set the time base setting at the bottom of the display to W 500ns.
Page 140: Summary
Using HORIZONTAL Controls Summary In this module, you learned to perform the following tasks: Use the SEC/DIV knob of a to modify the horizontal • scale of a displayed waveform. • Use the HORIZONTAL POSITION knob to change the horizontal position of a displayed waveform. •...
Page 141: Using Trigger Controls
Using TRIGGER Controls This module focuses on the TRIGGER controls on the front panel. The module provides procedures that you can use to modify a displayed waveform by using TRIGGER controls. This module includes the following sections: • TRIGGER Holdoff Control TRIGGER Control MENU Buttons •...
Page 142: Trigger Holdoff Controls
Using TRIGGER Controls Trigger Holdoff Controls Triggering a signal at the correct point is essential to ensure the proper display of a waveform. You can use the TRIGGER controls on the front panel to stabilize repeating signals, as well as to capture single-shot waveforms.
Page 143: Setting Up Trigger Controls
Using TRIGGER Controls Setting Up TRIGGER Controls Before you use the TRIGGER controls for operation exercises, you must ensure that the oscilloscope is set to its default setting. This procedure enables you to set the default settings required for procedures with TRIGGER controls. To set up a TDS200 oscilloscope for TRIGGER controls follow these steps: 1.
Page 144 Using TRIGGER Controls You will see a waveform similar to that shown in Figure 5.2. Figure 5.2: Pseudo random communications signal without holdoff Figure 5.2 shows the varying details of a pseudo random communications signal. However, observe that the displayed signal updates itself continuously in such a way that you cannot see a stable waveform display.
Page 145 Using TRIGGER Controls These can be an input signal from another channel, the oscilloscope power source, or an external input signal to the oscilloscope. You can also use trigger holdoff to stabilize a complex repeating waveform. Trigger holdoff is an adjustable period after a trigger, within which an oscilloscope cannot trigger again.
Page 146: Assigning Trigger Holdoff
Using TRIGGER Controls Assigning Trigger Holdoff The following procedure enables you to assign a holdoff time for the trigger generated by the PSEUDO RANDOM signal from pin 5 of the Training 1 signal board. This enables you to see a stable waveform display. Note: This procedure assumes that the oscilloscope retains the settings from the previous procedure.
Page 147 Using TRIGGER Controls You will see a waveform similar to that shown in Figure 5.4. Figure 5.4: Stable display of pseudo random communications signal by using trigger holdoff Observe that assigning a trigger holdoff time stabilizes the display of a repeating signal. You can also modify the horizontal scale of a displayed waveform by adjusting the sec/div setting.
Page 148: Assigning Trigger Holdoff With An Am Signal
Using TRIGGER Controls You can use the TRIGGER menu to assign a trigger holdoff for either edge or video triggering. In addition, you can assign a trigger holdoff when the oscilloscope is in the Normal or Auto trigger mode. It may be difficult to see a stable display for a repeating digital signal, such as a pseudo random signal, on an oscilloscope because edge transitions occur at many places within the waveform.
Page 149 Using TRIGGER Controls Figure 5.5 shows the updating overlay of the amplitude modulation region of an amplitude modulated (AM) signal. Figure 5.5: Complex AM signal without holdoff To observe a stable display of the amplitude modulation of a complex repeating signal, you must adjust the trigger level within the amplitude modulation region of the displayed waveform.
Page 150 Using TRIGGER Controls The next procedure enables you to analyze the amplitude modulation region of a complex repeating signal by assigning a trigger holdoff in the amplitude modulation region of the signal. To assign a trigger holdoff for an AM signal, follow these steps: 1.
Page 151 Using TRIGGER Controls 5. Push the appropriate side-screen menu button to select Recall Factory. 6. In the VERTICAL section, turn the Channel 1 VOLTS/DIV knob to set CH1 for 500mV. 7. In the HORIZONTAL section, turn the SEC/DIV knob to set the displayed time base for M 50.0us. 8.
Page 152 Using TRIGGER Controls You will see a waveform similar to that shown in Figure 5.6. Figure 5.6: Stable AM signal using trigger holdoff You can view the stable waveform display of the amplitude modulation region of an AM signal by assigning a trigger holdoff time to be within the amplitude-modulated region of the signal.
Page 153: Trigger Control Menu Buttons
Using TRIGGER Controls TRIGGER Control MENU Buttons In this section, you will learn how to stabilize a displayed bUsing an External waveform by using the TRIGGER MENU controls. You can select various sources, such as an input channel or the power source of the oscilloscope to trigger a displayed signal.
Page 154 Using TRIGGER Controls The following procedure enables you to use an external trigger source or unused channel, other than the displayed acquisition input channels, to trigger a displayed signal. You can use the external trigger input (or an unused channel) to trigger on certain unique aspects of this trigger signal.
Page 155 Using TRIGGER Controls 5. On the top of the front panel, push the AUTOSET button. 6. Connect a (10x passive) probe to the EXT TRIG input connector (or to the CH3 input connector on a TDS224 oscilloscope). 7. Connect the external (or CH3) trigger probe tip to the CLK 20MHz signal on pin 2 and the external (or CH3) trigger probe ground lead to GND on pin 1 of the Training 1 signal board.
Page 156 Using TRIGGER Controls 13. In the HORIZONTAL section, turn the SEC/DIV knob to set the time base as M 10.0ns on the display. You observe that the pseudo random signal on pin 5 is triggered by the CLK 20MHz signal from pin 2. You will see an Eye Diagram display similar to that shown in Figure 5.7.
Page 157: Selecting A Trigger Type
Using TRIGGER Controls As the EXT TRIG input on the TDS210 or TDS220 oscilloscope has a 10X probe connected to it, the trigger level is actually 10 times more than as shown on the display. You can further extend the external trigger level range of the TDS210 and TDS220 oscilloscopes.
Page 158 Using TRIGGER Controls The following procedure enables you to choose the Edge trigger selections to trigger the input signal according to your requirements. To trigger on the edge of the input signal, follow these steps: 1. Connect the CH1 probe tip to the PROBE COMP signal and the CH1 ground lead to GND on the front panel.
Page 159 Using TRIGGER Controls 7. Push the appropriate side-screen menu button to select Edge. 8. In the TRIGGER section, turn the LEVEL/HOLDOFF knob to set the trigger level to 1.52V. You will see a display showing Edge triggering setup, similar to that in Figure 5.8. Figure 5.8: Edge triggering TDS 200 Series Oscilloscope –...
Page 160: Selecting The Signal Coupling For A Trigger
Using TRIGGER Controls Selecting the Signal Coupling for a Trigger You can select the coupling type for a trigger when you choose edge triggering. You can choose to select AC, DC, Noise Reject, HF Reject, or LF Reject coupling for a trigger.
Page 161 Using TRIGGER Controls You will see a waveform similar to that shown in Figure 5.9. This trigger signal has a slower rise time and is the result of the low pass HF reject filter. This trigger selection rejects the high-speed components in the triggering signal.
Page 162 Using TRIGGER Controls On the other hand, Noise Reject coupling allows all components of a signal to pass to the trigger circuit, but increases the peak-to-peak signal required to trigger the signal. LF Reject is an AC coupled triggering mode that passes only the higher speed signal details above 50kHz sine wave bandwidth equivalent.
Page 163: Summary
Using TRIGGER Controls Summary In this module, you learned to perform the following tasks: Assign a trigger holdoff for a repeating signal. • Assign a trigger holdoff for a complex repeating • signal such as a pseudo random signal. Assign a trigger holdoff for an AM signal. •...
Page 164 Using TRIGGER Controls 5-24 TDS 200 Series Oscilloscope – Operator Training Kit...
Page 165: Using Menu Function Controls
Using Menu Function Controls This module provides information about the menu function controls on the front panel in combination with the various primary control sections. This module includes the following sections: • ACQUIRE Menu Function Controls • DISPLAY Menu Function Controls •...
Page 166: Acquire Menu Function Controls
Using Menu Function Controls ACQUIRE Menu Function Controls You use the acquisition modes of a TDS200 oscilloscope to control how waveforms are acquired and displayed from the sample points taken on a signal. A TDS200 oscilloscope acquires 2500 sample points for each active channel during every acquisition of the respective signals.
Page 167: Using The Average Acquisition Mode
Using Menu Function Controls Using the Average Acquisition Mode You use the Average acquisition mode to reduce the random noise in a displayed signal by taking an average of multiple waveforms. The Average acquisition mode uses the Sample acquisition mode to acquire data and then takes an average of multiple waveforms to display a final waveform.
Page 168 Using Menu Function Controls 2. On the Training 1 signal board, push the POWER button until only the Analog PWR light is on. 3. On the top of the front panel, push SAVE/RECALL. 4. Push the appropriate side-screen menu buttons to select Setups and then select Recall Factory.
Page 169 Using Menu Function Controls You will see a waveform similar to that shown in Figure 6.1. Figure 6.1 Noisy variable amplitude signal, acquired with Sample acquisition mode The waveform is acquired by the default Sample acquisition mode. You will now use the Average acquisition mode to reduce the displayed noise in the repeating signal 8.
Page 170 Using Menu Function Controls 9. Push the appropriate side-screen menu button to select Average. You will see a waveform similar to that shown in Figure 6.2. Figure 6.2: Noisy variable amplitude signal, acquired with Average acquisition mode You will observe that the signal noise is reduced when you shift from the Sample to the Average acquisition mode.
Page 171: Using The Peak Detect Acquisition Mode
Using Menu Function Controls Using the Peak Detect Acquisition Mode You use the Peak Detect acquisition mode to capture fast signal glitches that fall between acquisition samples at slower time base settings. You need to use Peak Detect acquisition when high-speed interference couples with electronic signals.
Page 172 Using Menu Function Controls The following procedure enables you to detect glitches in the signal at slow time base settings by selecting the Peak Detect acquisition mode and the scan display mode. Note: This procedure assumes that the oscilloscope retains the settings from the previous procedure.
Page 173 Using Menu Function Controls You will see a waveform similar to that shown in Figure 6.3. Figure 6.3: Noisy variable amplitude signal with glitches, acquired with Peak detect mode and scan display mode Note that random glitches appear on the waveform. These glitches are not visible in Sample acquisition mode.
Page 174: Step Response
Using Menu Function Controls Step Response In addition to the noise generated from the signal, probes and ground leads also cause signal distortions. For example, probe tip and ground leads have an amount of additional inductance. This inductance interacts with the probe and circuit capacitance to cause a damped sinusoidal variation on pulses with fast edge transitions.
Page 175 Using Menu Function Controls To perform the step response demonstration, follow these steps: 1. Connect the CH1 probe tip to the FAST RISE TIME signal on pin 16 and the CH1 ground lead to GND on pin 1 of the Training 1 signal board. 2.
Page 176 Using Menu Function Controls 9. In the TRIGGER section, turn the LEVEL/HOLDOFF knob to set the trigger level to 200mV. 10. On the Training 1 signal board, push the PRESS FOR SINGLE SHOT button to generate a high- speed single shot signal. You will see a waveform similar to that shown in Figure 6.4.
Page 177 Using Menu Function Controls The overshoot and ringing is caused by the inductance of the probe ground and signal tip leads that interact with the probe and circuit capacitance. To view the step response signal without overshoot and ringing, follow these steps: 1.
Page 178 Using Menu Function Controls You will see a waveform similar to that shown in Figure 6.5. Figure 6.5: Step response waveform without ground lead Note that the step response does not have ringing when the probe ground and signal tip leads are kept short. 6-14 TDS 200 Series Oscilloscope –...
Page 179: Display Menu Function Controls
Using Menu Function Controls DISPLAY Menu Function Controls You use the DISPLAY menu function controls to control how waveforms are displayed. You can use various menu options, such as Type, Persist, and Format of the DISPLAY menu to change the appearance of the oscilloscope display.
Page 180 Using Menu Function Controls To change the display type of a waveform, follow these steps: 1. Connect the CH1 probe tip to the D-10 MHz signal on pin 3 of the Training 1 signal board. 2. Connect the CH1 probe ground lead to GND on pin 1 of the Training 1 signal board.
Page 181 Using Menu Function Controls 9. On the top of the front panel, push the DISPLAY menu button. 10. Push the appropriate side-screen menu button to toggle between Type Dots and Type Vectors. For Type Dots, you will see a waveform similar to that shown in Figure 6.6.
Page 182: Using Persistence
Using Menu Function Controls Using Persistence You use the Persist mode to allow old waveform data to remain visible with the current waveform data on the oscilloscope display. When you use persistence, the old data is displayed in gray while the current data is displayed in black.
Page 183 Using Menu Function Controls 2. Push the appropriate side-screen menu button until you select Persist Infinite. 3. On the top right of the front panel, push the RUN/STOP button twice. This will start and then stop the accumulation of dots over many waveforms.
Page 184 Using Menu Function Controls 4. In the VERTICAL section, turn the Channel 1 POSITION knob to move the waveform down. Note that all but the last waveform acquisition dots disappear from the display. You will see a waveform similar to that shown in Figure 6.8.
Page 185: Using The Xy Display Mode
Using Menu Function Controls Using the XY Display Mode You can display waveforms in the XY or YT formats. When you choose the XY display format, Channel 1 is displayed on the horizontal axis and Channel 2 is displayed on the vertical axis. When you choose the YT format, the vertical voltage is displayed in relation to time.
Page 186 Using Menu Function Controls 2. Re-connect a P2100 probe to the CH2 input. Connect the CH2 probe tip to the PHASE SHIFTED SINE WAVE signal on pin 11 and the CH2 ground lead to GND on pin 14 of the Training 1 signal board.
Page 187 Using Menu Function Controls 10. On the Training 1 signal board, turn the ADJ knob to display the XY signal as a circle. The circle means that both the signals are sine waves and are 90º out of phase with respect to each other.
Page 188: Cursor Menu Function Controls
Using Menu Function Controls CURSOR Menu Function Controls You can use the CURSOR menu function controls to measure the vertical or horizontal details of a waveform. You can manually select the horizontal (voltage) and vertical (time) cursors to view the values of the cursor positions.
Page 189 Using Menu Function Controls Note: This procedure assumes that the oscilloscope retains the settings from the previous procedure. To measure the vertical scale of a waveform, follow these steps: 1. On the top of the front panel, push the SAVE/RECALL menu button. 2.
Page 190 Using Menu Function Controls 8. Read the peak-to-peak volts/amplitude measurement for the waveform in the side-screen menu box Delta. You will see a waveform similar to that shown in Figure 6.10. The measurement displayed in Delta is the peak- to-peak volts/amplitude measurement for the 5 kHz SINE signal from pin 10 on the Training 1 signal board.
Page 191: Measuring The Horizontal Scale
Using Menu Function Controls Measuring the Horizontal Scale The following procedure enables you to manually measure horizontal timing details on a waveform and display the period and frequency of the waveform. Note: This procedure assumes that the oscilloscope retains the settings from the previous procedure. To measure horizontal timing details on a waveform, follow these steps: 1.
Page 192 Using Menu Function Controls 5. Turn the Channel 2 POSITION knob to position the associated cursor on the right of the waveform cycle, where the sine wave crosses negatively through the center display graticule line. 6. Read the period and frequency measurements for the waveform in the side-screen menu box Delta.
Page 193: Measuring Pulse Width
Using Menu Function Controls Measuring Pulse Width Pulse width is the time period during which a pulse moves from low to high and then back to low again. Pulse width is measured at 50 % of the full peak-to-peak voltage. You can measure the width of a pulse by using the CURSOR menu.
Page 194 Using Menu Function Controls 5. On the top of the front panel, push the AUTOSET button. 6. In the HORIZONTAL section, turn the SEC/DIV knob to set the time base for M 25.0ns on the display. 7. On the top of the front panel, push the CURSOR menu button.
Page 195 Using Menu Function Controls You will see a waveform similar to that shown in Figure 6.12. The measurement displayed in Delta is the pulse width for the D-10 MHz signal from pin 3. Figure 6.12: Pulse width measurements of a 10 MHz data signal using cursors TDS 200 Series Oscilloscope –...
Page 196: Measuring Rise Time
Using Menu Function Controls Measuring Rise Time Rise time is the time taken by the leading edge of a pulse to rise from 10% to 90% of its peak-to-peak amplitude. You can measure the rise time of a pulse by using the CURSOR menu.
Page 197 Using Menu Function Controls 4. In the HORIZONTAL section, turn the SEC/DIV knob to set the time base to M 5.00ns on the display. 5. Push the appropriate side-screen menu button to select Volts/Div Fine. 6. In the VERTICAL section, turn the Channel 1 VOLTS/DIV knob to set the waveform baseline amplitude to five divisions of the graticule.
Page 198 Using Menu Function Controls 10. In the VERTICAL section, turn the Channel 1 POSITION knob to position the associated cursor at the point where the waveform crosses the second graticule below the center of the screen. This is the 10% point on the waveform. 11.
Page 199 Using Menu Function Controls You will see a display similar to that shown in Figure 6.13. The measurement displayed in Delta is the rise time for the D-10 MHz signal from pin 3 on the Training 1 signal board. Figure 6.13: Rise time measurement of a 10MHz data signal TDS 200 Series Oscilloscope –...
Page 200: Measure Menu Function Controls
Using Menu Function Controls MEASURE Menu Function Controls You can take various automatic measurements with a TDS200 oscilloscope. You use the MEASURE menu function controls to take automatic measurements, such as signal frequency, period, rise time, fall time, positive width and amplitude, of most displayed signals. Out of the nine possible measurements, you can take a maximum of four measurements at a time.
Page 201 Using Menu Function Controls 2. On the Training 1 signal board, push the POWER button until the Digital PWR light is on. 3. On the top of the front panel, push the SAVE/RECALL menu button. 4. Push the appropriate side-screen menu buttons to select Setups and then select Recall Factory.
Page 202 Using Menu Function Controls 10. Push the appropriate side-screen menu buttons to select Freq for the first measurement, Period for the second measurement, Mean for the third measurement, and Pk-Pk for the fourth measurement. You will see a display of measurements similar to that shown in Figure 6.14.
Page 203: Save/Recall Menu Function Controls
Using Menu Function Controls SAVE/RECALL Menu Function Controls You use the SAVE/RECALL menu function controls to save and recall a number of setups and waveforms. You can save and recall up to five instrument setups. In addition, you can also save and recall up to two reference memory locations for waveforms.
Page 204 Using Menu Function Controls 2. On the Training 1 signal board, push the POWER button until only the Analog PWR light is on. 3. On the top of the front panel, push the SAVE/RECALL menu button. 4. Push the appropriate side-screen menu buttons to select Setups and then select Recall Factory.
Page 205 Using Menu Function Controls 11. In the HORIZONTAL section, push the HORIZONTAL MENU button. 12. Push the appropriate side-screen menu button to select Window Zone. 13. On the top of the front panel, push the SAVE/RECALL menu button. 14. Push the appropriate side-screen menu button to select Setups.
Page 206 Using Menu Function Controls You will see a display similar to that shown in Figure 6.15. Figure 6.15: Saving an instrument setup To recall a setup, follow these steps: 1. On the top of the front panel, push the SAVE/RECALL menu button. 2.
Page 207: Saving And Recalling A Waveform
Using Menu Function Controls 3. Push the appropriate side-screen menu button to select Recall Factory. 4. Push the appropriate side-screen menu button to select Setup 1. 5. Push the appropriate side-screen menu button to select Recall. You should again see a display as shown in Figure 6.15. In these procedures, you saved a specific measurement setup and recalled it from the setup location Setup 1.
Page 208 Using Menu Function Controls 2. Push the appropriate side-screen menu buttons to select Setups and then Recall Factory. 3. On the top of the front panel, push the AUTOSET button. 4. Push the appropriate side-screen menu button to select Waveforms. 5.
Page 209 Using Menu Function Controls 8. In the VERTICAL section, turn the Channel 1 POSITION knob to position the displayed waveform one division above its current position. 9. Push the appropriate side-screen menu button to select Ref A On. 10. The displayed waveform is saved in the reference location Ref A.
Page 210: Utility Menu Function Controls
Using Menu Function Controls UTILITY Menu Function Controls You use the UTILITY menu function controls to access the different utility menus of a TDS200 oscilloscope. The UTILITY menu allows access to various tasks, such as displaying the system status for the different control sections of the oscilloscope, changing the display language, setting up the RS232 communications port, and checking the oscilloscope error log.
Page 211 Using Menu Function Controls 3. Push the appropriate side-screen menu button to select Vertical. For the TDS224 oscilloscope, you will select either Vertical CH1 CH2 or Vertical CH3 CH4. You will see a display similar to that shown in Figure 6.17.
Page 212 Using Menu Function Controls In the following procedure, you will change the display language of a TDS200 oscilloscope. To change the display language, follow these steps: 1. On the top of the front panel, push the UTILITY menu button. 2. Push the appropriate side-screen menu button to select the required language.
Page 213: Summary
Using Menu Function Controls Summary In this module, you learned to use the menu options for the following menu function controls: • ACQUIRE • DISPLAY CURSOR • • MEASURE • SAVE/RECALL • UTILITY TDS 200 Series Oscilloscope – Operator Training Kit 6-49...
Page 214 You have now completed all chapters of the TDS 200 Series Oscilloscope Operator Training Kit. Tektronix congratulates you for your work to be a better oscilloscope user.
Page 215: Appendix A: Training 1 Signal Board: Signal Definitions
Appendix A Training 1 Signal Board: Signal Definitions Appendix A Training 1 Signal Board: Signal Definitions Following is the regulatory compliance information for the Training 1 signal board. European EC Council EMC Directive Union 89/336/EEC, amended by 93/68/EEC. Demonstrated using: •...
Page 216 Appendix A Training 1 Signal Board: Signal Definitions Figure A1.1 depicts the layout of the Training 1 signal board. Figure A1.1: Training 1 signal board TDS 200 Series Oscilloscopes – Operator Training Kit...
Page 217 Appendix A Training 1 Signal Board: Signal Definitions Pins 1, 7, 8, and 14 Description These pins provide the ground reference for the Training 1 signal board. Pin 2 CLK 20 MHz Specification 20 MHz digital signal, 4 V peak-to-peak Description This signal is the control clock for all of the digital signals on the Training 1 signal board.
Page 218 Appendix A Training 1 Signal Board: Signal Definitions Pin 5 PSEUDO RANDOM Specification 20 MHz digital clock signal, 3 V peak-to-peak Description This NRZ/OC1 pseudo random signal can be used to show how to trigger on a complex yet repeating signal sequence, such as a communication signal or computer control signal, with the use of trigger holdoff on a TDS200 or a TDS3000 oscilloscope.
Page 219 Appendix A Training 1 Signal Board: Signal Definitions Pin 9 AM SIGNAL Specification Analog signal Frequency: 5 kHz sine wave with 1 MHz carrier Amplitude: 3 V peak-to-peak Description This amplitude modulated signal uses a 5 kHz sine wave signal source and a 1 MHz carrier frequency.
Page 220 Appendix A Training 1 Signal Board: Signal Definitions Description The phase difference between these two 5 kHz sine waves is varied using a potentiometer. The maximum phase shift between the two sine waves is determined by turning the potentiometer to both extremes. This set of signals can be used to demonstrate the phase relationship of two time related signals, such as voltage and current in a power supply, by...
Page 221 Appendix A Training 1 Signal Board: Signal Definitions Pin 15 VARIABLE AMPL WITH GLITCH Specification Analog signal Frequency: 10 Hz Amplitude: Variable between 1 V and 4 V, following sine wave at 0.1Hz rate 20ns asynchronous glitch, 5V amplitude, at 1Hz rate Description This signal is a 10 Hz square wave with an...
Page 222 Appendix A Training 1 Signal Board: Signal Definitions Description This signal is a 100 ns wide 0.6 Volt pulse with a rise time of <2 ns. The signal is generated each time the PRESS FOR SINGLE SHOT button is pressed on the Training 1 signal board.
Page 223: Appendix B: Glossary
(the ratio of the input measure to the output measure). Auto A trigger mode that causes the Trigger oscilloscope to automatically acquire if Mode it does not detect a valid trigger event. TDS200 Series Digital Oscilloscope – Operator Training Kit...
Page 224 Appendix B Glossary Autoset A feature that automatically sets the vertical, horizontal, and trigger controls to provide a usable display. Average A mode in which the oscilloscope Acquisition acquires and displays a waveform that Mode is the averaged result of several acquisitions.
Page 225 Appendix B Glossary B Trigger A second trigger that occurs after a given time or number of events from the main A trigger. The B trigger can be used in combination with the A trigger to capture complex events. Complex Combines the characteristics of sine Wave waves, square waves, step waves,...
Page 226 Appendix B Glossary Delay A means to delay the acquisition to start after the trigger event has occurred. The trigger point need not be within a waveform when delay is on. Display The word used to refer to the screen of the oscilloscope.
Page 227 Appendix B Glossary Frequency Represents the number of times a signal repeats itself in one second. The frequency of a signal is measured in Hertz (Hz). Ground Coupling option that disconnects the (GND) input signal from the vertical system. Coupling Ground The ground reference lead for an Lead...
Page 228 Appendix B Glossary Normal A mode where the oscilloscope does Trigger not acquire a waveform record unless Mode a valid trigger event occurs. It waits for a valid trigger event before acquiring waveform data. Peak An acquisition mode that captures Detect spikes and glitches that may occur Acquisition...
Page 229 Appendix B Glossary Phase Shift Refers to the degrees of difference between two similar synchronous signals. Pretrigger The specified portion of the waveform record that contains data acquired before the trigger event. Pulse Wave Represents a sudden change in signal level followed by a return to the original level.
Page 230 Appendix B Glossary Reference A saved waveform selected for Waveform display. You can save and display up to four reference waveforms on a TDS200 or TDS3000 oscilloscope, depending on the model. Rise Time The time taken by a step or pulse to rise from 10% to 90% amplitude level.
Page 231 Appendix B Glossary Sawtooth Has a rising rate of change that is Wave different (faster or slower) from the falling rate of change. Sine Wave Basic waveform that represents voltage change with time. Signals produced by the oscillator circuit in a signal generator are sine waves.
Page 232 Appendix B Glossary TekProbe An interface that communicates Interface information, such as the probe type and its attenuation factor, between a probe and a TDS3000 oscilloscope. The interface also supplies power to active voltage probes. Time Base The set of parameters that let you define the time axis attributes of a waveform record.
Page 233 Appendix B Glossary Video Triggering on the line or field sync Trigger pulses of a composite video signal. XY Format A display format that compares the voltage level of two waveform records point by point. It is useful for studying phase relationships between two waveforms.
