  • Page 1 *3' * 'ULYH 7HFKQLFDO 0DQXDO 0RGHOV *3'& DQG &,05*0 'RFXPHQW 1XPEHU 70 ...

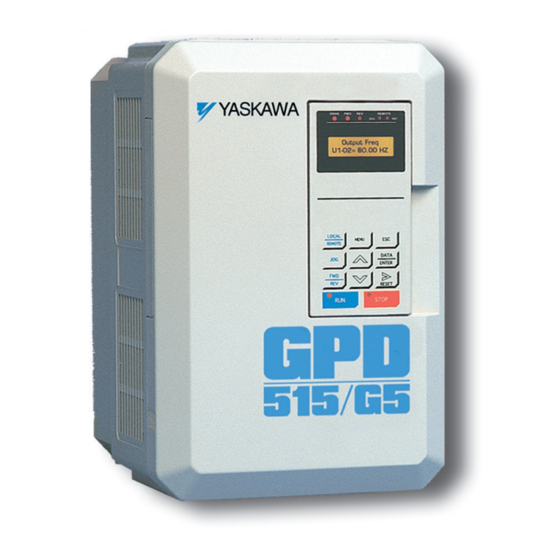

  • Page 2 Section 1. RECEIVING AND INSTALLATION GENERAL The GPD 515/G5, hereafter referred to as the drive, is a general purpose sine-coded pulse width modulated AC motor drive which generates an adjustable voltage/frequency three phase output for complete speed control of most conventional squirrel cage induction motors.
  • Page 3 • NEVER allow wire leads to contact metal surfaces. Short-circuit may result. • NEVER connect power factor correction capacitors to the drive output. Consult Yaskawa when connecting noise filters to the drive output. • WIRE SIZING MUST BE SUITABLE FOR CLASS I CIRCUITS.
  • Page 4 TERMINAL MODEL NO. MODEL NO. TERMINAL SYMBOL RATING TERMINAL SYMBOL SCREW SCREW mm 2 CIMR-G5M GPD515C– 20P41F A003, L1 (R), L2 (S), L3 (T), , ⊕ 1, ⊕ 2, B1, B2, 14 - 10 2 - 5.5 20P71F A006 T1 (U), T2 (V), T3 (W),...
  • Page 5 MODEL NO. TERMINAL SYMBOL MODEL NO. MODEL NO. SCREW TERMINAL SYMBOL SCREW mm 2 CIMR-G5M GPD515C– 40P41F B001 L1 (R), L2 (S), L3 (T), , ⊕1, ⊕ 2, B1, B2, T1 (U), 14 - 10 2 - 5.5 T2 (V), T3 (W),...
  • Page 6 2 MODEL NO.TERMINAL SYMBOL SCREW MODEL NO. MODEL NO. TERMINAL SYMBOL SCREW mm 2 CIMR-G5M GPD515C– 51P51F C003, L1 (R), L2 (S), L3 (T), , ⊕ 1, ⊕ 2, B1, B2, T1 (U), 14-10 2 - 5.5 52P21F C004...
  • Page 7 3 TO 40 HP A080, - A003 - A033 A049 - A064 A130 - A300 GPD515C- A096 L1 (R) Three phase Main circuit input power supply L2 (S) 200 / 208 / 220V at 50 Hz; 200 / 208 / 220 / 230V at 60 Hz...
  • Page 8 CIMR-G5M TERMINAL Old Model No. C003 - C022 C027 - C032 C041 - C200 GPD515C- L1 (R) Three phase Main circuit input power supply L2 (S) 500 / 575 / 600V at 50 Hz / 60HZ L3 (T) T1 (U)
  • Page 9 Main Circuit Configuration Block Diagrams 230V (DCL Option) L1 (R) U (T1) L2 (S) V (T2) CIMR-G5M20P41F to 27P51F L3 (T) W (T3) GPD515C-A003 to -A033 Power Control Supply Circuit (RCC) Cooling Fan (A011 to A033 only) (DCL Option) L1 (R)
  • Page 10 Main Circuit Configuration Block Diagrams 460V (DCL Option) L1 (R) U (T1) L2 (S) V (T2) CIMR-G5M40P41F to 40151F L3 (T) W (T3) GPD515C- B001 to - B034 Power Control Supply Circuit (RCC) Cooling Fan (B008 to B034 only) CIMR-G5M40181F to 40451F L1 (R)
  • Page 11 Option) L1 (R) U (T1) L2 (S) V (T2) L3 (T) W (T3) CIMR-G5M51P51F to 50151F GPD515C- C003 to - C022 Power Control When using DC input as main circuit Supply Circuit power, connect 600Vac to control (RCC) power transformer terminals r and s.
  • Page 12 1 . 4 . 2 G r o u n d i n g • The drive must be solidly grounded using the main circuit ground terminal. • If Drive is installed in a cabinet with other equipment, ground leads for all equipment should be connected to a common low-impedance ground point within the cabinet.
  • Page 13 However, it is recommended that an input or DC reactor be used with models GPD515C-A003 thru -A064 (CIMR-G5M20P41F thru 20151F), -B001 thru -B034 (40P41F thru 40151F) , and -C003 thru -C062 (51P51F thru 51451F) when wired to a source of 600 kVA or greater.
  • Page 14 For more detailed explanation, refer to document EZZ006543, “Installation Guidelines For EMC Directive using Yaskawa AC Drive Products.” Table 1-2.1 and Figure 1-2A show the line filter list for EMC standards and the installation/wiring of the drive and line filter.
  • Page 15 Ground Bonds (remove any paint) 515/G5 LINE FILTER LOAD Cable Length max. 40cm Metal Plate Motor Cable max. 20m Ground Bonds (remove any paint) Figure 1-2A. Installation of Line Filter and GPD 515/G5 1-14...
  • Page 16 1 . 4 . 4 C o n t r o l C i r c u i t All basic control circuit (signal) interconnections are shown in the appropriate diagram: • Interconnections for external two-wire control in combination with the Digital Operator are shown in Figure 1-3.
  • Page 17 1-16...
  • Page 18 Table 1-3. Terminal Functions and Signals of Control Circuit TERMINAL TERMINAL FUNCTIONS FUNCTIONS LEVELS DESCRIPTION / SIGNAL LEVELS 2-WIRE CONTROL: Forward Run / Stop signal Run at closed, stop at open (See NOTE 2) (See NOTE 1) 3-WIRE CONTROL: Run signal Run at closed (See NOTE 2) 2-WIRE CONTROL: Reverse Run / Stop signal Run at closed, stop at open (See NOTE 2)
  • Page 19 Table 1-3. Terminal Functions and Signals of Control Circuit - Continued TERMINAL FUNCTIONS LEVELS TERMINAL FUNCTIONS DESCRIPTION / SIGNAL LEVELS Multi-function analog monitor 1 (+) Output current Type of analog signal (operation parameter) to be or output output is selected by setting of parameters H4-01 Multi-function analog monitor (–) frequency is and H4-04 .
  • Page 20 1-19...
  • Page 21 2 instead. 1 1 . Use 1 (R) and 2 (S) for single-phase input. Note that for drives up through GPD515C-A064, -B034, and -C032 (CIMR-G5M20151F, 40151F, and 50221F) must be derated by 50%. Consult factory for derating of larger drives.
  • Page 22 1ø POWER SUPPLY (SEE NOTE 11) 3ø POWER SUPPLY (SEE NAMEPLATE DATA) (GPD515C-A080 [CIMR-G5M20151F] AND ABOVE; GPD515C-B041 [CIMR-G5M40151F] AND ABOVE; GPD515C-C027 [CIMR-G5M50221F] AND ABOVE) 1CB ,, SEE NOTE 10 RUN/STOP 1R , 1SS , +15Vdc RUN/STOP (20mA MAX) NOTE 9...
  • Page 23 2 instead. 1 1 . Use 1 (R) and 2 (S) for single-phase input. Note that for drives up through GPD515C-A064, -B034, and -C032 (CIMR-G5M20151F, 40151F, and 50221F) must be derated by 50%. Consult factory for derating of larger drives.
  • Page 24 3ø POWER SUPPLY (SEE NAMEPLATE DATA) (GPD515C-A080 [CIMR-G5M20151F] AND ABOVE; GPD515C-B041 [CIMR-G5M40151F] AND ABOVE; GPD515C-C027 [CIMR-G5M50221F] AND ABOVE) 1CB ,, SEE NOTE 10 1R , 1PB , +15Vdc 1OL , (20mA MAX) STOP NOTE MAN SPEED COOLING 1RH , 2PB , STOP MAN REF.
  • Page 25 1 . 4 . 7 E n c o d e r F e e d b a c k If either the Flux Vector (A1-02 = 3) or Volts Per Hertz with Encoder (A1-02 = 1) control method is desired, an encoder feedback board for the drive is required.
  • Page 26 GPD 515/G5 GPD 515/G5 panel or enclosure PG-X2 Card Factory wiring — TB1 to TA1 Isolated Power Supply +12V PG input Table 1-9 300 KHz input max. Optical Isolation Shield Line Receiver Line Driver Pulse 120 ‰ Pulse Pulse Monitor 120 ‰...
