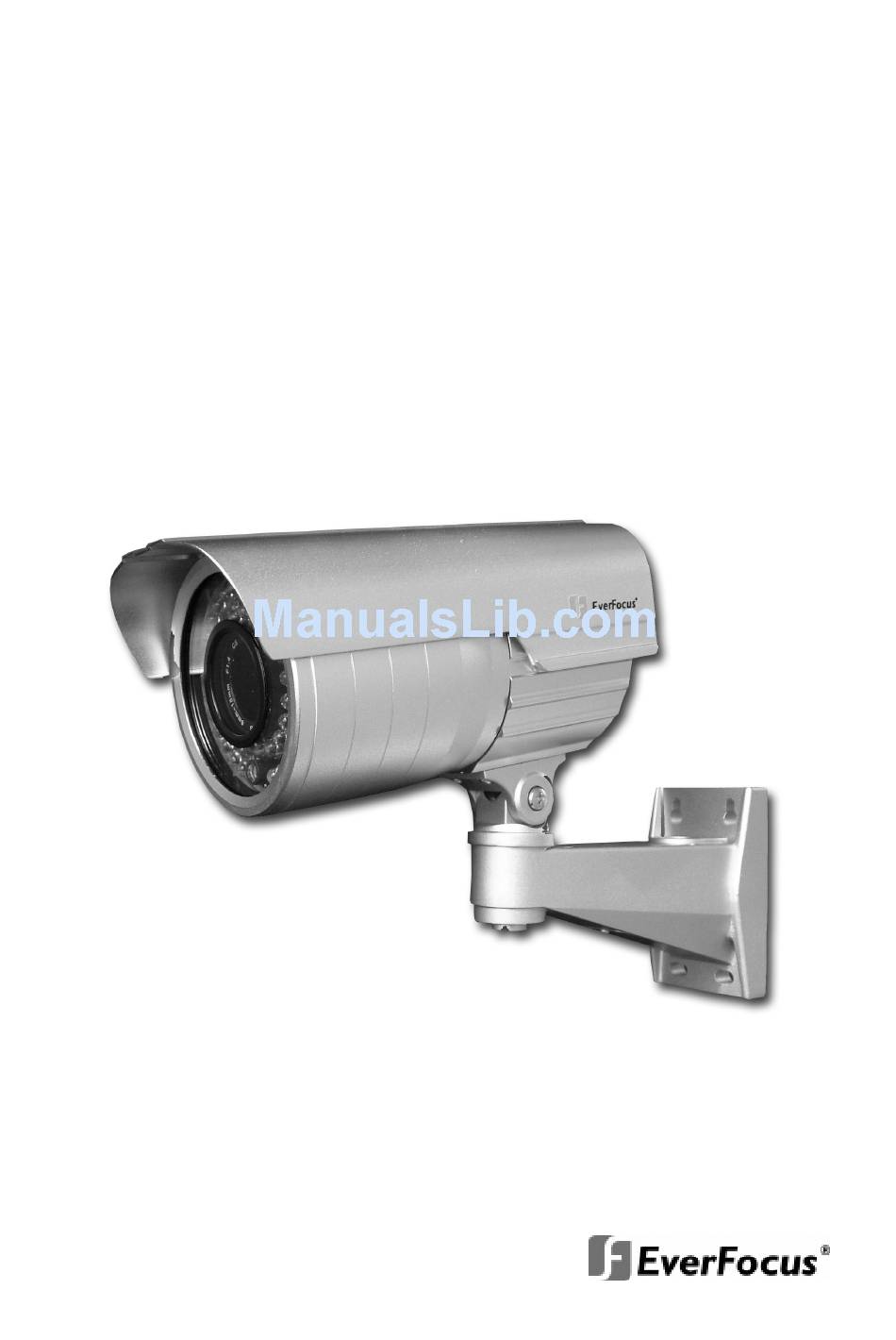

- Page 1 EZ 425W2 1/3” WDR Day / Night Camera with IR LED, 2,8~12 mm Lens INSTALLATION / OPERATION...
-
Page 2: Safety Warning
Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment should be disposed of separately from your household waste at their end-of-life. -
Page 3: Table Of Contents
1 PRODUCT OVERVIEW The EZ 425W2 outdoor camera is designed for applications with low lux environment. The integrated powerful IR illumination with 36 IR LED allows the camera to provide low noise video signals also in distances > 15 metres. Enhanced features are –... -
Page 4: Specifications
SPECIFICATIONS Sensor 1/3“ SONY IT CCD Video standard Picture element 752 (H) x 582 (V) Horizontal resolution 600 TV lines Sensitivity 0,4 lux (colour), 0 lux (b/w, IR on) IR illumination 36 IR LED, recommended object distance range 5 ~ 20 m (depending on reflections in scenery) S/N ratio >... -
Page 5: Dimensions
DIMENSIONS Total 71,5 77,5 Front Mounting plate bracket Page 5 of 20... -
Page 6: Installation
2 INSTALLATION MECHANICAL / ELECTRICAL INSTALLATION 1. Prepare the installation cables for video and power. For video cable, use RG59 or other cable with 75 Ohm impedance specified for CCTV applications. Install a 75 Ohm BNC plug at the end of the cable. 2. -
Page 7: Video Setup
VIDEO SETUP The complete video setup is done via an on-screen menu through the 5 keys at the rear side of the camera. Press „MENU“ key to open the setup menu. The main menu appears on the screen: Exposure White balance Day/night Functions Motion detection... -
Page 8: Menu Structure
2.3.2 MENU STRUCTURE Page 8 of 20... - Page 9 Page 9 of 20...
-
Page 10: Exposure
2.3.3 EXPOSURE Lens ELC : Default setting, don’t change this setting. Press the MENU key to open the shutter setting submenu: E.Shutter: Electronic shutter AUTO: For common applications, keep the AUTO default setting. 1/50...1/100.000: Manual setup of shutter speed (only for special applications). - Page 11 Highlight compensation: overexposed areas (e.g. through spotlights) are balanced with black. Mode : On: Permanent highlight compensation Night : Highlight compensation only in night mode Set level: Trigger level for highlight compensation Gray mode: Colour adjustment for balanced areas Mask Sel.: Select one of the 4 adjustable zones to be balanced Set the zone size in the submenu.
-
Page 12: White Balance
Max. value of the automatic gain control (3 steps). 3D DNR Level of the dynamic noise reduction (3 steps). Sense-Up Sensitivity enhancement through Slow Shutter: AUTO: The slow shutter value is adjusted automatically (up to 1024x) to match the light situation. 2x ~ 512x: The slow shutter value is adjusted automatically to match the light situation up to the selected threshold. -
Page 13: Day & Night
2.3.5 DAY & NIGHT This setting controls the automatic day/night switching in twilight condition. D&N Mode AUTO Automatic day/night switching, depending on video signal level. BURST: ON: colour burst in video signal (also in b/w mode) OFF: no colour burst in video in b/w mode Color>B&W : Trigger sensitivity day to night switching (0~30) B&W >Color: Trigger sentivity night to day switching (0~30) DWELL TIME: switching dwell time, adjustable 1~15 s... -
Page 14: Function
2.3.6 FUNCTION Use this menu for setting of various image parameters. Mirror Horizontal mirror Sharpness Image sharpness adjustment (1~30) Monitor Two preset display modes for optimal monitor adjustment Gamma Gamma value adjustment 0,45 / 0,6 / 1 / User (0,2~1) Lens shading compensation (image border shading), adjustable 1~30 in position ON Page 14 of 20... -
Page 15: Motion
2.3.7 MOTION Area Sel. Selectin of motion detection zone 1~4: Enter submenu of the zones to define size and position: Sensiti. Trigger sensitivity, adjustable 1~30 Display Display type upon detection: ICON: Display of an icon in the image. TRACE: Motion detection zone is displayed transparent. Hold time Display hold time, 1~15s. -
Page 16: Privacy Zones
2.3.8 PRIVACY ZONES Privacy zone adjustment for up to 8 zones. Mask 1~8 Selection of privacy zone 1~8, enter submenu of the zone to define size, position and colour. Dot Sel.: Select a dot to shift: L_TOP: top left L_BOT: bottom left R_TOP: top right R_BOT: bottom right Dot XY: Shift the selected dot for size adjustment:... -
Page 17: Setup - Special Settings
2.3.9 SETUP – SPECIAL SETTINGS Camera title TITLE OFF: no display of camera title ON: display of camra title, enter submenu to enter the camera title (max. 16 characters). Manual DPC If pixel faults are visible (small white spots in visible in night mode), these pixel faults can be eliminated with this function. -
Page 18: System
2.3.10 SYSTEM Camera ID Function not supported Communi. Function not supported Language Selection OSD language 2.3.11 EXIT Factory Set Switch to YES and confirm with MENU key to set all parameters to default setting. Save & Exit Save all changes and close the OSD menu. Exit Close the OSD menu without saving the changes. - Page 19 Page 19 of 20...
- Page 20 Headquarter Office Beijing Office 12F, No.79 Sec.1 Shin-Tai Wu Road, Room 609,Technology Trade Building. Hsi-Chi, Taipei, Taiwan Shangdi Information Industry Base, Haidian District,Beijing China Tel: +886-2-26982334 Fax: +886-2-26982380 Tel: +86-10-62971096 Fax: +86-10-62971423 European Office Japan Office Albert-Einstein-Straße 1, 5F Kinshicho City Building ， 2-13-4 Koto- D-46446 Emmerich, Germany bashi ，...
