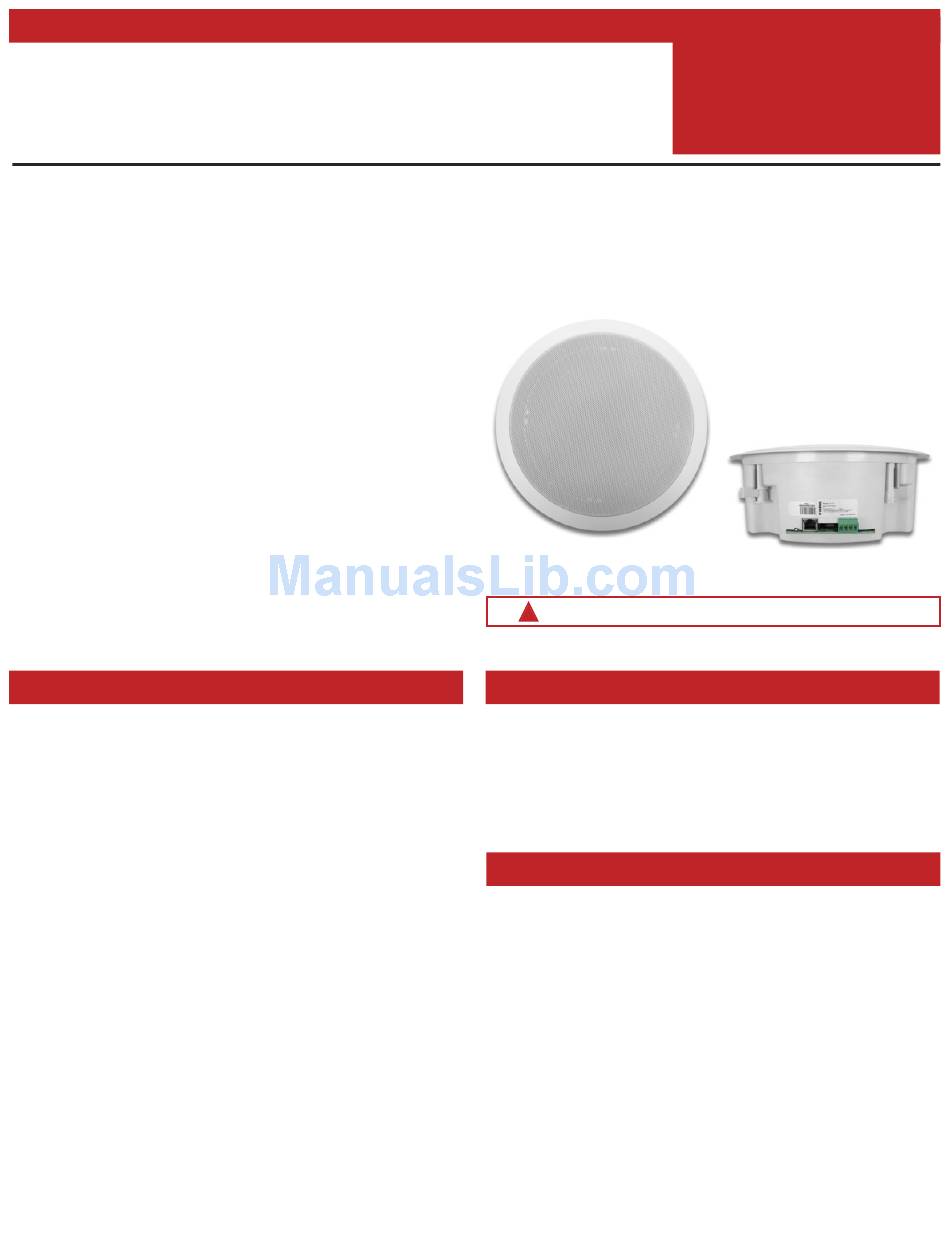

Designed, Manufactured and Supported in the USA
VIKING
S E C U R I T Y & C O M M U N I C A T I O N S O L U T I O N S
IP Ceiling Speaker for SIP Endpoint Paging or
The Viking model 40-IP Ceiling/Wall Speaker enables SIP
endpoint paging and also allows for standard paging and
background music via multicast. The speaker easily connects
with a single CAT5/6 cable from your PoE switch. The night
bell feature is programmable for time of day and day of week
to enable loud ringing for after hour incoming calls. Its shallow
depth allows the speaker to be conveniently mounted in a
standard 2" x 4" stud wall or ceiling.
Line-level audio output connections are provided for
connecting to an external amplifier. A built-in 6 Watt class D
amplifier with speaker output connections are also provided
to directly drive additional analog speakers. The LED on the
40-IP can be programmed to light during paging.
Features
• SIP compliant (See page two for list of compatible SIP servers and IP
phone systems)
• PoE powered (class 3, <13 Watts)
• Paging prioritization
• Plays audio from multicast
• SIP endpoint or multicast group member
• Supports up to 10 multicast paging groups
• Blue paging status LED indicator
• Autoprovisioning via Viking programming software
• Built-in high efficiency 6 Watt class D amplifier
• SIP/Multicast: SIP page, SIP page and zoned multicast stream, zoned
multicast receive
• Support for access code to prevent unwanted SIP calls
• Line-level audio output for connecting to an external amplifier
• Network remote speaker volume control
• Can drive up to 5 external analog speakers for greater coverage
• Mounting: Blind mounts into 9.5" hole, clearance requirement of 3.45"
(87.3mm) above 1/2" gypsum board ceiling
• Heavy duty back box protects speaker and circuitry from plenum dust
Information: 715-386-8861
www.VikingElectronics.com
PRODUCT MANUAL
Multicast Paging / Background Music

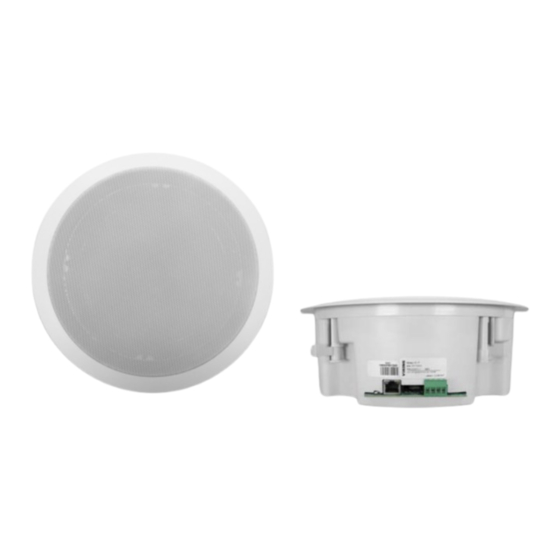

(front view)
Installation requires a Network Administrator / IT Technician
!
Applications
• Amplified SIP endpoint or multicast IP paging for: schools, hospitals,
retail stores, office spaces, etc.
• Provide background music and sound masking
• Add programmable secure relay control with optional RC-4A see
DOD# 582
Specifications
Power: PoE class 3 (<13 Watts)
Dimensions:
Overall: 11" x 11" x 4" (279mm x 279mm x 102mm)
Back box: 9.25" x 9.25" x 3.45" (235mm x 235mm x 88mm)
Shipping Weight: 5.0 lbs (2.27 kg)
Operating Temperature: -40°F to 140°F (-40° C to 60° C)
Humidity - Standard Products: 5% to 95% non-condensing
Audio Codecs: G711u, G722* and G711a
Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261,
100BASE-TX with auto cross over
Connections: (1) RJ45 10/100 Base-T, (1) 8 position terminal block
Maximum Output Level: 105 dB SPL @ 1M (with no additional Speakers
connected)
Amplifier: 6 Watt class D (capable of driving up to five additional 8
Ohm speakers connected in parallel)
*NOTE: The 40-IP does not support multicast paging using the G722 or G711a Codec.
40-IP
SIP / Multicast
Ceiling Speaker
January 8, 2018
Model
40-IP
(side view)
*

Advertisement

Table of Contents
loading

Related Manuals for Viking 40-IP

Summary of Contents for Viking 40-IP

  • Page 1 • Heavy duty back box protects speaker and circuitry from plenum dust connected) Amplifier: 6 Watt class D (capable of driving up to five additional 8 Information: 715-386-8861 Ohm speakers connected in parallel) *NOTE: The 40-IP does not support multicast paging using the G722 or G711a Codec. www.VikingElectronics.com...
  • Page 2 Viking VoIP SIP System Compatibility List NOTE: Exclusion from this list means only that compatibility has not been verified, it does not mean incompatibility. For detailed configuration instructions for certain vendors below, see Configuring Viking VoIP Phone and SIP Servers, DOD# 944.
  • Page 3 It resides in the device’s memory and is used by routers to send network traffic to the correct IP address. You can find the MAC address of your 40-IP phone printed on a white label on the top surface of the PoE LAN port.

  • Page 4: Features Overview

    12 digit number used by Clamps routers to send network traffic to the correct IP address. Optional Viking Model PA-60 paging PoE LAN Port 10/100, PoE Class 3 (<13 Watts): amplifier See DOD# 493 Connect to your LAN via RJ45 plug and CAT5 or...

  • Page 5: Installation And Mounting

    Installation and Mounting Ceiling or Wall Installation The 40-IP Ceiling Speaker is intended to be mounted in a T-bar acoustic tile, gypsum ceiling or wall. An optional T-Bar support bracket (SA-TBA) is available that can transfer the speaker weight onto the T-bar rails.
  • Page 6 When using an RC-4A for remote relay control the 40-IP’s relays should be set to “External” in the PC programming. Note: If the 40-IP loses communications with the RC-4A, the LED on the 40-IP will flash 3 times every 2 seconds indicating the communication error.
  • Page 7 PC running Windows 2000, XP, Vista, Windows 7, Windows 8 or Windows 10 (see System Requirements above). The PC must be connected to the same LAN as the 40-IP. Install the application on your PC by placing the DVD into your PC’s drive.
  • Page 8 Step 1. programmed. The window in the upper left corner of the menu will show you each 40-IP phone that is connected to that LAN. Select the unit with the Step 2. same MAC address shown on the label next to the Ethernet connector on the 40-IP speaker.
  • Page 9 You can now enter programming by following the steps in section A. E. Manually Resetting All Network Parameters to Factory Default Step 1. Power down the 40-IP phone by disconnecting the LAN Cable (RJ45 plug). Step 2. Press and hold the Reset button, then reconnect the LAN Cable (RJ45 plug).

  • Page 10: Programming Features

    Programming Features 1. Unit Name Up to a 31 character unit name can be assigned to the 40-IP being programmed. 2. Peer to Peer Settings When set to Peer to Peer mode a SIP server is not used. The unit should be programmed with a Static IP Address and Username, a password is not used.

  • Page 11: Security Code

    IP address of the alternate SIP server in the field next to the Register Fails drop down box. 4. Security Code The security code allows the user/installer to program the 40-IP phone. The factory set security code is 845464. It is recommended that the factory set security code be changed.
  • Page 12 The multicast paging groups can also be used for up to ten different paging zones for receiving audio streams. A paging zone can consist of one or many 40-IP multicast speakers. There is no limit to how many speakers can be in a given paging zone.

  • Page 13: Ring Volume

    Adjusting this will set the volume level for SIP Paging. 16. Ring Volume When set to Ring the 40-IP will output a loud ring when it is called. The level can be adjusted from 0-9. Factory set to 5. 17. SIP Page Length Time Out This feature selects the maximum length of time that SIP Page calls can be connected.
  • Page 14 21 LED Mode The LED on the 40-IP can be programmed to one of three different modes: OFF, ON or Paging. OFF Mode: In this mode the LED will not light during normal operation. It will only light (blink) if it cannot register with the programmed SIP server or while manually resetting all network parameters to factory default.

  • Page 15: Phone Firmware

    28. Phone Firmware If new 40-IP firmware is available, after opening the programming software a pop up window will ask if you would like to update firmware. Another way to update is accomplished by clicking the phone firmware “Update” button. You can then browse to the folder that contains the HEX file for updating the unit’s firmware.

  • Page 16: Night Ring

    When Night Ring Timed Operation is enabled, if a SIP call is received during the programmed Start and Stop times, the 40-IP will output loud ring on the “Line Out“ and “Speaker Out” terminals. This is selectable for each day of the week.

  • Page 17: Operation

    Optional RC-4A Remote Access Relay Operation Commands The following commands can be entered after the 40-IP has answered an incoming SIP call. After the unit auto answers the call, two beeps will be heard. If the access code has been disabled, you can now enter the Remote Access Operation Commands below.
  • Page 18 The 25AE, 30AE, 35AE, and 40AE paging speakers provide additional economical paging coverage to existing Viking paging units (40-IP, PA-2A, PA-15, PA-30, PA-60, HF-3W, M2W) or to any system with an 8 Ohm output. In outdoor, factory or warehouse environments, 25AE paging horns are the best method of producing understandable sound.
  • Page 19 The same can be done with the Viking model MTG-10 in which one zone can have just paging, and the other zone can have paging plus the 10 different siren, warble, and chime tones that the MTG-10 can provide.

  • Page 20: Warranty

    TWO YEAR LIMITED WARRANTY Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two years from the date of purchase from any authorized Viking distributor. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016.
