Designed, Manufactured and Supported in the USA
VIKING
SECURITY & COMMUNICATION
Add Location Announcement to
The EV-1 is the perfect solution to help
make your elevator/emergency phone
ADA* compliant.

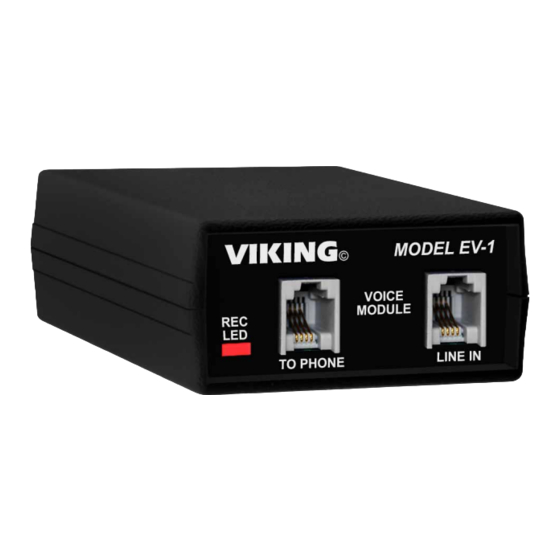

The EV-1 is a line powered emergency
voice announcer designed to add anatural
voice announcement to any telephone. The
announcer provides ten seconds of non-
volatile record time that can be used to
communicate the location of an emergency
phone, or a piece of malfunctioning
equipment.
After a call initiated behind the EV-1 is
answered,
the
Features
• Telephone line powered
• Ten seconds of digital record time
• Non-volatile memory (no batteries
required)
• Record remotely or locally with a touch
tone phone
• Automatic playback capability
*Americans with Disabilities Act of 1992 contains federal regulations
regarding elevator telephones (Public Law 101-336).
Information: 715-386-8861
www.VikingElectronics.com
PRODUCT
MANUAL
Emergency Phones
EV-1
repeats
announcement continuously. Emergency
personnel
announcement at will by dialing a touch
the
tone Q.
• Emergency/elevator phone location
identification (helps meet ADA* requirements)
• Identify calls initiated by automatic dialing
equipment
Power: Phone line powered (32V DC 25mA
minimum)
Dimensions: 2.8" x 1.4" x 4.7" (71mm x 36mm
x 119mm)
Shipping Weight: 1.5 lb (0.7 kg)
Environmental: 32° F to 90° F (0° C to 32° C)
with 5% to 95% non-condensing humidity
Sampling Rate: 64K (equivalent)
Message Length: 10 Seconds
Connections: (2) RJ11 jacks
EV-1
Handsfree Speaker
Phones with Dialers
March 8 , 2023
can
stop
and
Applications
Specifications
start
the
Advertisement
Related Manuals for Viking EV-1
Summary of Contents for Viking EV-1

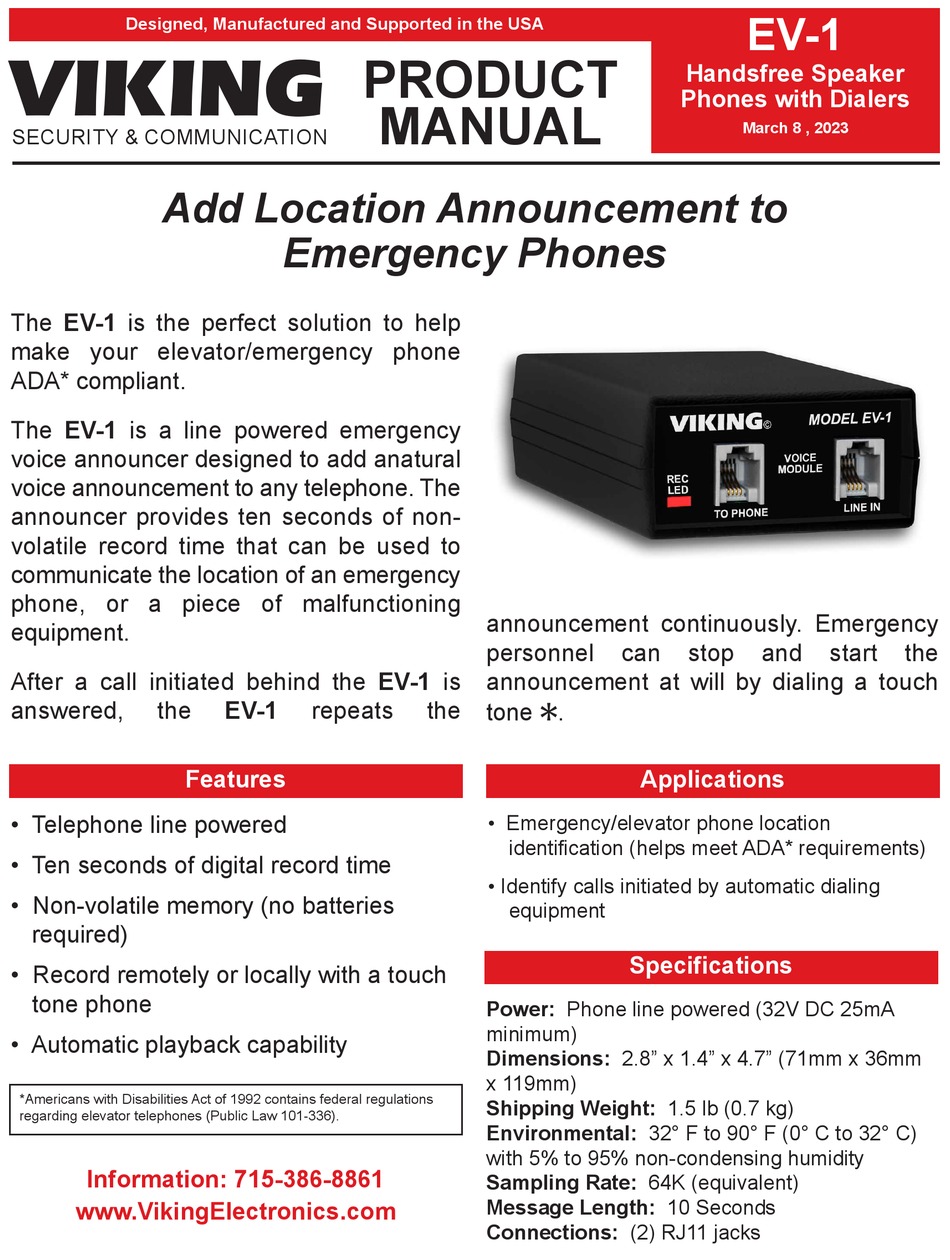

- Page 1 March 8 , 2023 SECURITY & COMMUNICATION Add Location Announcement to Emergency Phones The EV-1 is the perfect solution to help make your elevator/emergency phone ADA* compliant. The EV-1 is a line powered emergency voice announcer designed to add anatural voice announcement to any telephone.
- Page 2 B . Recording The EV-1 may be recorded locally or remotely. Before recording, it is recommended that a script be written and timed. There is 10 seconds of voice record time available. The script should contain information about the location of the emergency call as well as how to start and stop the announcement.
- Page 3 (5 - 10 seconds), it begins repeating the recorded announcement continuously. You may then stop the announcement at any time with a touch tone Q. Upon detecting the Q, the EV-1 will play the remainder of the announcement in progress, and then stop.
- Page 4 TWO YEAR LIMITED WARRANTY Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two years from the date of purchase from any authorized Viking distributor. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016.
