ORTAL Skamotec 225 Installation Manual

250 series front facing clear 200 & 200h
Hide thumbs

Advertisement

Quick Links

Download this manual
Ortal
Front Facing Clear 200 & 200H
Skamotec 225 Installation Guide
Revised: December 22, 2016

Advertisement

loading
Need help?

Need help?

Do you have a question about the Skamotec 225 and is the answer not in the manual?

Questions and answers

Related Manuals for ORTAL Skamotec 225

Summary of Contents for ORTAL Skamotec 225

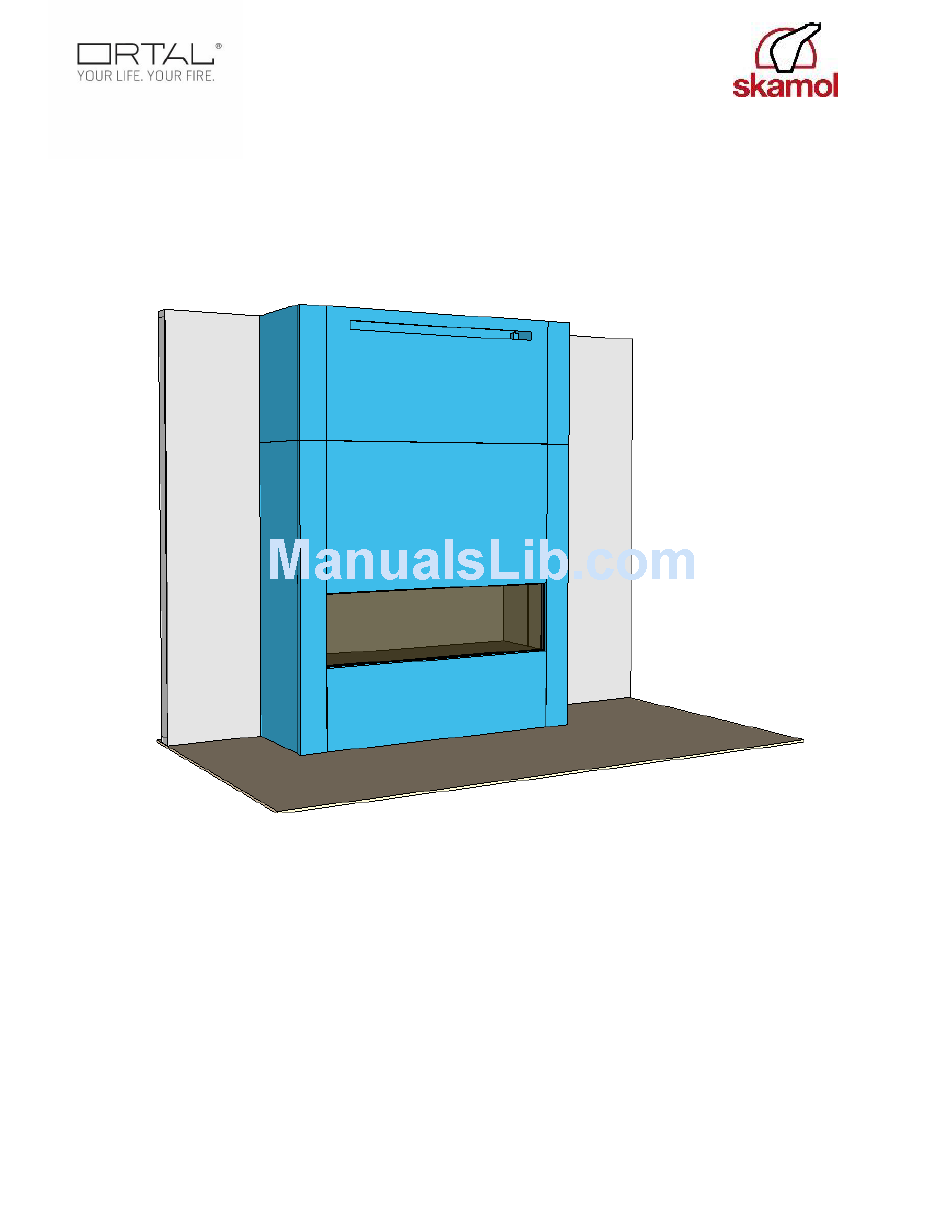

  • Page 1 Ortal Front Facing Clear 200 & 200H Skamotec 225 Installation Guide Revised: December 22, 2016...
  • Page 2  All joints must be attached using the recommended construction adhesive & construction screws.  All joining SKAMOTEC 225 surfaces must be moistened with water before assembly. This is to prevent the adhesive from drying out too quickly & adhering incorrectly. Please take care that water does not spill on Ortal unit.
  • Page 3 Min. 24’’ clearance from cavity ceiling to top of firebox opening Min Height: Min: 21.5’’ Double Glass: 9 -5/8’’ Screen Protection: 8-1/8’’ Min: 87.7’’ Plan Layout In order to simplify & quicken the installation process, it is important to plan your layout. Create a cut-list, then determine the location of your access panel &...

  • Page 4: Heat Release

    Heat Release Per Ortal Installation Manual, a method of Heat Release is required for all Ortal built in fireplace models. It must be located at the top of the fireplace cavity; maximum 6 inches below the fireplace cavity ceiling. It can be located on the front, sides or back of the fireplace chase so long as it is being released into an interior space and not outdoors.

  • Page 5: Fireplace Clearances

    Please refer to Ortal Installation & Operation Manual. Fireplace Clearances Access Panel is required for all Ortal fireplaces. We recommend a minimum 10” x 10” access panel. The location & design of the access panel should not disturb the aesthetic incorporation of the fireplace to its surrounding living space.
  • Page 6 Material Requirements – Basic Overview #1 - Back Panel (May be several pieces) #2 – RH–Side Panel #7 - Support Blocking #2 – LH – Side Panel #8 – Joint Plate (if multiple pieces) #7 - Support Blocking #8 – Joint Plate (if multiple pieces) #3 –...
  • Page 7 Pre-Assemble of Panels Before you start assembling your SKAMOTEC 225 enclosure, it is recommended for easy of installation to sub-assembly a few of the panels. Note: Please re-measure the fireplace to confirm sizes are correct. Support Blocking 1-1/2’’ x 1-1/2’’...
  • Page 8 Min 4’’ Wide Dim to Suit. Max 48’’ 77.7’’ #5 – Middle Front Panel Assy Full Size Skamotec 225 board Assembly instructions  Before attaching support blocking moisten all joining surfaces  Fastened using 2 1/2” screws & construction adhesive ...

  • Page 9: Assembly Guide

    Assembly Guide Max Width: 84.7’’ Min. Width 18.5’’ Minimum 2’’ from Skamotec 225 to Ortal unit Step 1 – Construct Fireplace Platform Can be constructed using combustible material Step 1(a) – Confirm clearances...
  • Page 10 Step 2 – Install #1 Back Wall panel  Position Back panel (s) directly to wall & level. Back panel can be several pieces.  Moisten SKAMOTEC 225 surface, then apply construction adhesive  Fastened using 2-1/2” construction screws ...
  • Page 11 Step 4 – Install #2 LH & RH – Top Side Panels Assy  Position Side Panel directly to Back Wall  Moisten SKAMOTEC 225 surfaces, then apply construction adhesive  Fastened using 2-1/2” construction screws  Maintain a fastener spacing of 6” – 8”...
  • Page 12 Step 5 – Install #3 – Front Side Panel Assy  Position Front Panel directly to Side Walls  Moisten SKAMOTEC 225 surfaces, then apply construction adhesive  Fastened using 2-1/2” construction screws  Maintain a fastener spacing of 6” – 8”...
  • Page 13 Step 6 – Install #4 Bottom Front Panel  Position Bottom Front Panel in between Front side panels and directly to fireplace platform  Moisten SKAMOTEC 225 surfaces, then apply construction adhesive  Fastened using 2-1/2” construction screws  Maintain a fastener spacing of 6” – 8”...
  • Page 14 Step 7 – Install #5 Middle Front Panel Assy.  Position Front Middle Panel in between Front Side panels and attach to joint plate  Moisten SKAMOTEC 225 surfaces, then apply construction adhesive  Fastened using 2-1/2” construction screws ...
  • Page 15 Step 8 – Install #9 Cavity Support Blocking.  Position to back wall and joint plate of Middle Front Panel Assy and Front Side Panel Assy  Moisten SKAMOTEC 225 surfaces, then apply construction adhesive  Fastened using 2-1/2” construction screws ...

  • Page 16: Finished Installation

    Step 9 – Install #6 – Top Panel (s)  Position Top Panel (s) directly to Side Walls  Moisten SKAMOTEC 225 surfaces, then apply construction adhesive  Fastened using 2-1/2” construction screws  Maintain a fastener spacing of 6” – 8”...
  • Page 17 Then apply a second thin coat of 100/% acrylic latex primer (building up your layers)  Apply finish coat Note: Do not use a primer/sealer mix, as this is too thick & will not bond to Skamotec 225 Tile ...
