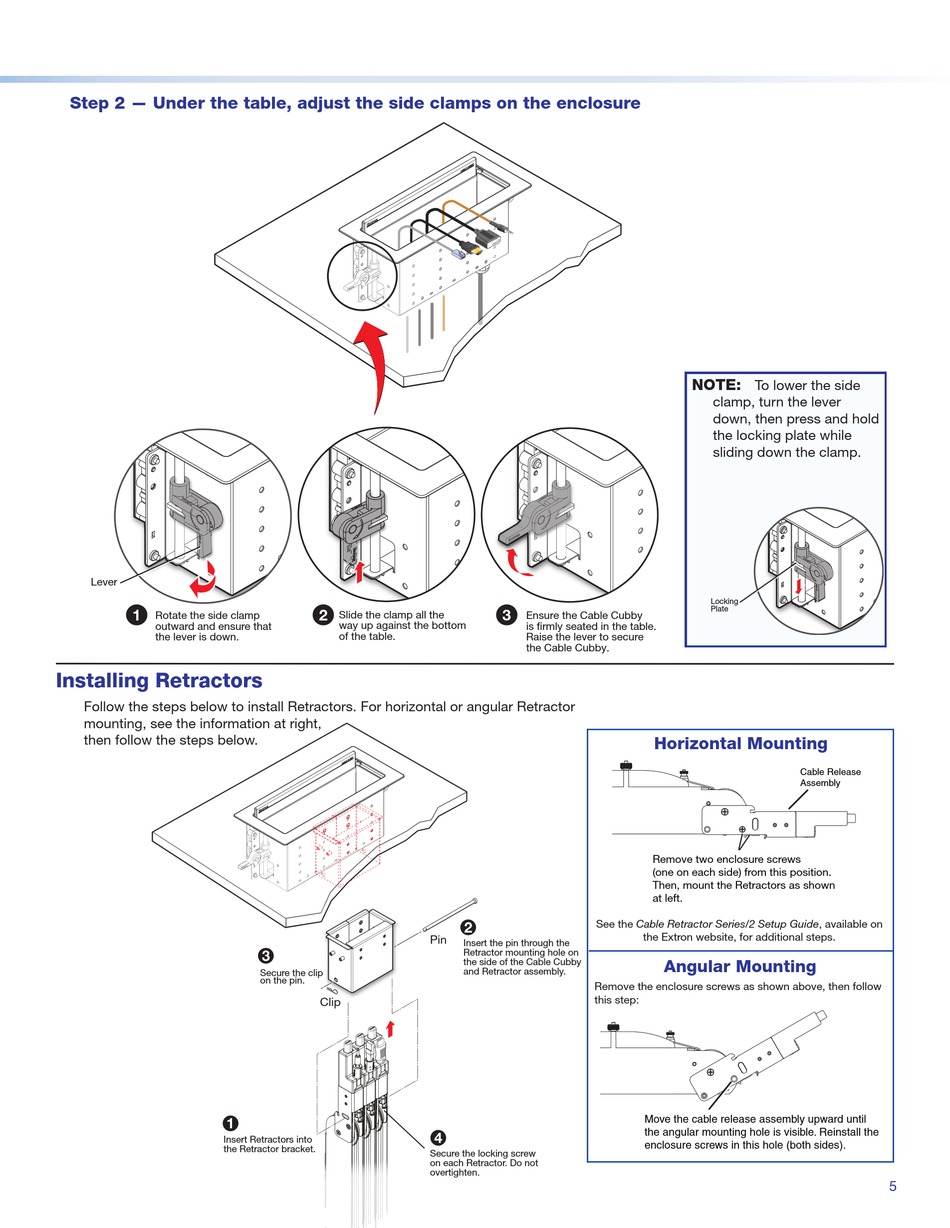

Horizontal Mounting - Extron electronics Cable Cubby 1202 Installation Manual

Step 2 — Under the table, adjust the side clamps on the enclosure
Lever
1
Rotate the side clamp
outward and ensure that
the lever is down.
Installing Retractors
Follow the steps below to install Retractors. For horizontal or angular Retractor
mounting, see the information at right,
then follow the steps below.
1
Insert Retractors into
the Retractor bracket.
2
Slide the clamp all the
way up against the bottom
of the table.
Pin
3
Secure the clip p
on the pin.
Clip
4
Secure the locking screw
on each Retractor. Do not
overtighten.
3
Ensure the Cable Cubby
is rmly seated in the table.
Raise the lever to secure
the Cable Cubby.
Remove two enclosure screws
(one on each side) from this position.
Then, mount the Retractors as shown
at left.
See the Cable Retractor Series/2 Setup Guide, available on
2
Insert the pin through the
Retractor mounting hole on
the side of the Cable Cubby
and Retractor assembly.
Remove the enclosure screws as shown above, then follow
this step:
NOTE:
To lower the side
clamp, turn the lever
down, then press and hold
the locking plate while
sliding down the clamp.
Locking
Plate

Horizontal Mounting

Cable Release
Cable Release
Assembly
Assembly
Remove two enclosure screws
(one on each side) from this position.
Then, mount the Retractors as shown
at left.
the Extron website, for additional steps.
Angular Mounting
Move the cable release assembly upward until
Move the cable release assembly upward until
the angular mounting hole is visible. Reinstall the
the angular mounting hole is visible. Reinstall the
enclosure screws in this hole (both sides).
enclosure screws in this hole (both sides).
5
