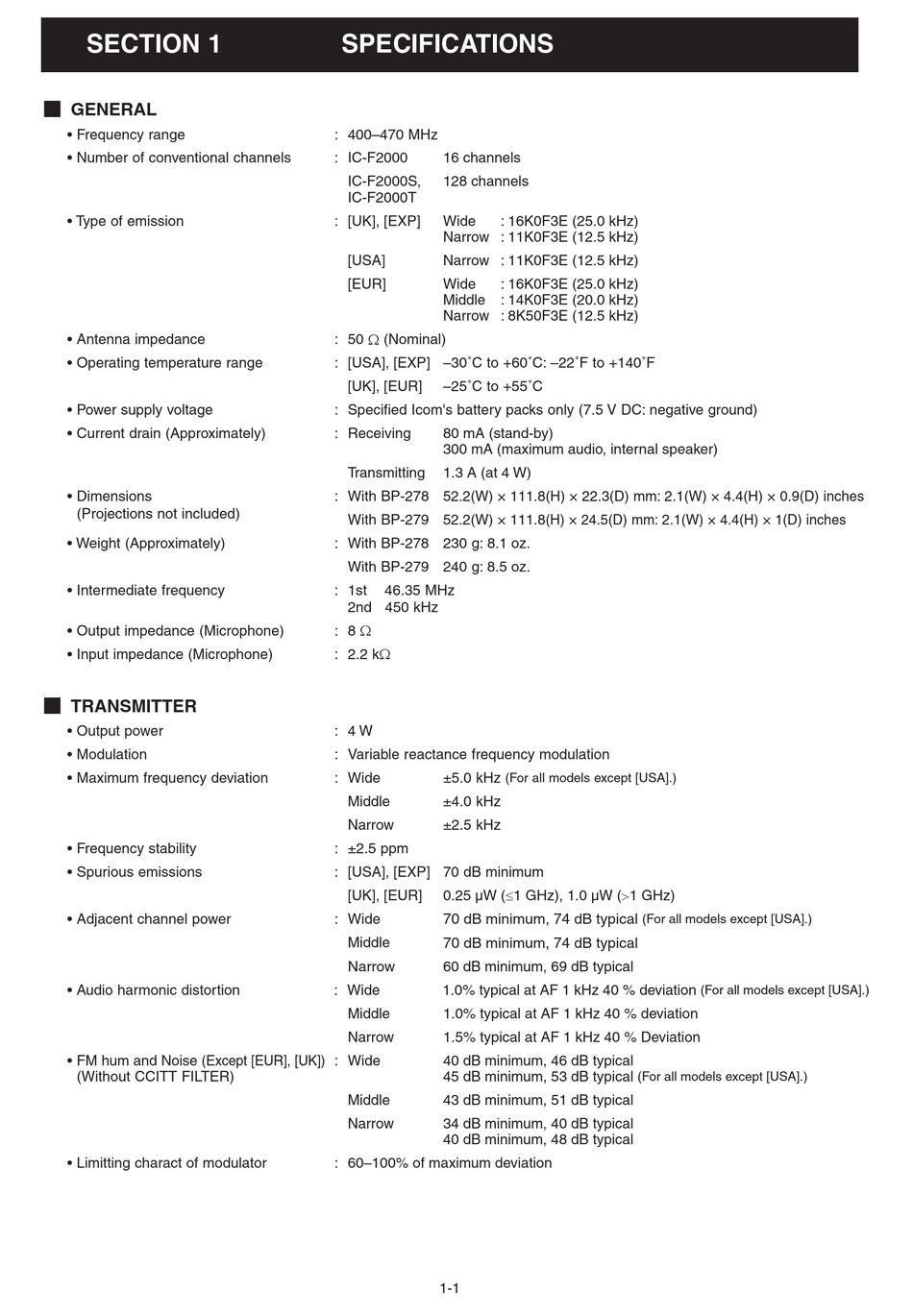

SECTION 1.
M GENERAL
• Frequency range
• Number of conventional channels
• Type of emission
• Antenna impedance
• Operating temperature range
• Power supply voltage
• Current drain (Approximately)
• Dimensions
(Projections not included)
• Weight (Approximately)
• Intermediate frequency
• Output impedance (Microphone)
• Input impedance (Microphone)
M TRANSMITTER
• Output power
• Modulation
• Maximum frequency deviation
• Frequency stability
• Spurious emissions
• Adjacent channel power
• Audio harmonic distortion
• FM hum and Noise (Except [EUR], [UK])
(Without CCITT FILTER)
• Limitting charact of modulator

SPECIFICATIONS

: 400–470 MHz
: IC-F2000 16 channels
IC-F2000S, 128 channels
IC-F2000T
: [UK], [EXP] Wide : 16K0F3E (25.0 kHz)
Narrow : 11K0F3E (12.5 kHz)
[USA] Narrow : 11K0F3E (12.5 kHz)
[EUR] Wide : 16K0F3E (25.0 kHz)
Middle : 14K0F3E (20.0 kHz)
Narrow : 8K50F3E (12.5 kHz)
: 50  (Nominal)
: [USA], [EXP] –30˚C to +60˚C: –22˚F to +140˚F
[UK], [EUR] –25˚C to +55˚C
: Specified Icom's battery packs only (7.5 V DC: negative ground)
: Receiving 80 mA (stand-by)
300 mA (maximum audio, internal speaker)
Transmitting 1.3 A (at 4 W)
: With BP-278 52.2(W) × 111.8(H) × 22.3(D) mm: 2.1(W) × 4.4(H) × 0.9(D) inches
With BP-279 52.2(W) × 111.8(H) × 24.5(D) mm: 2.1(W) × 4.4(H) × 1(D) inches
: With BP-278 230 g: 8.1 oz.
With BP-279 240 g: 8.5 oz.
: 1st 46.35 MHz
2nd 450 kHz
: 8 
: 2.2 k
: 4 W
: Variable reactance frequency modulation
: Wide ±5.0 kHz
Middle ±4.0 kHz
Narrow ±2.5 kHz
: ±2.5 ppm
: [USA], [EXP] 70 dB minimum
[UK], [EUR] 0.25 µW (1 GHz), 1.0 µW (1 GHz)
: Wide 70 dB minimum, 74 dB typical
Middle 70 dB minimum, 74 dB typical
Narrow 60 dB minimum, 69 dB typical
: Wide 1.0% typical at AF 1 kHz 40 % deviation
Middle 1.0% typical at AF 1 kHz 40 % deviation
Narrow 1.5% typical at AF 1 kHz 40 % Deviation
: Wide 40 dB minimum, 46 dB typical
45 dB minimum, 53 dB typical
Middle 43 dB minimum, 51 dB typical
Narrow 34 dB minimum, 40 dB typical
40 dB minimum, 48 dB typical
: 60–100% of maximum deviation
1-1
