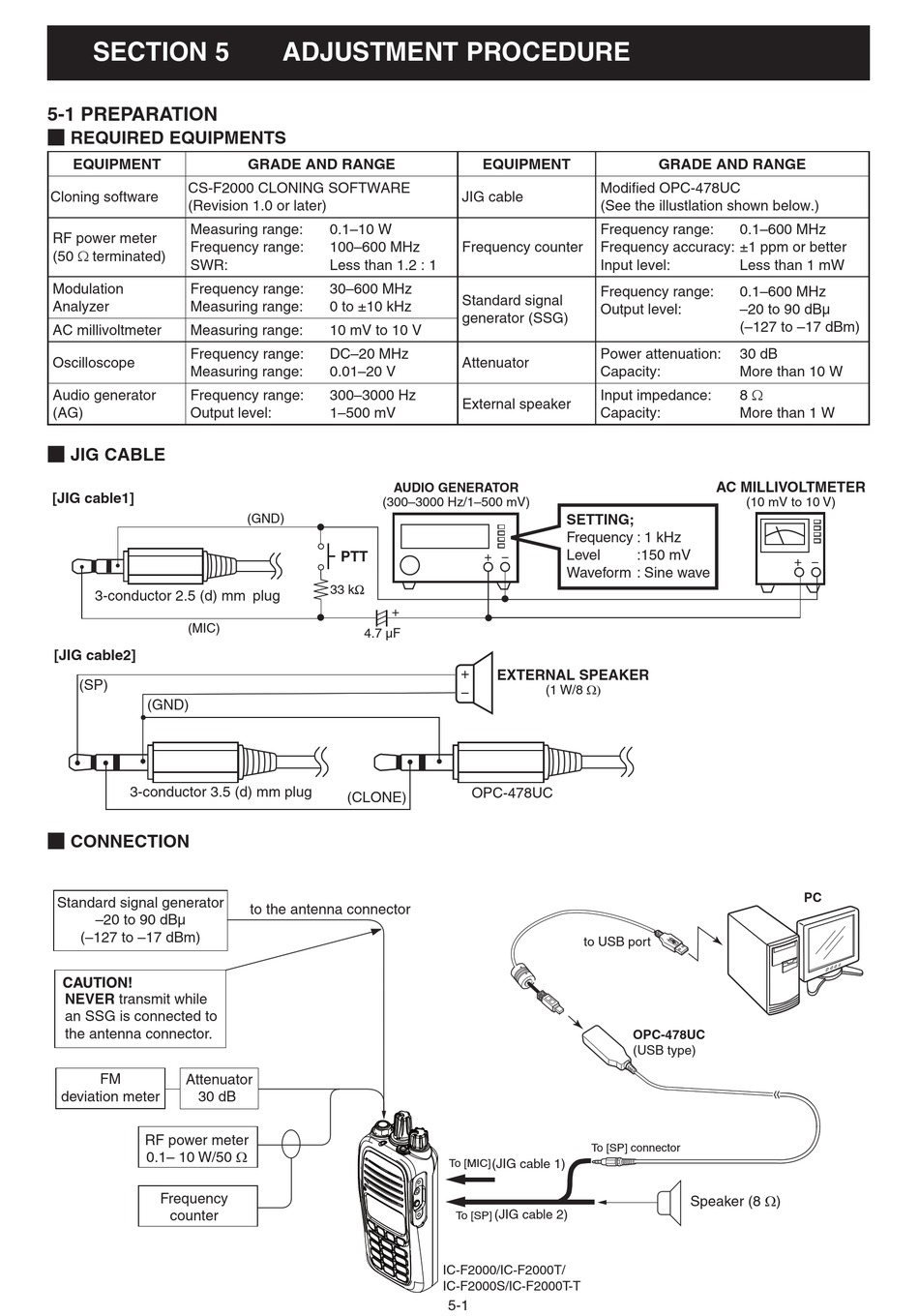

SECTION 5.

5-1 PREPARATION

M REQUIRED EQUIPMENTS
EQUIPMENT
CS-F2000 CLONING SOFTWARE
Cloning software
(Revision 1.0 or later)
Measuring range:
RF power meter
Frequency range:
(50 terminated)
SWR:
Modulation Frequency range:
Analyzer Measuring range:
AC millivoltmeter Measuring range:
Frequency range:
Oscilloscope
Measuring range:
Audio generator Frequency range:
(AG) Output level:
M JIG CABLE
[JIG cable1]
3-conductor 2.5 (d) mm plug
(MIC)
[JIG cable2]
(SP)
(GND)
3-conductor 3.5 (d) mm plug
M CONNECTION
Standard signal generator
–20 to 90 dBµ
(–127 to –17 dBm)
NEVER transmit while
an SSG is connected to
the antenna connector.
FM Attenuator
deviation meter 30 dB
RF power meter
0.1– 10 W/50 Ω
Frequency
counter

ADJUSTMENT PROCEDURE

GRADE AND RANGE
0.1–10 W
100–600 MHz
Less than 1.2 : 1
30–600 MHz
0 to ±10 kHz
10 mV to 10 V
DC–20 MHz
0.01–20 V
300–3000 Hz
1–500 mV
AUDIO GENERATOR
(300–3000 Hz/1–500 mV)
(GND)
PTT
33 k
+
4.7 µF
(CLONE)
to the antenna connector
EQUIPMENT
Modifi ed OPC-478UC
JIG cable
(See the illustlation shown below.)
Frequency range:
Frequency counter Frequency accuracy: ±1 ppm or better
Input level:
Frequency range:
Standard signal
Output level:
generator (SSG)
Power attenuation:
Attenuator
Capacity:
Input impedance:
External speaker
Capacity:
SETTING;
Frequency : 1 kHz
Level
+ −
Waveform : Sine wave
+
EXTERNAL SPEAKER
(1 W/8 Ω)
−
OPC-478UC
to USB port
To [SP] connector
(JIG cable 1)
To [MIC]
(JIG cable 2)
To [SP]
IC-F2000/IC-F2000T/
IC-F2000S/IC-F2000T-T
5-1
GRADE AND RANGE
0.1–600 MHz
Less than 1 mW
0.1–600 MHz
–20 to 90 dBµ
(–127 to –17 dBm)
30 dB
More than 10 W
8 
More than 1 W
AC MILLIVOLTMETER
(10 mV to 10 V)
:150 mV
+ −
PC
OPC-478UC
(USB type)
Speaker (8 Ω)
