Mechanical Parts List - Icom IC-F2000 Service Manual

SECTION 7.
[CHASSIS PARTS]
REF ORDER
NO. NO.
J1 6910021491 ANT CONNECTOR 106-1 <SSC>
MP1 8010023040 3621 CHASSIS
MP2 8210029770 3621 FRONT PANEL ASSEMBLY
8210029790 3621 S-FRONT PANEL ASSEMBLY 2
8210029780 3621 T-FRONT PANEL ASSEMBLY 2
MP6 8930089290 3621 SIDE PLATE Y1318
MP7 8930089240 3621 SIDE SEAL (TOP)
MP11 8930089300 3621 TOP PLATE
MP12 8930089280 3621 MIC SEAL (TOP)
MP15 8930088670 3521 VENT SHEET
MP16 8930084870 3384 REAR SHEET
MP19 8830003440 3285 ANT NUT
MP22 8930089260 3621 MAIN SEAL (TOP)
MP24 8610014710 KNOB N-421
MP25 8610014720 KNOB N-422
MP26 8930089270 3621 CONTACT RUBBER (TOP)
MP30 8930090130 3621 SPONGE
MP34 8830001701 VR NUT (Q)-1
MP35 8850003420 SEALING WASHER (AA) (TOT)
MP39 8930085330 O-RING (CQ) (TOP)
MP40 8810010850 PHBT B0 M2X8 SUS SSBC
MP41 8810008971 BT M2 X3.5 NI-ZC3
MP43 8810007391 PH M2 X 6 SUS SSBC
MP44 8810009511 PHBT M2 X 4 NI-ZC3 (3.6-4.0)
MP45 8810008761 PHBT M2 X 8 NI-ZC3
MP49 8210029630 3621 JACK PANEL
MP51 8930090110 THERMAL SHEET (CJ) TC-150CAT-20 (6X6)
[MAIN UNIT]
REF ORDER
NO. NO.
J1 6450000131 HSJ1102-018540
J2 6510025880 TC38-108-01 <CFE>
J3* 6510021901 BM02B-ASRS-TF (LF) (SN)
F1* 5210001160 ERBRE3R00V
DS2 5030003821 EL00624TS9 <SKD>
5030003821 EL00624TS9 <SKD>
MC1* 7700003110 F6027AP-STC-302 <TDS>
S1 2260001900 SW-149 (SKHLLD)
S2* 2260003490 TAFG-12W-QR <DIP>
S3* 2260003490 TAFG-12W-QR <DIP>
S4 2250000900 ED08D13OFT176S065A-1010 <EVT>
S5* 2230001060 EVQ-PUL 02K
S6* 2260003300 EVQPQHB55
S7* 2260003300 EVQPQHB55
S8* 2260003300 EVQPQHB55
S9* 2260003300 EVQPQHB55
2260003300 EVQPQHB55
S10* 2260003300 EVQPQHB55
S11* 2260003300 EVQPQHB55
S12* 2260003300 EVQPQHB55
S13* 2260003300 EVQPQHB55
2260003300 EVQPQHB55
S14* 2260003300 EVQPQHB55
S15* 2260003300 EVQPQHB55
S16* 2260003300 EVQPQHB55
S17* 2260003300 EVQPQHB55
2260003300 EVQPQHB55
S18* 2260003300 EVQPQHB55
S19* 2260003300 EVQPQHB55
S20* 2260003300 EVQPQHB55
S21* 2260003300 EVQPQHB55
2260003300 EVQPQHB55
EP11* 6910024510 3621 CONTACT SPRING
EP13 8930063020 SRCN-2721-SP-N-W (SHJ)
8930063020 SRCN-2721-SP-N-W (SHJ)
MP3* 8510021150 3621 VCO CASE Y1314
MP4* 6910014760 OG-503040
MP5* 8410002790 3621 PA HEATSINK
MP6 8510021160 3621 VCO COVER Y1315
MP7 8930069481 2927 LCD HOLDER-1 Y854A
8930069481 2927 LCD HOLDER-1 Y854A
MP8 8210020571 2721 REFLECTOR-1
8210020571 2721 REFLECTOR-1
MP9 8930070080 WHITE SHEET (V)
8930070080 WHITE SHEET (V)
*: Refer to "BOARD LAYOUTS" for the location.
Screw abbreviations
MECHANICAL PARTS
DESCRIPTION
DESCRIPTION
Only [#12]
Only [#12]
Only [#12]
Only [#12]
Only [#12]
Only [#12]
Only [#12]
Only [#12]
Only [#12]
Only [#12]
Only [#12]
Only [#12]
A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless

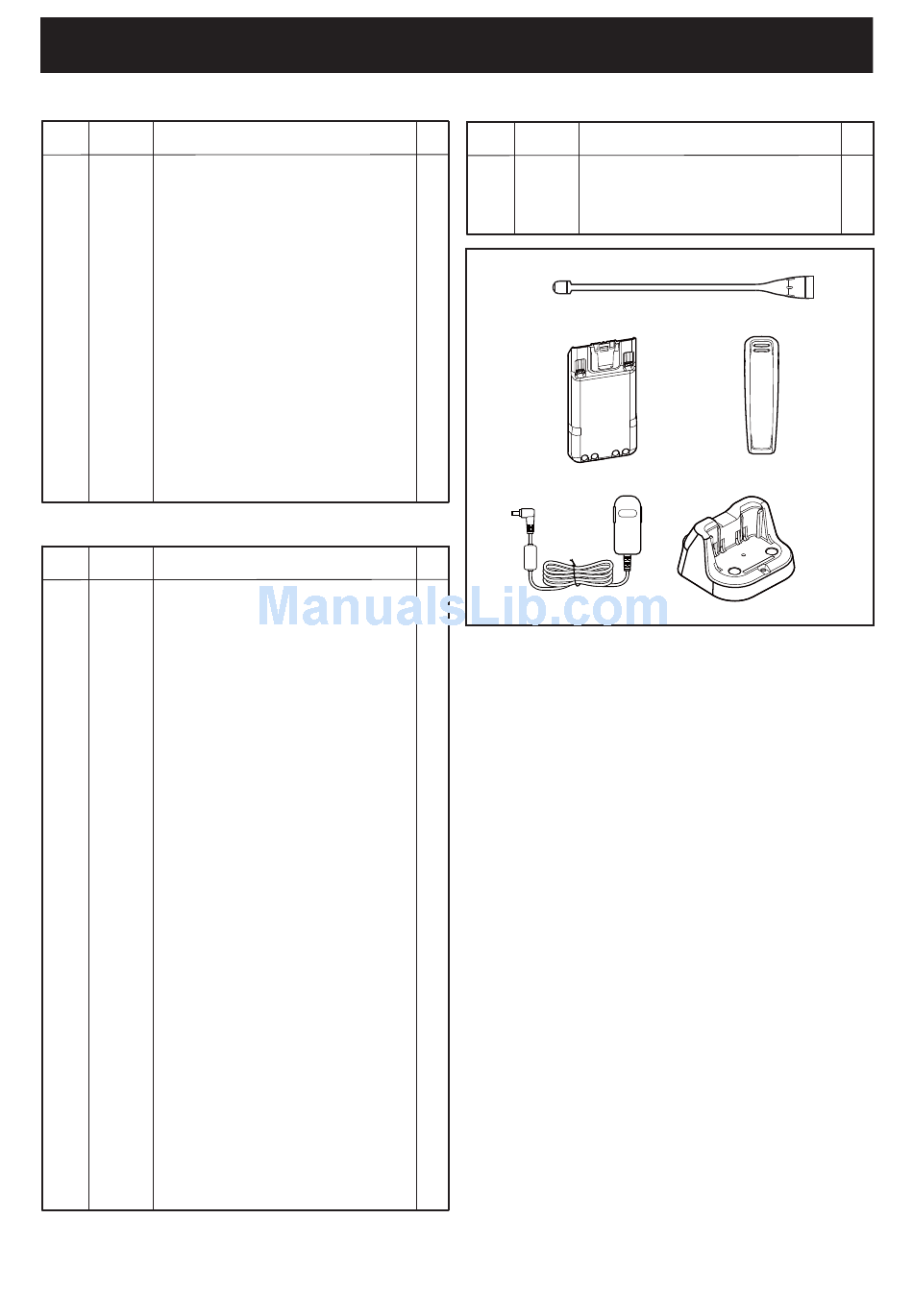

[ACCESSORIES]
REF ORDER
QTY.
NO. NO.
1
EP1 (Optional)
EP2 (Optional)
1 EP4 (Optional)
[#04] 1
EP5 0880003990 BC-213
[#08] 1
[#12] 1 MP4 (Optional)
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
9
2
1
2
1
1
QTY.
1
1
1
1
[#08] 1
[#12] 1
1
1
1
1
1
1
1
1
1
[#08] 1
[#12] 1
1
1
1
[#08] 1
[#12] 1
1
1
1
[#08] 1
[#12] 1
1
1
1
[#08] 1
[#12] 1
1
[#08] 2
[#12] 2
1
1
1
1
[#08] 1
[#12] 1
[#08] 1
[#12] 1
[#08] 1
[#12] 1
7-1
DESCRIPTION
FA-SC57U
BP-279
BC-123SA
MB-133
EP1
EP2
MP4
EP5
EP4
QTY.
1
1
1
1
1
