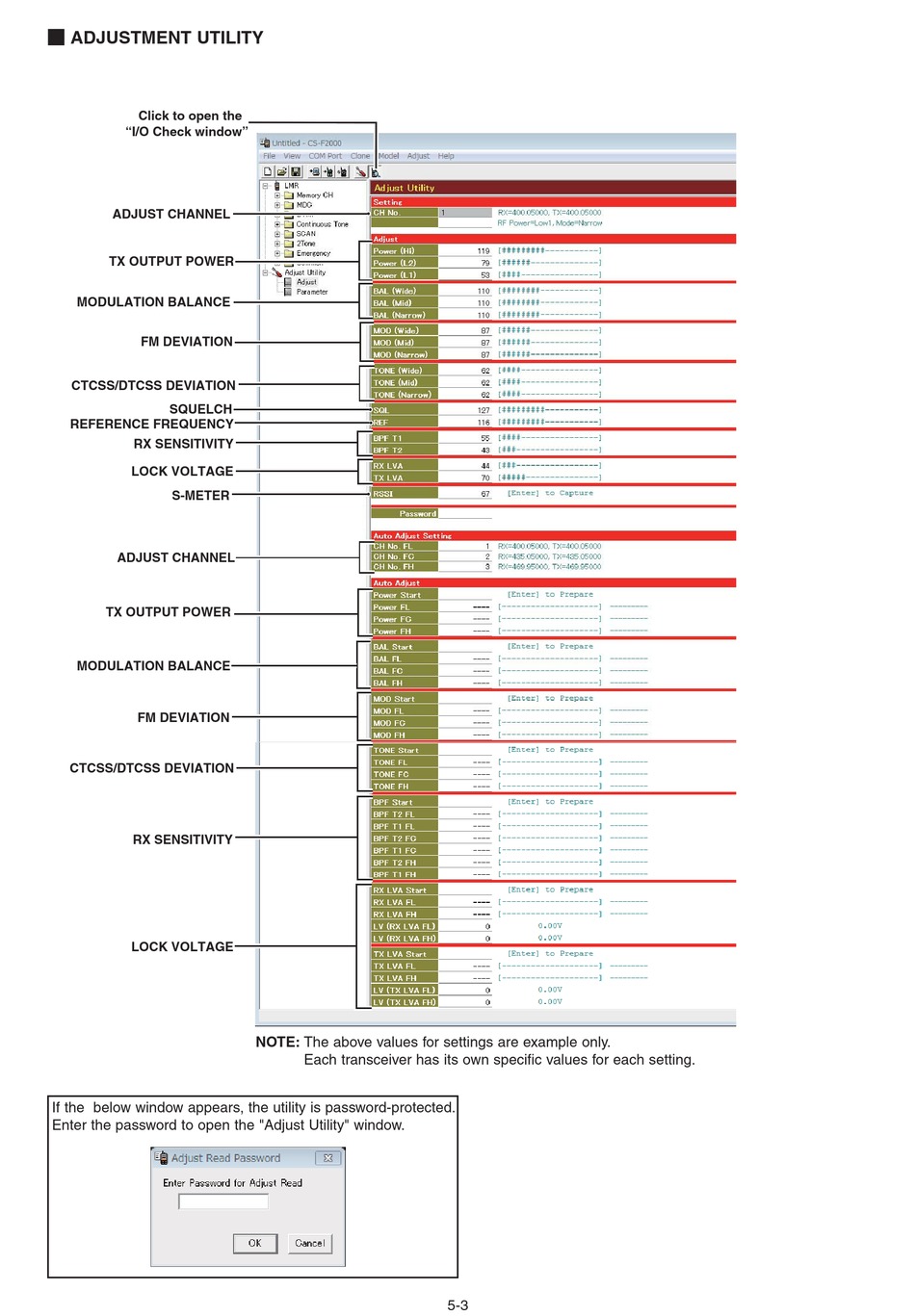

M ADJUSTMENT UTILITY
Click to open the
"I/O Check window"
ADJUST CHANNEL
TX OUTPUT POWER
MODULATION BALANCE
FM DEVIATION
CTCSS/DTCSS DEVIATION
SQUELCH
REFERENCE FREQUENCY
RX SENSITIVITY
LOCK VOLTAGE
S-METER
ADJUST CHANNEL
TX OUTPUT POWER
MODULATION BALANCE
FM DEVIATION
CTCSS/DTCSS DEVIATION
RX SENSITIVITY
LOCK VOLTAGE
If the below window appears, the utility is password-protected.
Enter the password to open the "Adjust Utility" window.
NOTE: The above values for settings are example only.
Each transceiver has its own specifi c values for each setting.
5-3
