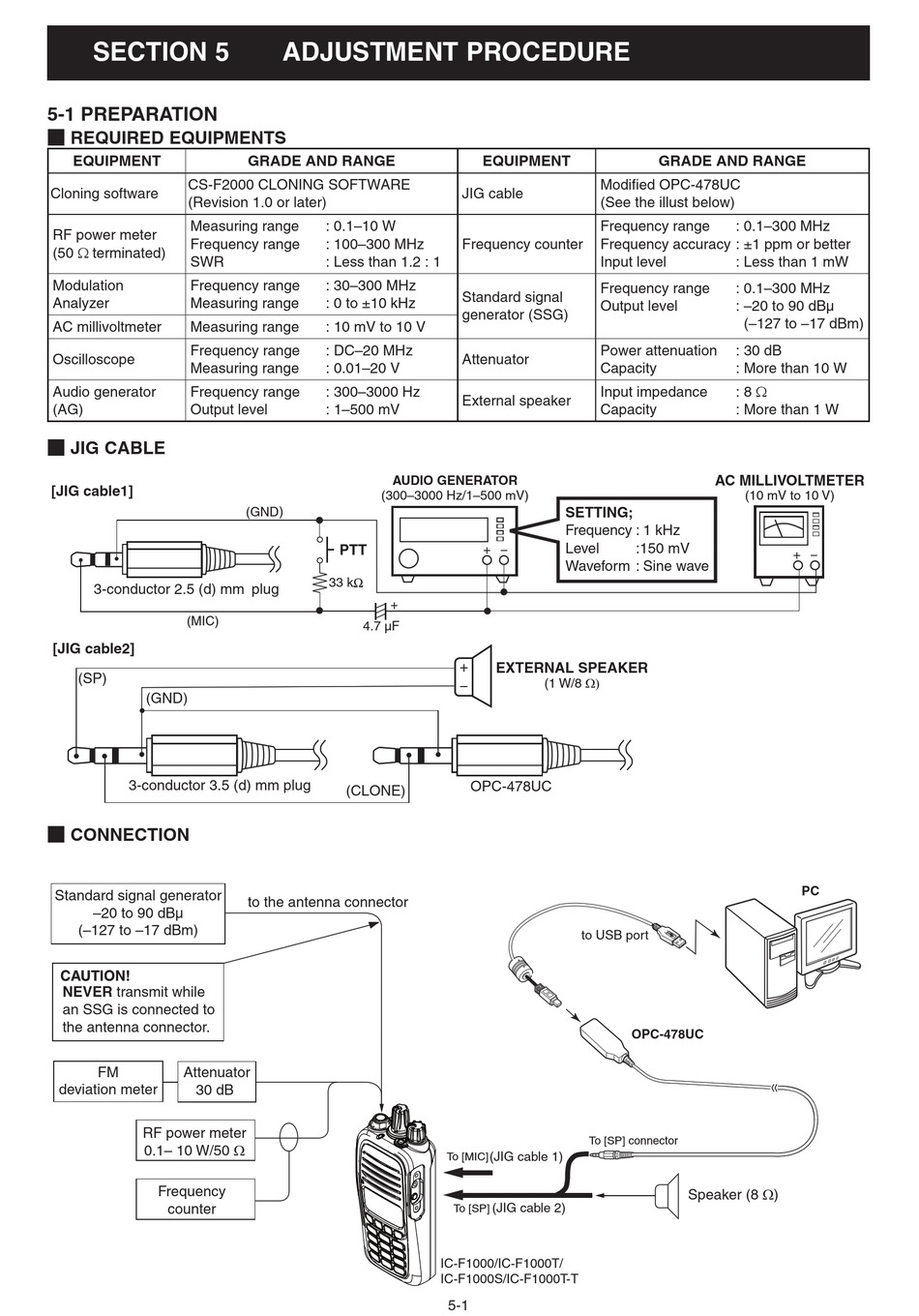

SECTION 5.

5-1 PREPARATION

M REQUIRED EQUIPMENTS
EQUIPMENT
CS-F2000 CLONING SOFTWARE
Cloning software
(Revision 1.0 or later)
Measuring range
RF power meter
Frequency range
(50 terminated)
SWR
Modulation Frequency range
Analyzer Measuring range
AC millivoltmeter Measuring range
Frequency range
Oscilloscope
Measuring range
Audio generator Frequency range
(AG) Output level
M JIG CABLE
[JIG cable1]
3-conductor 2.5 (d) mm plug
(MIC)
[JIG cable2]
(SP)
(GND)
3-conductor 3.5 (d) mm plug
M CONNECTION
Standard signal generator
–20 to 90 dBµ
(–127 to –17 dBm)
NEVER transmit while
an SSG is connected to
the antenna connector.
FM Attenuator
deviation meter 30 dB
RF power meter
0.1– 10 W/50 Ω
Frequency
counter

ADJUSTMENT PROCEDURE

GRADE AND RANGE
: 0.1–10 W
: 100–300 MHz
: Less than 1.2 : 1
: 30–300 MHz
: 0 to ±10 kHz
: 10 mV to 10 V
: DC–20 MHz
: 0.01–20 V
: 300–3000 Hz
: 1–500 mV
AUDIO GENERATOR
(300–3000 Hz/1–500 mV)
(GND)
PTT
33 k
+
4.7 µF
(CLONE)
to the antenna connector
EQUIPMENT
Modifi ed OPC-478UC
JIG cable
(See the illust below)
Frequency range
Frequency counter Frequency accuracy : ±1 ppm or better
Input level
Frequency range
Standard signal
Output level
generator (SSG)
Power attenuation
Attenuator
Capacity
Input impedance
External speaker
Capacity
SETTING;
Frequency : 1 kHz
Level
+ −
Waveform : Sine wave
+
EXTERNAL SPEAKER
(1 W/8 Ω)
−
OPC-478UC
to USB port
To [SP] connector
(JIG cable 1)
To [MIC]
(JIG cable 2)
To [SP]
IC-F1000/IC-F1000T/
IC-F1000S/IC-F1000T-T
5-1
GRADE AND RANGE
: 0.1–300 MHz
: Less than 1 mW
: 0.1–300 MHz
: –20 to 90 dBµ
(–127 to –17 dBm)
: 30 dB
: More than 10 W
: 8 
: More than 1 W
AC MILLIVOLTMETER
(10 mV to 10 V)
:150 mV
+ −
PC
OPC-478UC
Speaker (8 Ω)
