Operator Manual
All personnel shall carefully read, understand and follow all safety rules,
operating instructions and the Scaffold Industry Association's MANUAL OF
RESPONSIBILITIES (ANSI A92.6) before operating or performing maintenance on

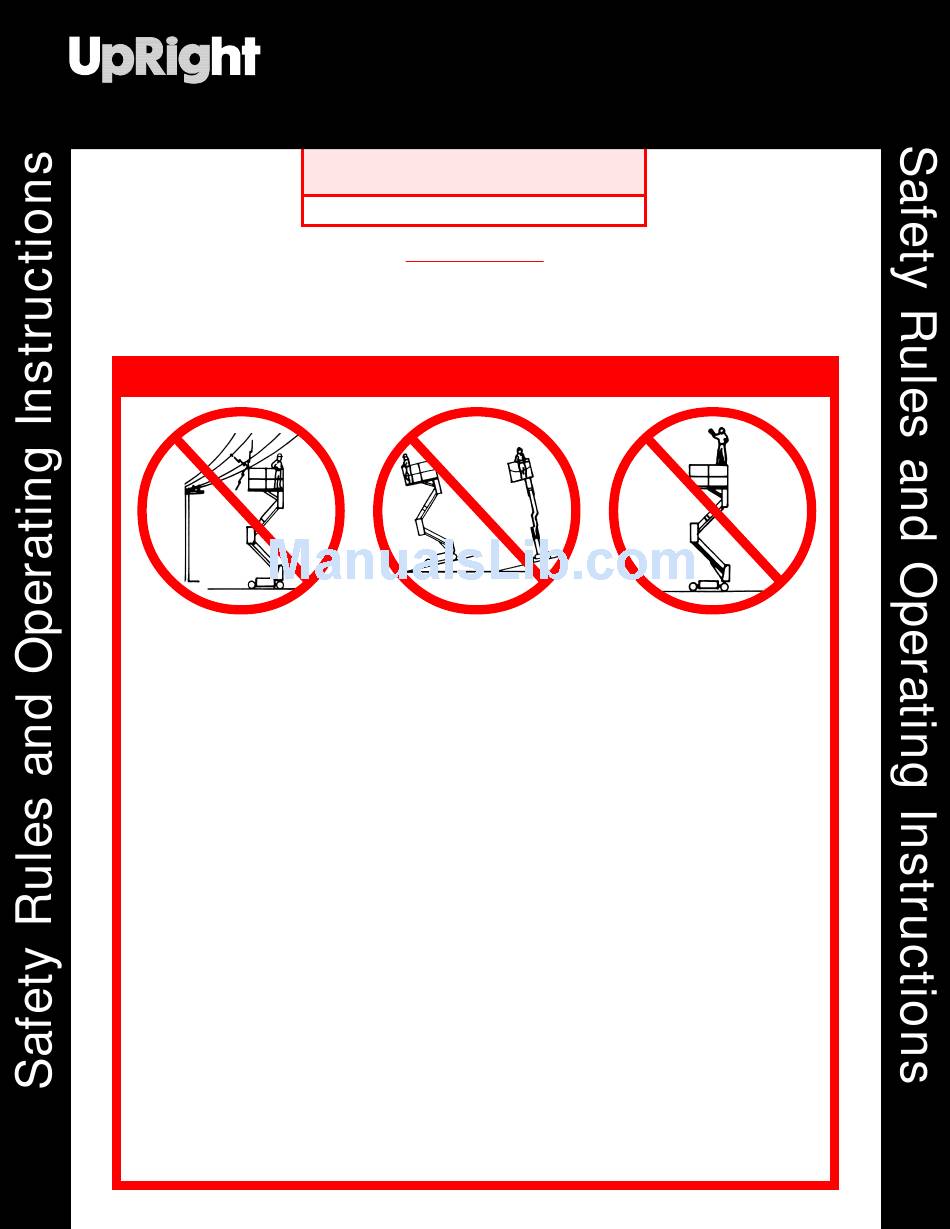

NEVER operate the machine
within ten feet of power lines.
THIS MACHINE IS NOT INSU-
LATED.
NEVER operate the machine without first surveying the work area for surface hazards such as
holes, drop-offs, bumps and debris before operating machine.
NEVER operate the machine if all guardrails are not properly in place and secured with all fasten-
ers properly torqued.
SECURE gate across entrance after mounting platform.
NEVER use ladders or scaffolding on the platform.
NEVER attach overhanging loads or increase platform size.
LOOK up, down and around for overhead obstructions and electrical conductors.
CHECK all four tires for correct inflation. See Specifications.
DISTRIBUTE all loads evenly on the platform. See the back cover for maximum platform load.
NEVER use damaged equipment. (Contact UpRight for instructions, see toll free number on back cover.)
NEVER change operating or safety systems.
INSPECT the machine thoroughly for cracked welds, loose hardware, hydraulic leaks, damaged
control cable, loose wire connections and wheel bolts.
NEVER climb down elevating assembly with the platform elevated.
NEVER perform service on machine while platform is elevated.
NEVER recharge batteries near sparks or open flame; batteries that are being charged emit highly
explosive hydrogen gas.
AFTER USE secure the work platform against unauthorized use by turning key switch off and
removing key.
NEVER replace any component or part with anything other than original UpRight replacement
parts without the manufacturers consent.
SL-26/30NBE
SL-26/30NBE
SERIAL NO. 13300 to Current
WARNING
any UpRight aerial work platform.
SAFETY RULES
NEVER elevate the platform or
drive the machine while el-
evated unless the machine is
on a firm level surface.
1
NEVER sit, stand or climb on
guardrail or midrail.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL-26 and is the answer not in the manual?

Questions and answers

Related Manuals for Upright SL-26

Summary of Contents for Upright SL-26

  • Page 1 CHECK all four tires for correct inflation. See Specifications. DISTRIBUTE all loads evenly on the platform. See the back cover for maximum platform load. NEVER use damaged equipment. (Contact UpRight for instructions, see toll free number on back cover.) NEVER change operating or safety systems.

  • Page 2: System Function Inspection

    System Function Inspection Introduction This manual covers SL26/30 Narrow Work Plat- forms with Bi-Energy power option. This manual must be stored on the machine at all times. STAND CLEAR of the work platform while performing the following checks. Pre-Operation and Safety Before operating the work platform survey Inspection the work area for surface hazards such as...

  • Page 3: Operation

    12. Push down on the Chassis Emergency Lower- Operation ing Switch to check for proper operation, a warning alarm should sound. Once the platform Before operating work platform, ensure that the is fully lowered, release the switch. pre-operation and safety inspection has been 13.

  • Page 4: Fold Down Guardrails

    Raising and Lowering The Platform Parking Brake Release (Figure 3) 1. Position the Drive/Lift Switch to LIFT. Perform the following only when the machine will 2. While holding the Control Handle so the Inter- not operate under its own power and it is neces- lock Lever is depressed, push the Control sary to move the machine or when towing the Handle slowly to UP to raise the platform.

  • Page 5: Erection Procedure

    3. Close and latch the gate. Forklift from side of Chassis by lifting under the Chassis Modules (Figure 5). 4. Remove nuts, bolts and washers from the top of the rear guardrail. Fold the rear guardrail By Crane down onto the platform being careful to keep Secure straps to Lifting Lugs only (Figure 5).

  • Page 6: Battery Maintenance

    Battery Maintenance Charge the batteries only in a well ventilated area. Do not charge the batteries when the work Hazard of explosive gas mixture. Keep platform is in an area containing sparks or sparks, flame, and smoking material away flames. from battery(ies).

  • Page 7: Routine Service

    Routine Service Routine Service Table Key Interval Use the following table as a guide for routine main- Daily=each shift (every day) or every eight hours tenance. Inspection and maintenance shall be 30d=every month (30 days) or every 50 hours performed by personnel who are trained and 3m=every 3 months or 125 hours familiar with mechanical and electrical proce- 6m=every 6 months or 250 hours...
  • Page 8 SL-26/30 RT LABEL INSTALLATION: THESE LABELS SHALL BE PRESENT AND IN GOOD CONDITION BEFORE OPERATING THE WORK PLATFORM. BE SURE TO READ, UNDER- STAND AND FOLLOW THESE LABELS WHEN OPERATING THE WORK PLATFORM.
  • Page 9 NOTES:...
  • Page 10 NOTES:...
  • Page 11 NOTES:...

  • Page 12: Specifications

    Specifications* ITEM SL26N SL30N Platform Size (Inside Toeboards) Standard 1.46 m x 3.59 m [57.5 in. x 141.5 in.] 1.46 m x 4.22 m [57.5 in. x 166.25 in.] w/ Extension 1.46 m x 4.61 m [57.5 in. x 181.5 in.] Max.
