AN-1646 LM3102 Demonstration Board Reference Design
1
Introduction
The LM3102 Step Down Switching Regulator features all required functions to implement a cost effective,
efficient buck power converter capable of supplying 2.5A to loads. The Constant On-Time (COT)
regulation scheme requires no loop compensation, results in a fast load transient response and simple
circuit implementation that allows a low component count, and consequently very small overall board
space is required for a typical application. The regulator can function properly even with an all ceramic
output capacitor network, and does not rely on the output capacitor's ESR for stability. The operating
frequency remains constant with line variations due to the inverse relationship between the input voltage
and the on-time. Protection features include output over-voltage protection, thermal shutdown, V
voltage lock-out, gate drive under-voltage lock-out. The LM3102 is available in the thermally enhanced
eTSSOP-20 package.
This user's guide details the design of a demonstration board which provides a 3.3V output voltage with
2.5A load capability for a wide input voltage range from 8V to 42V. The demonstration board schematic,
PCB layout, Bill of Materials, and circuit design descriptions are shown. Typical performance and
operating waveforms are also provided for reference.
2
Demonstration Board Schematic
All trademarks are the property of their respective owners.
SNVA248 – October 2007
Submit Documentation Feedback

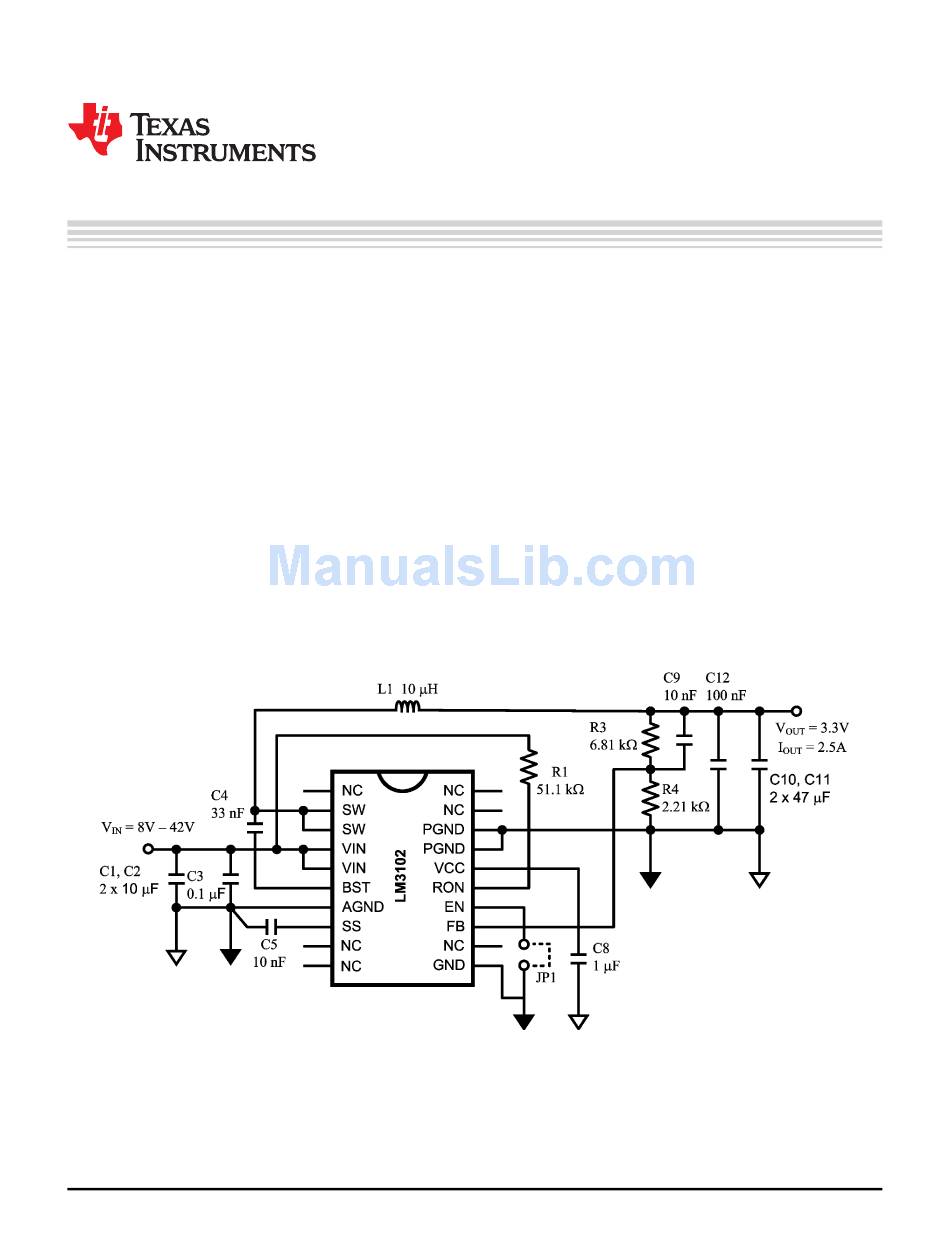

Figure 1. LM3102 Demonstration Board Schematic
Copyright © 2007, Texas Instruments Incorporated
AN-1646 LM3102 Demonstration Board Reference Design
User's Guide
SNVA248 – October 2007
under-
CC
1

Advertisement

Table of Contents
loading

Summary of Contents for Texas Instruments AN-1646

  • Page 1 User's Guide SNVA248 – October 2007 AN-1646 LM3102 Demonstration Board Reference Design Introduction The LM3102 Step Down Switching Regulator features all required functions to implement a cost effective, efficient buck power converter capable of supplying 2.5A to loads. The Constant On-Time (COT)
  • Page 2: Quick Setup Procedures

    The design of the demonstration board is detailed below. Design Parameters: = 8V to 42V, typical 18V = 3.3V = 2.5A AN-1646 LM3102 Demonstration Board Reference Design SNVA248 – October 2007 Submit Documentation Feedback Copyright © 2007, Texas Instruments Incorporated...
  • Page 3 = 3.3V, and = 500 kHz. As a result, L = 10.78 µH. Figure 2. Inductor Selection for V = 3.3V SNVA248 – October 2007 AN-1646 LM3102 Demonstration Board Reference Design Submit Documentation Feedback Copyright © 2007, Texas Instruments Incorporated...
  • Page 4 C12: C12 is a small value ceramic capacitor located close to the LM3102 to further suppress high frequency noise at V . A 100 nF capacitor is used in this demonstration board. AN-1646 LM3102 Demonstration Board Reference Design SNVA248 – October 2007 Submit Documentation Feedback...
  • Page 5: Pc Board Layout

    (forced or natural convection) can help reduce the junction temperature. Figure 3. LM3102 Demonstration Board PCB Top Overlay SNVA248 – October 2007 AN-1646 LM3102 Demonstration Board Reference Design Submit Documentation Feedback Copyright © 2007, Texas Instruments Incorporated...
  • Page 6 PC Board Layout www.ti.com Figure 4. LM3102 Demonstration Board PCB Top View Figure 5. LM3102 Demonstration Board PCB Bottom View AN-1646 LM3102 Demonstration Board Reference Design SNVA248 – October 2007 Submit Documentation Feedback Copyright © 2007, Texas Instruments Incorporated...
  • Page 7: Bill Of Materials

    SMD-Power Choke WE-TPC 3.6A Type XLH 10 × 10 × 3.8 744066100 Wurth IC LM3102 eTSSOP-20 LM3102MH Texas Instruments LM3102 demo board Texas Instruments SNVA248 – October 2007 AN-1646 LM3102 Demonstration Board Reference Design Submit Documentation Feedback Copyright © 2007, Texas Instruments Incorporated...
  • Page 8 Regulation vs Load Current = 3.3V) = 3.3V) Continuous Mode Operation Discontinuous Mode Operation = 3.3V, 2.5A Loaded) = 3.3V, 0.1A Loaded) AN-1646 LM3102 Demonstration Board Reference Design SNVA248 – October 2007 Submit Documentation Feedback Copyright © 2007, Texas Instruments Incorporated...
  • Page 9 Current slew-rate: 2.5A/µs) Power Up Enable Transient = 3.3V, 2.5A Loaded) = 3.3V, 2.5A Loaded) Shutdown Transient = 3.3V, 2.5A Loaded) SNVA248 – October 2007 AN-1646 LM3102 Demonstration Board Reference Design Submit Documentation Feedback Copyright © 2007, Texas Instruments Incorporated...
