AM335xStarterKitHardwareUsersGuide
1
AM335xStarterKitHardwareUsersGuide
AM335x Starter Kit Hardware User Guide
Introduction
This document provides the design information on the AM335x processor based Starter Kit (TMDSSK3358) to
users.
Description
The AM335x Starter Kit (TMDSSK3358) can be used as an evaluation and development platform for low cost
AM335x based solutions and networking platforms. The embedded emulation logic allows emulation and debug
using standard development tools such as TI's Code Composer Studio by just using the supplied USB cable. It is not
intended for use in end products. All of the design information is freely available and can be used as the basis for the
development of an AM335x based product.

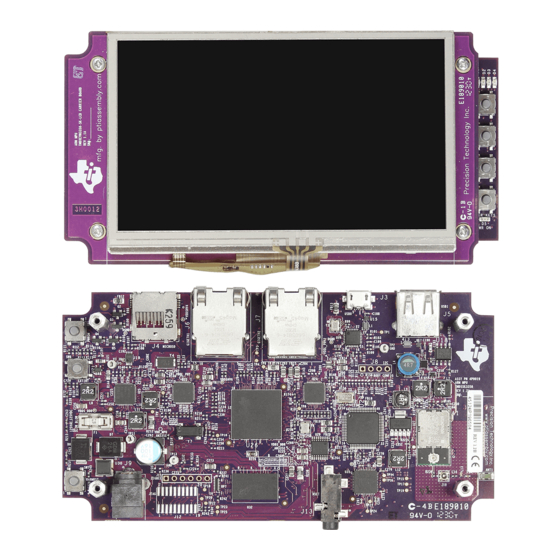

EVM System View
TMDSSK3358 is partitioned into two different boards: the main board (processor, peripherals & the main power
supply) and the LCD Carrier board (LCD and touch screen). The TMDSSK3358 main board and the LCD carrier
board mounted are mounted together using 10mm standoffs. The TMDSSK3358 main board has dimensions of
5.257" x 2.798 "and that of the LCD Carrier board is 4.963" x 2.798 ". The Top and the Bottom side views of the
TMDSSK3358 are shown in the pictures provided below.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sitara AM335x and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments Sitara AM335x

Summary of Contents for Texas Instruments Sitara AM335x

  • Page 1 AM335xStarterKitHardwareUsersGuide AM335xStarterKitHardwareUsersGuide AM335x Starter Kit Hardware User Guide Introduction This document provides the design information on the AM335x processor based Starter Kit (TMDSSK3358) to users. Description The AM335x Starter Kit (TMDSSK3358) can be used as an evaluation and development platform for low cost AM335x based solutions and networking platforms.

  • Page 2: Bottom View

    AM335xStarterKitHardwareUsersGuide Top view Figure 1: TMDSSK3358 Top view Bottom view...

  • Page 3: System View

    AM335xStarterKitHardwareUsersGuide Figure 2: TMDSSK3358 V1.2A Bottom View System view Figure 3: TMDSSK3358 System View...

  • Page 4: Functional Block Diagram

    AM335xStarterKitHardwareUsersGuide Schematics/Design Files • HW Documentation - Schematics, Design Files, and other related HW Documentation Functional Block Diagram This section describes about the major functional blocks of the TMDSSK3358. The Functional block diagram of the TMDSSK3358 design is shown below. Figure 4: TMDSSK3358 Block Diagram Processor The AM3358ZCZ processor is the central processor for TMDSSK3358.
  • Page 5 AM335xStarterKitHardwareUsersGuide Clocks The main clock for the processor is derived from a 24MHz crystal. An on-board oscillator in the AM3358 generates the base clock and subsequent module clocks as needed within the AM3358 processor. A 32kHz clock for the RTC on the AM3358 is derived from a 32kHz crystal on board.
  • Page 6 AM335xStarterKitHardwareUsersGuide VDIG2 (300mA) VDDS_PLL_DDR (25mA) 1.8V VDIG2 (300mA) VDDS_PLL_CORE_LCD (25mA) 1.8V VDIG2 (300mA) VDDS_PLL_MPU (25mA) 1.8V VDIG2 (300mA) VDDS_OSC (10mA) 1.8V VAUX1 (300mA) VDDA1P8V_USB0/1 (50mA) 1.8V VPLL (50mA) VDDA_ADC 1.8V VDD3 SMPS (100mA) Not Used Table 1: Power supplies to AM335x from TPS65910A3 PMIC Configuration/Setup Boot Configuration Various boot configurations can be set using the pull up / down resistor combinations provided on the SYS_BOOT...
  • Page 7 AM335xStarterKitHardwareUsersGuide Board Identity Memory The board contains a serial EEPROM with the board specific data which allows the processor to automatically detect which board is connected and the version of that board. Other hardware specific data can be stored in this memory as well.
  • Page 8 AM335xStarterKitHardwareUsersGuide For both the PHYs, mode selection pins MODE [3:0] are set as “0000” to operate it in 1000 BASE-T, RGMII mode. The PHY address for the EMAC1-PHY and EMAC2-PHY are 00100 and 00101 respectively.The interrupts from the both PHYs are connected to both the Non Maskable Interrupt pin and to the processor GPIO pins. The Wake On LAN interrupts from the both PHYs are connected to the EXT_WAKEUP signal of the processor as an option.

  • Page 9: Audio Codec

    AM335xStarterKitHardwareUsersGuide Pin No Signal Name Description USB_DC USB BUS VOLTAGE USBDM_UP USB DATA MINUS USBDP_UP USB DATA PLUS NC (USB_ID) No connect DGND Ground Table 6: Micro AB – USB0 USB 1 The USB port1 of the AM335x is connected to the USB type A connector. USB power (5V )is provided to this connector through a buck-boost converter circuit.
  • Page 10 AM335xStarterKitHardwareUsersGuide For optimal throughput we recomend using an external Antenna as describe in the link:<ECO for using external antenna> Warning: To minimize risks of potential radiation hazards associated with handling and/or moving the energized EVM including compliance with the wireless radio grant licensing provisions, always maintain a minimum distance of 20cm measured between EVM user(s) and the EVM antenna.
  • Page 11 AM335xStarterKitHardwareUsersGuide Pin No Signal Description V3_3D Power 3.3V supply AM335X_SPI0_CS0 SPI0 Chip Select 0 AM335X_SPI0_D1 SPI0 Data 1 DGND Ground AM335X_SPI0_SCLK SPI0 Clock AM335X_SPI0_D0 SPI0 Data 0 Table 9: SPI0 Expansion Header I2C0 Expansion header is provided below. Pin No Signal Description DGND...
  • Page 12 EVM Important Notice EVALUATION BOARD/KIT/MODULE (EVM) ADDITIONAL TERMS Texas Instruments (TI) provides the enclosed Evaluation Board/Kit/Module (EVM) under the following conditions: The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all claims arising from the handling or use of the goods.
  • Page 13 It is the user's sole responsibility to only operate this radio in legally acceptable frequency space and within legally mandated power limitations. Any exceptions to this is strictly prohibited and unauthorized by Texas Instruments unless user has obtained appropriate experimental/development licenses from local regulatory authorities, which is responsibility of user including its acceptable authorization.
  • Page 14 AM335xStarterKitHardwareUsersGuide which case the user will be required to correct the interference at his own expense. FCC Interference Statement for Class B EVM devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 15 Please note that if you could not follow the instructions above, you will be subject to penalties of Radio Law of Japan. Texas Instruments Japan Limited (address) 24-1, Nishi-Shinjuku 6 chome, Shinjukku-ku, Tokyo, Japan http:/ / www. tij. co. jp 【ごOu(にあたってのlè...
  • Page 16 AM335xStarterKitHardwareUsersGuide EVALUATION BOARD/KIT/MODULE (EVM)WARNINGS, RESTRICTIONS AND DISCLAIMERS For Feasibility Evaluation Only, in Laboratory/Development Environments. Unless otherwise indicated, this EVM is not a finished electrical equipment and not intended for consumer use. It is intended solely for use for preliminary feasibility evaluation in laboratory/development environments by technically qualified electronics experts who are familiar with the dangers and application risks associated with handling electrical mechanical components, systems and subsystems.
  • Page 17 AM335xStarterKitHardwareUsersGuide ANNEX This Hardware User's Guide is prepared by using the following documents as references. 1. AM335x Sitara ARM Microprocessors TRM (SPRUH73) References [1] http:/ / processors. wiki. ti. com/ index. php/ AM335x_Starter_Kit#Hardware_Documentation [2] http:/ / processors. wiki. ti. com/ index. php/ OMAP_Wireless_Connectivity_AM3358-SK_and_COM6M_ECO_for_using_external_Antenna [3] http:/ / processors.
