Operating Instructions

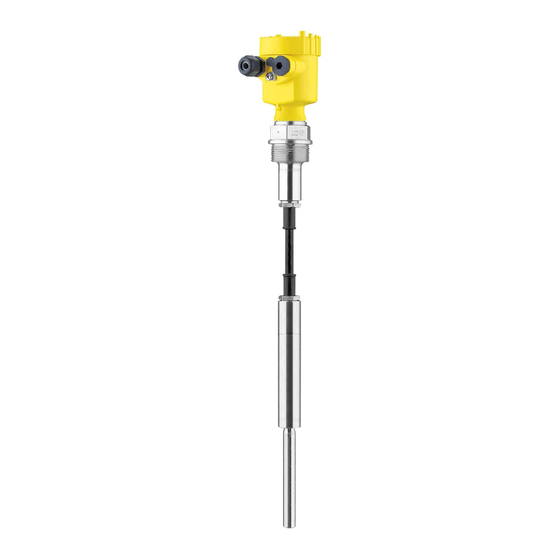

VEGAVIB 62
Cable shortening set
Vibration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAVIB 62 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vega VEGAVIB 62

Summary of Contents for Vega VEGAVIB 62

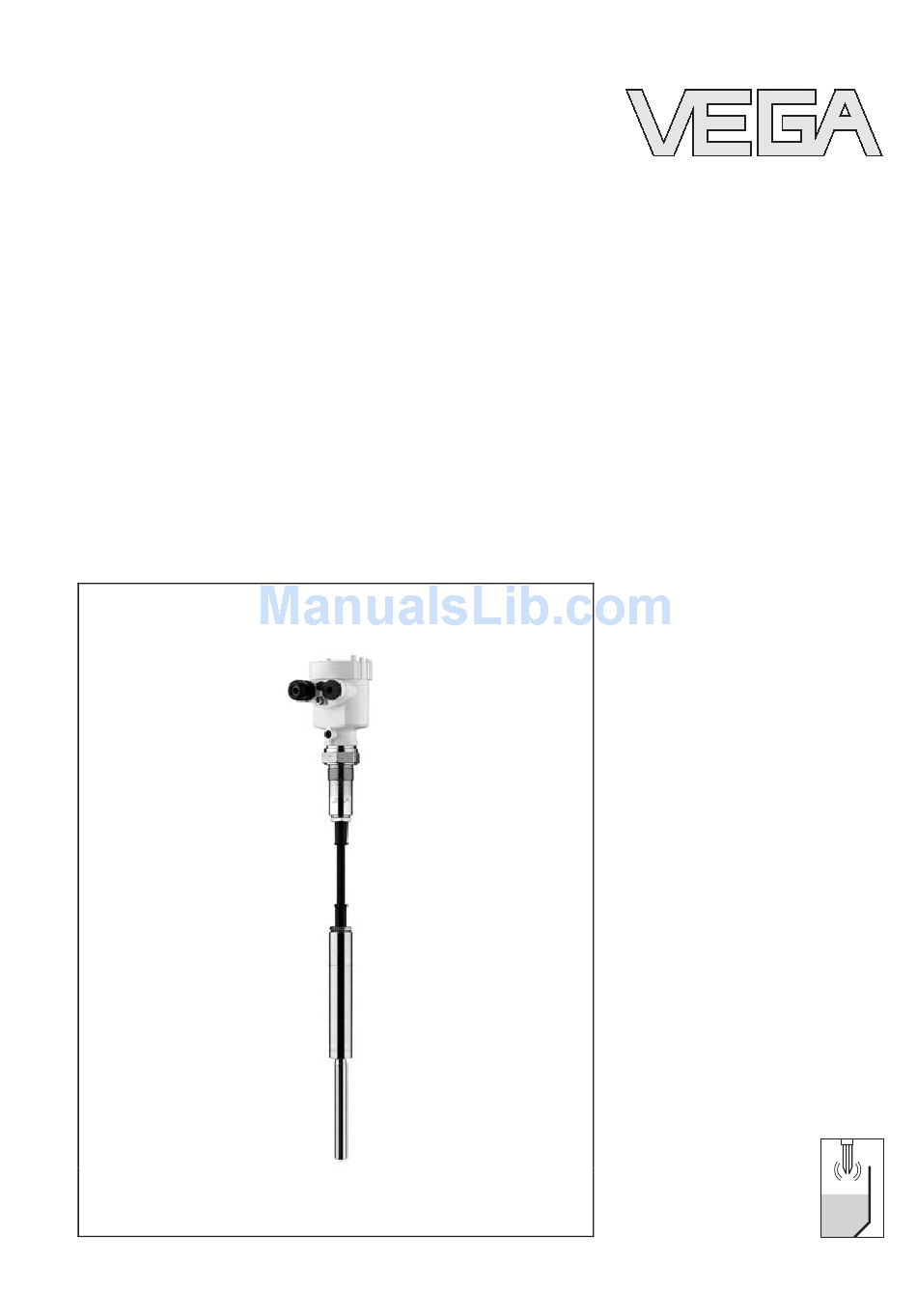

  • Page 1: Operating Instructions

    Operating Instructions VEGAVIB 62 Cable shortening set Vibration...

  • Page 2: Table Of Contents

    Disposal ......18 7 Supplement Technical data......19 VEGAVIB 62 • Cable shortening set...

  • Page 3: About This Document

    This symbol indicates special instructions for Ex applications. List The dot set in front indicates a list with no implied sequence. à Action This arrow indicates a single action. Sequence Numbers set in front indicate successive steps in a procedure. VEGAVIB 62 • Cable shortening set...

  • Page 4: For Your Safety

    The environment man- agement system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environ- mental instructions in this manual: Chapter "Packaging, transport and storage" Chapter "Disposal" VEGAVIB 62 • Cable shortening set...

  • Page 5: Product Description

    3.2 Principle of operation The cable shortening set is a set of parts used to shorten a Area of application VEGAVIB 62 in cable version PUR (temperature range -40° … +150° C). The cable shortening set can be used, e.g., when the sensor has to be guided through a narrow tube.
  • Page 6 Not exposed to corrosive media Protected against solar radiation Avoiding mechanical shock and vibration Storage and transport temperature see "Supplement - Storage and transport temperature Technical data - Ambient conditions" Relative humidity 20 … 85 % VEGAVIB 62 • Cable shortening set...

  • Page 7: Mounting

    Bolt cutter Flat wrench SW 24 Pipe tongs Skinning tool Cable stripping knife Side cutters Crimping tool Allen key 2 mm Hot air blower Talcum/Grease In addition: Bench vice with Aluminium or plastic protective jaws VEGAVIB 62 • Cable shortening set...

  • Page 8: Mounting Sequence

    Mounting 4.2 Mounting sequence Fig. 1: Cable shortening set for VEGAVIB 62 Crimp connector yellow, 2 pieces, article no. 2.11444 Crimp connector red, 3 pieces, article no. 2.18710 Shrinking hose blue ø 8 x 30 mm, 1 pce., article no. 1.243 Shrinking hose black ø...
  • Page 9 8 Clamp the lower part of the oscillator (below the screwed separating position) in the bench vice. Do not clamp on the fork tines. VEGAVIB 62 • Cable shortening set...
  • Page 10 Cut the wires directly on the crimping with side cutters (see arrows). Fig. 6: Pull the cable out of the upper part of the oscillator Cable 10 Perforated disc 19 Upper part of the oscillator VEGAVIB 62 • Cable shortening set...
  • Page 11 Fig. 8: Slide the parts onto the cable Pins (4 pcs.) Cable clamp Mounting boss Cable 10 Perforated disc 14 Pressure screw 15 Pressure ring 16 Rubber wrapping 17 Washer 18 Rubber rings (4 pcs.) 19 Upper part of the oscillator VEGAVIB 62 • Cable shortening set...
  • Page 12 Allen wrench 2 mm. The threaded pins should all be screwed in to the same depth in the cable clamp (approx. 3 Nm / 2.2 lbf ft). 20 Cut the beige plastic cords as short as possible with side cutters. VEGAVIB 62 • Cable shortening set...
  • Page 13 Fig. 10: Pull the cores out of the braiding 11 Plastic cords GN Green YE Yellow 22 Pull the yellow and green wires backward out of the braiding. 23 Exchange O-rings (5), grease thread and o-rings. VEGAVIB 62 • Cable shortening set...
  • Page 14 BK Black YE Yellow RD Red GN/YE Green-yellow 25 Strip off the insulation of the wires over a length of 5 mm (0.2 in) and connect according to drawing with crimp connectors and crimping tools. VEGAVIB 62 • Cable shortening set...
  • Page 15 28 Pull the cable (9) to the top and press the seal rings (18) and the washer (17) into the upper part of the oscillator (19). 29 Slide the pressure screw (14) and the pressure ring (15) onto the rubber jacket (16). VEGAVIB 62 • Cable shortening set...
  • Page 16 SW 24 (approx. 6 Nm/4.4 lbf ft). 32 Check the length of the sensor. 33 Mount the sensor. 34 Connect the sensor according to the operating instructions of the sensor. 35 Check the correct switching function of the sensor. VEGAVIB 62 • Cable shortening set...

  • Page 17: Maintenance And Fault Rectification

    When mounted correctly on the sensor, the cable shortening set is virtually maintenance free. There are no restrictions with regard to the specifications in the sensor documentation. 5.2 Instrument repair Take note of the specifications in the sensor documentation. VEGAVIB 62 • Cable shortening set...

  • Page 18: Dismounting

    Note chapter "Mounting" and carry out the described steps in reverse order. 6.2 Disposal The cable shortening set consists of materials which can be recycled by specialised recycling companies. Materials: see chapter "Technical data" Take note of the specifications in the sensor documentation. VEGAVIB 62 • Cable shortening set...

  • Page 19: Supplement

    Sensor length 0.3 … 80 m (1 … 262 ft) Approvals The respective sensor approvals are not qualified or restricted in any way when the cable shortening set is correctly applied. VEGAVIB 62 • Cable shortening set...
  • Page 20 All statements concerning scope of delivery, application, practical use and operating conditions of the sensors and processing systems correspond to the information avail- able at the time of printing. © VEGA Grieshaber KG, Schiltach/Germany 2008 Subject to change without prior notice 30097-EN-080310...
