- Page 1 Operating Instructions Capacitive level switch VEGAPOINT 11 Transistor with IO-Link Document ID: 63008...
-
Page 2: Table Of Contents
EU conformity ......................... 20 Environment management system ................. 20 10 Supplement ..........................21 10.1 Technical data ........................ 21 10.2 Device communication IO-Link ..................23 10.3 Dimensions ........................28 10.4 Industrial property rights ....................29 VEGAPOINT 11 • Transistor with IO-Link... - Page 3 Contents 10.5 Trademark ........................29 Editing status: VEGAPOINT 11 • Transistor with IO-Link...
-
Page 4: About This Document
Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work. -
Page 5: For Your Safety
During work on and with the device, the required personal protective equipment must always be worn. Appropriate use The VEGAPOINT 11 is a sensor for point level detection. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions. - Page 6 National Electrical Code (ANSI/NFPA 70). Installations in Canada shall comply with the relevant requirements of the Canadian Electrical Code A Class 2 power supply unit has to be used for the installation in the USA and Canada. VEGAPOINT 11 • Transistor with IO-Link...
-
Page 7: Product Description

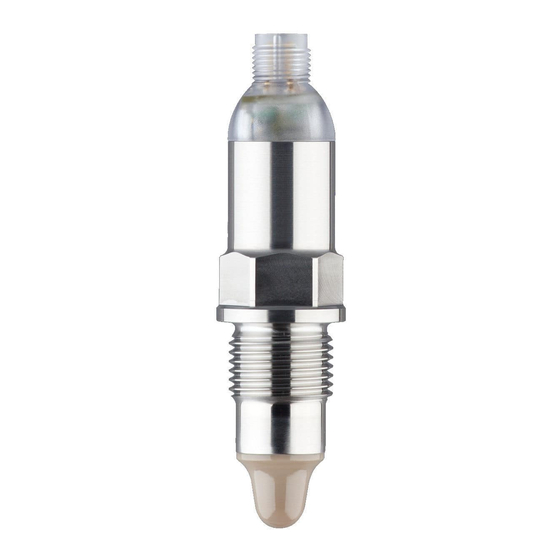

Scope of this operating This operating instructions manual applies to the following instrument instructions versions: • Hardware version from 1.0.0 • Software version from 1.2.0 The VEGAPOINT 11 consists of the components: Constituent parts • Housing with integrated electronics • Process fitting • Plug Fig. -
Page 8: Principle Of Operation
Principle of operation Application area The VEGAPOINT 11 is a capacitive point level sensor for point level detection It is designed for industrial use in all areas of process technology and can be used in water-based liquids. -
Page 9: Adjustment
This change is detected by the electronics and converted into a switching command. Buildup is ignored to a certain degree and therefore has no influence on the measurement. Adjustment The switching status of VEGAPOINT 11 can be checked from outside (signal lamp). Packaging, transport and storage Packaging Your instrument was protected by packaging during transport. Its capacity to handle normal loads during transport is assured by a test based on ISO 4180. -
Page 10: Accessories
The instructions for the listed accessories can be found in the down- load area on our homepage. Threaded and hygienic Various threaded and hygienic sockets are available for devices with socket threaded version. You can find further information in the "Technical data" VEGAPOINT 11 • Transistor with IO-Link... -
Page 11: Mounting
Chemical properties of the medium • Abrasion and mechanical influences Switching point In general, VEGAPOINT 11 can be mounted in any position. The instrument must be mounted in such a way that the sensor is at the height of the requested switching point. Fig. 3: Installation examples 1 Upper level detection (max.) as overflow protection... -
Page 12: Mounting Instructions
Fig. 4: Adhesive products In horizontal pipelines, avoid mounting in the upper or lower area of the pipe. In the upper part of the pipe cavities can form due to air inclusions. Solids can settle in the lower pipe area. Both can lead to measure- ment errors. In horizontal pipelines, lateral installation is therefore recommended. VEGAPOINT 11 • Transistor with IO-Link... - Page 13 A Not recommended - danger of air inclusions B Not recommended - Danger of buildup Inflowing medium If VEGAPOINT 11 is mounted in the filling stream, unwanted false measurement signals can be generated. For this reason, mount VE- GAPOINT 11 at a position in the vessel where no disturbances, e.g. from filling openings, agitators, etc., can occur. VEGAPOINT 11 • Transistor with IO-Link...
-
Page 14: Connecting To Power Supply
When mounting outdoors, on cooled vessels or in moist areas in which cleaning is made with steam or high pressure, it is very impor- tant that the plug is screwed on correctly. VEGAPOINT 11 • Transistor with IO-Link... -
Page 15: Connecting
5 Connecting to power supply Connecting Instrument versions Fig. 6: VEGAPOINT 11 - M12 x 1 plug Plug connection LED illuminated ring Instrument housing 4 Process fitting Sensor M12 x 1 plug connection This plug connection requires a prefabricated cable with plug. De- pending on the version, protection IP66/IP67 or IP69. -
Page 16: Setup
Function table The following table provides an overview of the switching conditions depending on the set mode and the level. Switching status Control lamp Control lamp Control lamp Output Yellow Green closed open Fault VEGAPOINT 11 • Transistor with IO-Link... -
Page 17: Diagnostics And Servicing
Should these measures not be successful, please call in urgent cases 24 hour service hotline the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock. -
Page 18: How To Proceed If A Repair Is Necessary
Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Ask the agency serving you to get the address for the return ship- ment. You can find the agency on our homepage. VEGAPOINT 11 • Transistor with IO-Link... -
Page 19: Dismount
Disposal The device is made of recyclable materials. For this reason, it should be disposed of by a specialist recycling company. Observe the ap- plicable national regulations. VEGAPOINT 11 • Transistor with IO-Link... -
Page 20: Certificates And Approvals
That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observ- ing the environmental instructions in chapters "Packaging, transport and Lagestoragerung", "Disposal" of these operating instructions. VEGAPOINT 11 • Transistor with IO-Link... -
Page 21: Supplement
Ʋ Thread G1, 1 NPT 100 Nm (73 lbf ft) Ʋ Hygienic adapter 20 Nm (15 lbf ft) Surface quality < 0.76 µm (3.00 Measurement accuracy Hysteresis approx. 1 mm (0.04 in) Switching delay approx. 500 ms (on/off) not in contact with the medium VEGAPOINT 11 • Transistor with IO-Link... - Page 22 Power supply on - Output 1 open Ʋ Yellow Power supply on - Output 1 closed Ʋ Red Power supply on - Failure Output variable - Transistor output Output Transistor (PNP/NPN) Load current max. 250 mA (output, permanently short-circuit proof) VEGAPOINT 11 • Transistor with IO-Link...
-
Page 23: Device Communication Io-Link
< 25 µA Switching time < 10 ms Max. cable length to the IO-Link master 20 m (66 ft) Output Transistor (PNP/NPN) 10.2 Device communication IO-Link In the following, the necessary device-specific details are shown. You can find further information of IO-Link on www.io-link.com. Physical layer IO-Link specification: Revision 1.1 SIO mode: Yes Speed: COM2 38.4 kBaud VEGAPOINT 11 • Transistor with IO-Link... - Page 24 6202 0x183A FunctionCheck 6203 0x183B Maintenance 6204 0x183C OutOfSpec 6205 0x183D Failure Device data ISDU Device data can be parameters, identification data and diagnostic information. They are exchanged acyclically and on request of the IO-Link master. Device data can be written to the sensor (write) or VEGAPOINT 11 • Transistor with IO-Link...
- Page 25 VEGA-specific device data Designation ISDU (dez) ISDU (hex) Size Data type Access Value range (Byte) Measurement loop name 0x0100 String (TAG) Application 0x0101 unsigned8 0 = User defined 1 = Standard Switching point (SP1) 0x0102 Float VEGAPOINT 11 • Transistor with IO-Link...
- Page 26 Unsigned16 RO Counter for change of pa- 0x0128 Unsigned32 RO rameters (PCO) Actual electronics tem- 0x0129 Float perature Min. electronics temper- 0x012B Float ature Max. electronics temper- 0x012C Float ature Actual measuring cell tem- 0x011C Float perature VEGAPOINT 11 • Transistor with IO-Link...
- Page 27 0x013F Unsigned32 RO status System commands Designation ISDU (dez) ISDU (hex) Access Factory Reset 0x082 Reset Pointer - Resonance Frequency 0x0A1 Reset Pointer - Measuring Cell Temperature 0x0A3 Reset Pointer - Electronic Temperature 0x0A4 VEGAPOINT 11 • Transistor with IO-Link...
-
Page 28: Dimensions
1 NPT ø 18 mm (0.71") Fig. 9: VEGAPOINT 11, standard version - thread Thread G½, G¾, G1 (DIN ISO 228/1) with M12 x 1 plug connection Thread ½ NPT, ¾ NPT, 1 NPT with M12 x 1 plug connection... -
Page 29: Industrial Property Rights
Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com. - Page 30 Notes VEGAPOINT 11 • Transistor with IO-Link...
- Page 31 Notes VEGAPOINT 11 • Transistor with IO-Link...
- Page 32 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2020 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
