Evaluation Kit Hardware
4.5.13

PIO Expansion Port A Connector J13

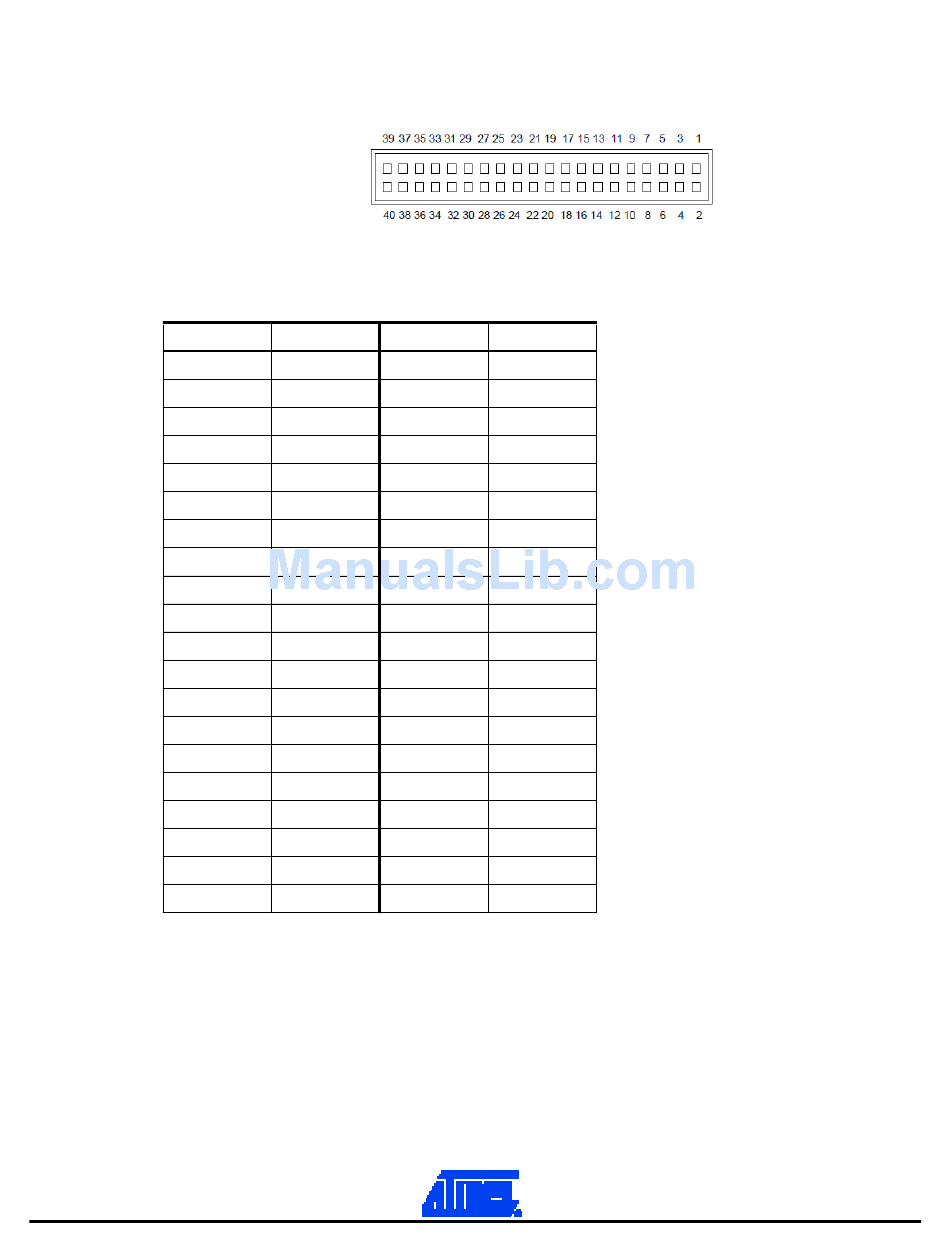

Figure 4-36. PIO Expansion Connector J13
Table 4-22. Connector J13 Signal Descriptions
Pin
4-30
11139A–ATARM–29-Nov-11
Mnemonic
1 +5V or +3v3
3 GND
5 NC
7 NC
9 NC
11 NC
13 NC
15 NC
17 PA6
19 PA7
21 PA8
23 PA9
25 PA10
27 PA11
29 PA12
31 PA13
33 PA14
35 PA15
37 GND
39 3V3
Pin Mnemonic
2 +5V or +3v3
4 GND
6 PA16
8 PA17
10 PA18
12 PA19
14 PA20
16 PA21
18 PA22
20 PA23
22 PA24
24 PA25
26 PA26
28 PA27
30 PA28
32 PA29
34 PA30
36 PA31
38 GND
40 3V3
SAM4S-EK Development Board User Guide
