Chapter
Technical data Specifications of the system
Glossary Definition of terms
Field settings table Table to be filled in by the installer, and
kept for future reference
Note: There is also an installer settings
table in the user reference guide. This
table has to be filled in by the installer
and handed over to the user.
3

About the box

3.1

Overview: About the box

This chapter describes what you have to do after the boxes with the
outdoor and indoor unit are delivered on-site.
It contains information about:
▪ Unpacking and handling the units
▪ Removing the accessories from the units
Keep the following in mind:
▪ At delivery, the unit must be checked for damage. Any damage
must be reported immediately to the carrier's claims agent.
▪ Bring the packed unit as close as possible to its final installation
position to prevent damage during transport.
3.2

Outdoor unit

3.2.1

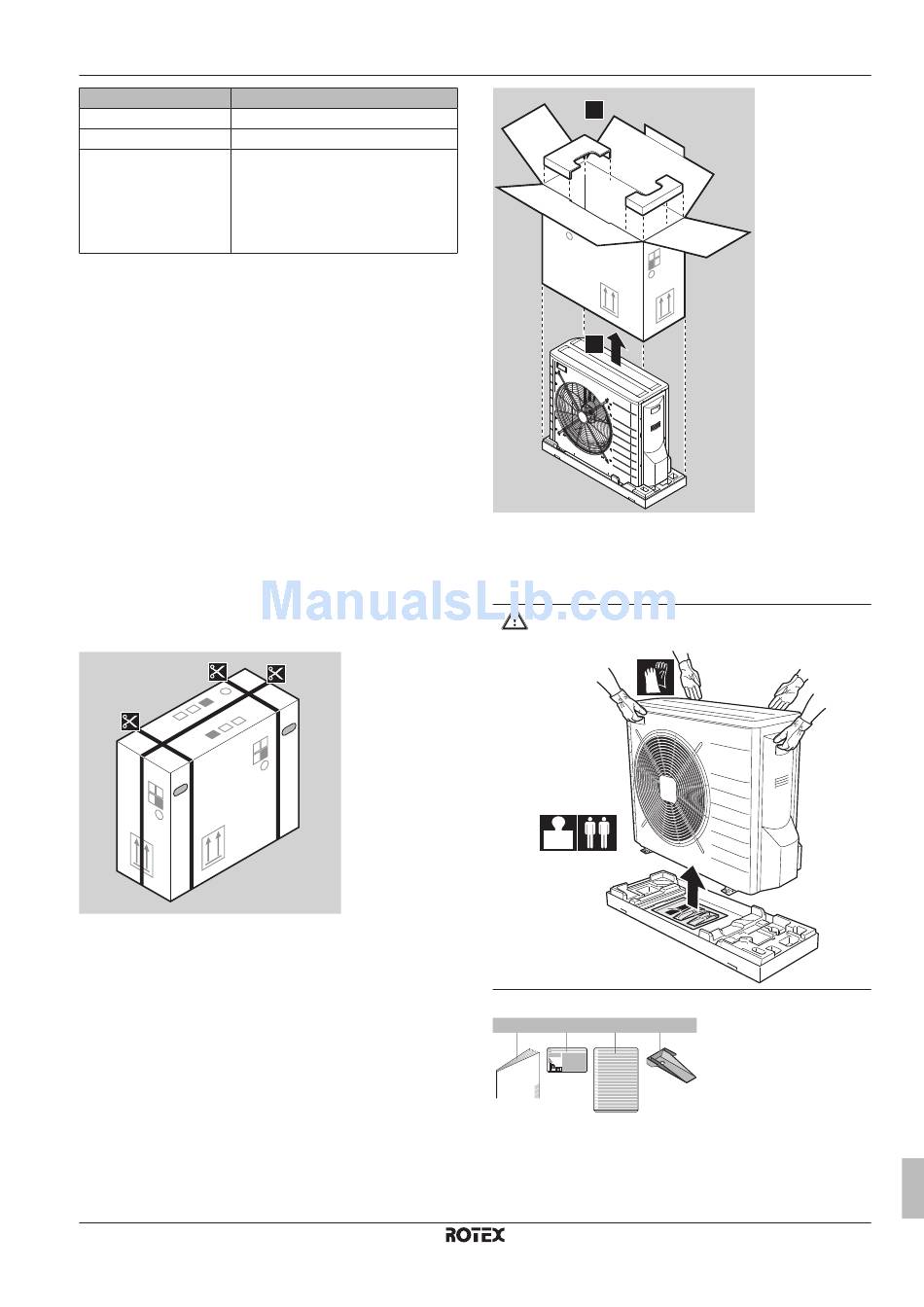

To unpack the outdoor unit

RRLQ004~008CA + RHBH/X04+08CB
ROTEX HPSU low temperature Bi‑bloc
4P384979-1C – 2017.04
Description
1
2
3.2.2 To remove the accessories from the
outdoor unit
1 Lift the outdoor unit.
CAUTION
Only handle the outdoor unit as follows:
57kg
2 Remove the accessories at the bottom of the package.
a b c d
1× 1× 1× 2×
a Outdoor unit installation manual
b Fluorinated greenhouse gases label
c Multilingual fluorinated greenhouse gases label
d Unit mounting plate
3 About the box
Installer reference guide
7
