7 Installation
3×
1 2 3
6 Install the switch box cover.

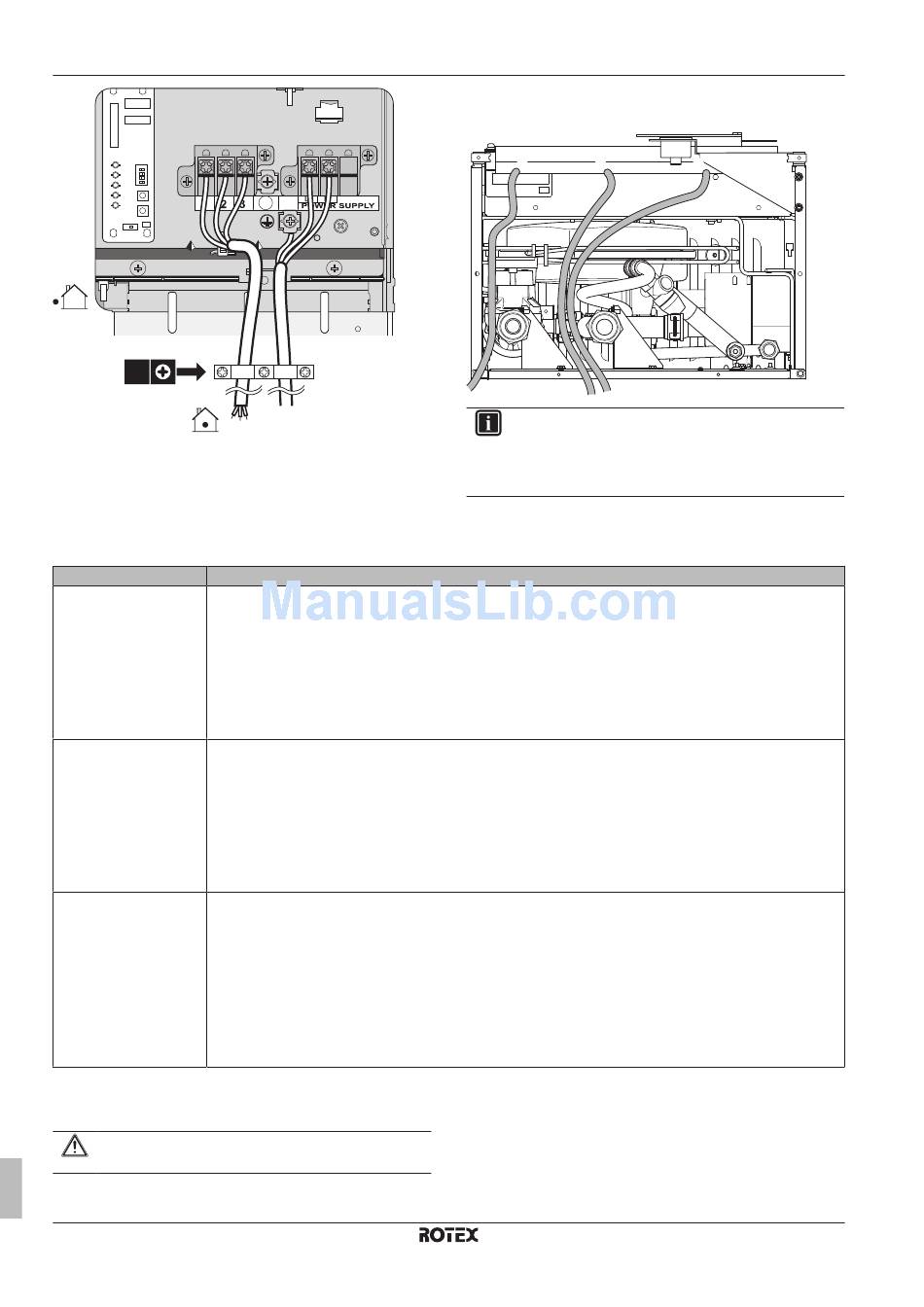

7.9.6 To connect the electrical wiring on the
indoor unit
1 To open the indoor unit, see
page 29.
Routing Possible cables (depending on unit type and installed options)
a ▪ Preferential power supply contact
Low voltage ▪ User interface
▪ Domestic hot water tank thermistor (option)
▪ Power consumption digital inputs (field supply)
▪ Outdoor ambient temperature sensor (option)
▪ Electrical meters (field supply)
▪ Safety thermostat (field supply)
b ▪ Interconnection cable
High voltage power supply ▪ Normal kWh rate power supply
▪ Preferential kWh rate power supply
▪ Power supply for backup heater
▪ Power supply for bottom plate heater (option)
▪ Power supply for booster heater (to indoor unit)
▪ Power supply for booster heater and thermal protection (from indoor unit)
c ▪ Heat pump convector (option)
High voltage control signal ▪ Room thermostat (option)
▪ 3-way valve
▪ Shut-off valve (field supply)
▪ Domestic hot water pump (field supply)
▪ Alarm output
▪ Changeover to external heat source control
▪ Space heat/cool operation control
4 Fix the cable with cable ties to the cable tie mountings to
ensure strain relief and to make sure that it does NOT come in
contact with the piping and sharp edges.
CAUTION
Do NOT push or place redundant cable length in the unit.
Installer reference guide
40
"7.2.3 To open the indoor unit" on
2 Wiring should enter the unit from the bottom.
3 Routing of the wiring inside the unit should be as follows:
a a c c
INFORMATION
When installing field supply or option cables, foresee
sufficient cable length. This will make it possible to remove/
reposition the switch box and gain access to other
components during service.
7.9.7

To connect the main power supply

1 Connect the main power supply.
In case of normal kWh rate power supply
b b
RRLQ004~008CA + RHBH/X04+08CB
ROTEX HPSU low temperature Bi‑bloc
4P384979-1C – 2017.04
