Mounting
2.3

Installation

2.3.1 Mounting kit
In addition to the tool needed for flange mounting, you will require the following tool:
• For the mounting of threaded connection: 60 mm Open-end spanner for 1½".
• 4 mm Allen wrench for turning the housing.
2.3.2 General installation instructions
The Levelflex can be screwed into a threaded socket or flange. Proceed as follows:
Screw down
• Screw the Levelflex into the process
connection or to flange.
• Levelflex functions in metal, concrete and
plastic silos. When installing in metal silos,
take care to ensure goodmetallic contact
between the process connection and silo.
• For flange mounting: if a seal is used, be
sure to use unpainted metal bolts toensure
good electrical contact between probe
flange an process flange.
6
Levelflex M FMP45 PROFIBUS PA

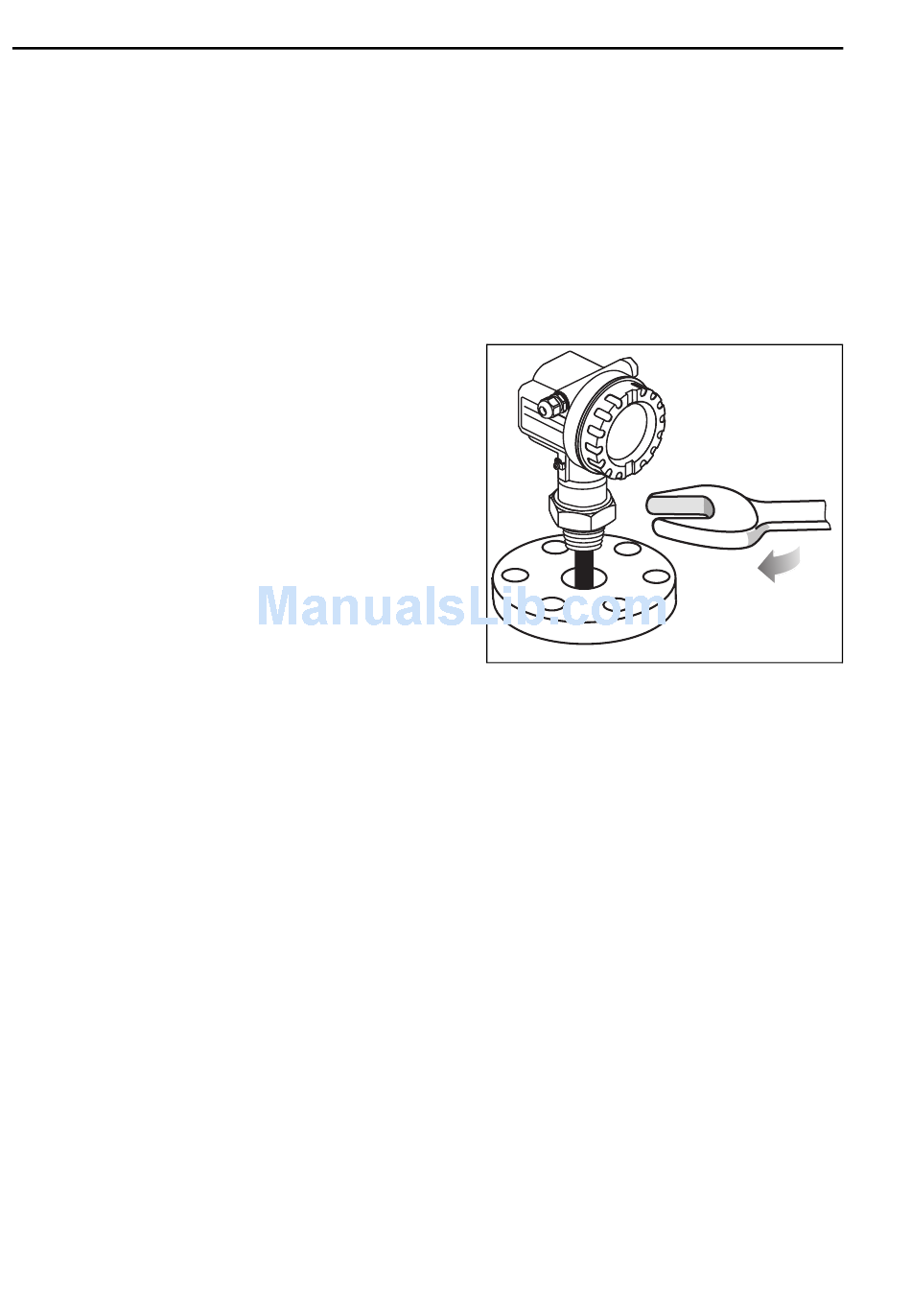

Screw in Levelflex
housing allignable
Tighten with the
hexagonal nut only
L00-FMP4xxxx-17-00-00-en-057
