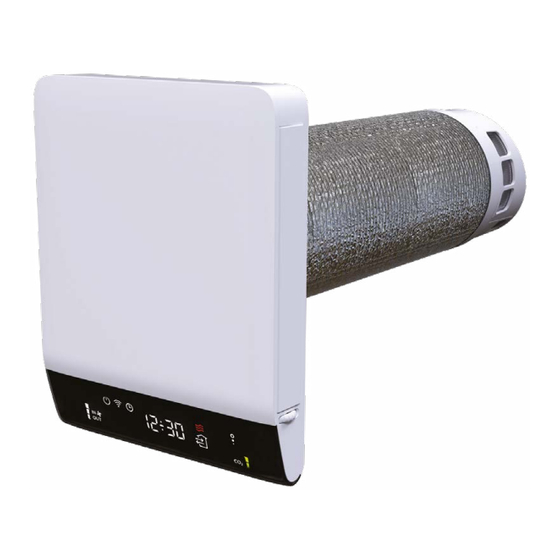

BLAUBERG Freshpoint 200-E User Manual

Single room heat recovery ventilation unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SINGLE ROOM HEAT RECOVERY
VENTILATION UNIT
Freshpoint 160-Е
Freshpoint 160-Е L055
Freshpoint 160-Е L07
Freshpoint 160-Е L1
Freshpoint 160-Е Pro
Freshpoint 160-Е Pro L055
Freshpoint 160-Е Pro L07
Freshpoint 160-Е Pro L1
EN
USER'S MANUAL
Freshpoint 200-E
Freshpoint 200-E L055
Freshpoint 200-E L07
Freshpoint 200-E L1
Freshpoint 200-E Pro
Freshpoint 200-E Pro L055
Freshpoint 200-E Pro L07
Freshpoint 200-E Pro L1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Freshpoint 200-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BLAUBERG Freshpoint 200-E

Summary of Contents for BLAUBERG Freshpoint 200-E

  • Page 1 Freshpoint 200-E L07 Freshpoint 160-Е L1 Freshpoint 200-E L1 Freshpoint 160-Е Pro Freshpoint 200-E Pro Freshpoint 160-Е Pro L055 Freshpoint 200-E Pro L055 Freshpoint 160-Е Pro L07 Freshpoint 200-E Pro L07 Freshpoint 160-Е Pro L1 Freshpoint 200-E Pro L1 USER’S MANUAL...

  • Page 2: Table Of Contents

    Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................6 Mounting and set-up .................................. 7 Connection to power mains ..............................12 Unit control .......................................
  • Page 3 Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de All operations described in this manual must be performed by qualified personnel only, properly trained and qualified to install, make electrical connections and maintain ventilation units. Do not attempt to install the product, connect it to the mains, or perform maintenance yourself. This is unsafe and impossible without special knowledge.

  • Page 4: Purpose

    Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de PURPOSE The ventilator is designed to ensure continuous mechanical air exchange in flats, cottages, hotels, cafés and other domestic and public premises. The ventilator is equipped with a regenerator that enables supply of fresh filtered air heated by means of extract air heat energy recovery.

  • Page 5: Technical Data

    ØD ØD Model øD Model øD Freshpoint 160-Е (Pro) Freshpoint 200-E (Pro) Freshpoint 160-Е (Pro) L055 Freshpoint 200-E (Pro) L055 Freshpoint 160-Е (Pro) L07 Freshpoint 200-E (Pro) L07 Freshpoint 160-Е (Pro) L1 Freshpoint 200-E (Pro) L1 1000 1100 1000 1100...

  • Page 6: Design And Operating Principle

    Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE The product consists of an operating module with the indoor unit and external coating. The operating module contains fans, the heat exchanger, heaters, supply and extract air ducts. Heat exchanger is used to transfer heat energy between the air flows.

  • Page 7: Mounting And Set-Up

    Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT WHEN THE PRODUCT IS INSTALLED IN BUILDINGS, WHERE WIND OVERLOAD IS POSSIBLE, IN PREMISES WITH PASSIVE VENTILATION, FIREPLACES OR PRE-INSTALLED VENTILATION UNITS (EXTRACT FANS, KITCHEN HOOD ETC.) SUPPLY AND EXTRACT AIR IMBALANCE IS POSSIBLE IT MAY CAUSE DRAFTS AND DESTABILIZE TEMPERATURE IN WINTER SEASON.
  • Page 8 Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de For as optimal match between the product length and wall thickness as possible, when the external wall side is inaccessible, cut the external coating and extension node for Freshpoint 160/200-E (Pro) L055/07/1 models. Allowed values for wall thickness are specified in the table below. Model Possible wall thickness Possible wall thickness options when using extension cuffs*...
  • Page 9 Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de To shorten the condensation heater, do the following: The condensation heater is installed in the operation module, not dismountable. Position the working module vertically on the table. Using nippers, remove a piece of the condensation heater of the same length value that was used to shorten the spigots.
  • Page 10 1. Prepare a round core hole in the outer wall 172 mm in min 300 diameter for Freshpoint 160-Е models and 212 mm in diameter for Freshpoint 200-E models.. min 300 2. Detach the external coating from the operation module.
  • Page 11 Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de 4. To remove the bottom panel (pos. 1), pull its downmost end at yourself. Remove the top decorative panel (pos. 2) from the operation module by unscrewing the screws. 5. Put the mounting template on the wall. Align it using the level. Afterward, mark the openings to insert dowels from the mounting kit and drill the holes of required depth.

  • Page 12: Connection To Power Mains

    Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de CONNECTION TO POWER MAINS The unit is rated for connection to power mains with the parameters specified in the “Technical data” section. The unit must be connected using the power cord with a plug pre-installed at the factory, or fixed wiring. To connect to fixed wiring, do the following: remove the cable with the plug;...

  • Page 13: Unit Control

    Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de UNIT CONTROL The product can be controlled using the remote control, a smartphone app via Wi-Fi and the Google Assistant. Before turning on the unit, open the rotating dampers on the indoor part of the unit. After turning off the unit, the dapmers may be left open to use the unit in passive ventilation mode.
  • Page 14 Connecting your smartphone device to the product You can download the app by following the link to the App Store or Play Market, or by using QR codes. Blauberg Home – App Store Blauberg Home – Play Market Wi-Fi technical data Standard IEFE 802.11b/g/n...
  • Page 15 Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de The main modes, functions, settings available in the smartphone application are as follows: On/Off. Turning the product on or off. Speed switch: 1, 2, 3 Selecting the appropriate fans speed. It is controlled using the buttons on the remote control or in the smartphone app. Ventilation direction: supply, exhaust, recovery.
  • Page 16 Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de Heat exchanger frost protection The unit has an algorithm to protect the heat exchanger from frost in winter season. According to the algorithm, if heat exchanger frost danger is detected, gradual supply fan speed decrease (until it stops), gradual extract fan speed increase, or automatic heater power-on may be initiated.

  • Page 17: Technical Maintenance

    Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE PRODUCT FROM THE POWER SUPPLY BEFORE PERFORMING ANY MAINTENANCE WORK Maintenance of the ventilator means regular cleaning of the ventilator surfaces of dust and cleaning and replacement of the filters. To access the filters, remove the decorative panels from the work unit.

  • Page 18: Storage And Transportation Regulations

    Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de If necessary, the remote control battery may be replaced. No response of the unit for pressing the remote control buttons indicates the need to replace the battery. The battery type is CR2025. Remove the holder with the battery from the bottom part of the remote control.

  • Page 19: Manufacturer's Warranty

    Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 20 Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de...
  • Page 21 Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de...
  • Page 22 Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de...

  • Page 23: Certificate Of Acceptance

    Freshpoint 160/200-E (Pro) (L055/07/1) www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Single Room Heat Recovery Ventilation Unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 24 www.blaubergventilatoren.de B259EN-05-1...
