Native Instruments traktor kontrol s5 Manual page 134

1. Press the SHIFT button and the Display Button 1. The Beatgrid mode opens in the dis-
play. A four beat loop at the current playback position is displayed.
2. Press the Deck's PLAY

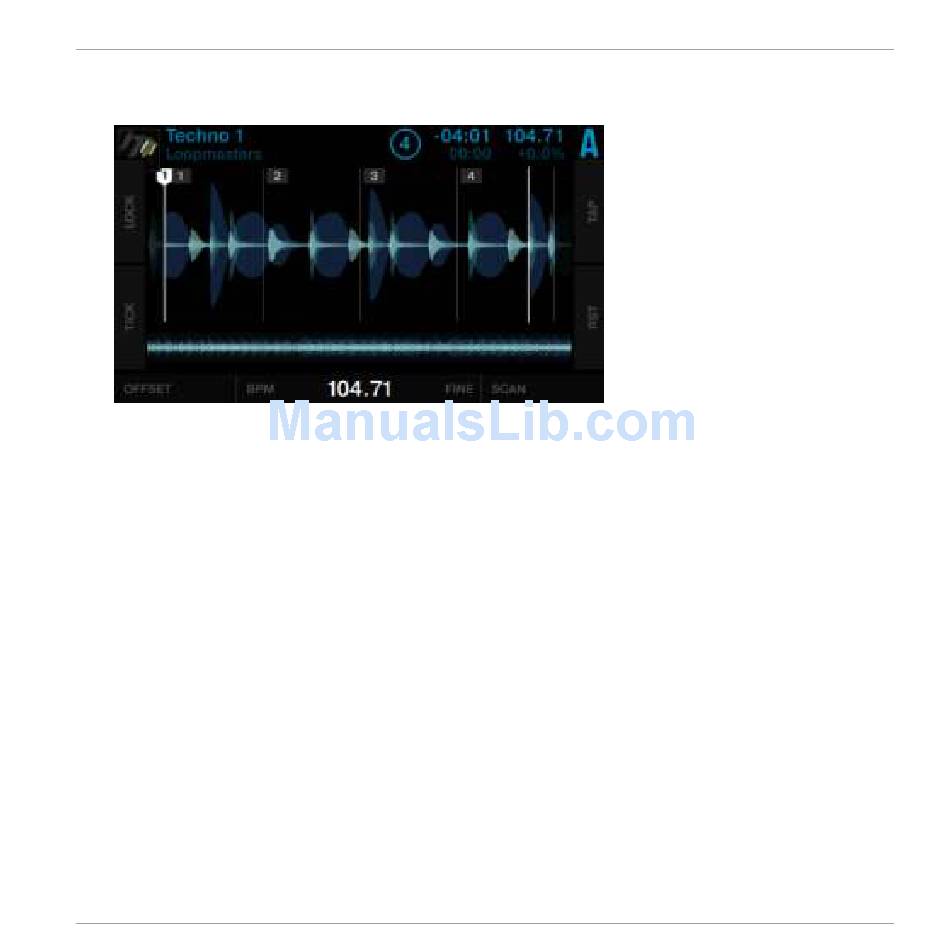

On the display, you'll see a four beat loop, based on the detected BPM value, which serves as a
reference for manual Beatgrid adjustments. While playing back the track, a white position
pointer cycles through, indicating the relative sync position within the loop. In the background,
the entire track is played back and the red playhead travels across the waveform displayed be-
low the loop.
Beatgrid Interactions
While the track is playing with Beatgrid Mode enabled:
► Rotate Performance knob 1 (OFFSET) to shift the entire waveform underneath the Beatgrid.
Align the first Beatmarker with the first peak in the loop's waveform.
button to trigger playback of the track.
Using Your S5—Getting Advanced
Working with Beatgrids
TRAKTOR KONTROL S5 - Manual - 134
