golmar T632 User Manual

golmar T632 User Manual

Audio and video door entry system
Hide thumbs Also See for T632:
Table of Contents

Advertisement

Quick Links

Download this manual

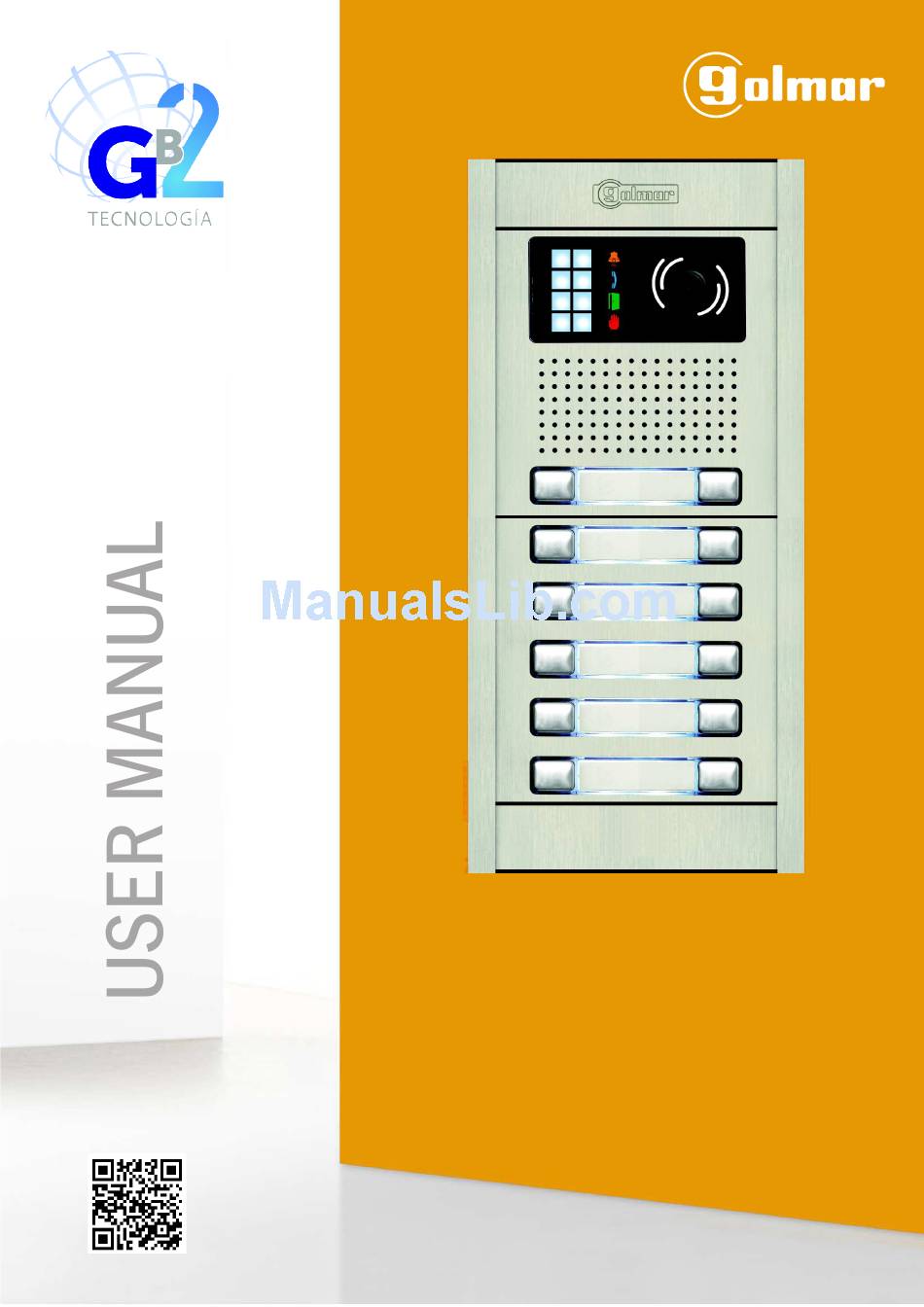

Audio and Video
door entry system
2 wires installation
GB2 Nexa Modular
C d. 50121
o
878
632 B2 N REV.0 1
3 6
T
G
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T632 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for golmar T632

Summary of Contents for golmar T632

  • Page 1 Audio and Video door entry system 2 wires installation GB2 Nexa Modular C d. 50121 632 B2 N REV.0 1...

  • Page 2: Table Of Contents

    - Before to connect the system, check the connections between door panel, power supply, distributors, D-CAM-GB2 camera unit , interface GSM -GB2 monitors , tel ephones and audio hands-free units RAP-2150 (2x1mm ) Golmar cable - Do always follow the enclosed information.

  • Page 3: Safety Precautions

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING SAFETY PRECAUTIONS Install or modify the equipment without the power connected. - The installation and handling of these equipments must be performed by authorised personnel. - The entire installation must be at least 40 cm. away from any other installation. - With power supply: Do not use excessive force when tightening the connector screws.

  • Page 4: Door Panel Description (Nexa Modular)

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING DOOR PANEL DESCRIPTION (NEXA MODULAR) Door panel description: General detail of parts, for assembly the door panel. Electronic Embedding boxes Frame modules Aluminium door panel modules oor panel description Screws of fixation of header (x4) Screws of fixation of embedding box (x2) losing heads...

  • Page 5: Sound Module Description El632-Gb2 / El642 Gb2

    No modify (i nternal use Push button number. Installation terminals GB2 Bus). Installation terminals: : Positive, ground (12Vdc output for Golmar 12Vdc lock release). "C" contact for lock release (Relay 1) "N. " O contact for lock release (Relay 1) AP ,AP+ : Input for external door release push button (Relay 1).

  • Page 6: Push Buttons Module Description (El610D)

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING PUSH BUTTONS MODULE DESCRIPTION (EL610D) Push buttons module description (EL610D): Front side. ush buttons module (x10). Back side. Input output push buttons connector (x3). Configuration dip switch Push buttons call code Push button number.

  • Page 7: Embedding Box Positioning

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING DOOR PANEL INSTALLATION Embedding box positioning: 1850 1650 1450 The upper part of the door panel should be placed at 1,65m. height roughly. The hole dimensions will depend on the type of door panel.

  • Page 8: Place The Embedding Box

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING DOOR PANEL INSTALLATION Place the embedding box: Pass the wiring through the hole made in the bottom part of the embedding box. Level and flush the embedding box. Once the embedding box is placed, remove the protective labels from the attaching door panel holes.

  • Page 9: Hold The Frame

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING DOOR PANEL INSTALLATION Hold the frame on the embedding box: Insert the hinge that it is supplied with the product in the embedding box, as shown in the drawing. To hold the frame on the embedding box, insert the hinge in the housings arranged for this purpose in the frame, as shown in the drawing.

  • Page 10: Plug The Push Buttons With The Connection Cable Rap-610D

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING DOOR PANEL INSTALLATION Plug the push buttons with the connection cable RAP-610D: Use the connection cable RAP-610D, for the connection of the push buttons between the sound module and the push buttons module EL610D and between push buttons modules EL610D, when the distance between modules to connecting is greater due to the composition of the door panels.

  • Page 11: Double Push Button Module Coding

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING DOOR PANEL INSTALLATION Double push button module coding: EL632 GB2 / EL642 GB2 C1 NA1 C2 AP+ AP- P1 P2 BUSBUS Relé 1 Relé 2 12Vdc Code 1 Code 0 Code 1 EL610D Code 10...

  • Page 12: Single Push Button Module Coding

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING DOOR PANEL INSTALLATION Single push button module coding: EL632 GB2 / EL642 GB2 C1 NA1 C2 AP+ AP- P1 P2 BUSBUS Relé 1 Relé 2 12Vdc - - - - - Code 0 EL610D - - - - -...
  • Page 13 AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING DOOR PANEL INSTALLATION Coming from previous page. EL610D - - - - - Code 20 - - - - - Code 19 - - - - - Code 18 - - - - - Code 17 - - - - -...

  • Page 14: Configuration Dip-Switch

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING DOOR PANEL INSTALLATION Configuration dip switch of the sound module: The configuration dip switch is located on the left side of the rear part of the module. Door Panel Address: Dip switches: 1 and 2 OFF (address 1), 1 ON and 2 OFF (address 2), 1 OFF and 2 ON (address 3), 1 and 2 ON (address 4).

  • Page 15: Descrip Tion Of The Vocal Synthesis Audi ( Ble Indications From The Door Panel)

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING DOOR PANEL INSTALLATION Description of the voc synthesis (audible indications from the door panel) Audible indications from the door panel for people with impaired vision. If the voc al synthesis in the sound module is activated (see pages 14 and 16 to configure), a voice with the following messages can be heard from the door panel: While calling: “Call...

  • Page 16: Selecting The Vocal Synthesis Language

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING DOOR PANEL INSTALLATION Selecting the vo synthesis language To activate the voice synthesis of the door panel, follow these steps: - Set dip 6 of the sound module's configuration dip switch to ON (see page 14), a confirmation tone will be heard.

  • Page 17: Door Panel And Double Door Panel Assembly

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING DOOR PANEL INSTALLATION Door panel assembly: Insert a header in the lateral rods (at the bottom part) and fix it with the supplied screws (step 1 ), then insert the module (step 2 ).
  • Page 18 AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING DOOR PANEL INSTALLATION Double door panel assembly: Assembly the door panel step , as it is described in page 17 door panel assembly”. Bear in mind that the rod "...

  • Page 19: Close The Door Panel

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING DOOR PANEL INSTALLATION Close the door panel: Fix the door panel in the embedding box with the supplied screws. Finish the door panel assembly by placing the closing heads put the head on one side and then make a slight pressure on the other end to its correct placement Door panel: Do ble...

  • Page 20: Power Supply Installation (Fa-Gb2A)

    Ø3mm. drill. M 4 x 8 DIN-963 IMPORTANT: - The lock release must be of (Golmar) d.c or a.c. See page 30 (a.c lock release) and ages to 30 (d.c lock release - Two varistors are supplied with the sound module. In case to connect an a.c. lock release, place the...

  • Page 21: Installation Diagrams

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING INSTALLATION DIAGRAMS Video installation with 3 VESTA2 monitors, 6 DP-GB2A distribu tors and Golmar 12Vd.c lock release: VESTA2 Master ( ) 2 ( CODE 22 End of line VESTA2...
  • Page 22 AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING INSTALLATION DIAGRAMS Video installation with 23 VESTA2 monitors, 12 D2L-GB2 distributors and Golmar 12Vd.c lock release: VESTA2 Master End of l ne ( ) 3 CODE 22 VESTA2 VESTA2...
  • Page 23 AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING INSTALLATION DIAGRAMS Video installation with telephones: Up to 23 elements (Vesta2 monitors / T562 telephones), 6 DP-GB2A distributors Golmar 12Vd.c lock release: Additional telephone (in the same apartment) End of line...
  • Page 24 AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING INSTALLATION DIAGRAMS Video installation with 18 THERA monitors, 5 DP-GB2A distribu tors and Golmar 12Vd.c lock release: End of line THERA THERA Master Master ( ) 2 ( ( ) 2 (...
  • Page 25 AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING INSTALLATION DIAGRAMS Video installation with 18 THERA monitors, 9 D2L-GB2 distribu tors and Golmar 12Vd.c lock release: THERA THERA End of Master Master l ne ( ) 3 ( ) 3...
  • Page 26 AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING INSTALLATION DIAGRAMS Video installation with audio hands-free: Up to 18 elements (THERA monitors / NHEA hands-free): 5 GB A distributors and Golmar 12Vd.c lock release: End of line Additional audio hands-free (in the same apartment) NHEA...
  • Page 27 AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING INSTALLATION DIAGRAMS Audio installation with 32 apartments / T562 telephones and Golmar 12Vd.c lock release: T-562 GB2 Master CODE 31 APARTMENT 32 T-562 GB2 Master CODE 1 APARTMENT 2...
  • Page 28 AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING INSTALLATION DIAGRAMS Audio installation with 32 apartments / NHEA hands-free units and Golmar 12Vd.c lock release: NHEA Master CODE 31 APARTMENT 32 NHEA Master CODE 1 APARTMENT 2 NHEA...
  • Page 29 AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING INSTALLATION DIAGRAMS Video installation with access doors , DP- GB2A distributor for door panels and Golmar 12Vd.c lock Video installation: To distributors buiding’s floor Audio installation : To telephones (buidings floor) Main...

  • Page 30: Installation Diagrams

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING INSTALLATION DIAGRAMS Con exi n o of d.c and .c Golmar locks release Co nexi n o of d.c locks release without "AP": Access door panel GB /A power supply...

  • Page 31: Notes

    AUDIO & VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING NOTES:...
  • Page 32 C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
