- Page 1 ABS lifting station Piranhamat 100 and 120 Installation and Operating Instructions www.sulzer.com...
-
Page 2: Table Of Contents
General maintenance hints ........................10 Steps to be taken should a fault occur ....................10 7.3.1 Piranhamat 100/120 does not work - motor makes a humming noise..........11 7.3.2 Piranhamat 100/120 does not function and motor is silent..............12 7.3.3... -
Page 3: General
They are suitable for installing either at the initial building stage or for retro-fitting to existing buildings. It is possible to connect a wash-hand basin, a shower and a bidet to the unit. NOTE The Piranhamat 100/120 is recommended for single family houses only, or single rooms, and not for public or constant use. NOTE When using a flexible hose line ensure that the connections are leak-tight at the maximum operating pressure. -
Page 4: Technical Data
Installation and Operating Instructions (Original Instructions) ABS lifting station Piranhamat 100 and 120 Technical Data Maximum noise level ≤ 70dB. This may be exceeded in certain circumstances. Head H (m) Flow Q (m Flow Q (l/s) Discharge Motor Rated Rated Cable Weight Tank with integral pump connection power P1 voltage current... -
Page 5: Legal Regulations Din And En Covering The Use Of Lifting Stations For The Pumping Of Sewage Containing Faecal Matter
Automatic lifting stations are required if the normal water level in the odour-lock of the effluent source lies under the sewer backwash level. In the case of installations of the size and design of the Piranhamat 100/120, only a single WC, one wash-hand basin, one bidet, and one shower tray may be connected. The direct or indirect connection of other effluent sources is not allowed. In addition another WC must be available above the sewer backwash level. If more effluent sources are present then we recommend our Sanimat range. ATTENTION The regulations of DIN 1986/100 EN 12050 and 12056 should be observed! Accessories The Piranhamat 100/120 lifting unit is supplied as standard with the following fittings: - Non-return valve (flap type) - Hose clamp (x2) - Rubber cap - Fixing screw (x2) - Dowel floor fixing (x2) - Ground fixing (2) - * The version with part No. -
Page 6: Description

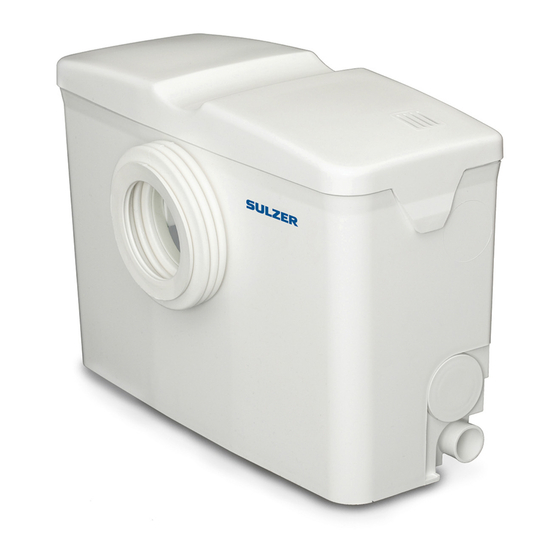

Installation and Operating Instructions (Original Instructions) ABS lifting station Piranhamat 100 and 120 Description The lifting unit of the Piranhamat 100/120 series is supplied ready for installation and has been designed for the pumping of effluent containing faecal matter in accordance with DIN standards. The pump installed in a lifting unit is equipped with the ABS Piranha cutting system and has been designed to pump normal toilet domestic effluent. On the front side of the unit is located a toilet push-on connection designed for the self-sealing connection of a single WC. In addition, DN 40 inflow ports are located both on the left and right-hand side for connection of a... -
Page 7: Set Up And Installation Of The Piranhamat 100/120
The Piranhamat 100/120 (1) is designed for a direct toilet connection. The Piranhamat 100/120 unit is set up directly behind the toilet. The DN 100 sealing sleeve (3) should be drawn up directly on to the toilet outlet pipe. In order to comply with DIN standards the inflow lines from the wash-hand basin, bidet and shower tray must be at least 180 mm above the container base and provision for inflow by gravity must exist in order that these inflow lines will remain clear. -
Page 8: Installation - Discharge Line
Discharge, left. Discharge, right. Discharge line connection valve. Figure 6: Discharge line connection of Piranhamat 100/120 Install the discharge line (outer diameter 25 or 32 mm) with the aid of a backwash loop (180º bend) and connect it into the sewer line above the sewer backwash level. The flap-type, non-return valve should be fitted direct to the Piranhamat 100/120. When fitting the valve horizontally, the flap must hinge from the top with the arrow pointing down, see “C” below. The arrow on the outside of the housing indicates flow direction. (Regulation DIN 1986). -
Page 9: Venting
Figure 8: Connection of an inflow line DN40 ATTENTION If exchanging a Piranhamat 100/120 of the new series for one of the older Piranhamat models we recommend that you use the version part no. 07560320 / 07565092 with the lower opening. -
Page 10: Commissioning
A maintenance contract with our service department will guarantee you the best technical service under all circumstances. Steps to be taken should a fault occur ATTENTION Water sources which drain into the Piranhamat 100/120 should not be used should a fault occur. -
Page 11: Piranhamat 100/120 Does Not Work - Motor Makes A Humming Noise
The latches (2) must correctly lock into position. ATTENTION The unit should only be used or tested with the top cover correctly in place. - Carry out functional test. If the Piranhamat 100/120 still does not work, withdraw plug and call Sulzer Service. -
Page 12: Piranhamat 100/120 Does Not Function And Motor Is Silent
Piranhamat 100/120 does not function and motor is silent. - Withdraw plug and wait approximately 30 seconds. - After this waiting period push back in the plug. - Water sources should not be used in this period. If after this waiting period the Piranhamat 100/120 does not function correctly, then withdraw the plug and call Sulzer Pumps Service. NOTE In the case of any queries, it is essential that the pump type and part number are given. -
Page 13: Removal Of The Piranhamat 100/120
Installation and Operating Instructions (Original Instructions) ABS lifting station Piranhamat 100 and 120 7.3.4 Removal of the Piranhamat 100/120 Figure 10: Emptying the tank Before dismantling the discharge and inflow lines, it is possible to empty the tank by driving the pump by means of an electric drill. In order to do this: - Pull the latches (Fig 9/2) on the tank cover (Fig 9/1) lightly to the outside and lift off the cover. - Page 14 Viranomaisten vaatiessa teknisten tietojen lomaketta lomakkeen valtuutetun laatijan nimi ja osoite: HU: A hatóságok kérésére a műszaki adatokat tartalmazó akta összeállítására meghatalmazott személy neve és címe: EL: Όνομα και διεύθυνση του ατόμου που είναι εξουσιοδοτημένο για τη σύνταξη του τεχνικού φακέλου προς τις αρχές επί τη απαιτήσει: Frank Ennenbach, Director Product Safety and Regulations, Sulzer Pump Solutions AB, Gråbrödersgatan 2, 211 21 Malmö, Sweden. EN: Declare under our sole responsibility that the products: DE: Erklärt eigenverantwortlich, daß die Produkte: NL: Verklaren geheel onder eigen verantwoordelijkheid dat de produkten: SV: Försäkrar under eget ansvar att produkterna:...
- Page 16 Sulzer Pump Solutions Ireland Ltd. Clonard Road, Wexford, Ireland Tel. +353 53 91 63 200 Fax +353 53 91 42335. www.sulzer.com...
