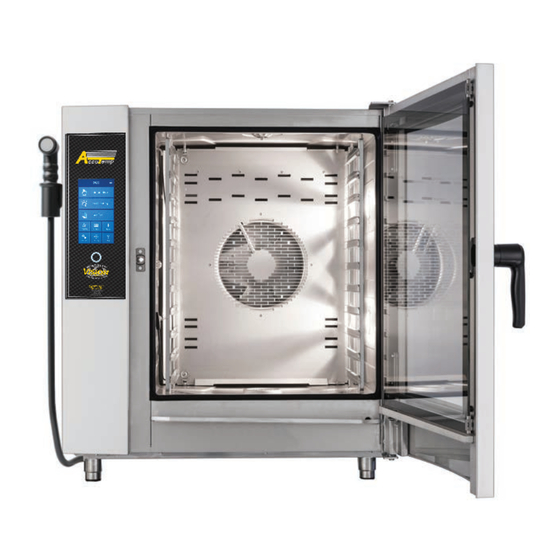

- Page 1 ISION T O U C H Vision Touch ™ Combi Steamer OPERATORS MANUAL MP6921-1707...
-
Page 2: Table Of Contents
CONTENTS ABOUT THIS MANUAL 01 I BASIC INFORMATION ABOUT THE COMBI OVEN 1.1 USE: ITS PURPOSE 1.2 INTRODUCTION: MAIN PARTS 1.3 CONTROLS: BASICS 02 I SAFETY DURING USE 2.1 SAFE OPERATION 2.2 PROTECTIVE AIDS 2.3 PROTECTIVE ELEMENTS OF THE COMBI OVEN 2.4 DANGEROUS LOCATIONS AND RESIDUAL HAZARDS 2.5 USING ACCESSORIES 03 I OPERATION... -
Page 3: About This Manual
Therefore, when you’re not SYMBOLS USED IN THIS MANUAL sure what to do, always contact the manufacturer: In this user's manual you will find symbols with the following meaning: SYMBOL MEANING AccuTemp Products Inc. These symbols mean +1 (800) 480-0415 "ATTENTION" and "WARNING",... -
Page 4: Basic Information About The Combi Oven
User’s manual | Vision™ Touch Combi Steamers | 01 BASIC INFORMATION ABOUT THE COMBI OVEN 01 I BASIC INFORMATION ABOUT THE COMBI OVEN Any use of the combi oven including modifications to safety or operational components, is considered unintended use. The company accepts no liability for damages due to such use;... -
Page 5: Controls: Basics
User’s manual | Vision™ Touch Combi Steamers | 01 BASIC INFORMATION ABOUT THE COMBI OVEN Accessories 1.4 CONTROLS: BASICS HOTEL & SHEET PANS TURNING ON AND OFF Pans serve not only as containers for cooking and baking, but are also The combi steamer is permanently connected to the power supply and it is suitable for transporting, serving and storing the meals. -
Page 6: Safety During Use
User’s manual | Vision™ Touch Combi Steamers | 02 SAFETY DURING USE 02 I SAFETY DURING USE BEFORE USING THE COMBI STEAMER The combi steamer cannot be operated without a certain amount of caution, alertness and common sense. Even though the combi steamer has If you have any doubts about the combi steamer’s installation, operation •... -
Page 7: Protective Aids
User’s manual | Vision™ Touch Combi Steamers | 02 SAFETY DURING USE 2.3 PROTECTIVE ELEMENTS OF THE COMBI always brake the trolley once inside the appliance. When handling a full trolley, the pan locking mechanism must always be used. STEAMER In the event that the floor is very uneven, roll-in trolleys must not be •... -
Page 8: Dangerous Locations And Residual Hazards
User’s manual | Vision™ Touch Combi Steamers | 02 SAFETY DURING USE 2.4 DANGEROUS LOCATIONS AND RESIDUAL HAZARDS The combi steamer is designed so that when properly used in perfect technical condition, it poses no danger to the user or surroundings. Nonetheless, during its operation, situations may arise that could be dangerous if the user is not aware of them. -
Page 9: Using Accessories
User’s manual | Vision™ Touch Combi Steamers | 02 SAFETY DURING USE Residual risks 2.5 USING ACCESSORIES ELECTRICITY TEMPERATURE PROBE All of the combi steamer's electrical components are powered by When using the temperature probe, adhere to the following: potentially high volt AC current. The power supply terminals and Use the probe only for insertion into food. - Page 10 DESCRIPTION OF THE MOST COMMON SCREENS A MAIN SCREEN B MANUAL COOKING Current time Manual cooking setup Cooking with the Cooking chamber assistance of Easy preheating cooking Cooking mode Previously used selection programs/cooking Exhaust valve process selection selection Selection from Setting the time programs marked as Setting the...
-
Page 11: Operation
User’s manual | Vision™ Touch Combi Steamers 03 OPERATION 03 I OPERATION 3.1 TOUCHSCREEN PANEL 3.3 KEYBOARD The meanings of buttons (icons) found on the most common screens is The system also has keyboards. Their control is the same in all modes and provided on figures A, B, C, D (refer to page 10). -
Page 12: Cooking
User’s manual | Vision™ Touch Combi Steamers | 04 COOKING | 4.1 MANUAL SETTINGS 04 I COOKING 4.1 MANUAL SETTINGS This option is utilized by users, who want to have the cooking process parameters set exactly according to their requirements. Set the cooking parameters manually according to your own discretion and experience. - Page 13 User’s manual | Vision™ Touch Combi Steamers | 04 COOKING | 4.1 MANUAL SETTINGS 4.1.1 Cooking with manual settings PRESS TO ENTER THE MANUAL COOKING SETTINGS SELECT AND EDIT THE PARAMETERS B1 TO B10 AS REQUIRED. OPTION: ADD A STEP Press Press Select and edit the parameters B1 to B10 as required...
-
Page 14: Programs
User’s manual | Vision™ Touch Combi Steamers | 04 COOKING | 4.2 PROGRAMS 4.2 PROGRAMS PROGRAM MODE SYMBOL SYSTEM The Program mode enables the combi oven to be utilized to its maximum potential. Sofisticated controls ensure that the final products are consistently of the highest quality, Main category according to food type. - Page 15 User’s manual | Vision™ Touch Combi Steamers | 04 COOKING | 4.2 PROGRAMS 4.2.2 Creating a new program ENTER THE PROGRAMS SELECT A PROGRAM CATEGORY IN WHICH YOU WISH TO CREATE A NEW PROGRAM PRESS PRESS ENTER THE NAME OF THE PROGRAM OPTION: CHANGE ICON You may assign any icon/picture to the program 4/4.2.5, point 4.1...
- Page 16 If you wish to load your own program created on your computer onto the combi steamer using a USB disk, enter the Settings menu and select USB disk. Further details are available in chapter 6/6.1, point 4 The VisionCombi software is available as a download at AccuTemp’s website...
- Page 17 User’s manual | Vision™ Touch Combi Steamers | 04 COOKING | 4.2 PROGRAMS 4.2.5 Creating a new program category ENTER THE PROGRAMS PRESS SELECT ENTER THE NAME OF THE CATEGORY OPTION: ADD AN ICON Press Select the source of the icon For an icon from the internal disk of the combi oven, press Select the appropriate icon Press...
- Page 18 User’s manual | Vision™ Touch Combi Steamers | 04 COOKING | 4.2 PROGRAMS 4.2.6 Editing a program category ENTER THE PROGRAMS SELECT THE CATEGORY YOU WISH TO EDIT AND HOLD IT DOWN FOR LONGER THAN 2 SECONDS. FROM THE MENU, SELECT THE CHANGE THAT YOU WISH TO MAKE.
- Page 19 User’s manual | Vision™ Touch Combi Steamers | 04 COOKING | 4.2 PROGRAMS 4.2.8 Last ten In the section Last ten, the last ten used cooking methods are stored chronologically. Here, you will also find manually set cooking, program assisted cooking, cooking using rack timing programs, and cooking using Easy cooking PRESS TO ENTER THE LAST TEN SECTION (option A4) SELECT A PROGRAM...
-
Page 20: Easy Cooking
User's manual | Vision™ Touch Combi Steamers | 04 COOKING | 4.3 EASY COOKING 4.3 EASY COOKING You may enter the cooking process at any phase and edit the preset Cooking in the Easy Cooking mode enables even a less experienced chef to parameters so that the result meets your expectations achieve excellent results. -
Page 21: Multitasking
User’s manual | Vision™ Touch Combi Steamers | 04 COOKING | 4.4 MULTITASKING 4.4 MULTITASKING The Vision™ Touch combi steamer oven enables you to work on multiple levels at once, without having to interrupt a cooking process that is running. For example, you may be cooking and at the same time, use Multitasking to switch to the programs section and prepare a new program. -
Page 22: Extras
User's manual | Vision™ Touch Combi Steamers | 05 EXTRAS | 5.1 RACK TIMING 05 I EXTRAS 5.1 RACK TIMING The EXTRAS function category (button A10) contains several cooking functions that you can use for special cooking methods, unusual procedures and/or you may use the to make work with the combi oven faster and easier. - Page 23 User's manual | Vison™ Touch Combi Steamers | 05 EXTRAS | 5.1 RACK TIMING Cooking in the Rack timing mode THE CONTROL SCREEN OF THE SET RACK TIMING WILL APPEAR In our case, 6 racks are shown. The number of racks can be set based on the size of the machine in User settings ( 6/6.1 10.1...
-
Page 24: Settings
Program files (*.br2), HACCP (*.haccp) may only be administered using Vision Combi Touch Software, which is downloadable Preheating • from the AccuTemp website. - Preheating is always active The default setting is "Off" - Increase temperature (default setting is 50°F) -
Page 25: Profiles
6.2 PROFILES AccuTemp Vision™ Combi Steamers offer a unique option to adapt the main screen (A). Based on your own needs, on the main screen you may, for example, change the button size, their arrangement, remove or add buttons, change their color, change the background color, etc. You can save the changes as your custom PROFILE. -
Page 26: Automatic Washing
01:15:24 containing 40 packs. The AccuTemp De-scaler is to be used once a month or as needed. It is * The washing times are for reference only and may differ slightly depending on the delivered in small buckets containing 25 packets. - Page 27 User's manual | Vision™ Touch Combi Steamers | 07 AUTOMATIC WASHING 08 I MAINTENANCE ADDING CLEANER GENERAL INSTRUCTIONS Cut open the cleaner bag at the place • The combi steamer must be kept clean, and remains of grease and food indicated must be removed.
-
Page 28: Maintenance
08 I MAINTENANCE 8.1 DAILY MAINTENANCE GENERAL INSTRUCTIONS The combi steamer must be cleaned daily with AccuTemp Products Inc. The combi steamer must be kept clean, and remains of grease and food recommended cleaning agents. If the combi steamer is not cleaned must be removed. -
Page 29: Monthly Maintenance
User's manual | Vision™ Touch Combi Steamers I 08 MAINTENANCE WASHING THE EXTERNAL PARTS If the exterior parts of the combi oven are soiled or greasy, clean them using a suitable agent intended for washing and treating stainless steel. 8.2 MONTHLY MAINTENANCE Cleaning the rear area, fan, water shower and heating elements Clean out the cooking chamber. -
Page 30: Error Message Table
User's manual | Vision™ Combi Steamers I 09 ERROR MESSAGE TABLE 09 I ERROR MESSAGE TABLE There could apear error messages on the display during the cooking process. Their meaning is as follows: Err 80- Frequency converter error. If the problem reoccurs, Err 11 Chamber heating element The combi oven cannot... -
Page 31: Warrant
AccuTemp makes no other warranties or guarantees, whether expressed or implied, including any warranties of performance, merchantability, or fitness for any particular purpose. AccuTemp liability on any claim of any kind, including negligence, with respect to the goods and services covered hereunder, shall in no case exceed the price of the goods and services, or parts thereof, which gives rise to the claim. - Page 32 AccuTemp makes no other warranties or guarantees, whether expressed or implied, including any warranties of performance, merchantability, or fitness for any particular purpose. AccuTemp liability on any claim of any kind, including negligence, with respect to the goods and services covered hereunder, shall in no case exceed the price of the goods and services, or parts thereof, which gives rise to the claim.
- Page 34 POWERED BY STEAM. DRIVEN BY INNOVATION. AccuTemp Products Inc. Tel.: (800) 210-5907 www.accutemp.net version 01/16 version SW: 2.17 MP6920-1710...
