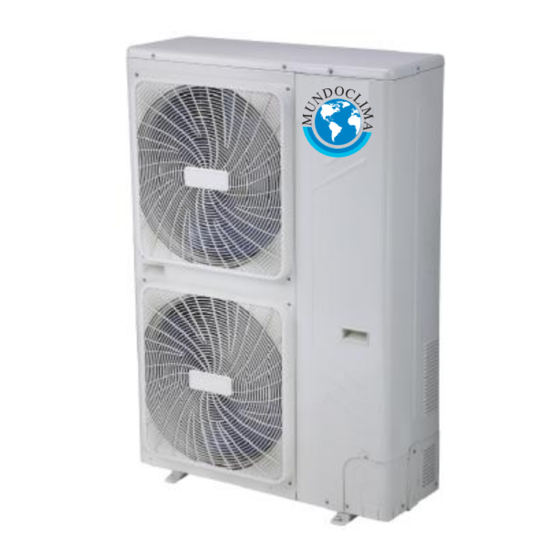

- Page 1 OUTDOOR UNIT AEROTHERM V17 Owner's & Installation manual Thank you very much for purchasing our product. Before using your unit, please read this manual carefully SO30160 to SO30169 and keep it for future reference. English www.mundoclima.com...
-
Page 2: Table Of Contents
Owner's & Installation manual Outdoor Unit CONTENTS PAGE CAUTION 1. PRECAUTIONS..................2 2. ACCESSORY AND REFRIGERANT............3 ● To prevent charging an incorrect refrigerant and refrigerating oil, 3. BEFORE INSTALLATION..............3 the sizes of connecting sections of charging port of the main unit 4. -
Page 3: Accessory And Refrigerant
Owner's & Installation manual Outdoor Unit ● After unpacking the unit, examine it carefully if there are Required tools for installation work: possible damage. Do not install in a place that might increase Table.1-1 the vibration of the unit. Screw driver Gauge manifold ●... -
Page 4: Important Information Regarding
Owner's & Installation manual Outdoor Unit 4. IMPORTANT INFORMATION REGARDING Make sure there is enough room to do the installation THE REFRIGERANT USED ■ Set the outlet side at a right angle to the direction of the wind. This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. -
Page 5: Outdoor Unit Installation
Owner's & Installation manual Outdoor Unit 6. OUTDOOR UNIT INSTALLATION 6.1 Installation place Please keep away from the following place, or malfunction of the machine may be caused: 1) There is combustible gas leakage. 2) There is much oil (including engine oil) ingredient. 3) There is salty air surrounding(near the coast) 4) There is caustic gas (the sulfide, for example) existing in the air (near a hotspring) - Page 6 Owner's & Installation manual Outdoor Unit 6.4 Water Outlet 2) Parallel connect the two units or above Four condensed water outlets on the chassis for selection display as the follow figure: >300 >600 >2000 3) Parallel connect the front with rear sides Water Outlet >2000 >500...
-
Page 7: Install The Connecting Pipe
Owner's & Installation manual Outdoor Unit Table 4-2 7. INSTALL THE CONNECTING PIPE Fat pipe Check whether the differance in height between the indoor unit and outdoor unit, the length of refrigerant pipe, and the number of the bends meet the following requirements: Front out pipe Side out pipe Undersurface out pipe... - Page 8 Owner's & Installation manual Outdoor Unit 7.4 Connecting method 7.5 Remove Dirt or Water in the Pipes 1) Make sure there is no any dirt or water before connectiong the piping to the outdoor units. Outdoor Unit Indoor Unit 2) Wash the pipes with high pressure nitrogen, never use refrigerant of outdoor unit.
-
Page 9: Electrical Wiring
Owner's & Installation manual Outdoor Unit 8. ELECTRICAL WIRING Outdoor Unit CAUTION 3x0.75mm Power Supply 3x4.0mm (3-shield wire) ● Please select power source for indoor unit and outdoor unit 3x6.0mm Power Supply 3x2.5mm respectively. ● The power supply has specified branch circuit with leakage protector and manual switch. -
Page 10: Switch Box Main Components
Owner's & Installation manual Outdoor Unit 8.3 Switch box main components The image shown here is indicative only. If there is inconsistency between the image and the actual product, the actual product shall govern. 8.3.1 Switch box main components (1-phase 4\6\8kW) 1-phase 4~8kW IPM &... - Page 11 Owner's & Installation manual Outdoor Unit 8.3.2 Switch box main components (1-phase，10/12/14/16kW) IPM BOARD 1-phase 10~16kW Reserved(CN2) Power Supply Of U Phase For Compressor(U) 10 Input Port N For Pfc Module(VIN-N) Input Port N For Ipm Module(N) Output Port N Of Pfc Module(N_1) 11 Input Port P Foripm Modele(P) Power Supply Of W Phase For Output Port P Of Pfc Module(P_1)
- Page 12 Owner's & Installation manual Outdoor Unit 8.3.2 Switch box main components (1-phase，10/12/14/16kW) 3-phase 12~16kW FILTER BOARD 1 Power supply L3(L3) 7 Power supply for main control board(CN19) 2 Power supply L2(L2) 8 Power filtering L1(L1’) 3 Power supply L1(L1) 9 Power filtering L2(L2’) 4 Power supply N(N) 10 Power filtering L3(L3’) 5 Ground wire(GND_1)
- Page 13 Owner's & Installation manual Outdoor Unit 3-phase 12~16kW MAIN BOARD 4 5.1 5.2 6.1 21 20 10 Port for electrical expansion value(CN22) 18 Reserved(CN68) 1 Power supply for the main PCB(CN250) 11 Port for power supply(CN41) 19 Port for down fan(CN19) 2 Port for pressure sensor(CN36) 12 Power supply for hydro-box 20 Port for up fan(CN17)
-
Page 14: Test Running
Owner's & Installation manual Outdoor Unit 9. TEST RUNNING Outdoor Unit Indoor Unit Operate according to "key points for test running" on the electric control box cover. CAUTION ● Test running can not start until the outdoor unit has been connected to the power for 12 hours. - Page 15 Owner's & Installation manual Outdoor Unit If the refrigerant leaks in the room, contact with a fire of a WARNING burner, a heater or a cooker may result in a harmful gas. Turn off any combustible heating devices, ventilate the Ask your installer for installation of the heat pump.
-
Page 16: Operation And Performance
Owner's & Installation manual Outdoor Unit Never expose little children, plants or animals directly to NOTE the air flow. Adverse influence to little children, animals and plants may When the protection equipment starts, please shut down the result. manual power switch, and restart operation after problem is solved. -
Page 17: Malfunction Code Of Outdoor Unit
Owner's & Installation manual Outdoor Unit 13 MALFUNCTION CODE OF OUTDOOR UNIT 13.1 Error codes When a safety device is activated, an error code will be displayed on the user interface. A list of all errors and corrective actions can be found in the table below. Reset the safety by turning the unit OFF and back ON. - Page 18 Owner's & Installation manual Outdoor Unit Code Discription Corrective action Check that the unit is operating Fan speed too low for 10min in heating within its operating range, contact mode your local dealer Restart the unit, if the error occurs 10 times H6 error occored in 120min again, contact your local dealer Check that the unit is operating...
-
Page 19: Following Symptoms Are Not
Owner's & Installation manual Outdoor Unit 14. FOLLOWING SYMPTOMS ARE NOT 15. TROUBLESHOOTING HEAT PUMP TROUBLES 15.1. Troubles and causes of heat pump Symptom 1: The system does not operate If one of the following malfunctions occur, stop operation, shut off the power, and contact with your dealer. - Page 20 Owner's & Installation manual Outdoor Unit Symptoms Causes Solution Power failure. Wait for the comeback of power. Power switch is off. Switch on the power. Unit does not start Unit does not start Fuse of power switch may have burned. Replace the fuse.
-
Page 21: Technical Specifications
Owner's & Installation manual Outdoor Unit 16. TECHNICAL SPECIFICATIONS Module (Capacity class) 10/12/14/16 12/14/16 220-240V~ 50Hz Power supply 380-415V3N~ 50Hz Rated power input 2.4kW 3.2kW 6.0kW 6.0kW 9.0A Rated current 10.5A 14.0A 27.0A Refer to the technical data Norminal capacity 900×1327×400 960×860×380 Dimensions (W×H×D)[mm]... - Page 22 ASK FOR MORE INFORMATION Phone: (+34) 93 446 27 81 eMail: info@mundoclima.com TECHNICAL ASSISTANCE Phone: (+34) 93 652 53 57 www.mundoclima.com...
