Summary of Contents for mundoclima Aerotherm V17

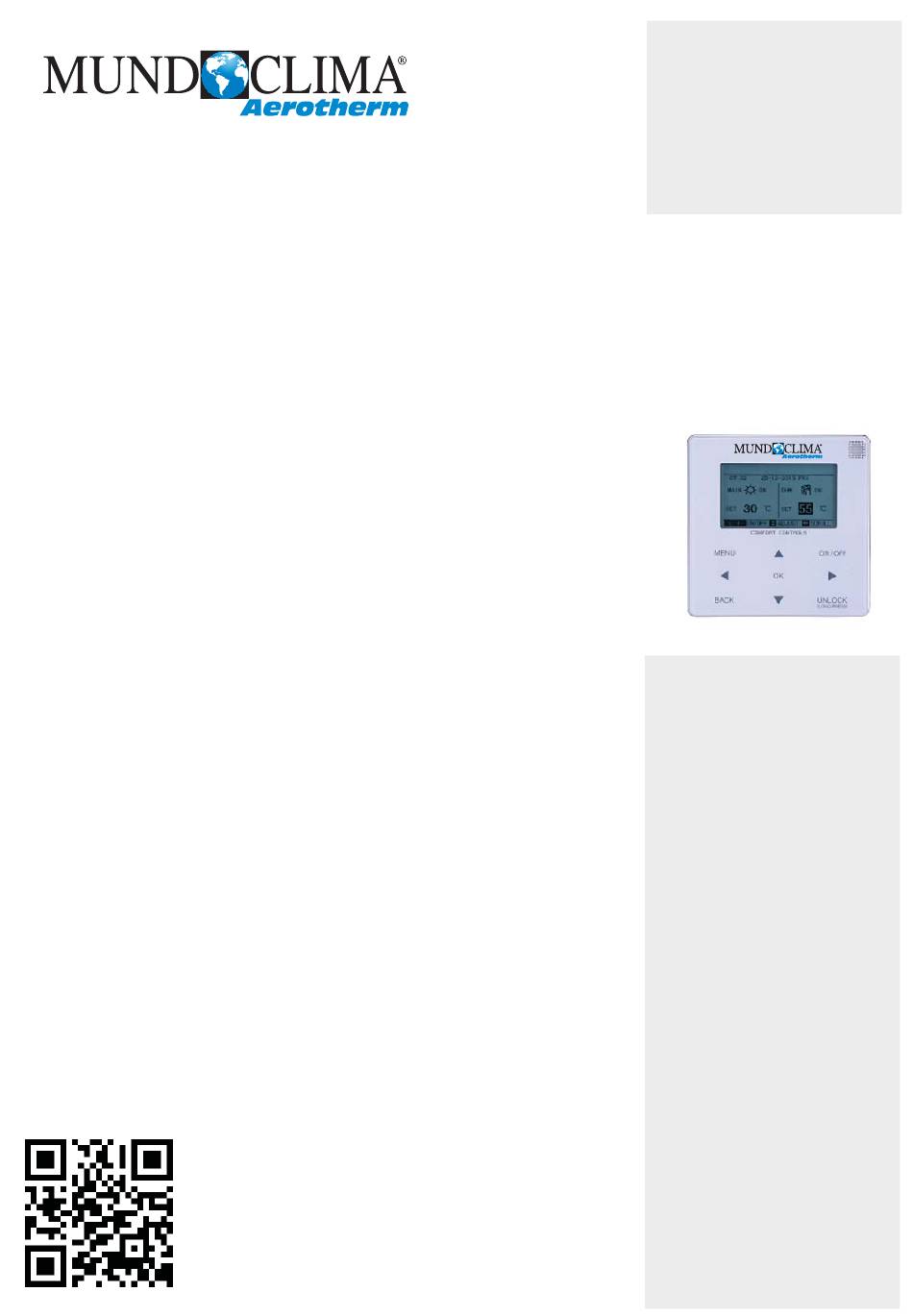

- Page 1 AEROTHERM V17 Controller owner's and installation manual 22/07/2017 Thank you very much for purchasing our product. Before using your unit, please read this manual carefully and SO30170 to SO30181 keep it for future reference. English www.mundoclima.com...
-
Page 2: Table Of Contents
Owner's & Installation manual Controller This manual gives detailed description of the precautions that 1 GENERAL SAFETY PRECAUTIONS should be brought to your attention during operation. 1.1 About the documentation In order to ensure correct service of the wiring controller please The precautions described in this document cover very important read this manual carefully before using the unit. -
Page 3: Glance Of The User Interface

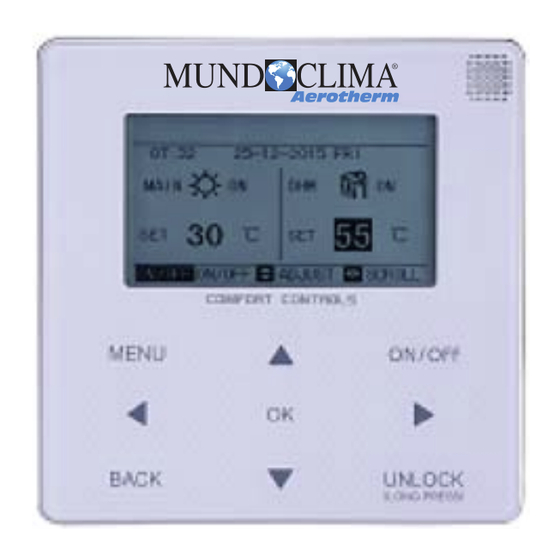

Owner's & Installation manual Controller 2 A GLANCE OF THE USER INTERFACE 2.1 The appearance of the wire control device Turn on or off the space operation Enter the menu mode or DHW structure from mode turn on or the home page off the function in the menu structure... -
Page 4: Using Home
Owner's & Installation manual Controller 3 USING HOME PAGES 3.1 About home pages You can use the home pages to read out and change settings that are meant for daily usage. What you can see and do on the home pages is described where applicable. -
Page 5: Menu
Owner's & Installation manual Controller Home page 3: If the WATER FLOW TEMP. is set YES and ROOM TEMP. is set YES (See FOR SERVICEMAN TEMPERATURE TYPE SETTING on installation & ower's manual). There will be main page and additional page. The system has the function including floor heating and space cooling for fan coil. -
Page 6: To Go To The Menu Strcture
Owner's & Installation manual Controller 4.2 To go to the menu structure From a home page, press ''MENU''. Result: The menu structure appear 21: 55 08 - 08 - 2015 SAT. MENU MAIN OPERATE MODE PRESET TEMPERATURE TANK DOMESTIC HOT WATER(DHW) SCHEDULE OPTIONS long press... -
Page 7: Adjusting The Temerature
Owner's & Installation manual Controller ② DUAL ROOM THERMOSTAT (see ROOM THERMOSTAT SETTING INSTALLATION & OWNER'S MANUAL). The room thermostat for fan coil is turned off, the room thermostat for the floor heating is turned on, and the unit is running, 21: 55 08 - 08 - 2015 SAT. -
Page 8: Adjusting Space Operation Mode
Owner's & Installation manual Controller 5.4 Adjusting space operation mode If the cursor is on the temperature, use the '' '' '' '' to select and use '' '' '' '' to adjust the temperature. Adjusting space operation mode by interface Go to ''MENU'' >... -
Page 9: Menu
Owner's & Installation manual Controller use '' '' '' '' '' '' '' '' to scroll and use '' '' '' '' to adjust the 6 MENU time and the temperature. Set six periods and six temperatures can be set. 6.1 Operation Mode For example: Now time is 8:00 and temperature is 30 °C. - Page 10 Owner's & Installation manual Controller 6.2.3 ECO MODE INFORMATION Use ECO MODE is used to save energy during the night . If ECO mode is activated, is displayed on the home page WEATHER TEMP. SET have four kinds of curves :1.the curve of Go to ''MENU'' >...
-
Page 11: Domestic Hot Water Dhw
Owner's & Installation manual Controller 6.3.2 Fast DHW 6.3 Domestic Hot WATER (DHW) The FAST DHW function is used forced the system to operation in DHW mode typically consists of the following : DHW mode. 1) DISINFECT 2) FAST DHW The heat pump and the booster heater or backup heater will operate 3) TANK HEATER 4) DHW PUMP... -
Page 12: Schedule
Owner's & Installation manual Controller DOMESTIC HOT WATER DHW DOMESTIC HOT WATER DHW DIS- FAST TANK DIS- FAST TANK INFECT HEATER PUMP INFECT HEATER PUMP CURRENT STATE START START 06:00 00:00 00:00 00:00 00:00 00:00 00:00 00:00 ON/OFF SCROLL SCROLL ON/OFF ON/OFF ON/OFF... - Page 13 Owner's & Installation manual Controller 6.4.1 Timer Example: If the weekly schedule function is on, the timer is off, the later setting Six timer is set as following: is effective. If the Timer is activated, is displayed on home page. START MODE TEMP...
- Page 14 Owner's & Installation manual Controller SCHEDULE INFORMATION TIMER WEEKLY SCHEDULE TIME You have to reset TIMER/WEEKLY SCHEDULE, if you change the MAIN page to the ROOM page or you change the ROOM MON TUES WED THUR FRI SAT SUN page to the MAIN page. The TIMER or WEEKLY SCHEDULE is invalid, if ROOM THERMOSTAT is effect.
-
Page 15: Options
Owner's & Installation manual Controller 6.5 Options You can use '' '' '' '' to select level 1 or level 2. Press ''OK''. If the silent TIMER is selected, Press “OK” to enter, the following page OPTIONS menu contents as following: will appear. -
Page 16: Child Lock
Owner's & Installation manual Controller 2) Activate the holiday mode. Before and after your holiday, your normal schedule will be used. Go to ''MENU'' > ''OPTIONS'' > ''HOLIDAY AWAY''. Press ''OK'' . During your holiday, you save energy and prevent your house from Use ''ON/OFF'' to select ''OFF'' or ''ON'' and use '' '' '' '' '' '' '' '' freezing. -
Page 17: Service Information
Owner's & Installation manual Controller Input the current password, the following page will appear: SERVICE INFORMATION CHILD LOCK SERVICE ERROR PARAMETER DISPLAY CALL CODE COOL/HEAT TEMP. ADJUST UNLOCK UNLOCK COOL/HEAT MODE ON/OFF 14:10 01-08-2015 DHW TEMP. ADJUST UNLOCK 14:00 01-08-2015 DHW MODE ON/OFF UNLOCK 13:50 01-08-2015... -
Page 18: Operation Parameter
Owner's & Installation manual Controller 6.8 Operation Parameter INFORMATION This menu is for installer or service engineer reviewing the operation parameter. The power consumption parameter is preparatory. if some parameter is not be activated in the system, the parameter At home page, go to ''MENU'' > ''OPERATION PARAMETER''. will show "--"... -
Page 19: Menu Structure: Overview
Owner's & Installation manual Controller 7 Menu structure: Overview MENU OPERATION MODE ECO MODE OPERATION MODE HEAT CURRENT STATE PRESET TEMPERATURE COOL ECO TIMER DOMESTIC HOT WATER(DHW) AUTO STATE SCHEDULE PRESET TEMPERATURE OPTIONS PRESET TEMP. CHILD LOCK WEATHER TEMP. SET SERVICE INFORMATION ECO MODE OPERATION PARAMETER... - Page 20 Owner's & Installation manual Controller 1 DHW MODE SETTING FOR SERVICEMAN 1.1 DHW MODE 1.1 DHW MODE 1 DHW MODE SETTING dT5_ON 1.2 TANK HEATER 2 COOL MODE SETTING 1.3 DISINFECT dT1S5 3 HEAT MODE SETTING 1.4 DHW PRIORITY T4DHWMAX 4 AUTO MODE SETTING 1.5 DHW PUMP T4DHWMIN...
- Page 21 Owner's & Installation manual Controller Table1 The environment temperature curve of the low temperature setting for heating ≤-20 1-T1S 30 29 29 29 28 28 28 27 27 27 2-T1S 34 33 33 32 32 31 31 30 30 29 3-T1S 37 37 36 36 35 34 34 33 33 32 4-T1S...
- Page 22 Owner's & Installation manual Controller Table 3 The environment temperature curve of the low temperature setting for cooling Table 4 The environment temperature curve of the high temperature setting for cooling...
- Page 23 Owner's & Installation manual Controller Table5 The environment temperature curve of the low temperature setting fo r ECO mode - 20 - 19 - 18 - 17 - 16 - 15 - 14 - 13 - 12 - 11 - 10 Table6 The environment temperature curve of the high temperature setting fo r ECO mode - 20 - 19...
-
Page 24: Installation Manual
Owner's & Installation manual Controller 8 . 2.3 Note to installation of wire controller: 8 INSTALLATION MANUAL 1) This installation manual contains information about the procedure 8.1 Safety precaution RI LQVWDOOLQJ :LUHG 5HPRWH &RQWUROOHU 3OHDVH UHIHU WR ,QGRRU 8QLW ,QVWDOODWLRQ 0DQXDO IRU FRQQHFWLQJ EHWZHHQ :LUHG 5HPRWH 5HDG WKH VDIHW\ SUHFDXWLRQV FDUHIXOO\ EHIRUH LQVWDOOLQJ WKH XQLW 6WDWHG EHORZ DUH LPSRUWDQW VDIHW\ LVVXHV WKDW PXVW EH REH\HG &RQWUROOHU DQG ,QGRRU 8QLW... -
Page 25: Front Cover Installation
Owner's & Installation manual Controller .3.3 Back cover installation 4) $GMXVW the length of WZR plastic VFUHZ bars in the accessory to be standard length from the electrical box VFUHZ bar to the ZDOO Buckling Make sure ZKHQ install the VFUHZ bar to the position Back cover ZDOO PDNH LW DV IODW DV WKH ZDOO... - Page 26 ASK FOR MORE INFORMATION Phone: (+34) 93 446 27 81 eMail: info@mundoclima.com TECHNICAL ASSISTANCE Phone: (+34) 93 652 53 57 www.mundoclima.com...
