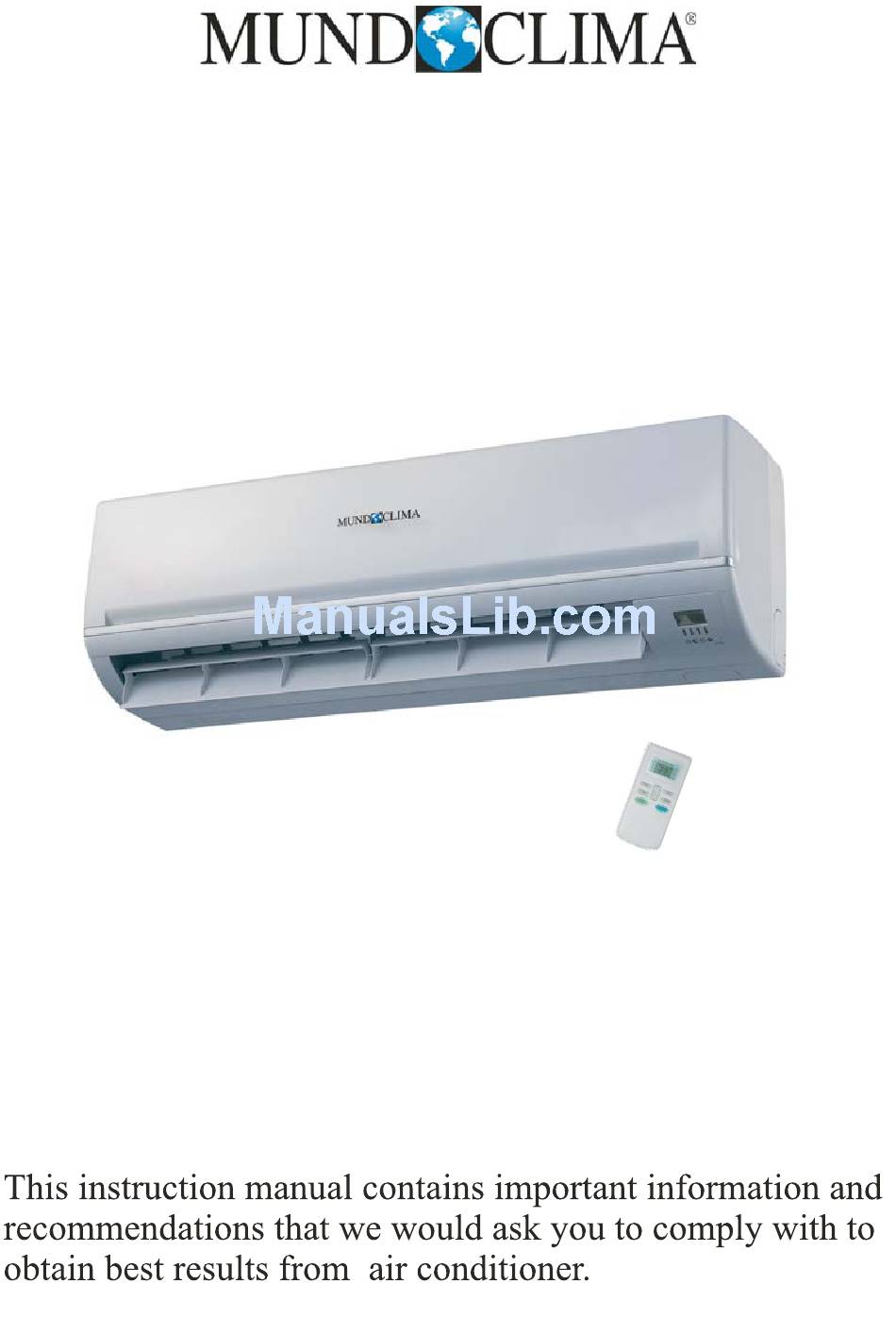

- Page 1 SPLIT AIR CONDITIONER MUP/MUPR HL OWNER’S MANUAL...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ....................1 ......................3 NAMES OF THE PARTS INDOOR UNIT DISPLAY ......................4 EMERGENCY FUNCTION & AUTO-RESTART FUNCTION ..........5 REMOTE CONTROL .......................6 MODES OF OPERATION ......................9 .........................14 PROTECTION INSTALLATION MANUAL ....................15 MAINTENANCE ........................24 ......................25 TROUBLESHOOTING... - Page 3 SAFETY RULES AND RECOMMENDATIONS FOR THE INSTALLER Do not install the appliance at a distance of Read this guide before installing and using the less than 50 cm from inflammable substances appliance. (alcohol, etc.) Or from pressurised containers During the installation of the indoor and outd- (e.g.
- Page 4 SAFETY RULES AND RECOMMENDATIONS FOR THE USER This appliance has been made for air conditi- Unhook the automatic switch if you foresee oning domestic environments and must not be not to use the device for a long time. used for any other purpose , such as for drying The airflow direction must be properly adjus- clothes, cooling food, etc.
-
Page 5: Names Of The Parts
NAMES OF THE PARTS INDOOR UNIT Description Front panel Air filter Optional filter (if installed) LED Display Signal receiver Terminal block cover Ionizer generator (if installed) Deflectors Emergency button Indoor unit rating label Airflow direction flaps Remote control OUTDOOR UNIT No. -
Page 6: Indoor Unit Display
INDOOR UNIT DISPLAY Function Shows that the unit is powered POWER SLEEP mode SLEEP Indicates the set temperature in Temperature display (if present) TIMER TIMER mode Unit working The shape and position of switches and indicators may vary according to the model, but their function is the same. -
Page 7: Emergency Function & Auto-Restart Function
EMERGENCY FUNCTION & AUTO-RESTART FUNCTION AUTO-RESTART FUNCTION The appliance is preset auto - restart function by manufacturer.with this function the air conditioner ON / OFF can keep the selected settings after a blackout or a voltage drop. To deactivate the AUTO-RESTART function ,pro- ceed as follows: Emergency 1. -
Page 8: Remote Control
REMOTE CONTROL Button Function (TEMP UP) Increase the temperature or time by 1 unit (TEMP DN) Decrease the temperature or time by 1 unit CLOCK DISPLAY HEALTHY ON/OFF To switch the conditioner on and off. To select the fan speed of auto/low/mid/high ON/OFF SWING TIMER... - Page 9 REMOTE CONTROL Remote control DISPLAY Meaning of symbols on the liquid crystal display No. Symbols Meaning FEEL mode indicator HEALTHY TIMER COOLING indicator DEHUMIDIFYING indicator FAN ONLY OPERATION indicator HEATING indicator SIGNAL RECEPTION indicator FEEL SPEED AUTOQUIET COOL POWERFUL TIMER OFF indicator SWING TIMER DELAY...
- Page 10 REMOTE CONTROL Preliminary Instructions How to insert the batteries Remove the cover from the battery compartment , by sliding it in the direction of the arrow Insert the new batteries, ensuring that the (+) and (-) directions are correct Refit the cover by sliding it into place. Use 2 LRO 3 AAA (1.5V) batteries .
-
Page 11: Modes Of Operation
MODES OF OPERATION The conditioner is designed to create the comfortable climatic conditions for the people in the room. Filter It can cool and dehumidify (and heat in models with heat pump) the air in a completely automatic way. Heat The air sucked by the fan enters from the grill of the Exchanger front panel and passes through the filter, which keeps... -
Page 12: Cooling Mode Cool
MODES OF OPERATION COOLING MODE COOL FEEL The cooling function allows the air condit- COOL SPEED AUTOQUIET COOL POWERFUL ioner to cool the room and at the same time SWING reduces the humidity in the air. DELAY HEAT To activate the cooling function ( COOL ) , press the HEALTHY TIMER MODE button until the symbol... - Page 13 MODES OF OPERATION TIMER MODE----TIMER ON TIMER To set the automatic switching-on of FEEL SPEED AUTOQUIET COOL the air conditioner POWERFUL TIMER SWING DELAY HEAT To program the time start,the appliance should be off. HEALTHY TIMER Press TIMER , Set the temperature with pressing the ,Press TIMER Again , set the time with pressing the key , Press the key more times till...
-
Page 14: Fan Mode
MODES OF OPERATION FAN MODE The conditioner works in only FEEL SPEED AUTOQUIET COOL ventilation. POWERFUL SWING DELAY HEAT To set the FAN mode , Press MODE untill HEALTHY TIMER ( FAN ) appears in the display. Whith pressing button the speed changes ON/OFF in the following sequence: LOW/ MEDIUM/HIGH /AUTO in FAN mode. -
Page 15: Sleep Mode
MODES OF OPERATION FEEL MODE FEEL Automatic mode. FEEL FEEL SPEED AUTOQUIET COOL POWERFUL SWING DELAY HEAT To activate the FEEL (automatic) mode of operation, HEALTHY TIMER press the MODE button on the remote control until the symbol ( FELL ) appears in the display. -
Page 16: Protection
PROTECTION The protective device maybe trip and stop the appliance in the cases listed below. For T1 Climate condition models: MODEL Outdoor air temperature is over 24 Outdoor air temperature is below -7 Heating Room temperature is over 27 Outdoor air temperature is over 43 Cooling Room temperature is below 21 Room temperature is below 18 C... -
Page 17: Installation Manual
INSTALLATION MANUAL---Selecting the Installation Place INDOOR UNIT Install the indoor unit level on a strong wall that is not Mounting plate subject to vibrations. The inlet and outlet ports should not be obstructed:the air should be able to blow all over the room. Do not install the unit near a source of heat , steam,or flammable gas. - Page 18 INSTALLATION MANUAL---Installation of the Indoor unit Before starting installation, decide on the position of the indoor and outdoor units, taking into account the minim- um space required around the units Install the indoor unit in the room to be air conditio- ning, avoiding to install in corridors or communal areas.
-
Page 19: Refrigerant Piping Connection
INSTALLATION MANUAL---Installation of the Indoor unit Refrigerant piping connection The piping can be run in the 3 directions indicated by numbers in the picture . When the piping is run in direction 1or3, cut a notch along the groove on the side of the indoor unit with a cutter. -
Page 20: Installation Of The Indoor Unit
INSTALLATION MANUAL---Installation of the Indoor unit INSTALLATION OF THE INDOOR UNIT After having connected the pipe according to the instruc- Covered by vinyl tape tions, install the connection cables. Now install the drain refrigerant insulation pipe. After connection,lag the pipe, cables and drain pipe pipe sleeve connection... -
Page 21: Electrical Connections
INSTALLATION MANUAL---Installation of the outdoor unit ELECTRICAL CONNECTIONS wiring diagram on the back of the cover 1. Take the cover away. 2. Connect the cable wires to the terminal board using the same numbering as in the indoor unit. 3. For the electrical connections, see the wiring diagram on the back of the cover 4. - Page 22 INSTALLATION MANUAL---Installation of the outdoor unit BLEEDING 3-way valve diagram The air and humidity left inside the refrigerant circulat- ion can cause compressor malfunction. After having co- connect to indoor unit nnected the indoor and outdoor units, bleed the air and humidity from the refrigerant circulation using a va- open position cuum pump.
- Page 23 INSTALLATION MANUAL---Information for the installer FIXED-SPEED TYPE 22/24k 28/30k 15/18k MODEL capacity (Btu/h) Liquid pipe diameter ( 6) ( 6) ( 6) ( 6) ( 6) ( 9.52) ( 9.52) Gas pipe diameter ( 9.52) ( 9.52) ( 9.52) ( 12) ( 12) ( 15.88) ( 15.88)
-
Page 24: Wiring Diagram
INSTALLATION MANUAL---Information for the installer WIRING DIAGRAM FOR 22K-24K-28K-30K COOLING ONLY MODELS FOR 5K-7K-9K-12K-18K COOLING ONLY MODELS (FOR 9K-12K-18K-24K COOLING ONLY MODELS TO NORTH AMERICAN MARKET) INDOOR UNIT INDOOR UNIT POWER SUPPLY OUTDOOR UNIT OUTDOOR UNIT POWER SUPPLY FOR 7K-9K-12K-18K HEAT PUMP MODELS FOR 22K-24K-28K-30K HEAT PUMP MODELS (FOR 9K-12K-18K-24K HEAT PUMP MODELS TO NORTH AMERICAN MARKET) - Page 25 INSTALLATION MANUAL---Information for the installer CABLE WIRES SPECIFICATION 22/24k 28/30k 15/18k MODEL capacity (Btu/h) sectional area 1.0mm 1.0mm 1.0mm 1.0mm 1.5mm 2.5mm 4.0mm (1.5mm) AWG12 AWG18 AWG18 AWG18 AWG18 AWG16 AWG14 (AWG16) Power supply cable 1.0mm 1.0mm 1.0mm 1.0mm 1.5mm 2.5mm 4.0mm (1.5mm)
-
Page 26: Maintenance
MAINTENANCE Periodic maintenance is essential for keeping your air conditioner efficient. Before carrying out any maintenance , disconnect the power supply by putting the installation on/ off switch to off . INDOOR UNIT ANTIDUST FILTERS 1. Open the front panel following the direction of the arrow 2. -
Page 27: Troubleshooting
TROUBLESHOOTING MALFUNCTION POSSIBLE CAUSES Power failure/plug pulled out Damaged indoor/outdoor unit fan motor Faulty compressor thermomagnetic circuit breaker The appliance does not Faulty protective device or fuses. operate Loose connections or plug pulled out It sometimes stops operating to protect the appliance. Voltage higher or lower than the voltage range Active TIMER-ON function Damaged electronic control board...
