Summary of Contents for mundoclima MUPO-11-RE Series

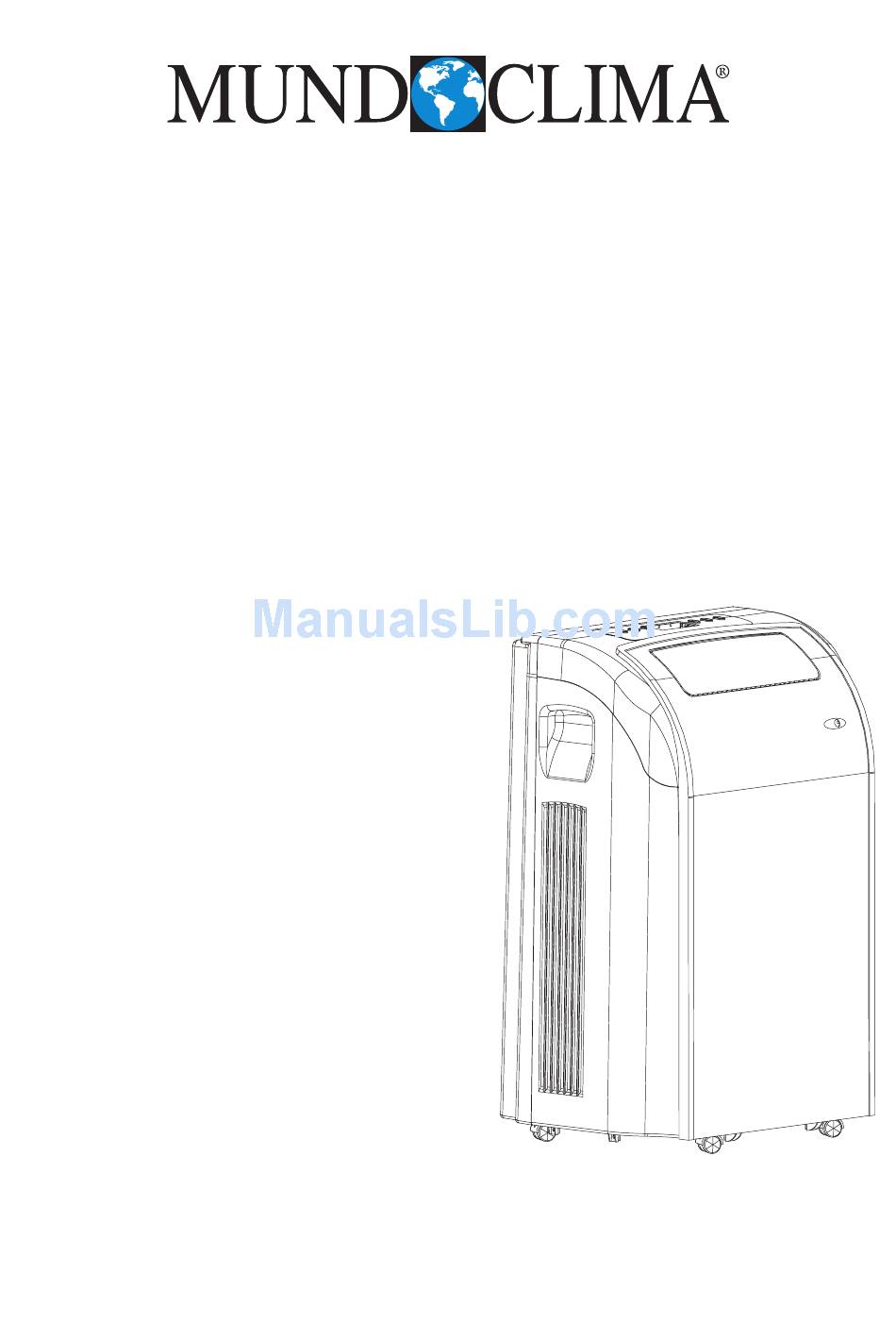

- Page 1 Owners' manual PORTABLE AIR CONDITIONER Serie MUPO-11-RE CODE: CL 20 095 Please read this manual carefully before operating the unit...
-
Page 2: Table Of Contents
SUMMARY 1. SUMMARY ..........1 2. WORKING PRINCIPLE........1 3. SAFETY LABELS OF THE UNIT.......2 4. SPECIFICATIONS ...........3 5. STRUCTURE..........4 6. OPERATING METHODS ........5 --12 USAGE NOTICE ......... 5 --7 ¡ù. ¡ù. FUNCTIONS OF DISPLAYER AND PANEL ....8--10 ¡ù. 11--12 NAMES AND FUNCTIONS OF PARTS OF WIRELESS REMOTE CONTROL ..13-- 20 ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE ACCESSORIES AND INSTALLATION OF DRAINAGE HOSE .. -
Page 3: Summary
SUMMARY This MOBILE AIR CONDITIONER is a small, moveable air conditioner. It possessed the functions of COOL, HEAT, DRY and the Separate Ventilation, and depends on different places, it can be moved as will. It is fit for home and office use, especially fit for the house with many rooms. With the compact configuration, excellent workmanship, elegant appearance, it looks like a standing Benz car. -
Page 4: Safety Labels Of The Unit
SAFETY LABELS OF THE UNIT Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol warns you to the potential hazards that can kill or hurt you and others. -
Page 6: Structure
STRUCTURE Front Control panel Air outlet Handle Rear Upper air inlet grille Heat air exhaust vent Power cord Lower air inlet grille... -
Page 7: Operating Methods
OPERATING METHODS Usage notice ¡ù. The working range of COOL The working range of COOL mode is 16¡æ-35¡æ. mode and DRY mode Unpack the Air Conditioner WARNING Excessive Weight Hazard Use two or more people to move and install the air conditioner. Failure to do so can result in back or other injury. -
Page 8: Electrical Requirements
OPERATING METHODS Usage notice ¡ù. Electrical Requirements WARNING Electrical Shock Hazard Plug into a grounded 3-prong outlet. Do not use an extension cord. Do not use an adapter. Do not remove ground prong. Failure to follow these instructions can result in death, fire, or electrical shock. -
Page 9: Operation Method
OPERATION METHOD ¡ù. Usage Notice The wiring must be operated by the professional personnel by ¡ö following the national regulation. There must be electric leakage protect switch and magnetic and heat drop-off air switch that with enough capacity in fixed circuit. Don't connect earth wire to water pipe or gas pipe. - Page 10 OPERATION METHOD ¡ñ L CD instruction (dynamic display) TIMER TIME FAN mode HEAT COOL mode DEHUMIDIFY SLEEP Set temp. display Temp. set Auto mode display Timer On/Off Fan spedd ¡ñ Functions for control panel and every button FAN SPEED SLEEP Power (On/Off) SET TEMP.
-
Page 11: Functions Of Displayer And Panel
¡ù. OPERATION METHOD Functions of displayer and panel This unit contains memory function. When power outage occur during operation, the unit stops running. After electrified, the unit would still operates with the operation mode before power outage. Functions of buttons on control panel: 1. - Page 12 ¡ù. OPERATION METHOD Functions of displayer and panel COOLING 1). Press MODE to select COOL mode. 2). Press TEMP to set proper indoor temperature in range of 16¡æ-30¡æ. 3). Press FAN to set proper fan speed, HI / MD / LO. When cooling, for improve cooling effect, please note: ¢Ù...
-
Page 13: Names And Functions Of Parts Of Wireless Remote Control
OPERATION METHOD Names and functions of parts of wireless remote control ¡ù. FAN FAN ¡ñ When unit is on, press this button in AUTO, COOL, FAN or HEAT mode can select LO, MD, HI. Under dehumidy mode the fan speed is LO. Fan speed under every mode can be remembered. - Page 14 ¡ù. OPERATION METHOD Names and functions of parts of wireless remote control CLOCK CLOCK ¡ñ Press this button once, then clock symbol blinks, unit enters clock adjust state. Under clock adjust state, every press of TIMER+, min digit at clock increase 1;...
- Page 15 ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE ¡ñ Length range of exhaust pipe should be 500mm-2000mm. It is recommended to use it with shortest length. ¡ñ When installing, exhaust pipe should be as flat as possible. Don't prolong the pipe or connect it with other exhaust pipe, or it would cause abnormal operation.
- Page 16 ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE If the pipe are to be bent, please install it by considering following dimension. 55cm 55cm Wrong installation is shown in following figure (If the pipe is bent too much, it would easily cause malfunction.)
-
Page 17: Parts Included
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE PARTS INCLUDED Front plastic pipe end Rear plas tic pipe end Flexible Exhaust Hose Adjustable W indow S lider (3) Window Exhaust Adapter Window Locking Bracket (2) Rain Deflector Front grill Spring Gasket(4) Bracket 2 Bracket 1 Window Slider Bracket (2) - Page 18 INSTALLATION PROCESS OF HEAT EXHAUST HOSE NOTE: If installing slider in a sliding window Cut the window sash seal (adhesive- or patio door, skip to step 1 of F to I and backed) to the window width and stick the proceed.
- Page 19 INSTALLATION PROCESS OF HEAT EXHAUST HOSE If the window slider is shorter than the width of the ATTACH THE EXHAUST ADAPTER window, pull the sliding arm out to the width of the TO THE WINDOW SLIDER INSIDE window. If the window slider is longer than the width of the window, cut the slider arm to the width of the OPENING window.
- Page 20 INSTALLATION PROCESS OF HEAT EXHAUST HOSE INSTALL TOP WINDOW GASKET INSTALL EXHAUST HOSE TO UNIT AND WINDOW LOCKING BRACKET • The exhaust hose must be properly installed to the back of the unit and to the adjustable A Cut the foam top window gasket to the window slider, and exhausted to the outside window width.
- Page 21 INSTALLATION PROCESS OF HEAT EXHAUST HOSE NOTE: If installing slider in a double hung Attach the top of the slider to the window window, ingoring the point 5 to 8. face using a screw through one of its holes. W ood s crew INSTALL WINDOW SLIDER IN A SLIDING WINDOW OR PATIO DOOR...
-
Page 22: Accessories And Installation Of Heat Exhaust Hose
INSTALLATION PROCESS OF HEAT EXHAUST HOSE INSTALL WINDOW INSTALL EXHAUST HOSE LOCKING BRACKET TO UNIT Attach the window locking bracket with • The exhaust hose must be properly screw. installed to the back of the unit and to the adjustable window slider, and exhausted to the outside when using the unit in the COOL mode. -
Page 23: Accessories And Installation Of Drainage Hose
ACCESSORIES AND INSTALLATION OF DRAINAGE HOSE Accessories of drainage hose incluse: Bolt Drainage hose Fixing clip Drainage cap Pipe clip Installation method Note: ¡ñ Do install drainage hose before turning on the unit to prevent water from making floor and carpet dirty. ¡ñ... -
Page 24: Change Method Of Wheels
CHANGE METHOD FOR WHEELS 1. Change method for wheels: Gradient for the whole unit should not be larger than 5 to prevent WARNING unit from being damaged. When changing wheels, the spanner offered with the unit can be used for assembly, and wheels can be purchased from dealers. -
Page 25: Care And Maintenance
CARE AND MAINTENANCE Mobile unit There are wheels at the bottom of the unit, according to the WARNIN demand, it can be moved in the room very conveniently. Air inlet grille Before maintenance, please pull out the power plug and cut off power supply to avoid electric shock. - Page 26 CARE AND MAINTENANCE Please use a cloth that slightly moistened with water whose temperature is Clean the air conditioner below 40¡æ(or the soap water or the water with cleanser) after wiping the dirt. Do not use gasoline, diesel oil or the congeneric substance to clean the unit.
-
Page 27: Troubleshooting
TROUBLESHOOTING If malfunction occur, please check the following before maintenance: Solutions Troubles Possible Causes The air conditioner doesn't start. The power supply is not connected well. 1. Insert the power plug tightly. The power plug is not inserted tightly. 2. Replace the power plug or socket. There is the malfunction of power plug 3. -
Page 28: User Notices
USER NOTICES ¡ñ Do not install the unit in the hermetic place, and keep well ventilation, Location to avoid malfunction occurs. ¡ñ Do not install the unit at where it will be exposed to direct sunlight, in order to avoid fading and efficiency reducing. ¡ñ... -
Page 29: After Sales Service
¡ñ Do not incline or overturn. If the abnormal phenomenon occurred, please pull out the power plug at once, and inform dealer to check and maintain. ¡ñ Do not use the insecticide or other sprays, it can cause deformation or crack. AFTER SALES SERVICE ¡ñ... -
Page 30: Circuit Diagram
CIRCUIT DIAGRAM The circuit diagrams of all above are for reference, they are subject to be changed without notice. - Page 31 GIJÓN Figueres GIRONA Barberà LOGROÑO LLEIDA Terrassa Mataró St.Boi Badalona VALLADOLID Opening soon BARCELONA ZARAGOZA L'Hospitalet Vilanova i la Geltrú Deleg. Valladolid: REUS TARRAGONA MADRID Pol. San Cristóbal C/. Pirita, 41 CASTELLÓN 47012 Valladolid VALENCIA Tel. 983 21 94 52 GANDÍA BADAJOZ CIUDAD REAL...
