Assembly Instructions

VESA
Flex
Flip
Lounge
1.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VESA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for bouncepad VESA

Summary of Contents for bouncepad VESA

  • Page 1: Assembly Instructions

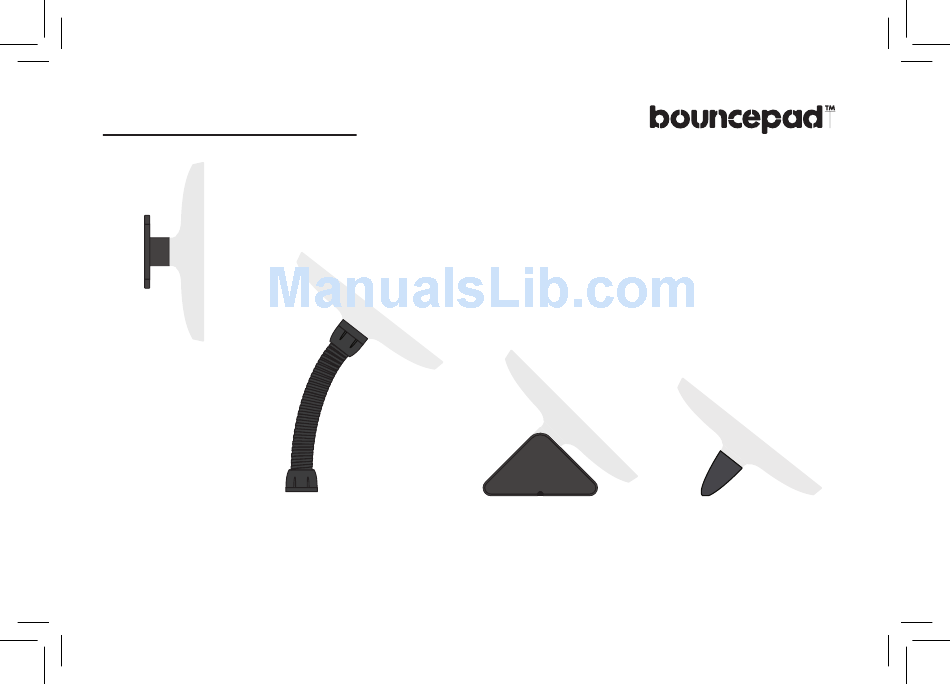

    Assembly Instructions VESA Flex Flip Lounge...
  • Page 2 Contents VESA Flex Flip Lounge p.3-18 p.19-37 p.38-48 p.49-58...
  • Page 3 Assembly Instructions VESA...
  • Page 4 What's in the Box Case Washer x1 T20 Driver Bit x1 M4 Split Washer x4 M4 20mm Buttonhead Screw x4 no.8 x 38mm Countersunk Screw x4 VESA Mount...
  • Page 5 Configured for This Tablet Sticker x1 Attach case to mounting arm with hand operated screwdriver only. If you would like to use a different tablet in this case, please contact us for a conversion kit. www.bouncepad.com Faceplate x1 Case x1...
  • Page 6 Tools for the Job Pencil 16mm or 41/64" Drill Bit 2mm or 5/64" Drill Bit Socket Screwdriver Hand Drill...
  • Page 7 Recommended Installation Height Avoid Glare Don't install directly beneath a light source 155cm / 5'...
  • Page 8 Mark the Drill Holes Mark all four outer holes and the large central hole IMPORTANT: Make sure the Lock will Pencil still be accessible once the case is installed VESA Mount...
  • Page 9 Choose Cable Routing Method Through Surface -Hidden Cabling -Requires access to back of the Wall On Surface -Visible Cabling -Perfect for Solid Walls...
  • Page 10 Drill the Holes 5/64" 5/64" IMPORTANT: 2mm / 5/64" holes are designed for supplied woodscrews. If using your own screws eg when attaching to brick a different hole size may be needed 16mm NOTE: 41/64" The 16mm / 41/64" hole is only required for 'On Surface' Mounting 5/64"...
  • Page 11 Attach to Surface IMPORTANT: If you have chosen 'On Surface' cable routing, the cable must be routed through cable channel No.8 38mm Countersunk Screws before screwing to surface VESA Mount 'On Surface' Cable Channel...
  • Page 12 Attach Case M4 20mm Buttonhead Screws M4 Split Washers Case Washer...
  • Page 13 Route Cable Use the adhesive cable clip to secure cable in the nearest quadrant to the Tablet Power Port Cable Clip...
  • Page 14 Case Setup Cornerpieces Sticker Tablet Supports...
  • Page 15 Insert Tablet NOTE: Ensure Tablet is connected to Power Cable...
  • Page 16 Lock Up Faceplate Case Turn Key to Lock...
  • Page 17 VESA Compatibility The Bouncepad VESA mount can also be screwed to VESA arms (fixings not supplied)
  • Page 18 Your Bouncepad is now installed For further information and support please contact us: UK & International Deutschland USA & Canada +44 (0) 020 3693 0000 +49 (0) 30 6098 5170 1-617-804-0110 hello@bouncepad.com hallo@bouncepad.com hi@bouncepad.com www.bouncepad.com www.bouncepad.com/de www.bouncepad.com/us...
  • Page 19 Assembly Instructions Flex...

  • Page 20: Table Of Contents

    What's in the Box M4 Wingnut x4 M4 16mm Buttonhead Screw x4 Case Washer x1 Through Mounting Washer x1 M4 Split Washer x8 M4 Hex Nut x4 M4 10mm Countersunk Screw x4 T20 Driver Bit x1 No.8 38mm Countersunk Screw x4 M4 40mm Socket Setscrew x4 Surface Mounting Surface Mounting Plate...
  • Page 21 Configured for This Tablet Sticker x1 Attach case to mounting arm with hand operated screwdriver only. If you would like to use a different tablet in this case, please contact us for a conversion kit. www.bouncepad.com Faceplate x1 Case x1...
  • Page 22 Tools for the Job 5mm or 13/64" Drill Bit 2mm or 5/64" Drill Bit Pencil 16mm or 41/64" Drill Bit Hand Drill Socket Screwdriver 7mm Spanner or 9/32" Wrench...
  • Page 23 Recommended Installation Height Avoid Glare No Wallmount Don't install directly beneath a light source 90cm / 35''...
  • Page 24 Choose Mounting Options Through Mount Surface Mount up to 25mm / 1" Any thickness above 25mm / 1" -Seemless appearance -Option to route cable along surface when there is no access beneath -Requires access beneath mounting mounting surface surface Continue to p.25 Continue to p.28...

  • Page 25: Through Mounting

    Through Mount Step 1 of 4 Step 2 of 4 Mark the Drill Holes Drill the Holes This diagram can be used as a drill template 13/64" 16mm 41/64" Through Mounting Washer Pencil 13/64" 13/64" 13/64" Scale 1:1...
  • Page 26 Through Mount Step 3 of 4 Screw in socket setscrews by hand M4 40mm Socket Setscrew...
  • Page 27 Through Mount Step 4 of 4 Fasten from beneath surface Through Mounting Washer M4 Split Washer x4 7mm Spanner / 9/32" Wrench M4 Hex Nut/Wingnut x4 Wingnuts Hex Nuts Now Skip to p.31 Quick Assembly High Security...
  • Page 28 Surface Mount Step 1 of 4 Mark the Drill Holes Pencil Surface Mounting Plate...
  • Page 29 Surface Mount Step 2 of 4 Drill the Holes This diagram can be used as a drill template 5/64" 5/64" 16mm IMPORTANT: 41/64" 2mm / 5/64" holes are designed for supplied woodscrews. If using your own screws eg when attaching to brick a different hole size may be needed NOTE:...

  • Page 30: M4 10Mm Countersunk Screw X4

    Surface Mount Step 3 of 4 Surface Mounting Plate Cover Attach mount plate 1. Screw Mount plate onto Stalk Sticky 2. OPTIONAL Route power cable down Tabs the Stalk and through cable channel (only Cable applicable if you choose to route cable Channel along surface) Surface Mounting Plate...

  • Page 31: Cover X1

    Surface Mount Step 4 of 4 Attach to Surface 1. Screw Mounting Plate to surface 2. Remove backing from sticky Tabs 3. Slide Surface Mounting Plate Cover onto Stalk 4. Push down firmly on Mounting Plate Cover Surface Mounting Plate Cover No.8 38mm Countersunk Screws Surface Mounting Plate...
  • Page 32 Attach Case M4 16mm Buttonhead Screws M4 Split Washers Case Washer...
  • Page 33 Route Cable Use the adhesive cable clip to secure cable in the nearest quadrant to the Tablet Power Port Cable Clip...
  • Page 34 Case Setup Cornerpieces Sticker Tablet Supports...
  • Page 35 Insert Tablet NOTE: Ensure Tablet is connected to Power Cable...
  • Page 36 Lock Up Faceplate Case Turn Key to Lock...
  • Page 37 Your Bouncepad is now installed For further information and support please contact us: UK & International Deutschland USA & Canada +44 (0) 020 3693 0000 +49 (0) 30 6098 5170 1-617-804-0110 hello@bouncepad.com hallo@bouncepad.com hi@bouncepad.com www.bouncepad.com www.bouncepad.com/de www.bouncepad.com/us...
  • Page 38 Assembly Instructions Flip...
  • Page 39 Tools for the Job Socket Screwdriver What’s in the Box Flip Base Key T20 Driver Bit x1 M4 20mm Buttonhead Screw x4 M4 Split Washer x4 Flip Endplates x2 Case Washer x1 Flip Base x1...
  • Page 40 Configured for This Tablet Sticker x1 Attach case to mounting arm with hand operated screwdriver only. If you would like to use a different tablet in this case, please contact us for a conversion kit. www.bouncepad.com Faceplate x1 Case x1...
  • Page 41 Attach Case Cable Clip M4 20mm Buttonhead Screws M4 Split Washer Case Washer Case Use the adhesive cable clip to secure cable in the nearest quadrant to the Tablet Power Port Flip Base Cable Clip...
  • Page 42 Case Setup Route Cabling Corner Pieces Tablet Supports...
  • Page 43 Insert Tablet NOTE: Ensure Tablet is connected to Power Cable...
  • Page 44 Lock Up Faceplate Case Turn Key to Lock...
  • Page 45 Power Fit Endplates Connect cable to power supply NOTE: Ensure cabling exits correctly through cable notch in the Endplate Use the Flip enclosure to hold a portable battery...
  • Page 46 Removing Endplates If the endplates need to be removed, insert the Flip Base Key into the cable notch and pull...
  • Page 47 Surface Mount The Flip can be surface mounted using the four M6 holes found on the Base NOTE: Fixings are not supplied for surface mounting the Flip...
  • Page 48 Your Bouncepad is now installed For further information and support please contact us: UK & International Deutschland USA & Canada +44 (0) 020 3693 0000 +49 (0) 30 6098 5170 1-617-804-0110 hello@bouncepad.com hallo@bouncepad.com hi@bouncepad.com www.bouncepad.com www.bouncepad.com/de www.bouncepad.com/us...
  • Page 49 Assembly Instructions Lounge...
  • Page 50 Tools for the Job Socket Screwdriver What’s in the Box T20 Driver Bit x1 M4 Split Washer x2 M4 20mm Buttonhead Screw x2 Case Washer x1 Lounge Cone Assembly x 1...
  • Page 51 Configured for This Tablet Sticker x1 Attach case to mounting arm with hand operated screwdriver only. If you would like to use a different tablet in this case, please contact us for a conversion kit. www.bouncepad.com Faceplate x1 Case x1...
  • Page 52 Attach Case Ensure Security Connector is Screwed into Case M4 Split Washers M4 20mm Buttonhead Screws Security Connector Case Washer NOTE: Lounge Cone is orientated with the cable pointing up...
  • Page 53 Cable Clip Use the adhesive cable clip to secure cable in the nearest quadrant to the Tablet Power Port Cable Clip...
  • Page 54 Case Setup Corner Pieces Sticker Tablet Supports...
  • Page 55 Insert Tablet NOTE: Ensure Tablet is connected to Power Cable...
  • Page 56 Lock Up Faceplate Case Turn Key to Lock...
  • Page 57 Tethering NOTE: The tethering loop can be used with a padlock to secure your bouncepad to the furniture...
  • Page 58 Your Bouncepad is now installed For further information and support please contact us: UK & International Deutschland USA & Canada +44 (0) 020 3693 0000 +49 (0) 30 6098 5170 1-617-804-0110 hello@bouncepad.com hallo@bouncepad.com hi@bouncepad.com www.bouncepad.com www.bouncepad.com/de www.bouncepad.com/us...
