bouncepad Core Flip Assembly Instructions

Core Flip
Assembly Instructions
Tools Required:
All tools provided
Sheet Code: BP-IM-081_REV0
Release Date: 07/08/2024
Copyright 2024 Spotspot Ltd. (T/A
Bouncepad) all rights reserved.
Confidential, no part of this publication
may be reproduced or transmitted in any
form without the written permission of the
copyright holder.

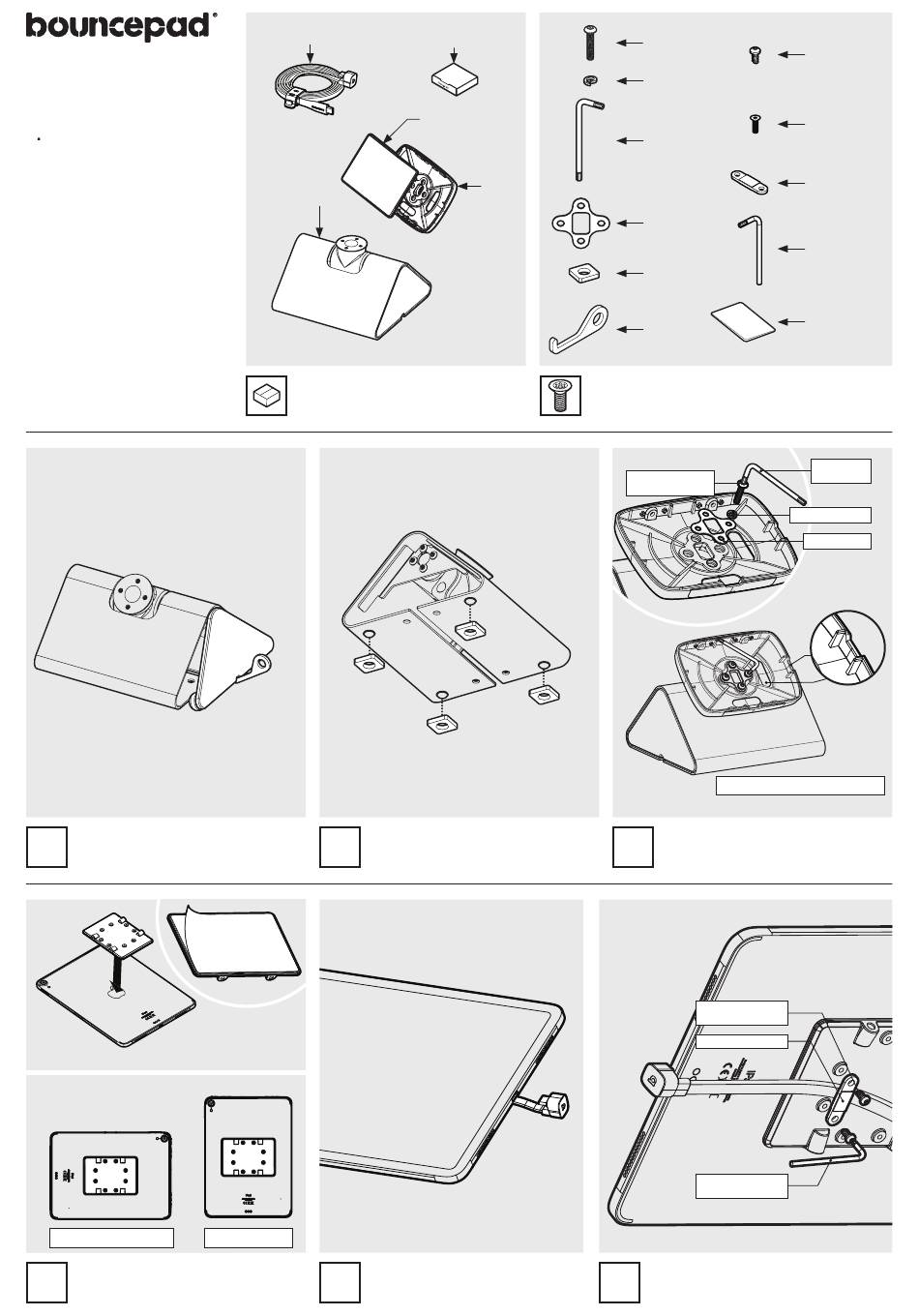

Remove the End Plates from the Flip
1
using the supplied tool.
*Before attaching the
Mounting Plate, fully clean
the back of the tablet with
the provided wipe and allow
it to fully dry.
Landscape tablet orientation
For optimal adhesion, press firmly and
leave for 72hrs in a 20°C environment
before use. Do not reposition. Do not use
prior to the 72hrs.
Portrait tablet orientation
Landscape
Remove the Mounting Plate adhesive
4
backing. Attach level & centrally to
the Tablet back as shown.
Flat Cable
Flip
In the Box
If wishing to slide your Flip across
2
your mounting surface, apply the
supplied Felt Feet as shown.
Portrait
Attach the Flat Cable to the Tablet
5
with the U-Bend Head.
Fixings Kit
Tablet Mount Plate
Shell
Fixings List
* Due to the modular nature of our product range you may receive additional fixings in the fixings kit
4x M4x16mm
Buttonhead
screw
4x M4 Split
Washer
1x T20 Pin
Torx Allen
Key
1x Case
Washer
4x Felt Feet
1x Flip Tool
M4x16mm
Buttonhead screw
Tighten screw(s) using hand tools, using electric
tools may damage your Bouncepad.
Attach the Shell to the Flip. Take
3
care to ensure correct & full thread
engagement.
2x 3mmx6mm Pan
Head Screws
Cable Clamp
T10 Pin Torx Allen
Key
Secure the Flat Cable to the Mounting
6
Plate with the Cable Clamp as shown.
2x 3mm x 6mm
Pan Head
Screws
4x M3x10mm
Countersunk
Screw
1x Cable
Clamp
1x T10 Pin Torx
Allen Key
1x Cleaning
Wipe
T20 Pin Torx
Allenkey
M4 Split Washer
Case Washer
