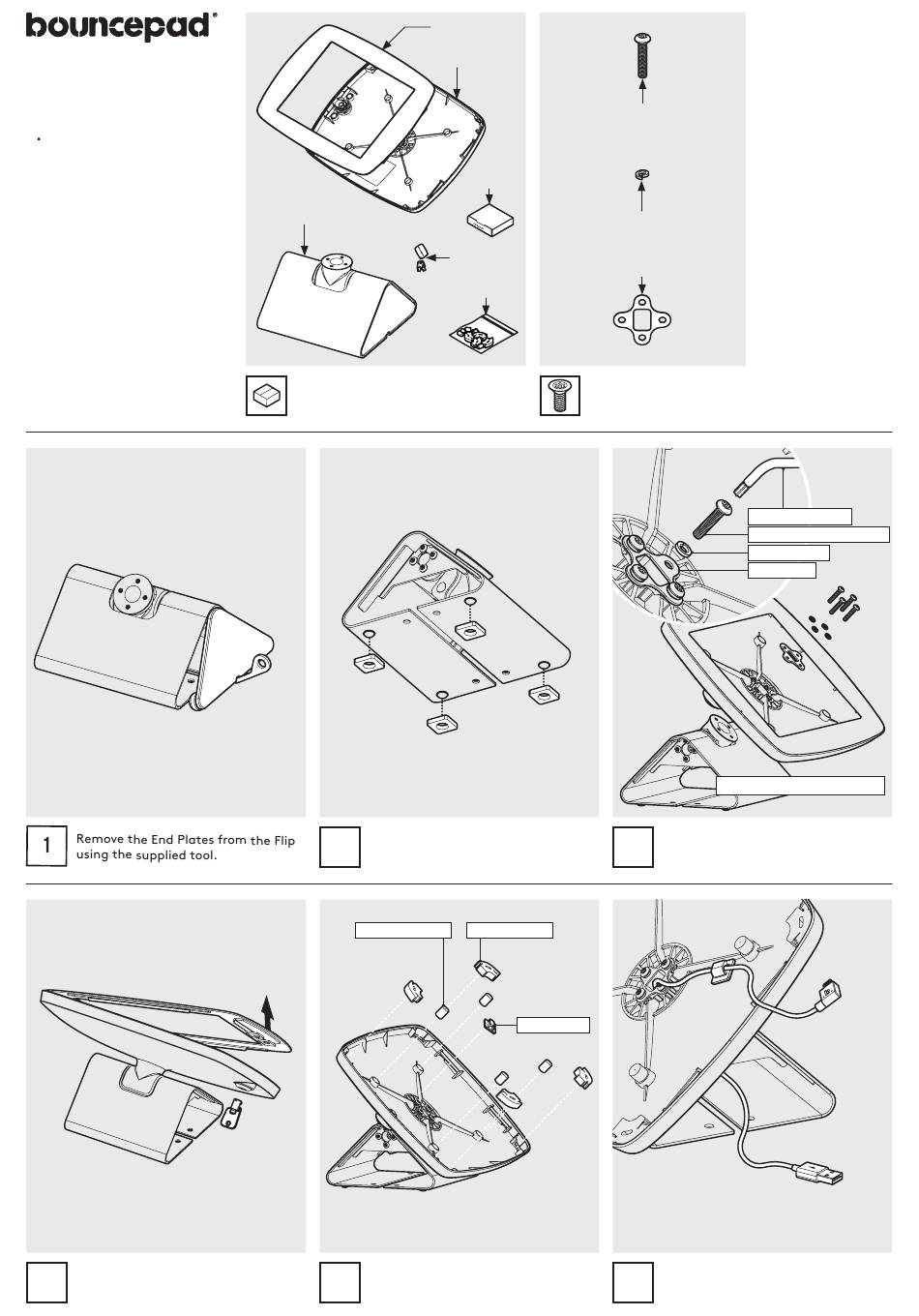

bouncepad Flip Assembly Instructions

Flip
Assembly Instructions
Tools Required:
All tools provided
Sheet Code: BP-IM-030_REV1
Release Date: 25/09/2019
Copyright 2016 Spotspot Ltd. (T/A
Bouncepad) all rights reserved.
Confidential, no part of this publication
may be reproduced or transmitted in any
form without the written permission of the
copyright holder.
Unlock & remove the Faceplate from
4
the Bouncepad Case.
Faceplate
Case
Fixings Kit
Flip
Pair of Keys
Tablet Set-up Kit
In the Box
If wishing to slide your Flip across
2
your mounting surface, apply the
supplied Felt Feet as shown.
4x Tablet Supports
Install the Tablet Setup Kit. Each
5
kit is specific per tablet device and
Bouncepad Case.
4x M4x20mm
Buttonhead
screw
4x M4 Split
Washer
1x Case
Washer
Fixings List
* Due to the modular nature of our product range
you may receive additional fixings in the fixings kit
3
4x Corner Pieces
1x Cable Clip
6
T20 Pin Torx Allenkey
M4x20mm Buttonhead screw
M4 Split Washer
Case Washer
Tighten screw(s) using hand tools, using electric
tools may damage your Bouncepad.
Attach the Bouncepad Case to the
Flip. Take care to ensure correct & full
thread engagement.
Route the Bouncepad Cable through
the Case and Flip - securing it with
the Cable Clip.
