Drive Carrier
Cable Connection
Pivoting Door
Fan

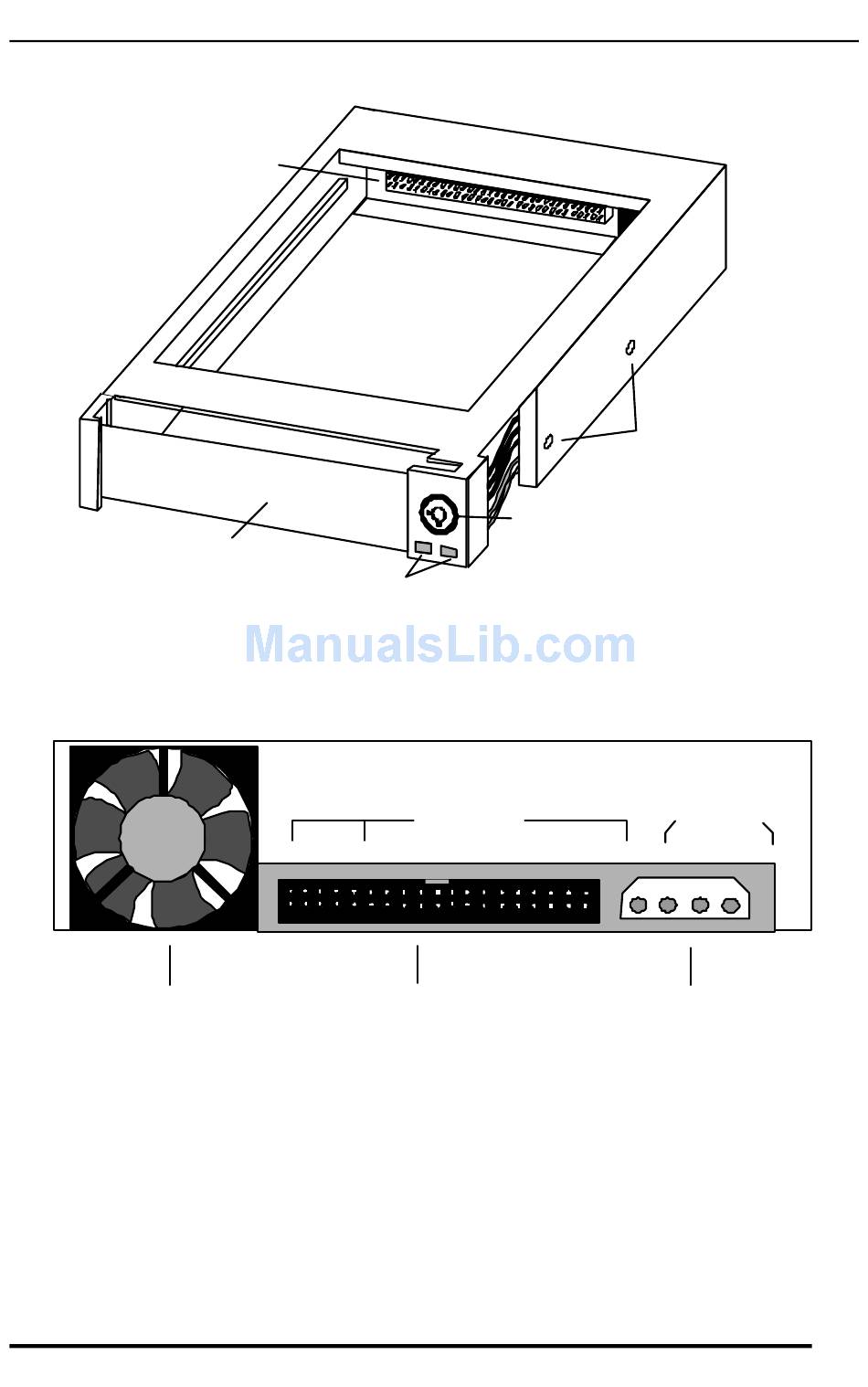

Figure 2-2: SuperSwap Housing Assembly Rearview
NOTE: If using the SuperSwap solely as a SLAVE device, make
certain to connect the end of the IDE Cable (not to the middle) to
the SuperSwap Chassis.
SuperSwap Manual
Figure 2-1: SuperSwap Housing Assembly
50 40
HDD Cable Connection
Key Lock
LEDs
INTERFACE
6
Assembly Screw
Mounting Holes
(2 on other side)
DC INPUT
1
+5 G G +12
Power Connector
