with two matching sets of numbered stickers. Place one sticker on the front of
the drive housing assembly and the matching numbered sticker on the front of
the drive carrier.
Pull-Away
Locking Tab

LED Messages

This section provides information on how to interpret LED display codes as
reported by the SuperSwap
Two LEDs appear on the front of the SuperSwap housing assembly:
Power/Drive Status LED (left) and disk activity LED (right).
Power/Drive Status LED
Display
Green*
Amber (orange)
Red
Black (dark)
* Indicates only Power On when SuperSwap is not connected to a
Promise SuperTrak66 card.
Disk Activity LED
3
Note: Users must obtain and install Promise FastTrak Driver v.1.30 or later in
order to implement L ED display functions for the SuperSwap enclosure. Go to
www.promise.com to obtain these drivers.
SuperSwap Manual
Access Cover
Pivoting Handle

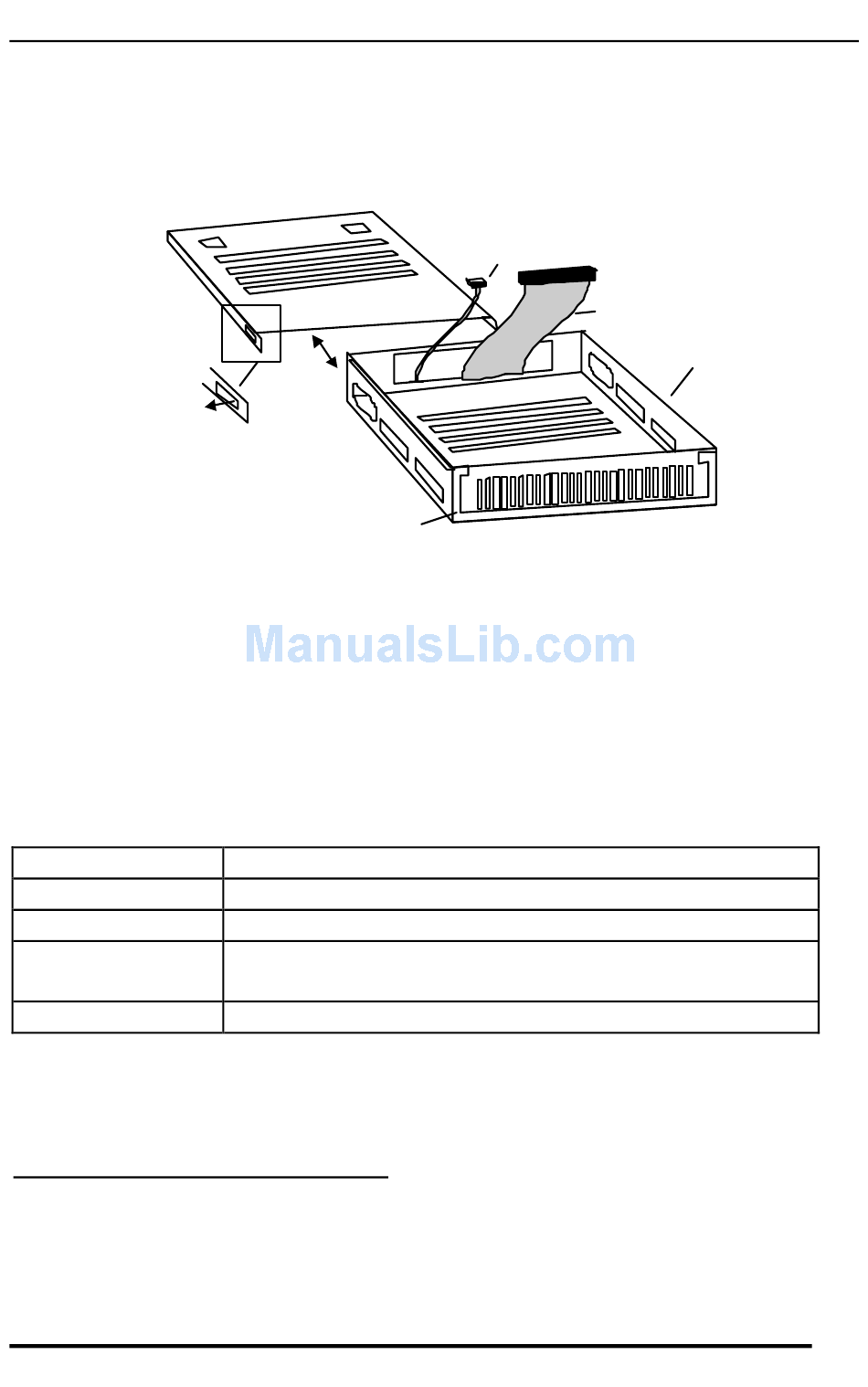

Figure 2-3: Drive Carrier Assembly
3
when connected to the Promise SuperTrak66.
Means
Drive is OK
Drive is rebuilding and array is in "critical" mode
Drive is bad or has failed and is now "offline"; array
may also have failed depending on RAID level
No drive detected or no power to drive housing
Power
Connector
8
Drive Cable
Connector
Drive Carrier
