1.3 Design of SpectroDens

SpectroDens is a solidly designed measurement device which is very functional and
easy to use. It is compact in size; the buttons can be reached with the right index fin-
ger when the device is held with the right hand. The LCD display is inclined towards
the user, so the display information can be read clearly.

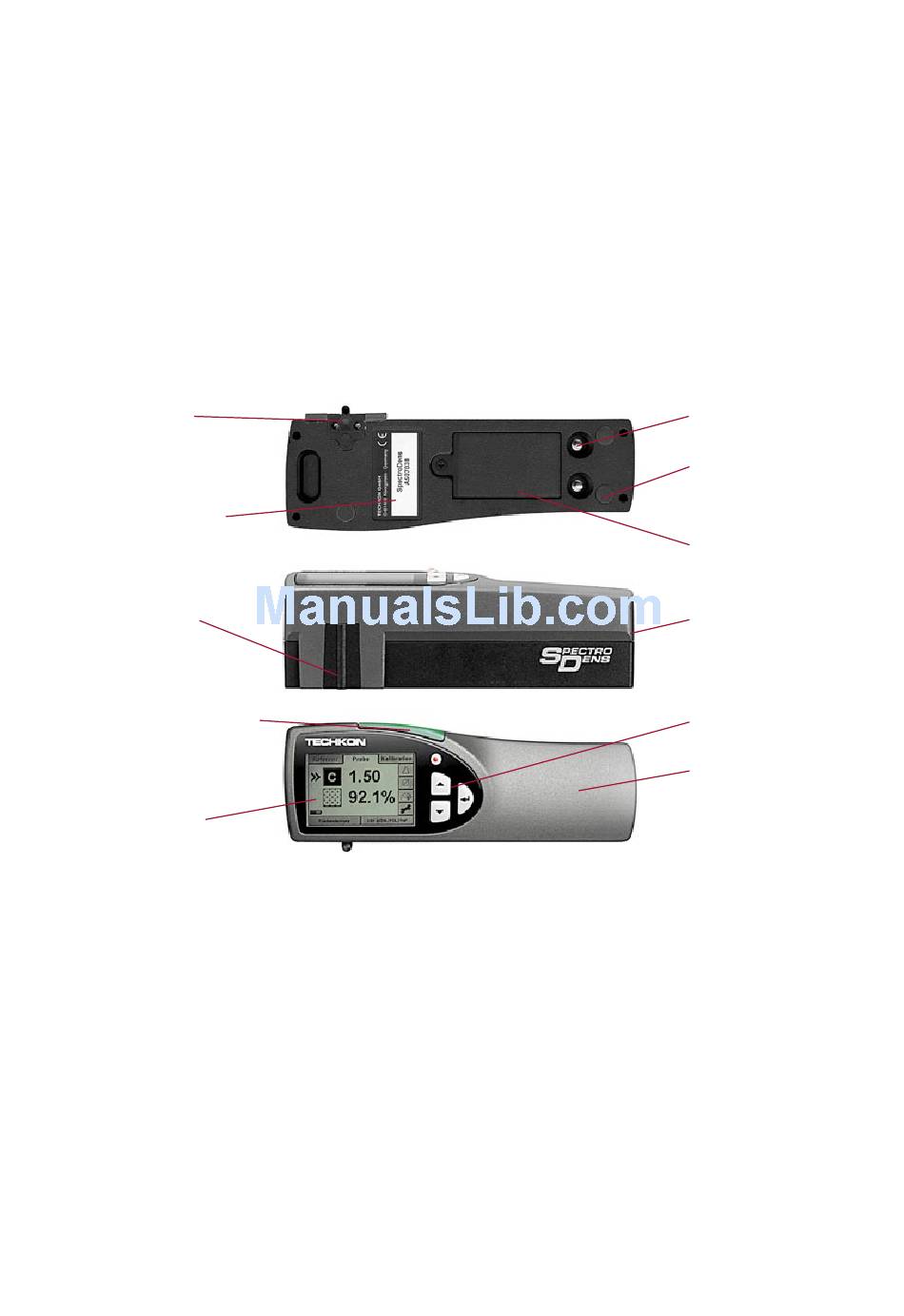

SpectroDens can be easily positioned on the measurement sample.
Exchangeable
measurement
aperture
Device label with
serial number
Measurement
head
Green measurement
button (also for
switching on)
Device display
The device incorporates a high-resolution spectral sensor which analyzes the color
spectrum of the measured sample. The spectral data is the base information for calcu-
lating densitometric and colorimetric data which is displayed. Densitometric values
can be solid density, dot area, dot gain or trapping values. Colorimetric values are
typically CIE L*a*b*- or ΔE*-color information.
The USB-connector is for linking with a PC. The USB-cable with a Mini-USB plug,
which fits into the connector at the back of the device, is part of the package.
Manual TECHKON SpectroDens Chapter 1 – How to use SpectroDens
Charging contacts
Device base
Battery case
USB-connector
for PC connection
Navigation buttons
Right hand
grip zone
Page 9
