2.4 Gray Guide function (US-version only)

The measurement function Gray Guide which is only part of the US-version of
SpectroDens Advanced and Premium supports the G7™ calibration of presses and
proofs developed by the IDEAlliance (International Digital Enterprise Alliance).
Page 58 Manual TECHKON SpectroDens Chapter 2 – Measurement functions

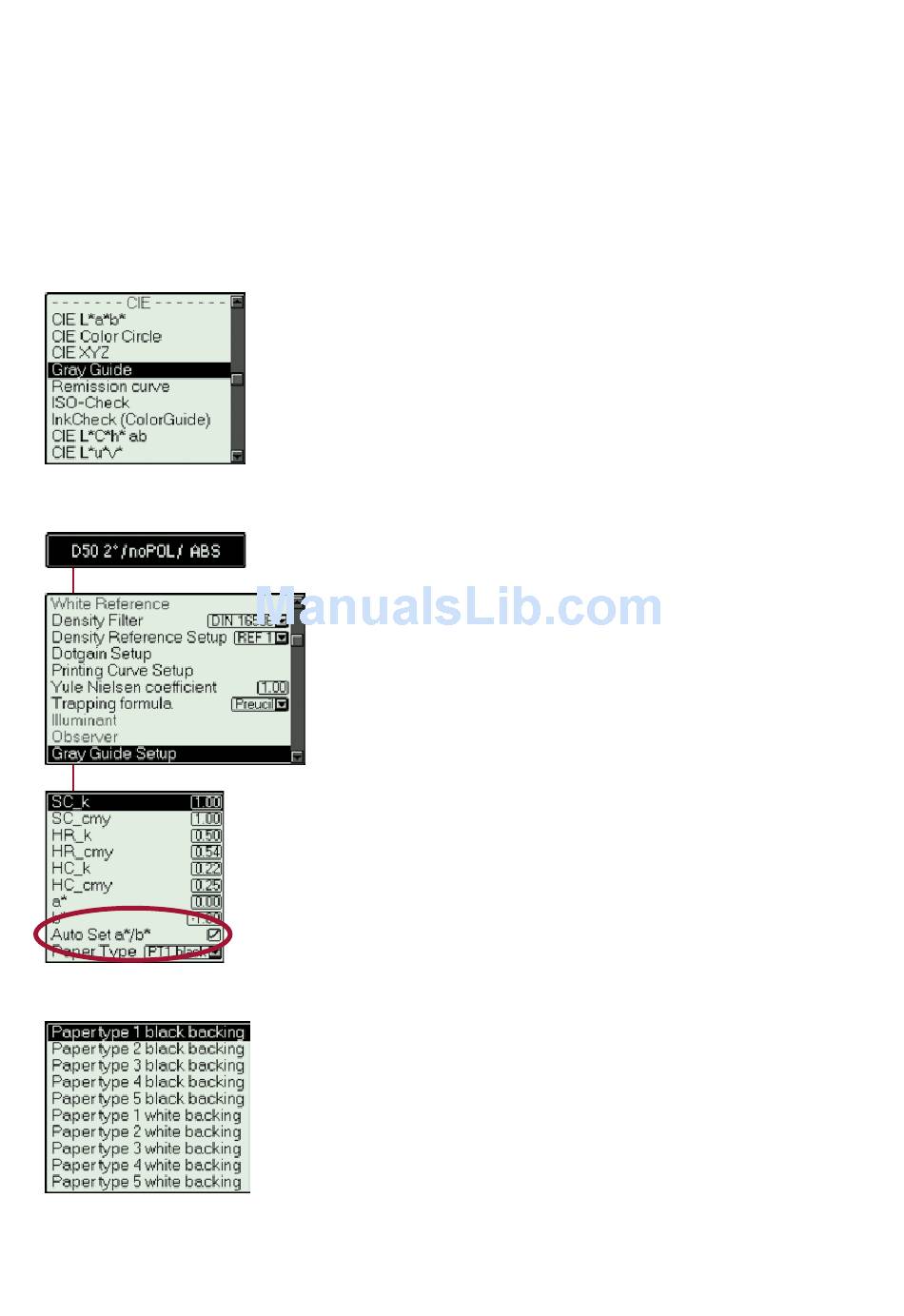

The Gray Guide mode can be selected in the
list of measurement functions, available in the
US-version of SpectroDens Advanced and
Premium.
In the Pop-Up window of the measurement
conditions the item Gray Guide Setup can be
chosen. Now target values can be edited and
printing conditions can be selected.
Edit the target values for SC, HR and HC for
K and CMY. For Auto Set a*/b* use half a*/b*
values of measured paper as target value.
For the comparison to the right ISO refe-
rence values the used paper type and backing
must be selected.
