2.2 Additional functions of SpectroDens Advanced

Printing Curve

The measurement function Printing Curve displays a complete transfer curve,
which describes how screen dots (and tonal values) are transferred during the several
process steps of the reproduction process.
1.
2.
3.
1. 2. ...
Manual TECHKON SpectroDens Chapter 2 – Measurement functions

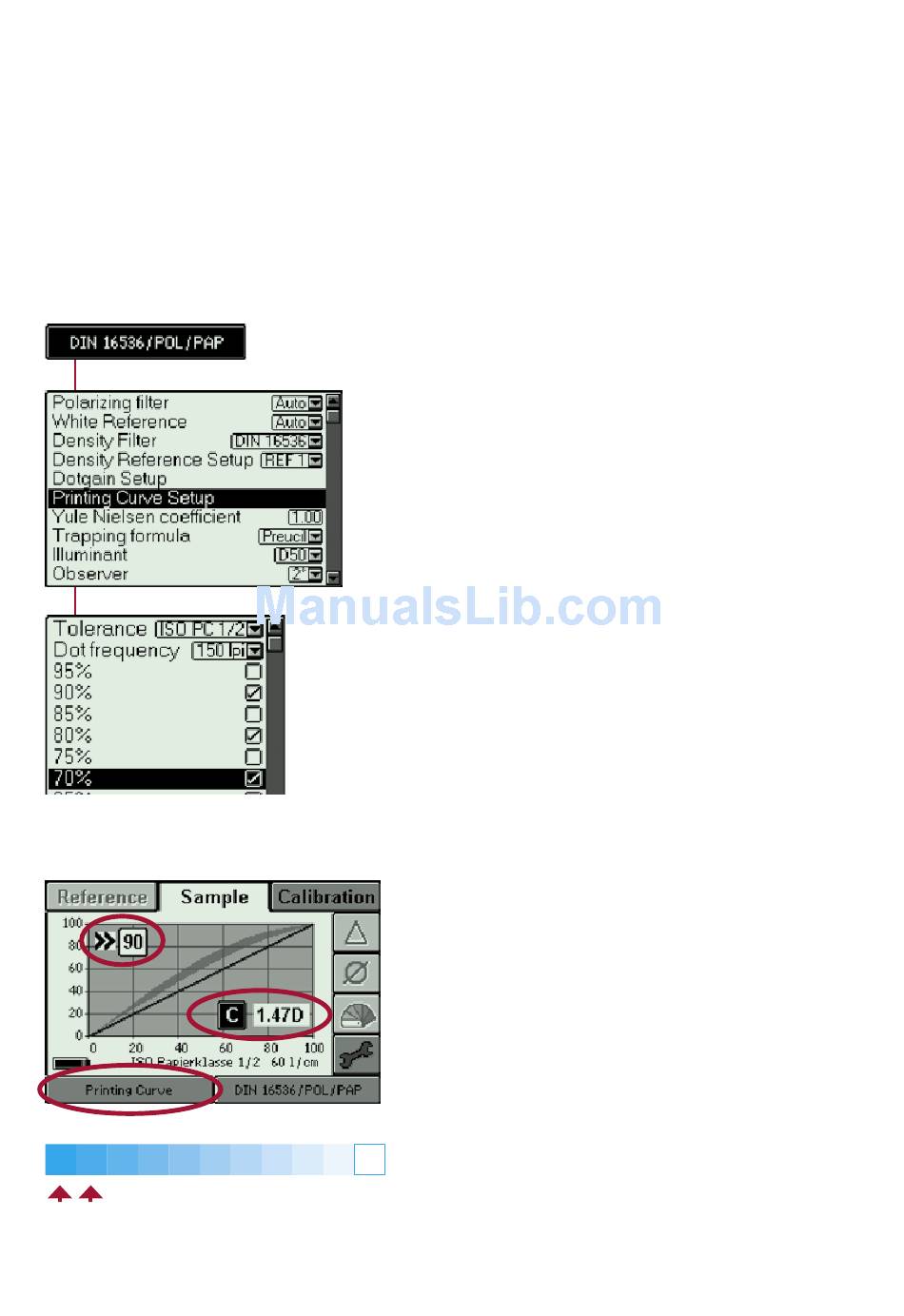

First, make the required settings in the Print-
ing Curve Setup:
1. Tolerance range can be set according to
standard values (in this case the ISO Paper
Class 1/2 was selected)
2. Dot (screen) frequency (only relevant for
the display of tolerance values)
3. Increments of the wedge to be measured,
e.g. in 10 % steps
In the first step a 100 %-(solid) patch is mea-
sured. SpectroDens recognizes automatically
the color and displays the solid density. In this
case D = 1.47 for Cyan.
The double arrow in the upper left corner
indicates that the next patch to be measured
will be a 90 %-patch.
Now all other pre-set %-patches can be mea-
sured on the measurement wedge.
