Manual TECHKON SpectroDens Chapter 2 – Measurement functions
4.
6.

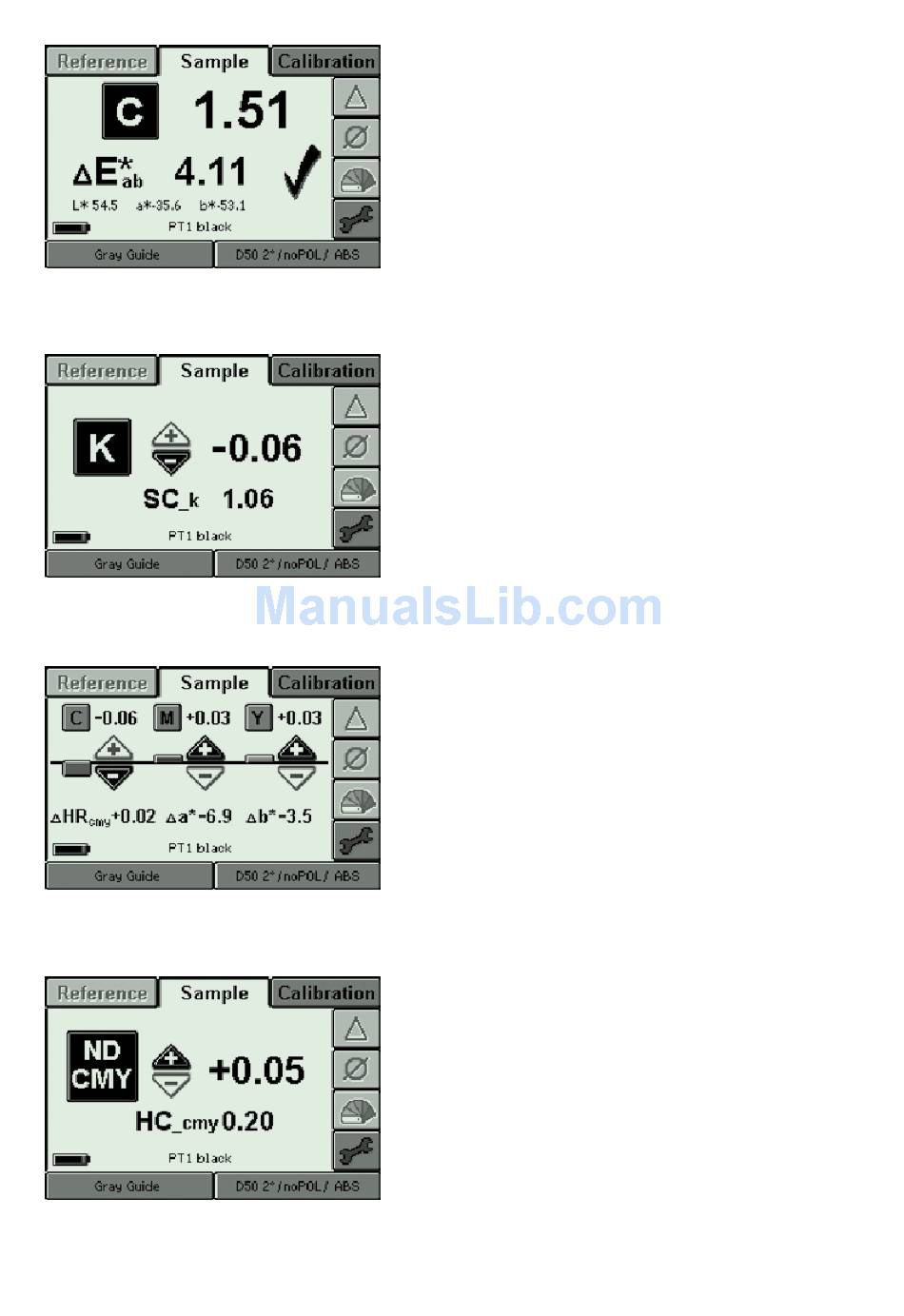

1. Detected color
2. Measured density
3. ∆E*-difference compared to ISO reference
4. Indication in/out tolerance
5. Measured L*a*b* value
6. ISO paper type and type of backing
1. Detected color
2. Direction of adjustment (-)
3. Recommended adjustment
4. Detected patch type
5. Target value
6. ISO paper type and type of backing
1. Color
2. Recommended adjustment
3. Adjustment as bar graph
4. Direction of adjustment; dark = active,
light = inactive
5. Detected patch type
6. Differences of HR_cmy and a*b* values
compared to target values
7. ISO paper type and type of backing
1. Indicator for neutral density "ND CMY"
2. Direction of adjustment (+)
3. Recommended adjustment
4. Detected patch type
5. Target value
6. ISO paper type and type of backing
