Techkon SpectroDens Manual page 13

Device settings with the display menu
Thanks to the interactive device menu, settings are very easy to adjust. The display
is divided logically into a center and a frame. The center displays the measurement
results. It is framed by interactive "soft keys" and status information displays.
Pressing shortly on one of the Arrow buttons will move an active cursor from
"soft key" to "soft key" around the frame. An active "soft key" is indicated by inverse
appearance, except for the items "Reference" and "Sample" which just open up to
the center window, when selected. By keeping an Arrow button pressed, the cursor
travels from "soft key" to "soft key" at a constant speed until the Arrow button is
depressed again.
By pressing the Enter button a function behind a "soft key" is selected and a select-
able menu appears. Within such a menu again the navigation is done via the Arrow
buttons and the selections are made with the Enter button. Some menu items or
"soft keys" might be shaded in appearance and can not be selected, because they are
only active in a higher performance package (Advanced or Premium) of SpectroDens.
Pressing the red, round Escape button will always bring you one step back in the
menu or will close a menu window. It can be compared to the Escape button or
Undo-function on a PC. It will always bring you back to the measurement mode.
1.
2.
1.
10.
9.
Manual TECHKON SpectroDens Chapter 1 – How to use SpectroDens
1. Escape button
2. Arrow buttons
3.
3. Enter button
2. 3.
8.

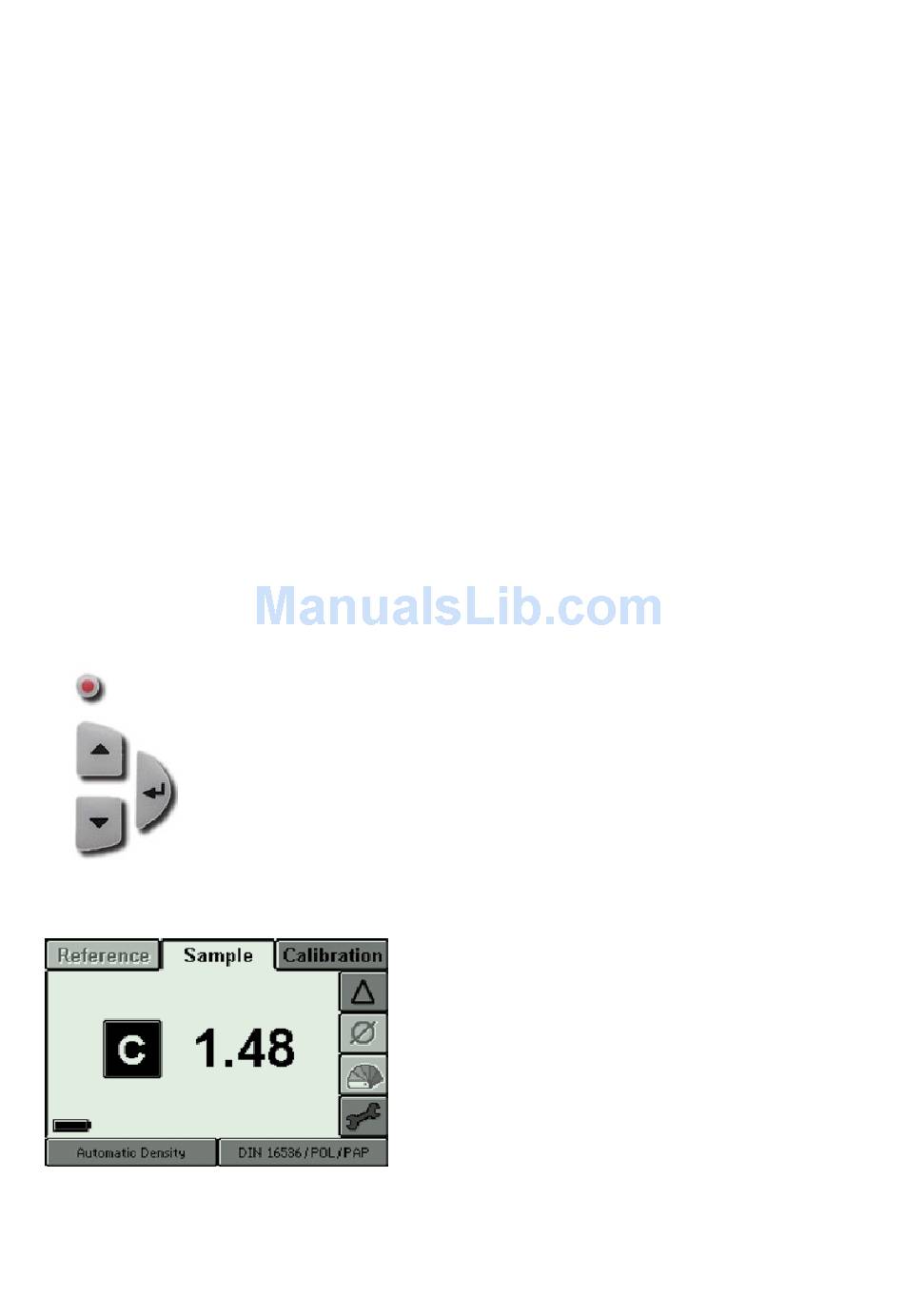

The center of the display shows the current
measurements.
1. Reference measurement
2. Sample measurement
3. Calibration
4.
4. DELTA-mode (= for comparisons)
5. Average function
5.
(only SpectroDens Premium)
6.
6. Color library
(only SpectroDens Advanced / Premium)
7.
7. Device settings
8. Measurement conditions
9. Measurement functions
10. Battery and charging status
Page 13
